Author Topic: B9 Bonanza!  (Read 62961 times)
Bexley
Sr. Member
****
Offline Offline

Posts: 364



WWW
« on: February 13, 2015, 07:26:11 PM »

I have ordered a 3D printer. The B9 Creator, to be specific. There's a four week lead time currently, so with any luck, I'll be printing by the end of March.
Logged

CounterClockwise

Bexley Andrajack
Chuck Doan
Mr. Wizard
Hero Member
*****
Offline Offline

Posts: 2585



WWW
« Reply #1 on: February 13, 2015, 09:06:25 PM »

I'll be interested in your results!
Logged

“They're most important to me. Most important. All the little details.” -Joseph Cotten, Shadow of a Doubt





http://public.fotki.com/ChuckDoan/model_projects/
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 6129


« Reply #2 on: February 14, 2015, 02:09:23 AM »

What kind of resolution do you expect? By that I mean in comparison with service bureaus you and our other 3-D printing guys have used: For example, would HO scale parts need much cleanup? That sort of thing.

And PLEASE keep us up to date as you experiment with the printer!

Russ
Logged
Bexley
Sr. Member
****
Offline Offline

Posts: 364



WWW
« Reply #3 on: February 14, 2015, 02:42:22 AM »

It goes as low as 30 microns X-Y, and 5 microns Z. In theory. The X-Y is pretty accurate, as it's based on the projector resolution/pixel size. (It will also do 50 and 75 micron X-Y, by repositioning the projector. So you trade resolution for larger print area, as the image gets larger when the projector is further away, projecting larger pixels.) The machine is capable of 5 micron increments in the Z axis, but people are getting the best results between 30 and 40 microns Z. Things like light transmission through the resin and overburn can affect the actual resolution, and require a bit of fiddling with settings.

We had the 1.1 version of the B9 at work, and the actual difference between the B9 prints and our pro machine were probably on average about 5-10 percent. With enough fiddling, we could achieve prints that, when primed, took a good hard study to determine which machine did which. My hope is that the new 1.2 version will improve on that. The biggest difference is the 1.2 uses an HD projector instead of a standard definition.

I can assure you, this will likely be the first place I begin posting my results.
« Last Edit: February 14, 2015, 03:11:41 AM by Bexley » Logged

CounterClockwise

Bexley Andrajack
Bexley
Sr. Member
****
Offline Offline

Posts: 364



WWW
« Reply #4 on: February 14, 2015, 02:56:49 AM »



Interestingly, the biggest market for the B9 is jewellers.













Logged

CounterClockwise

Bexley Andrajack
Bexley
Sr. Member
****
Offline Offline

Posts: 364



WWW
« Reply #5 on: February 14, 2015, 03:10:09 AM »



But there are some modellers.

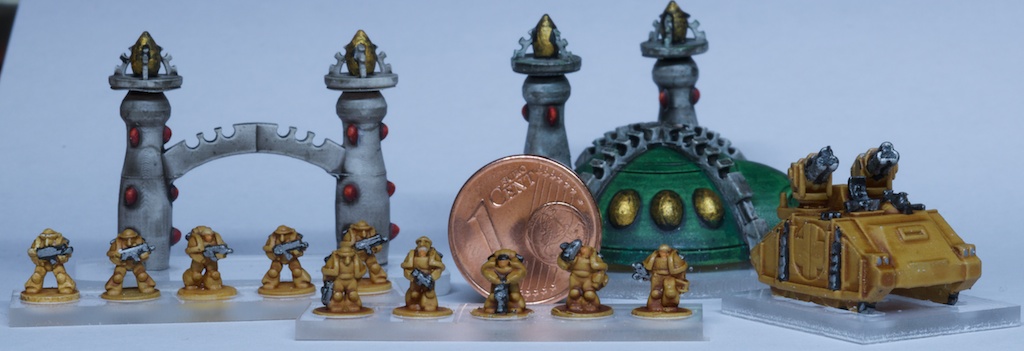

This one is N scale:

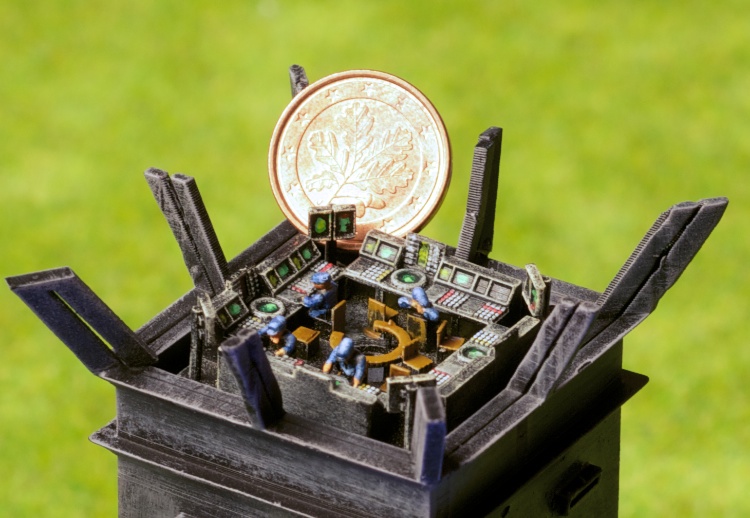

1/300 scale











Logged

CounterClockwise

Bexley Andrajack
Bexley
Sr. Member
****
Offline Offline

Posts: 364



WWW
« Reply #6 on: February 14, 2015, 03:16:15 AM »

Price just came down about $1000, too. $4800 for an assembled printer, $3700 for a DIY assembly kit. Strangely, their authorized distributor (which is where I ordered mine) is selling the kit for $3500.
Logged

CounterClockwise

Bexley Andrajack
Bill Gill
Hero Member
*****
Offline Offline

Posts: 1161



« Reply #7 on: February 14, 2015, 06:42:49 AM »

This is very interesting (I'd say "riveting", but might have to stay in the corner). Still beyond my budget and skills, but definitely something to keep an eye on.
Logged
eTraxx
Hero Member
*****
Offline Offline

Posts: 1020



WWW
« Reply #8 on: February 14, 2015, 02:08:15 PM »

This machine was one of those tested in Make: Annual Guide to 3d printing. The blurb at the top of the page says .. "Tinkerer's machine capable of the finest resolution of printers tested".
Logged

Ed Traxler

Lugoff, Camden & Northern RR

Socrates: "I drank WHAT?"
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 6129


« Reply #9 on: February 14, 2015, 02:16:11 PM »

Thanks for the additional info. This looks promising. -- Russ
Logged
Bexley
Sr. Member
****
Offline Offline

Posts: 364



WWW
« Reply #10 on: February 14, 2015, 04:35:42 PM »

This machine was one of those tested in Make: Annual Guide to 3d printing. The blurb at the top of the page says .. "Tinkerer's machine capable of the finest resolution of printers tested".

Yeah, the resolution was always the deal breaker for home machines, given how small the items are modelers would need. Plus, getting to run one at work and see real-world results before buying was nice.
Logged

CounterClockwise

Bexley Andrajack
Hauk
Hero Member
*****
Offline Offline

Posts: 998



WWW
« Reply #11 on: February 15, 2015, 02:12:43 PM »

The samples made on the B9 looks awesome. So awesome that I wonder why anyone would buy a more than ten times more expensive solidscape printer.

A little googling led to this forum thread, and it seems that the folks at MaxMini really knows a thing or two about both the B9 and the solidscape printers:

http://www.zbrushcentral.com/showthread.php?182002-MaxMini-eu-s-sketchbook-meddling-with-toy-soldiers
Logged

Regards, Hauk
--
”Yet for better or for worse we do love things that bear the marks of grime, soot, and weather, and we love the colors and the sheen that call to mind the past that made them”  -Junichiro Tanizaki

Remembrance Of Trains Past
Bexley
Sr. Member
****
Offline Offline

Posts: 364



WWW
« Reply #12 on: February 15, 2015, 05:32:48 PM »

I love how many times the guy mentions having to exaggerate details. Preach on, brother.
Logged

CounterClockwise

Bexley Andrajack
Bexley
Sr. Member
****
Offline Offline

Posts: 364



WWW
« Reply #13 on: March 11, 2015, 05:29:49 PM »

It shipped!

I won't have time for it until after next weekend, but it's on its way.
Logged

CounterClockwise

Bexley Andrajack
lab-dad
Hero Member
*****
Offline Offline

Posts: 2090



« Reply #14 on: March 12, 2015, 05:47:09 AM »

When can we start placing orders?
-for you to make stuff for us!  Grin

JK - Mj
Logged
