Wooden ore cars

Started by Hauk, February 15, 2014, 04:51:31 PM

Previous topic - Next topic
Print
Go Down Pages 1 ... 11 12 13 14 15 16 17 ... 21
User actions

1-32

#195
May 28, 2015, 05:34:23 PM
the plastic brake shoes look really nice
regards kim

Ray Dunakin

#196
May 28, 2015, 09:36:42 PM
Great work, and a clever solution.

finescalerr

#197
May 28, 2015, 11:32:03 PM
Most satisfactory. -- Russ

Design-HSB

#198
May 29, 2015, 03:34:28 PM
Hello Hauk,

nice that it continues and in my view the best solution.

Chuck Doan

#199
May 29, 2015, 09:59:58 PM
Nice.
"They're most important to me. Most important. All the little details." -Joseph Cotten, Shadow of a Doubt





http://public.fotki.com/ChuckDoan/model_projects/

Peter_T1958

#200
May 30, 2015, 02:10:25 AM
You know, this thread is something I look forward to each and every time I log in. Also this time a simple but innovative approach that can also encourage those who have not (yet) the possibility of 3D printing!
I love your ore cars!

Cheers, Peter
"Simplicity is the ultimate sophistication" -Leonardo Da Vinci-

https://industrial-heritage-in-scale.blogspot.ch/

Hauk

#201
September 10, 2015, 01:17:55 PM

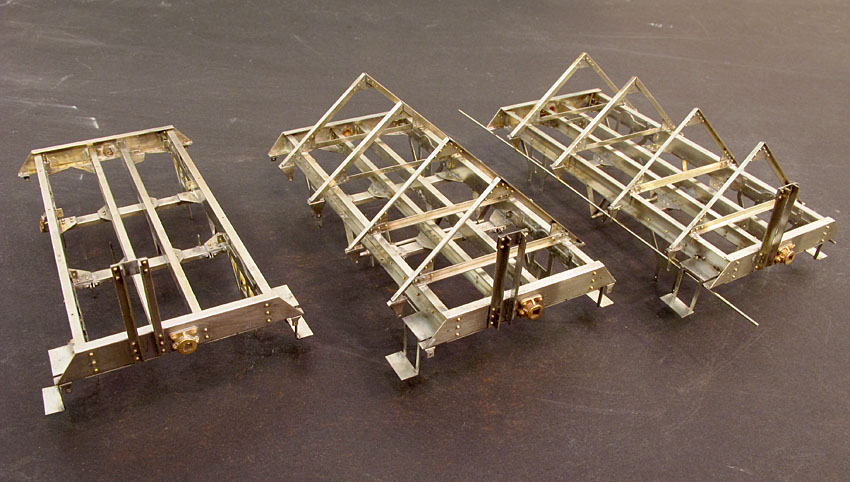

I have not given up my modeling, but as I am building 3 cars simultaneously, a lot of work done lately have been covered in earlier posts.

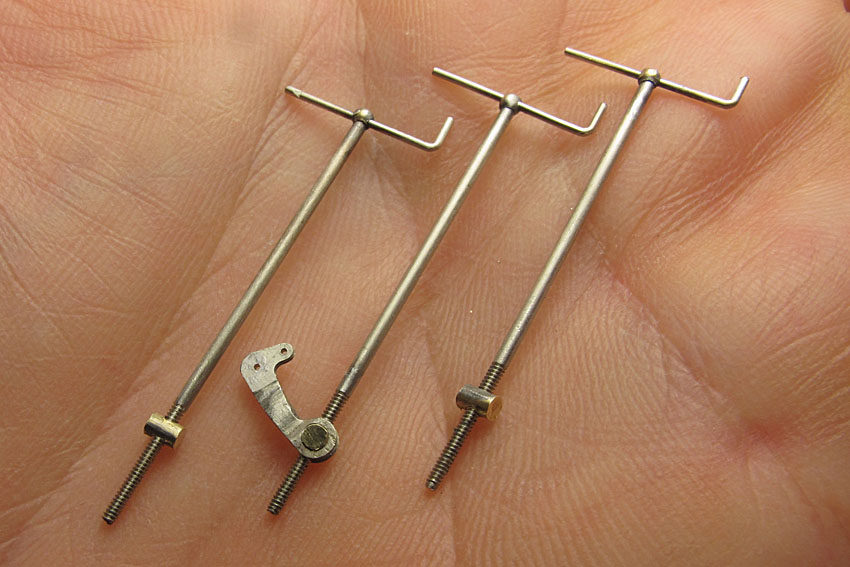

But last night I broke some new ground. 3 sets of brake cranks have been made:

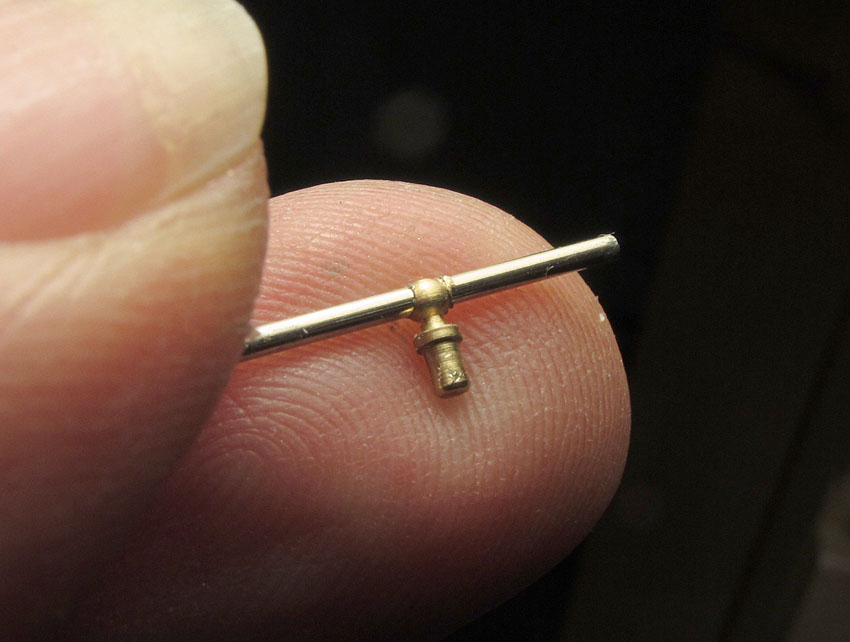

The cranks are strictly handmade, no CNC, 3D printing or CAD involved! The brass knob at the top is kit bashed, as it started as a handrail knob:


Regards, Hauk
--
Statement of authencity: All the content in this post was made without using AI in any form. This includes the modelling, the photography, post-prosessing and writing.

Remembrance Of Trains Past

Bill Gill

#202
September 10, 2015, 01:57:52 PM
Clever adaptation, good looking brake cranks. Will the brakes be functional?

Hauk

#203
September 10, 2015, 02:00:20 PM
Quote from: Bill Gill on September 10, 2015, 01:57:52 PM
Clever adaptation, good looking brake cranks. Will the brakes be functional?

Possible on one of the wagons. Hard to resist a little show-off potential...
Regards, Hauk
--
Statement of authencity: All the content in this post was made without using AI in any form. This includes the modelling, the photography, post-prosessing and writing.

Remembrance Of Trains Past

lab-dad

#204
September 10, 2015, 05:35:39 PM
Gorgeous!
What is the thread size/pitch?
May have to find a place to use some of those!

Marty

Ray Dunakin

#205
September 10, 2015, 05:38:33 PM
Wow, stunning work!

Chuck Doan

#206
September 10, 2015, 09:02:33 PM
Excellent work! So nice to see.
"They're most important to me. Most important. All the little details." -Joseph Cotten, Shadow of a Doubt





http://public.fotki.com/ChuckDoan/model_projects/

Hauk

#207
September 10, 2015, 09:59:39 PM
Quote from: lab-dad on September 10, 2015, 05:35:39 PM
Gorgeous!
What is the thread size/pitch?
May have to find a place to use some of those!

Marty

The threads are M1. Rod size 1mm for dies, Drill size 0,8mm for tapping.

Regards, Hauk
--
Statement of authencity: All the content in this post was made without using AI in any form. This includes the modelling, the photography, post-prosessing and writing.

Remembrance Of Trains Past

finescalerr

#208
September 11, 2015, 12:12:06 AM
Good heavens, that is just beautiful! Also modestly impressive. -- Russ

Franck Tavernier

#209
September 11, 2015, 11:35:04 AM Last Edit: September 11, 2015, 11:36:43 AM by Franck Tavernier
Beautiful work Hawk!  ;)

Franck
