« Reply #525 on: March 15, 2021, 02:43:20 PM »

That is an excellent process for creating corrugated panels, well done. Definitely going to make an attempt to replicate your fixture for 1:48.
Logged

Paul

Rarely mistaken for a ray of sunshine.
fspg2
Sr. Member
****
Offline Offline

Posts: 331



« Reply #526 on: March 18, 2021, 11:02:46 AM »

@ Paul

Good luck - please report about it!

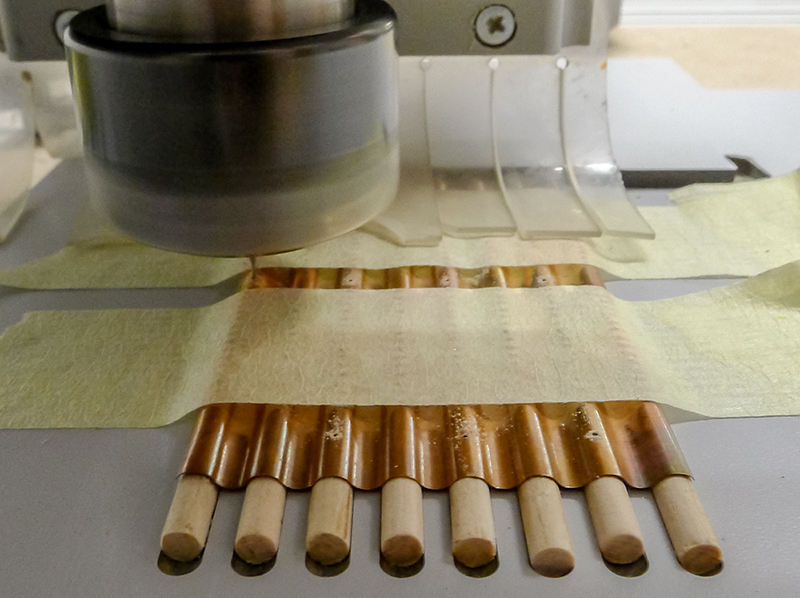

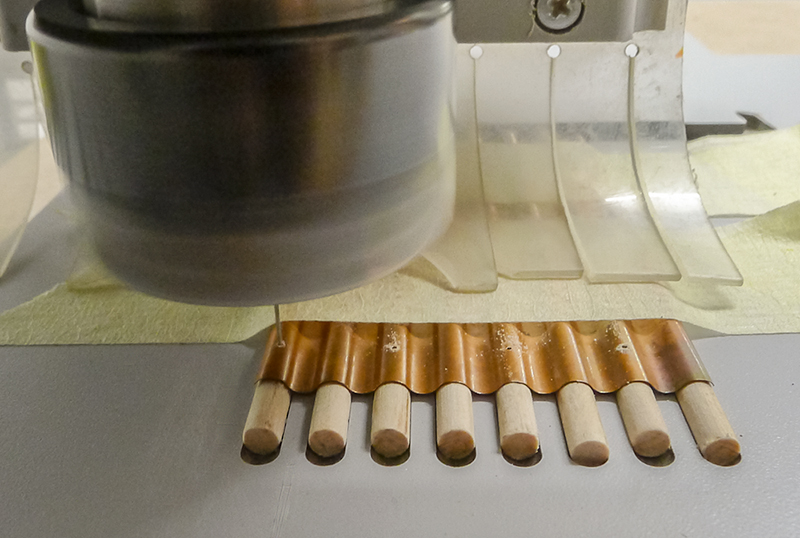

In the meantime, I have punched all of the corrugated sheet metal appropriately for attachment to the roof battens. To do this, I milled grooves again on the milling machine and glued in round bars. This gave me precise positioning and counter pressure when drilling.


Dreh-Schiebebuehne_95 (fspg2)



Dreh-Schiebebuehne_93 (fspg2)



Dreh-Schiebebuehne_94 (fspg2)

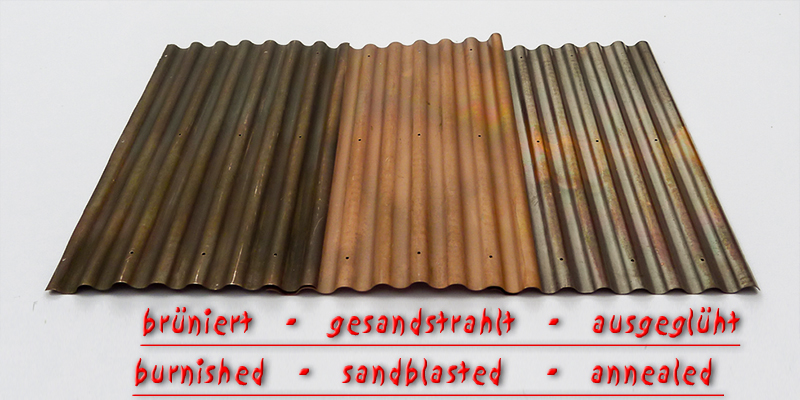

In addition, I made a few small experiments to give the corrugated iron sheets a little color.


Dreh-Schiebebuehne_96 (fspg2)


The three plates above are used for practice and will be further maltreated.

 Let's see how I get things rusted through ...
Logged

Frithjof
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 6040


« Reply #527 on: March 19, 2021, 12:27:23 PM »

Excellent. -- Russ
Logged
Barney
Sr. Member
****
Offline Offline

Posts: 353


« Reply #528 on: March 19, 2021, 03:04:27 PM »

Well thought out workmanship - and so many ideas to help us all
Barney
Logged
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 4464



WWW
« Reply #529 on: March 20, 2021, 10:47:17 PM »

I tried something sort of like this but my method didn't work very well, and I had to go with a much more labor-intensive way to make corrugated sheet. But this is giving me some new ideas. I'll have to do some experimentation and see if I can adapt your technique using the limited tools I have.
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakin’s World
Hydrostat
Hero Member
*****
Online Online

Posts: 835



WWW
« Reply #530 on: March 22, 2021, 08:25:53 AM »

I tried something sort of like this but my method didn't work very well, and I had to go with a much more labor-intensive way to make corrugated sheet. But this is giving me some new ideas. I'll have to do some experimentation and see if I can adapt your technique using the limited tools I have.

Ray, I don't want to hijack Frithjof's thread. I think there's a solution for limited tools as well; take a look here: http://www.finescalerr.com/smf/index.php?topic=1983.msg64925#new
Logged

I'll make it. If I have to fly the five feet like a birdie.

I'll fly it. I'll make it.
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 6040


« Reply #531 on: March 22, 2021, 01:10:27 PM »

That is more suited to my rudimentary skill set. -- Russ
Logged
fspg2
Sr. Member
****
Offline Offline

Posts: 331



« Reply #532 on: April 01, 2021, 11:30:02 AM »

At the beginning of January 2017 I looked in vain for Plakafarbe no.25 (brick red).

According to information from Pelikan  this color has been removed from the range taken and should not be reissued.

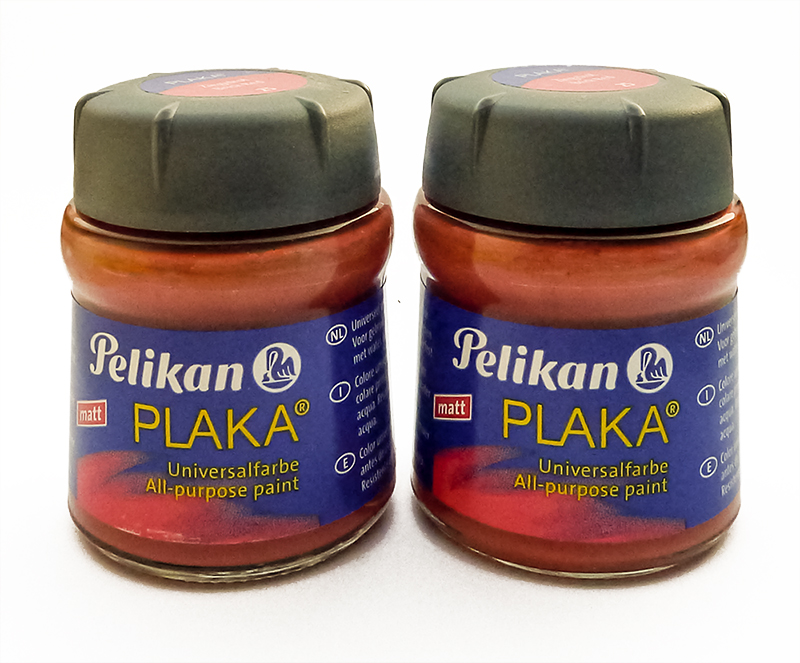

Over the past few years I've tried Google every now and then ... always without success ... until recently. A dealer had, declared as a special item, two small glasses with the desired color. So ordered yesterday and received by DHL today - it was almost like Christmas, I can give a few parts of the wall the same color as the remaining parts.


Plaka_Ziegelrot_25_ (fspg2)


Among other things, the walls of the small locomotive shed and the border of the transfer platform will be treated with a paint roller after a gray primer - similar to the one shown
in the post from 07/14/2008 gezeigt.

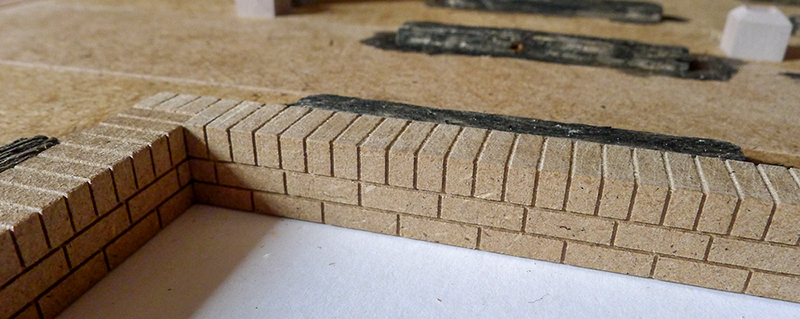

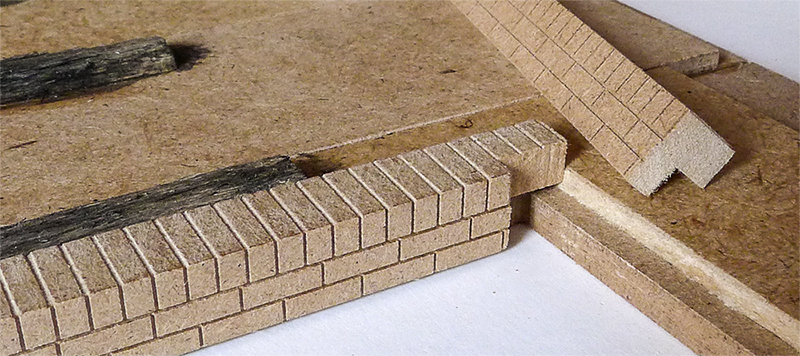

The border of the transfer platform was re-milled with upright stones and should now see color.

Dreh-Schiebebuehne_98 (fspg2)



Dreh-Schiebebuehne_99 (fspg2)



It went a little further - albeit a little slower than I would like! My second cataract operated eye still has to get used to me a little. But it's getting a little better every day.



Dreh-Schiebebuehne_100 (fspg2)

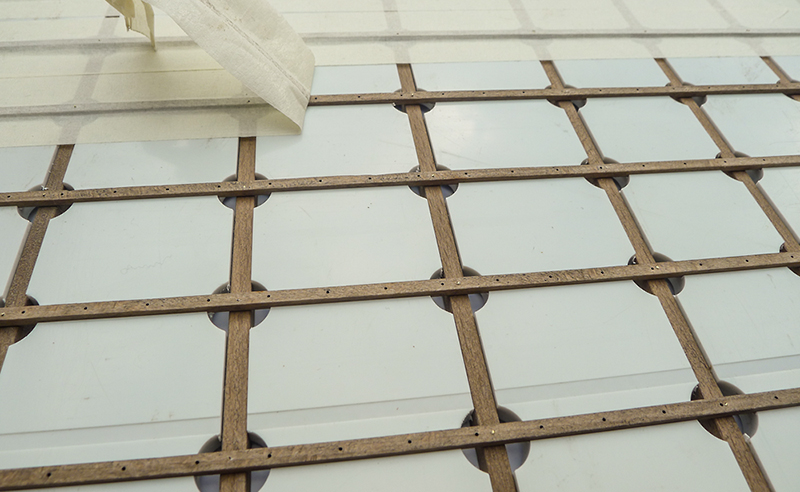

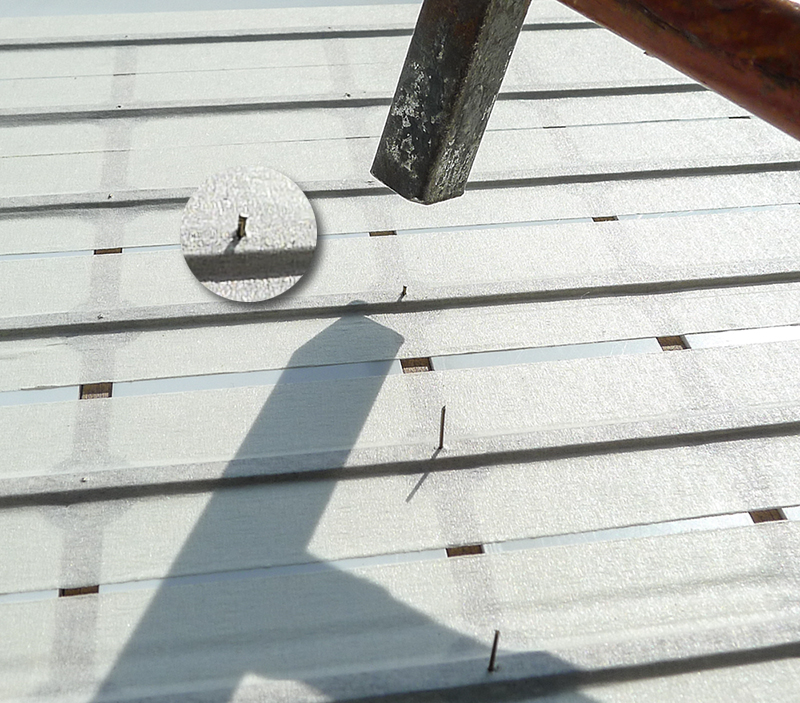

All holes of the rafters and the roof battens were drilled with a 0.5mm drill on the router.

0.5mm wires prevented them from being pulled together by the moisture during the first pickling process.

Dreh-Schiebebuehne_101 (fspg2)

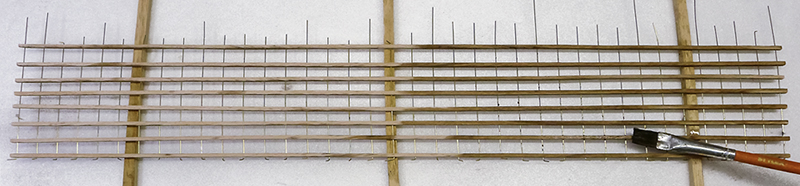

A polystyrene gauge was used to assemble the individual elements. Additional holes were drilled here to connect the rafter holes through the roof battens.


Dreh-Schiebebuehne_102 (fspg2)

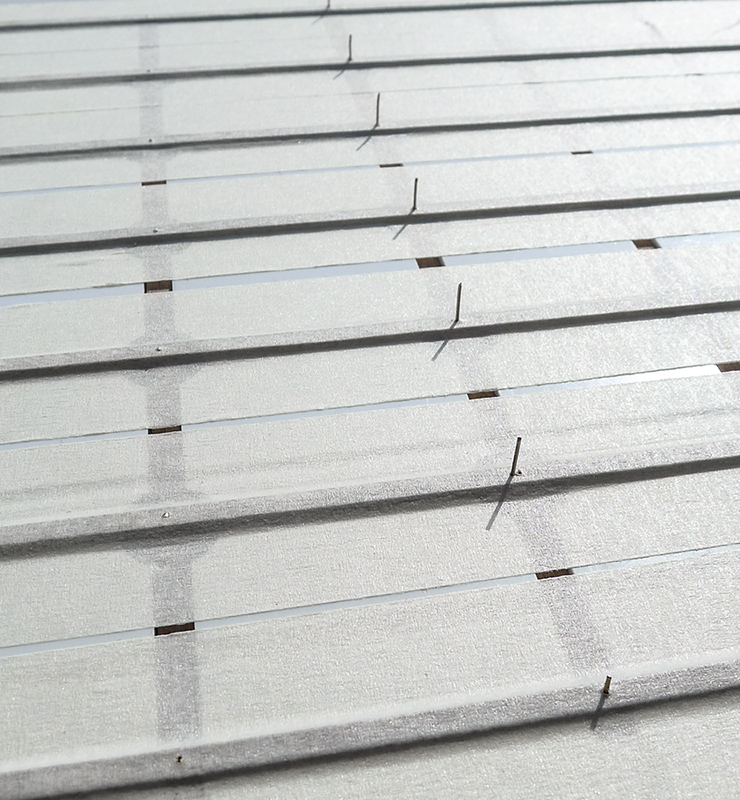

At first I drilled through the existing rafter holes with a 0.5mm drill (with a 1/8-inch shaft) into the roof battens underneath.
After the first drill, which was carefully turned by hand, broke off, I had taken a thinner "auxiliary rafter" as a drilling aid ... this drill also broke off very quickly Shocked

Fortunately I found some 0.5mm HSS drills with 0.5mm shank in a small, forgotten bag. Clamped into a pin block, all remaining holes could now be drilled without any further problems.


Dreh-Schiebebuehne_103 (fspg2)

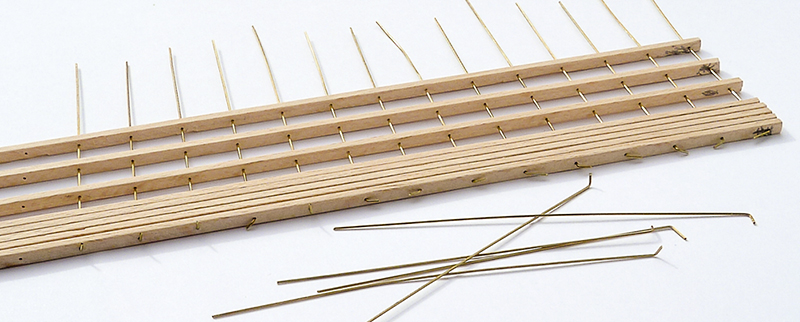

Then everything was pinned with short 0.5mm brass wires ...


Dreh-Schiebebuehne_104 (fspg2)



... and brought into the wood with light hammer blows. The wire got a little thick head.


Dreh-Schiebebuehne_105 (fspg2)



Dreh-Schiebebuehne_106 (fspg2)



So that the superglue only bonds to the wood and not to the polystyrene gauge, the knot areas had a circular cutout in the gauge.


Dreh-Schiebebuehne_107 (fspg2)



Dreh-Schiebebuehne_108 (fspg2)

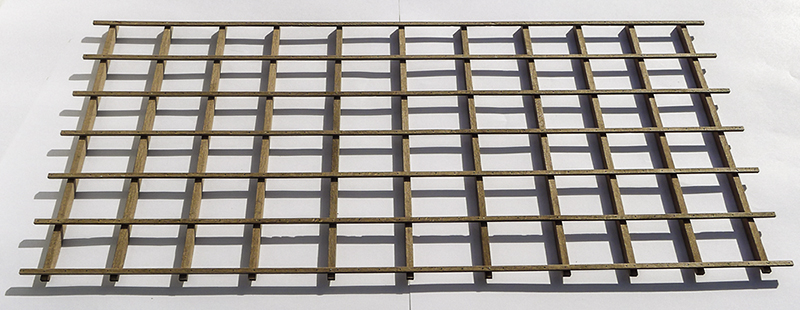

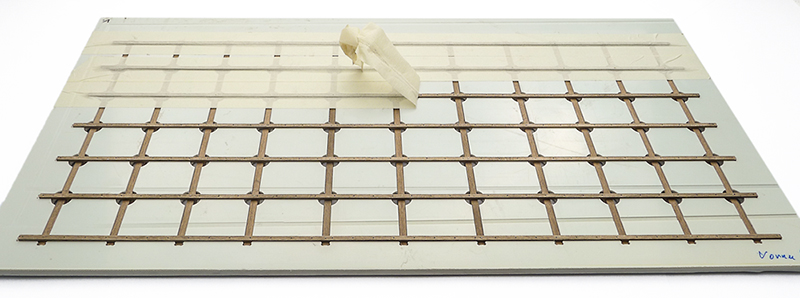

As a test, the rafter framework was laid loosely.


Dreh-Schiebebuehne_109 (fspg2)


There will be further aging with stain, pigments and various Prismacolor Premier-Farbstiften.

Logged

Frithjof
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 6040


« Reply #533 on: April 01, 2021, 12:43:35 PM »

Beautiful. -- Russ
Logged
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 4464



WWW
« Reply #534 on: April 03, 2021, 11:23:58 PM »

I like your method of assembling the rafters!
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakin’s World
fspg2
Sr. Member
****
Offline Offline

Posts: 331



« Reply #535 on: April 14, 2021, 09:08:18 AM »

It got a little dirty:

Dreh-Schiebebuehne_110 (fspg2)

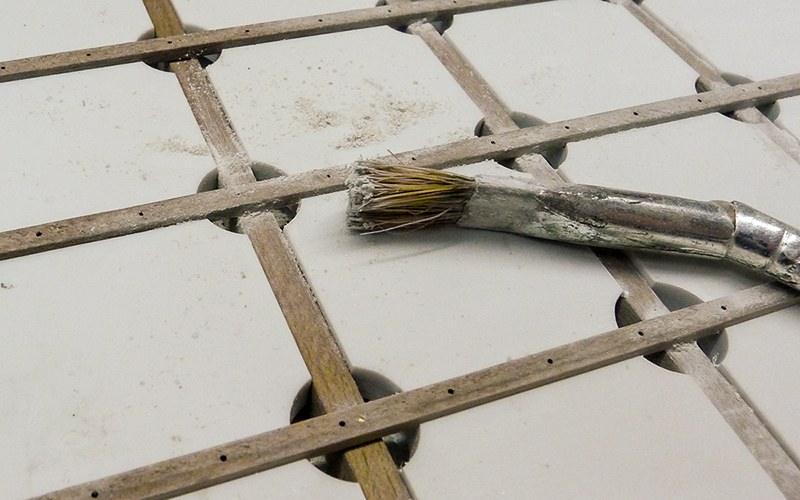

After superglue had been applied to the edges of the roof battens on both sides with a thin wire, I pressed the area briefly and forcefully and dusted it with tile mortar.

The resulting thickenings are later darkened even further and reflect the dirt accumulated there. However, it will only be visible on the front and rear long edges under the corrugated metal sheets on top.

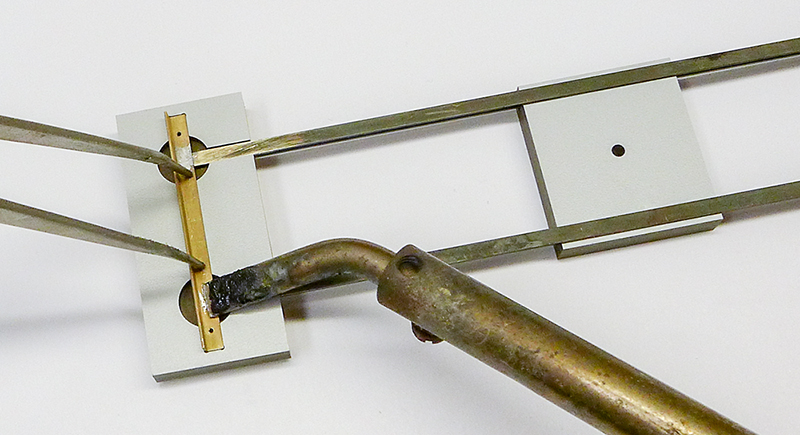

You don't necessarily need a milling machine to build such gauges. Such aids can also be glued together using "boards" that have been sawn out accordingly. in the meantime there were only a few small steps, so the rails on the edge of the stage were soldered to an L-profile. Small gauges ensured the right-angled alignment.


Dreh-Schiebebuehne_111 (fspg2)



The floor was also treated a little. As a basis I again applied Molto-Holz-Reparaturspachtel. It was made supple by adding a little water and pressed on the wooden surface with the fingers in a wavy manner. The advantage over plaster is the slight flexibility after drying. On the modules built in 2007, I haven't got any cracks or chipping on the edges or edges to this day.


Dreh-Schiebebuehne_112 (fspg2)



A short rehearsal with the loosely laid tracks took place here.


Dreh-Schiebebuehne_113 (fspg2)

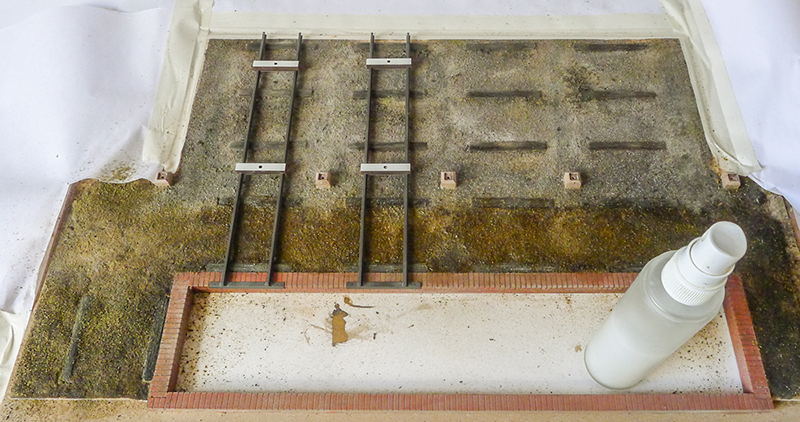

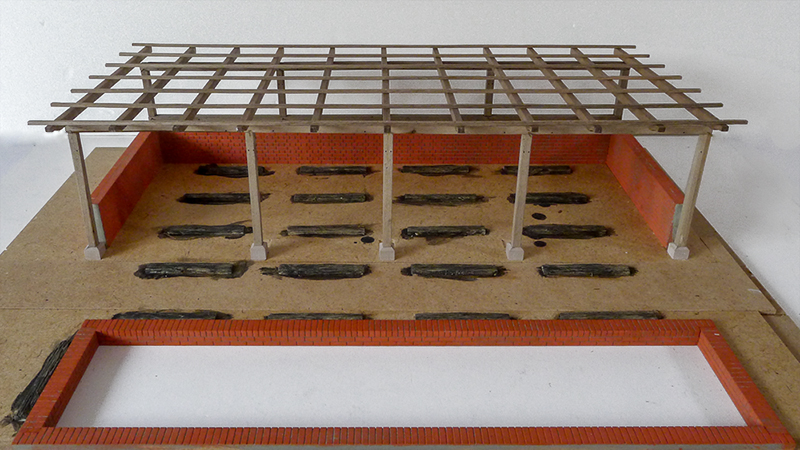

The floor of the shed was provided with several layers of earth, sand and stone meal one after the other.

Dreh-Schiebebuehne_114 (fspg2)

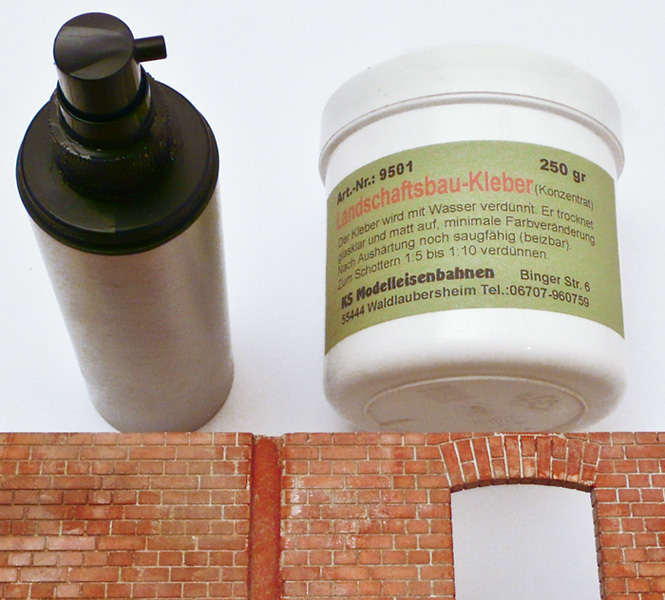

Each layer was sprayed with a landscape and construction adhesive that was unfortunately no longer available.


Alter_Lagerschuppen_200 (fspg2)



The advantage of this glue compared to wood glue is that all parts glued with it can be stained afterwards and the brightness of the color is retained after drying
Cheesy
So much for today - the walls and tracks will still retain a number of signs of aging ...



Dreh-Schiebebuehne_115 (fspg2)
