Author Topic: 2 Foot gauge tractor loco in 1/16th scale  (Read 64695 times)
Wesleybeks
Full Member
***
Offline Offline

Posts: 157



« Reply #60 on: March 18, 2015, 05:23:38 AM »

HAHA. Thats classic. Ill be willing to bet good money this picture was taken somewhere here in africa.

Ive seen some crazy things on this crazy continent. That ranks right up there.
Logged

Kind Regards
Wesley

Modelling in sunny South Africa
Lawton Maner
Hero Member
*****
Offline Offline

Posts: 606


« Reply #61 on: March 18, 2015, 11:20:59 AM »

Russ, please let Nick out of the corner. Being alone over there for so long is beginning to have a negative effect on him.
Logged
Chuck Doan
Mr. Wizard
Hero Member
*****
Offline Offline

Posts: 2506



WWW
« Reply #62 on: March 22, 2015, 04:43:25 PM »

Finished the design. Added the wood box mounted in the front. Assuming it was for odds and ends like spare coupler links and tools.






And I sent of a starter kit to Shapeways. Should be able to begin building soon I hope.





Logged

“They're most important to me. Most important. All the little details.” -Joseph Cotten, Shadow of a Doubt





http://public.fotki.com/ChuckDoan/model_projects/
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #63 on: March 22, 2015, 07:19:34 PM »

SHOOOT!
Can anyone order a "kit"Huh?
Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5660


« Reply #64 on: March 23, 2015, 01:06:16 AM »

That will be gorgeous. I love the drawing. -- Russ
Logged
Chuck Doan
Mr. Wizard
Hero Member
*****
Offline Offline

Posts: 2506



WWW
« Reply #65 on: March 23, 2015, 09:55:17 AM »

Marty, PM sent.

Thanks Russ!


Logged

“They're most important to me. Most important. All the little details.” -Joseph Cotten, Shadow of a Doubt





http://public.fotki.com/ChuckDoan/model_projects/
Bill Gill
Hero Member
*****
Offline Offline

Posts: 961



« Reply #66 on: March 23, 2015, 12:14:55 PM »

HooDoggies that's neat!
Logged
TRAINS1941
Hero Member
*****
Offline Offline

Posts: 1348


« Reply #67 on: March 24, 2015, 05:09:59 PM »

This will be a real beauty.  Can't wait to see the first steps.

No wonder Marty wants to do one!!!

Jerry
Logged

Why isn't there mouse-flavored cat food?
George Carlin
Chuck Doan
Mr. Wizard
Hero Member
*****
Offline Offline

Posts: 2506



WWW
« Reply #68 on: March 26, 2015, 11:40:27 PM »



I received my "kit" today. Excellent service from Shapeways, and the Post Office who delivered it a day early. I gave the frame a quick coat of primer and now I will let the tractor sit on it for a while to see what happens. The attachment points of the heavy die-cast will bear down directly over the wheels and hopefully it will all stay nice and straight.

Logged

“They're most important to me. Most important. All the little details.” -Joseph Cotten, Shadow of a Doubt





http://public.fotki.com/ChuckDoan/model_projects/
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5660


« Reply #69 on: March 27, 2015, 01:04:45 AM »

Is the tractor body from the same manufacturer as the one you so extensively modified? -- Russ
Logged
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #70 on: March 27, 2015, 06:13:37 AM »

I like the end beams flush not dropped down.
Which will you do?

Could the sways parts be used for lost wax casting the parts in metal(brass)?
Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
Chuck Doan
Mr. Wizard
Hero Member
*****
Offline Offline

Posts: 2506



WWW
« Reply #71 on: March 27, 2015, 08:14:51 AM »

Yes Russ it's a Danbury mint item.

Marty, they offer a wax printing service for casting, but the size is limited to just under 4" long. I don't think this material would melt out cleanly, but I don't know for sure.

The dropped beams were unique to this design. Actually, very strange.
Logged

“They're most important to me. Most important. All the little details.” -Joseph Cotten, Shadow of a Doubt





http://public.fotki.com/ChuckDoan/model_projects/
billmart
Full Member
***
Offline Offline

Posts: 143


« Reply #72 on: March 30, 2015, 09:40:34 AM »

Wow!  Seeing the printed parts makes me even more interested in this project.  Love it - love it - love it. Grin

Bill Martinsen
Logged
Franck Tavernier
Sr. Member
****
Offline Offline

Posts: 305


WWW
« Reply #73 on: March 31, 2015, 03:21:11 PM »

Hi Chuck,

Hum, yum, yum! Nice project and still with the Danbury Mint Fordson tractor!

Franck
Logged

Chuck Doan
Mr. Wizard
Hero Member
*****
Offline Offline

Posts: 2506



WWW
« Reply #74 on: May 22, 2015, 09:29:41 PM »

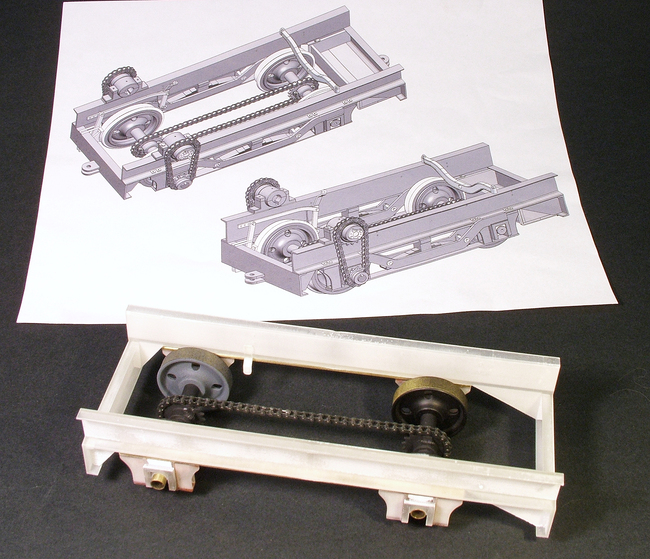

Test fitting the chain and journals.

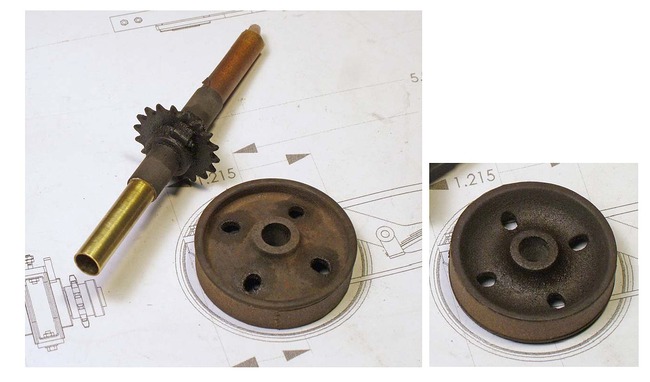

Starting to paint some parts
Logged

“They're most important to me. Most important. All the little details.” -Joseph Cotten, Shadow of a Doubt





http://public.fotki.com/ChuckDoan/model_projects/
