Author Topic: Some recent work on the In-ko-pah RR  (Read 47921 times)
Bill Gill
Hero Member
*****
Offline Offline

Posts: 1077



« Reply #195 on: January 06, 2021, 06:50:15 AM »

Ray, great restoration work! And the slight differences you noted in crispness or coloring, etc. just add to the overall realistic appearnce of buildings that weather and get repaired. Good stuff!
Logged
Barney
Sr. Member
****
Offline Offline

Posts: 353


« Reply #196 on: January 06, 2021, 11:19:33 AM »

Excellent - so realistic - and its out doors !! do you ever have trouble with small animals - I had some stuff in the garage and the mice got at it - demolished 2 wooden buildings and chewed some wires - good job we don't have Rhinos in the area
Barney
Logged
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 4464



WWW
« Reply #197 on: January 06, 2021, 12:39:25 PM »

Thanks guys. Barney, the most trouble I have had with animals has been some minor damage when a raccoon shoved some buildings off their foundations while searching for lizards. The raccoons have also damaged the handrails on a plate girder bridge, and crushed a few of the scale plants.

Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakinís World
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 4464



WWW
« Reply #198 on: January 07, 2021, 12:42:50 AM »

I had a real face palm moment this evening.

I was geared up to install the glass in the door frames of the second story. This is a bit tricky because the interior furnishings leave limited space to reach inside. I used a toothpick to smear silicone sealant all over the inner surface of the first door frame, including the arched window above it. Then I went to put the glass into place....and it didn't fit!

When I cut the glass I measured the door frames from the outside, and forgot that the inner surface is slightly smaller. Doh!

So I had to try to clean the silicone off the door frame as best I could, and also clean it off the glass. Tomorrow I'll have to take the glass pieces out to the patio and try to trim them down.
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakinís World
Design-HSB
Hero Member
*****
Offline Offline

Posts: 864


Klosterstollen


WWW
« Reply #199 on: January 07, 2021, 11:21:35 AM »

Hello Ray, this confirms once again experience is the sum of errors.
Logged

Regards Helmut
the journey is the goal
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 4464



WWW
« Reply #200 on: January 14, 2021, 01:43:09 AM »

Well, I cut a second set of glass semi-circles, slightly smaller than the first set, and discovered that they didn't fit correctly either. Apparently the arch is not an exact semi-circular shape. So I ended up just trimming the ends of the first set until they were roughly the right shape to fit.

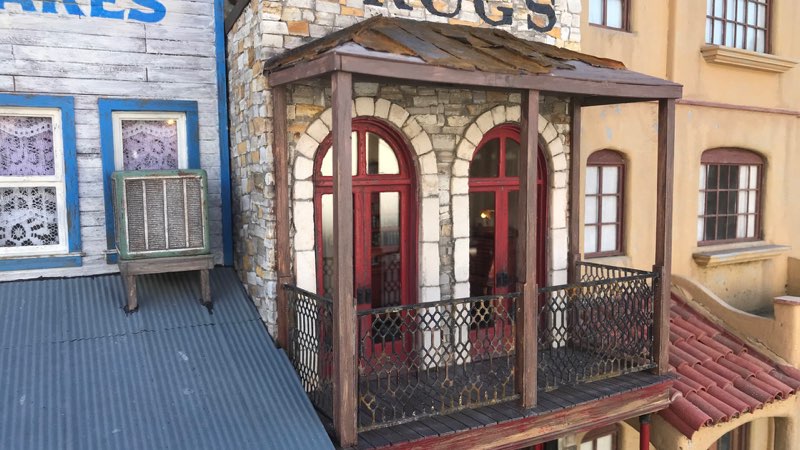

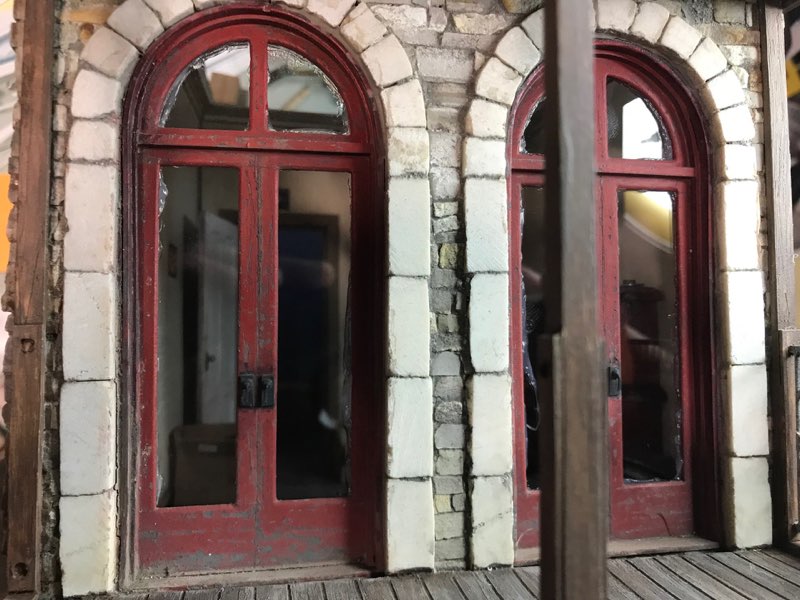

The glass was secured using clear silicone sealant. Normally I do this before the window frames are installed in the building but of course that wasn't possible here. As a result it got a little sloppy and I had a lot of excess silicone that needed to be removed:

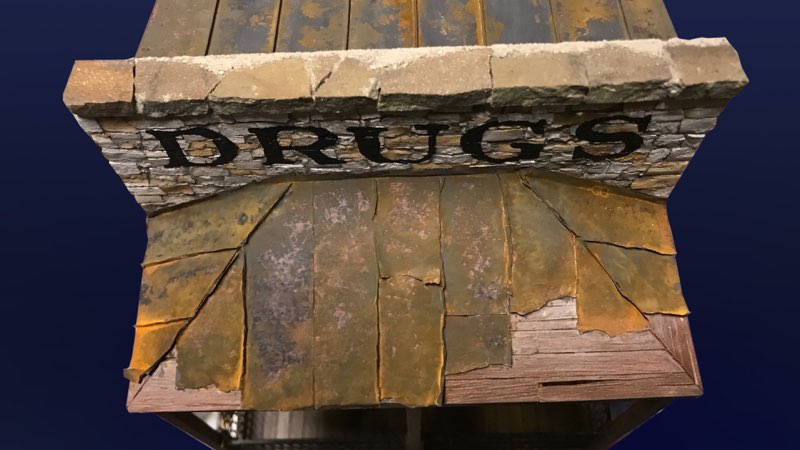

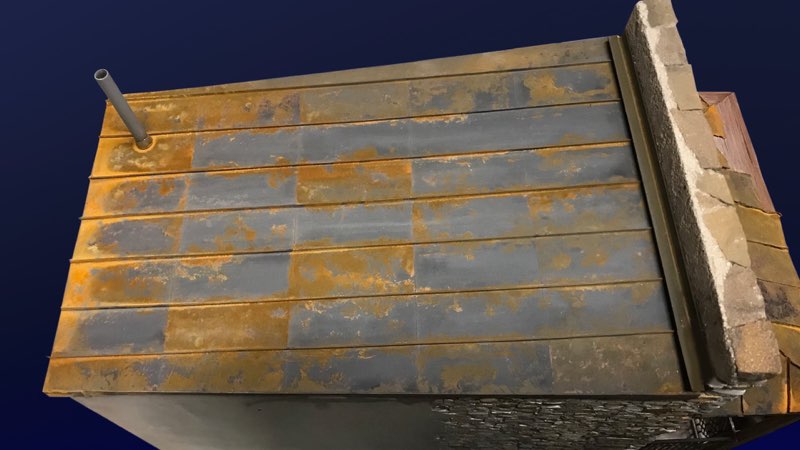

I decided to enhance the look of the faux metal roof by giving it some real rust. I used the iron paint, and chemical rust solution, from Sophisticated Finishes. Right now it's a bit too orange but over time it will become darker and more brownish:

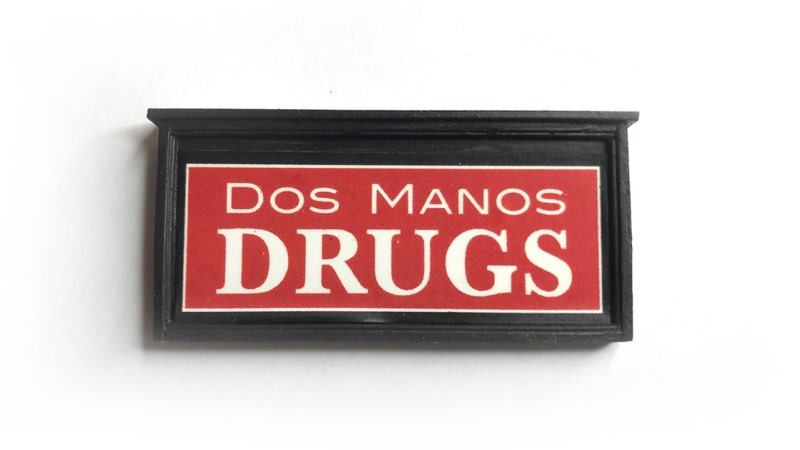

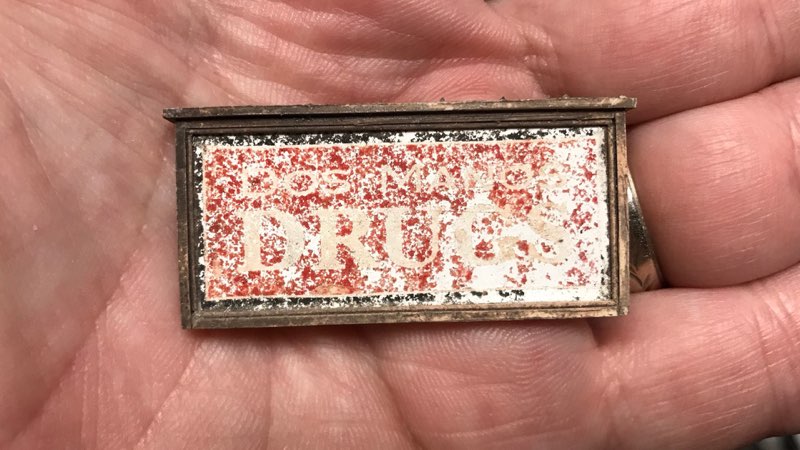

The sign that hangs down over the entry was in very poor condition, but looks much better now:

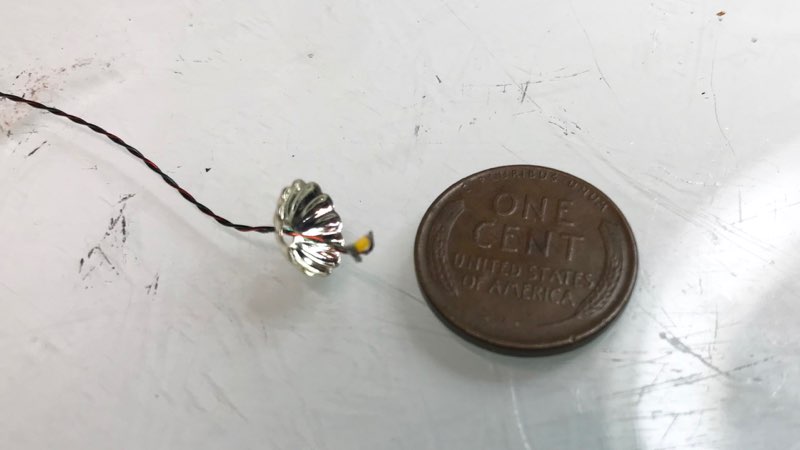

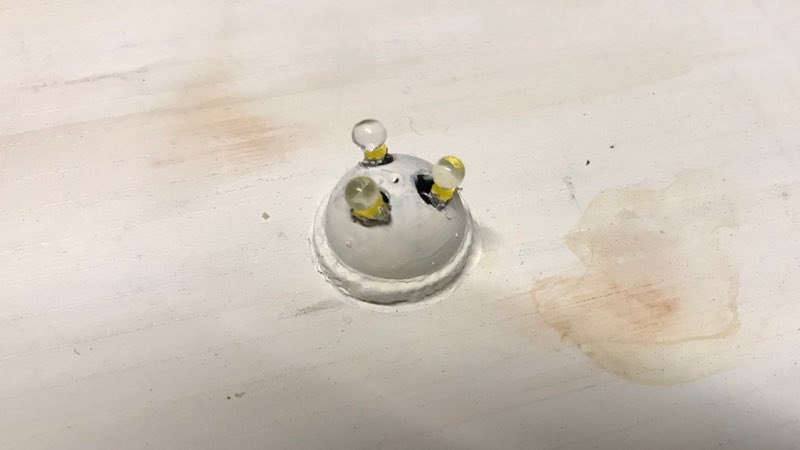

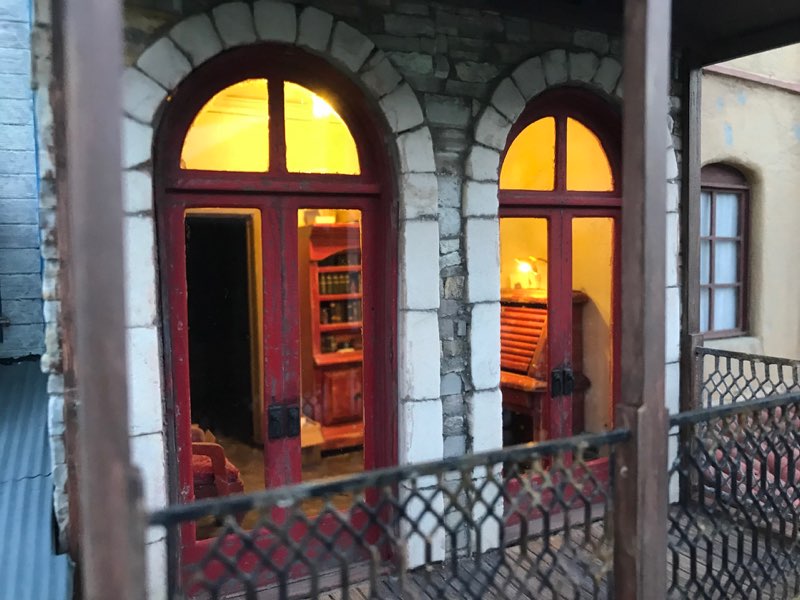

The upstairs office has a simple, three-bulb light fixture on the ceiling. I removed the old grain-of-rice bulbs and replaced them with "chip" LEDs. Then I used silicone to glue clear glass beads to each LED, making them look more like lightbulbs and also helping to diffuse the light:

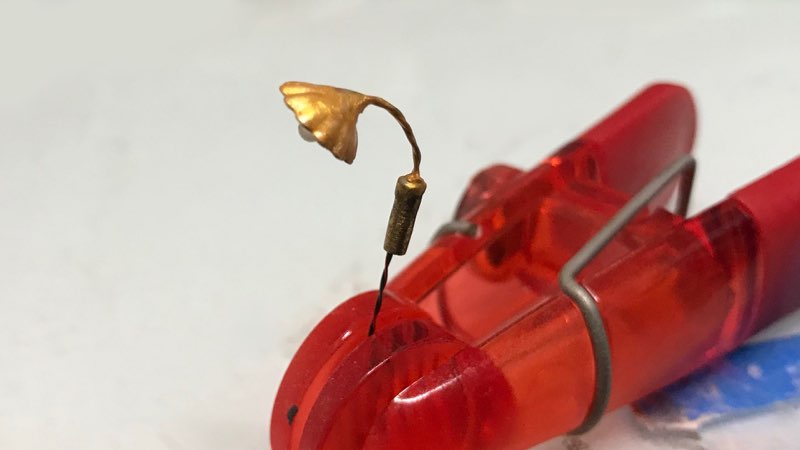

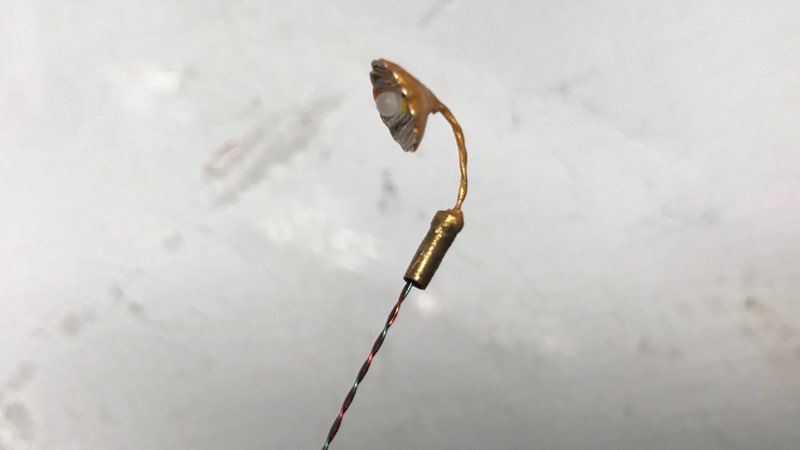

The desk lamp had to be completely rebuilt. I used a "nano" sized chip LED, with a fluted metal bead as the lampshade. A tiny, frost glass bead was used to represent the lightbulb. The lamp was painted gold. The brass tube on the bottom of the lamp fits into the lamp's base on top of the desk:








Now all of the incandescent bulbs have been replaced with LEDs. Each subassembly worked fine, but when I connected the plugs between the various parts of the building, I ran into problems. Apparently the sockets for the two-pin plugs were rusted out. So I had to eliminate the plugs and sockets, and instead used small copper alligator clips to make the connections.

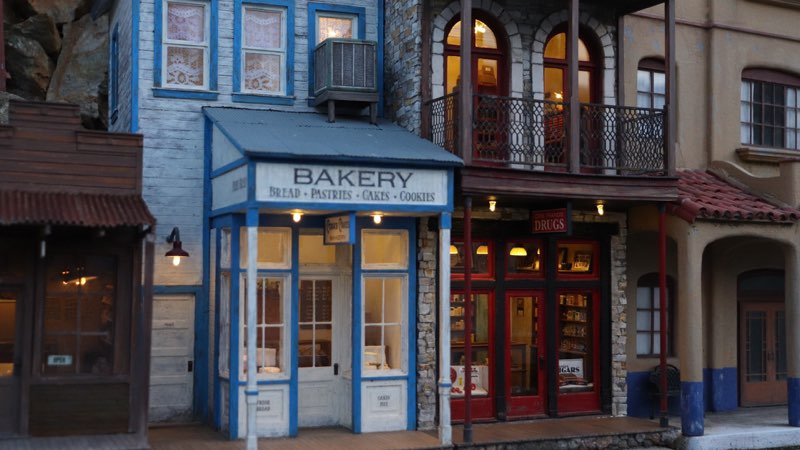

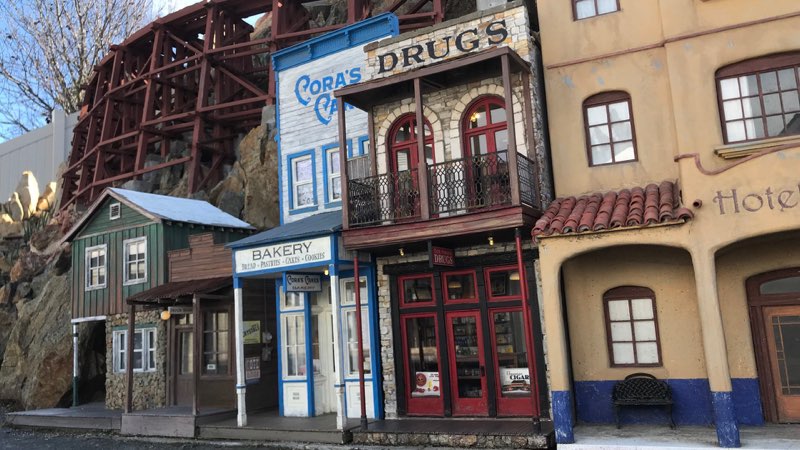

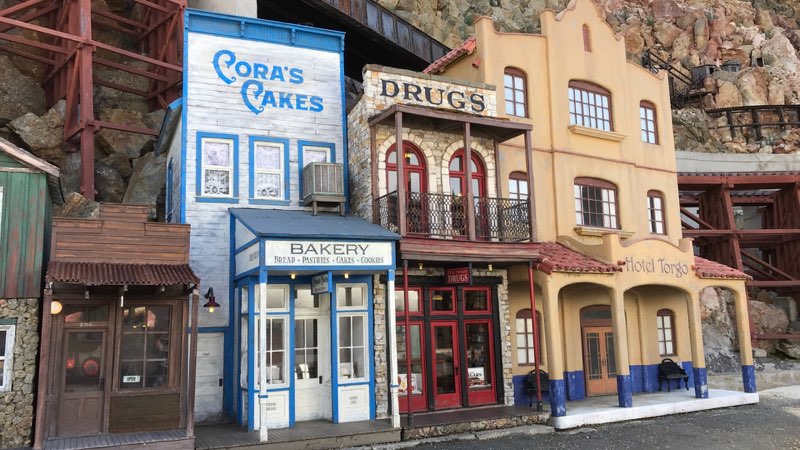

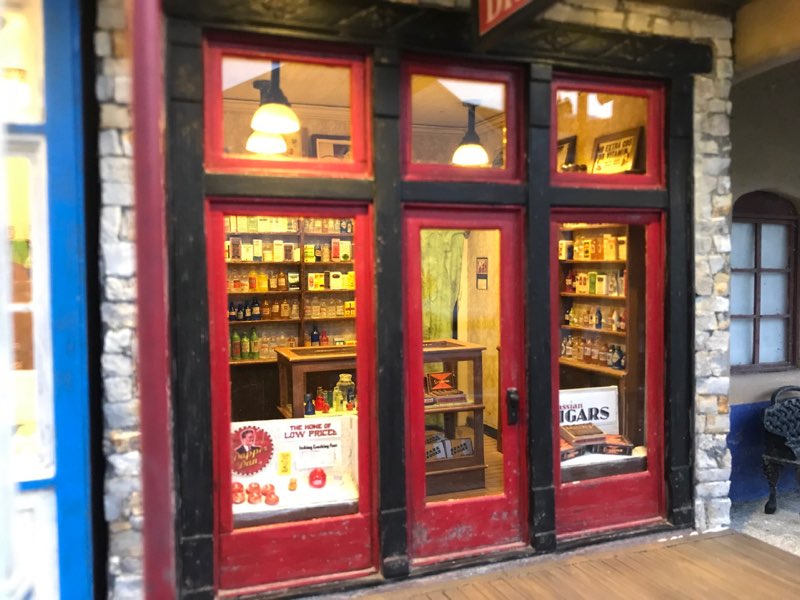

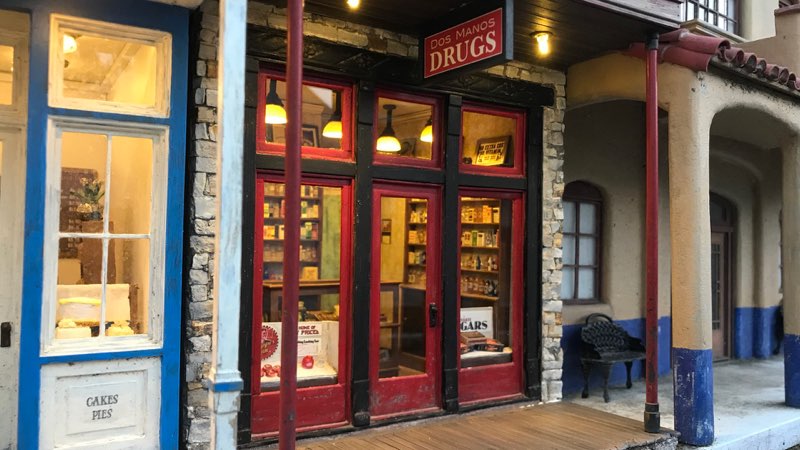

At last the building is finished and reinstalled on the layout:
















That's all for now. Enjoy!

.



Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakinís World
Bill Gill
Hero Member
*****
Offline Offline

Posts: 1077



« Reply #201 on: January 14, 2021, 07:05:13 AM »

Ray, Terrific repairs and renovations to the drug store!
I really like the light fixtures.
Logged
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 4464



WWW
« Reply #202 on: January 14, 2021, 02:26:34 PM »

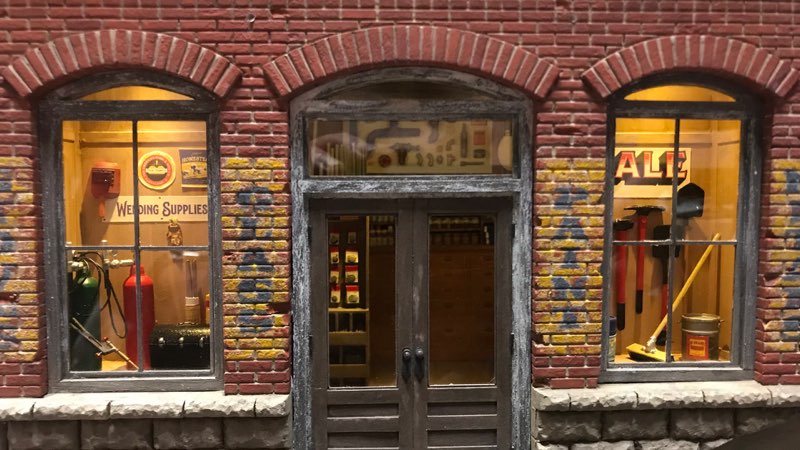

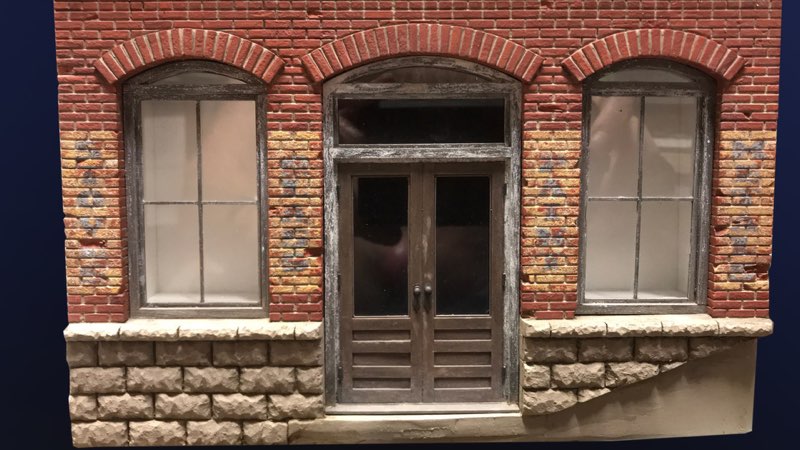

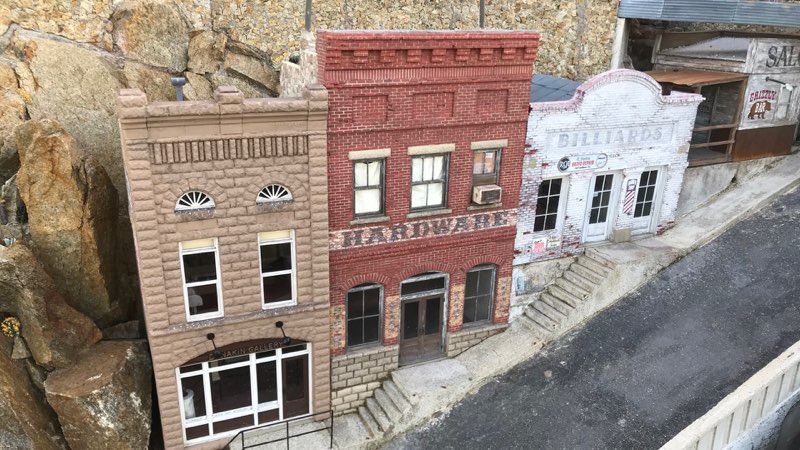

My next project involves this brick hardware store:




This structure has held up remarkably well despite nearly 7 years of continuous exposure to the elements. The one area that needs refurbishing is the roof, which is becoming faded and worn:




The main work to be done is adding interior details and lighting.

.


Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakinís World
finescalerr
Administrator
Hero Member
*****
Online Online

Posts: 6040


« Reply #203 on: January 14, 2021, 02:53:10 PM »

Rebuilding the drug store probably was more difficult than the original construction. The results are more adequate than somewhat. Now let's see what magic you work on the hardware store. -- Russ
Logged
Barney
Sr. Member
****
Offline Offline

Posts: 353


« Reply #204 on: January 14, 2021, 04:09:35 PM »

looking Good - and the detail is great - colours are realistic -
Barney
Logged
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 4464



WWW
« Reply #205 on: January 17, 2021, 12:06:45 AM »

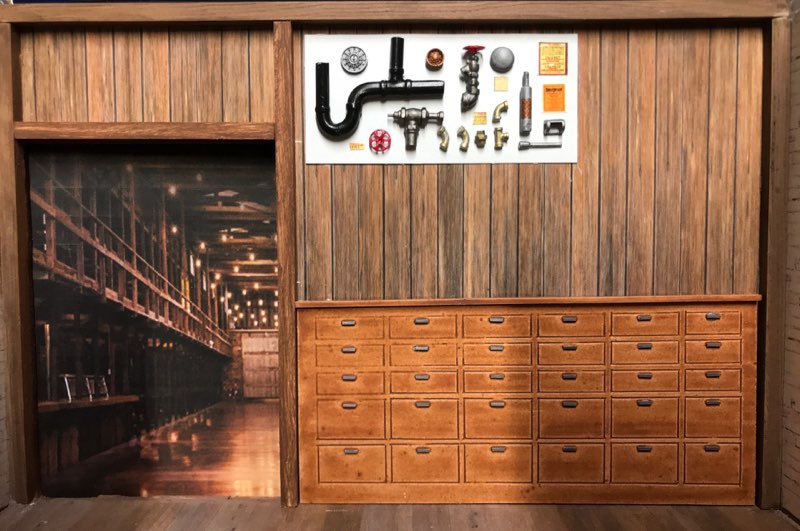

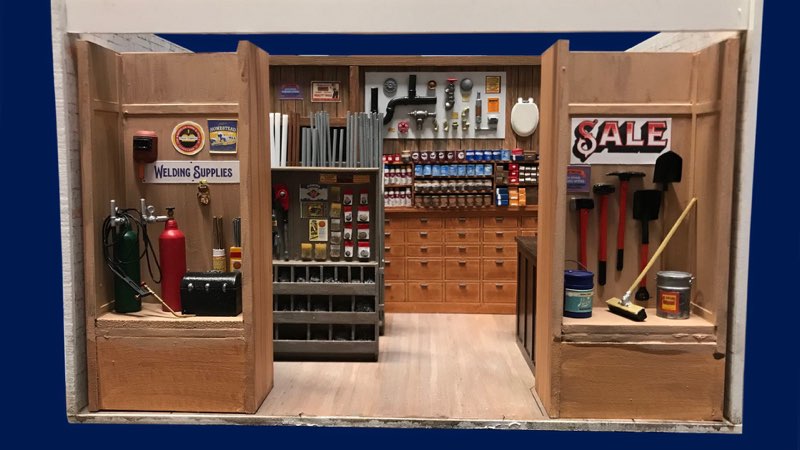

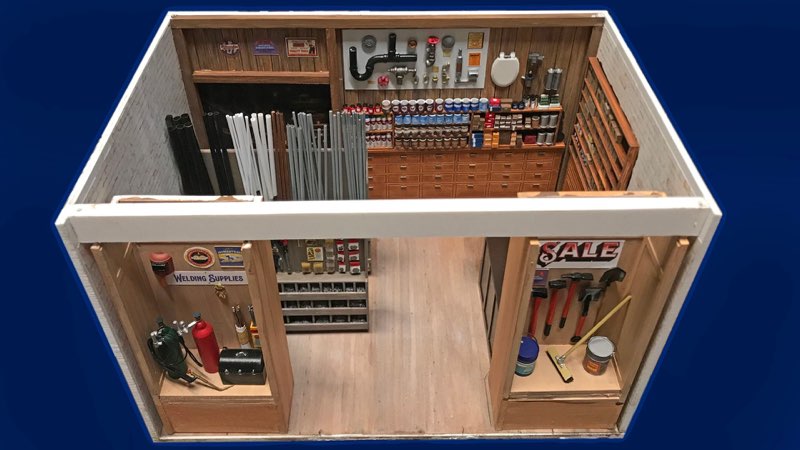

When I finished the exterior of the building back in 2014, I also made the removable box that will contain the interior details. The walls, floor, and ceiling were also finished, so all that remains is to add the interior details and lights:

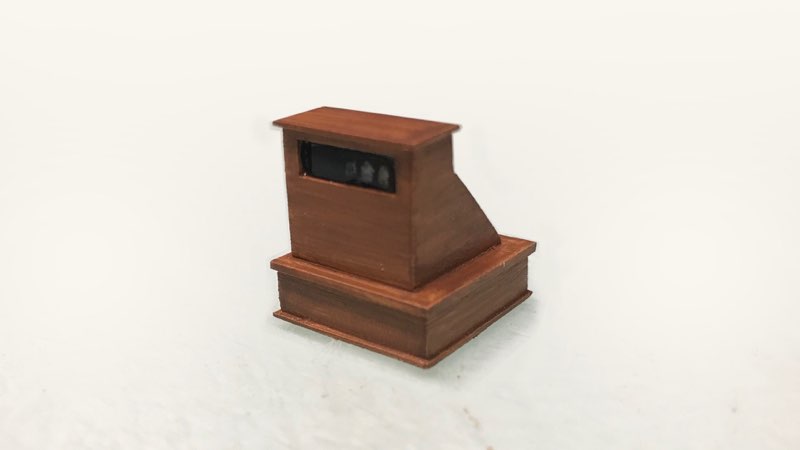

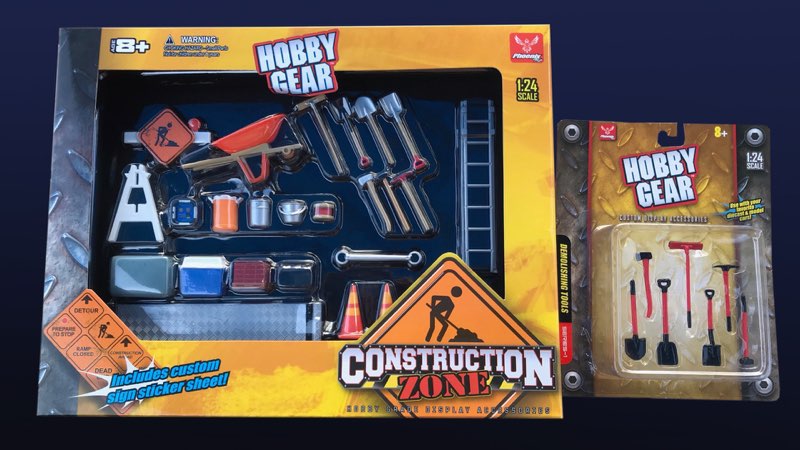

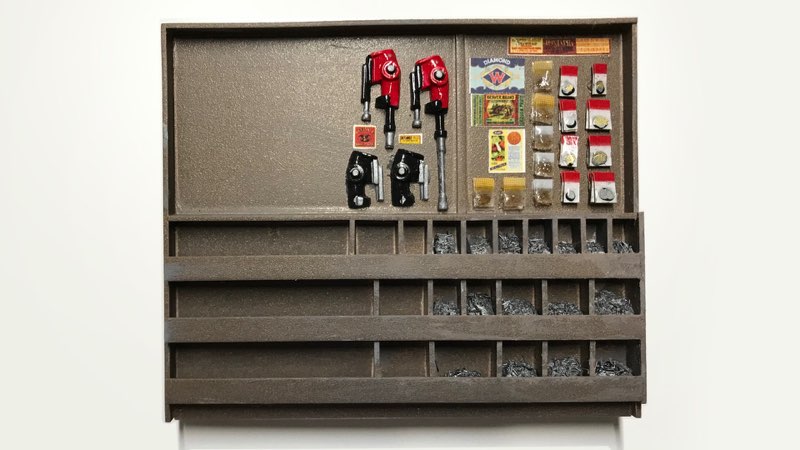

I'm taking a couple shortcuts on this project that will make things easier for me. First of all, I found some inexpensive 1/24th scale tool and hardware sets online. These should work well to represent brand new hardware, with minimal work needed to make them presentable:

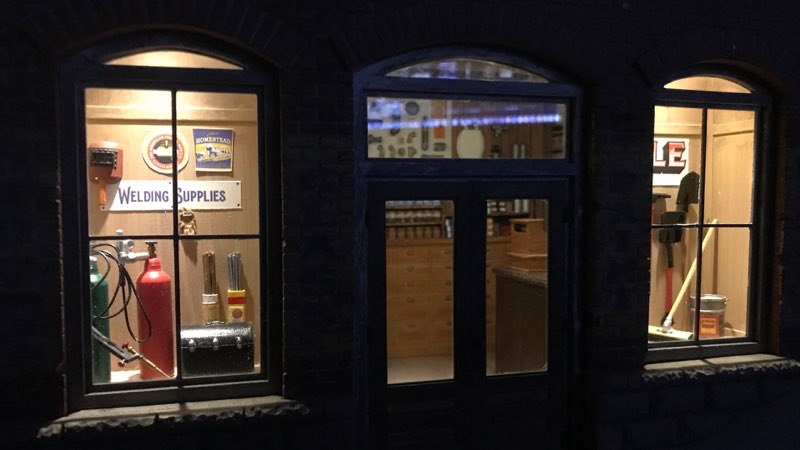

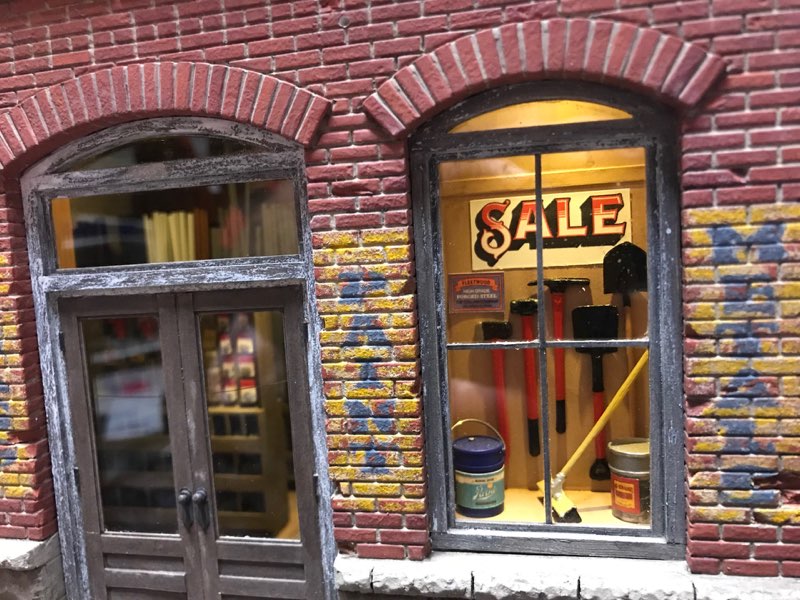

Secondly, I decided to make enclosed displays for the two windows. This means the only view into the interior will be through the glass on the doors, so I won't need to put as much effort into detailing the interior.

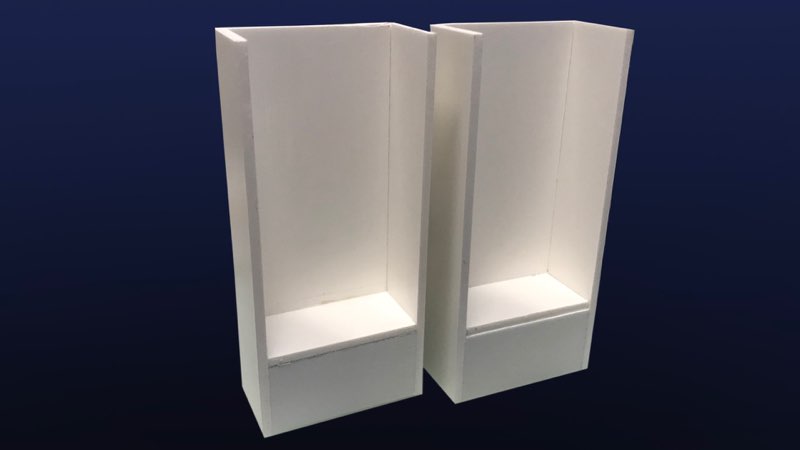

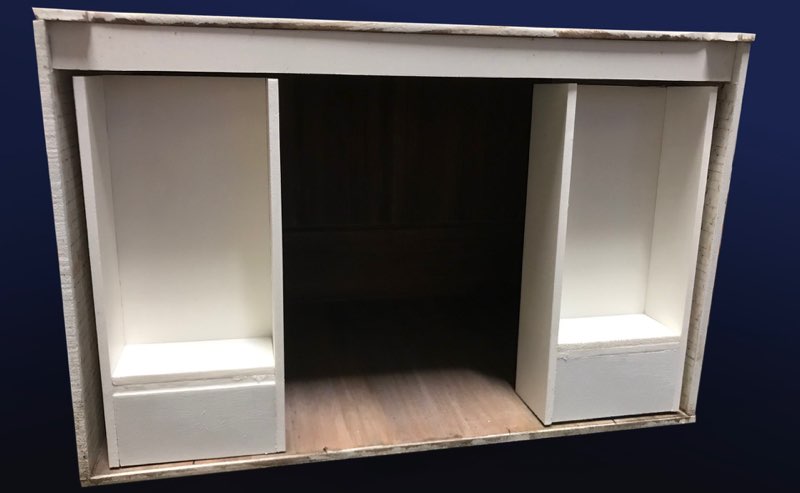

I built the display enclosures out of 3mm Sintra PVC board:




Test-fitting the enclosures in the room interior:







That's all for now, more later.

.
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakinís World
finescalerr
Administrator
Hero Member
*****
Online Online

Posts: 6040


« Reply #206 on: January 17, 2021, 02:54:16 PM »

The exterior already looks good. I know the interior detail will be of equal quality. The window display boxes are a good idea. -- Russ
Logged
Bernhard
Hero Member
*****
Offline Offline

Posts: 592



« Reply #207 on: January 19, 2021, 01:24:17 PM »

A successful renovation! And with the interior, the model will certainly gain even more.

Bernhard
Logged
1-32
Hero Member
*****
Offline Offline

Posts: 1011


Hi, I'm Kim.


« Reply #208 on: January 24, 2021, 11:29:10 PM »

The stonework is great there Ray looks great.
cheers Kim
Logged
