Author Topic: Deck mounted steam winch?  (Read 21893 times)
5thwheel
Sr. Member
****
Offline Offline

Posts: 314


« Reply #15 on: October 05, 2013, 11:46:00 AM »

After you dye the parts will they then hold paint?
Logged

Bill Hudson
Fall down nine times,
get up ten.
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5298


« Reply #16 on: October 05, 2013, 01:02:10 PM »

Maybe you first tap the parts to die them, then have a funeral. -- ssuR
Logged
SandiaPaul
Sr. Member
****
Offline Offline

Posts: 330


« Reply #17 on: October 05, 2013, 02:28:35 PM »

The dye does not make them hold paint, it just colors them.

Paul
Logged

Paul
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #18 on: October 10, 2013, 04:13:16 PM »

If you guys recall I have used a few of these gears previously.
Not to worry.

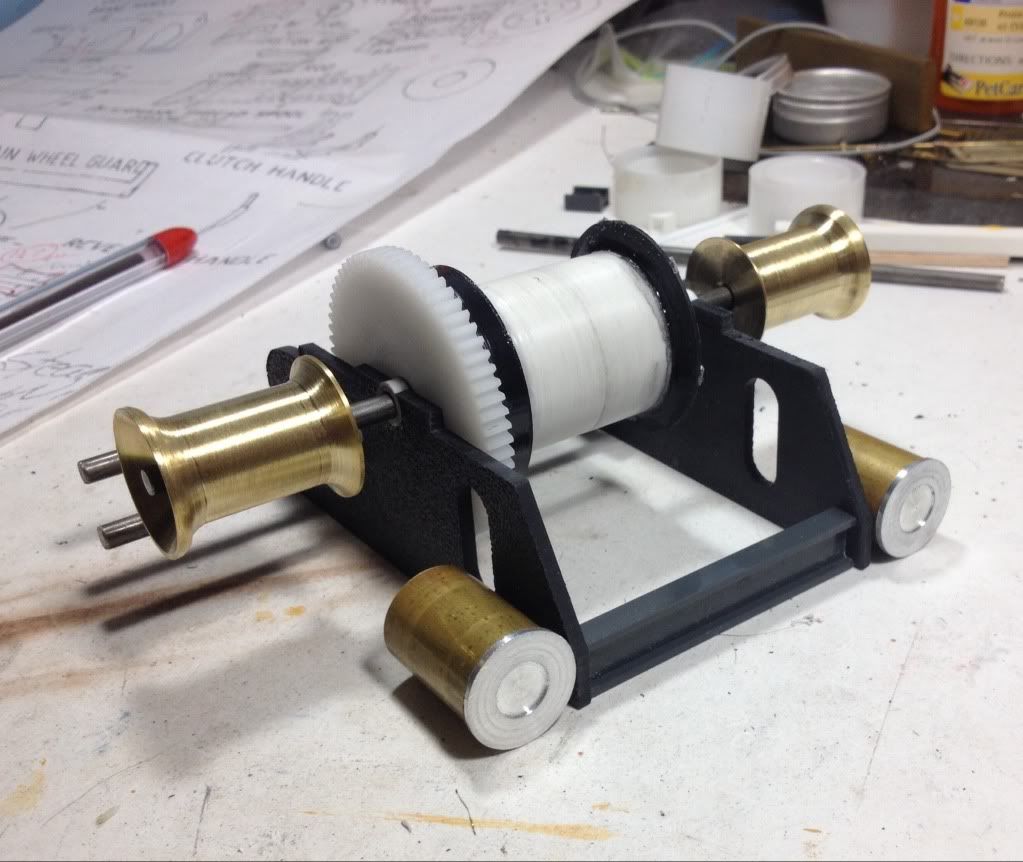

Got the large capstans fabricated.
They started life as 1 1/2" long pieces of 1" bar.

Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
TRAINS1941
Hero Member
*****
Offline Offline

Posts: 1272


« Reply #19 on: October 11, 2013, 10:14:51 AM »

-MJ

Your usual fine machine work.  They look great.

Jerry
Logged

Why isn't there mouse-flavored cat food?
George Carlin
Max Corey
Jr. Member
**
Offline Offline

Posts: 50


« Reply #20 on: October 11, 2013, 06:10:54 PM »

Good looking winch.  Are you going to make the plumbing out of brass?  I need to scratch one for a tug boat in 1/48 scale and the info in this thread has been invaluable.
Logged

A screw up on your part doesn't constitute an emergency on mine.
marc_reusser
Curmudgeon
Administrator
Hero Member
*****
Offline Offline

Posts: 4504



WWW
« Reply #21 on: October 12, 2013, 02:38:51 AM »

Looking good Marty. Welcome back.
Logged

I am an unreliable witness to my own existence.

In the corners of my mind there is a circus....

M-Works
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #22 on: November 29, 2013, 03:20:35 PM »

Max,
I would get a hold of a CHB "donkey" to use as a start for a winch in 1:48.

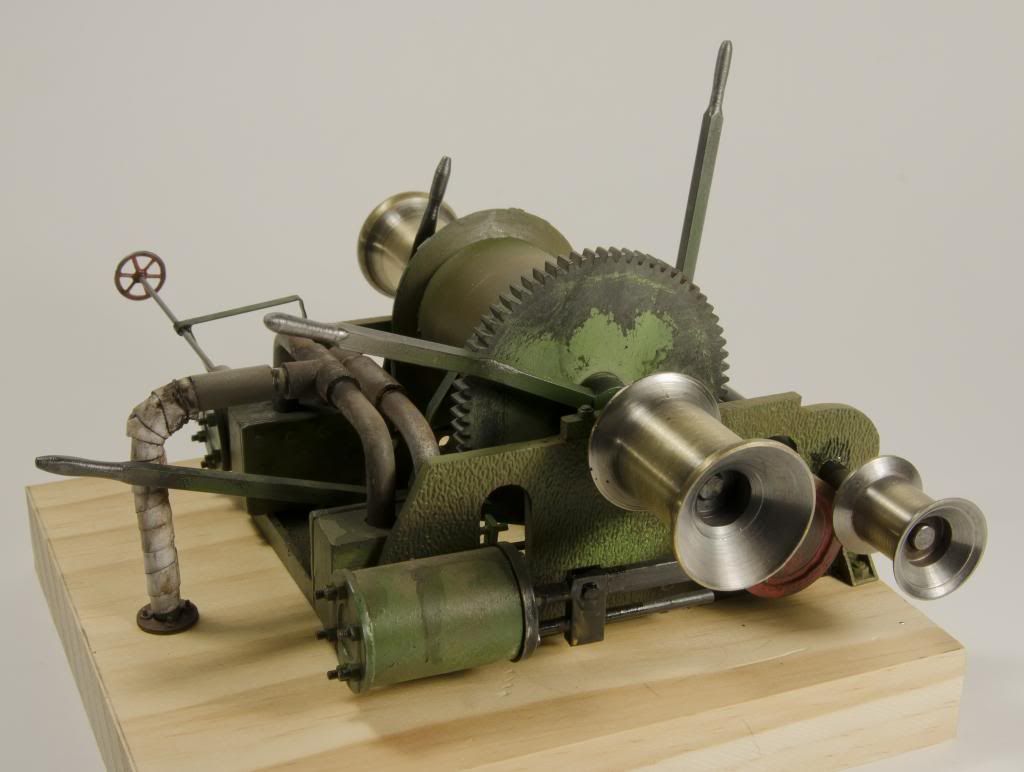

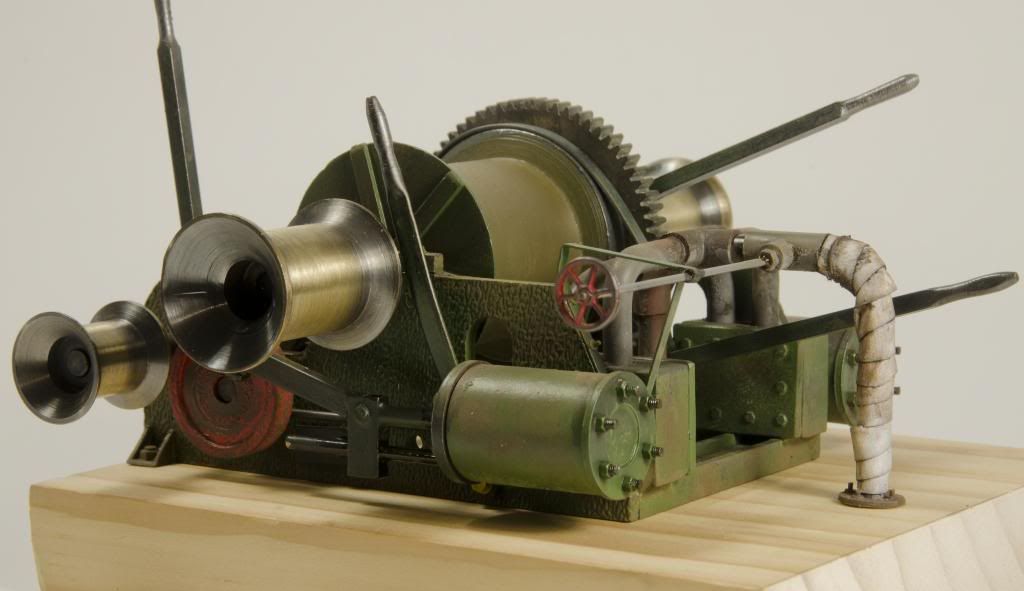

Anyway, I am finished with the winch.
I'm happy but not excited about the end result.
I think not having any good plans or reference photos really killed my enthusiasm.
I had to make a lot of "assumptions" which I don't like to do.
Hopefully my knowledge of steam donkeys may have helped?....







Thanks for looking.
I'm hoping to get back on the Shay and machine shop next!
-Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
NORCALLOGGER
Sr. Member
****
Offline Offline

Posts: 436


« Reply #23 on: November 29, 2013, 11:02:51 PM »


Anyway, I am finished with the winch.
I'm happy but not excited about the end result.
-Marty

Well You should be that is beautifully done!!!
But what am I missing, I don't see the steam exhaust?
Logged
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5298


« Reply #24 on: November 30, 2013, 02:07:51 AM »

You could have done worse. -- Russ
Logged
Max Corey
Jr. Member
**
Offline Offline

Posts: 50


« Reply #25 on: November 30, 2013, 03:09:54 AM »

Looks very good and very feasible.  You have the plumbing right and the brake and clutch levers right my only thought...

The main side plates seem strange.  Every donkey or hoist I have seen used a cast iron side plate and it had openings and ridges around the edge and openings cast in.  But you probably know more than me.  Looks like a live steamer and could work.

Kemtron used to and may still sell accurate donkey engine and hoist plans drawn up by the late and great Al Armitage.
Logged

A screw up on your part doesn't constitute an emergency on mine.
Arno Boudoiron
Jr. Member
**
Offline Offline

Posts: 59


Choo choo!!


WWW
« Reply #26 on: November 30, 2013, 07:10:16 AM »

Looks very good  Cool

I'm hoping to get back on the Shay and machine shop next!
Smiley  Smiley  Smiley
Logged
TRAINS1941
Hero Member
*****
Offline Offline

Posts: 1272


« Reply #27 on: November 30, 2013, 10:30:39 AM »

-MJ

Looks great to me.  Glad your going back to the Shay!!!

Jerry
Logged

Why isn't there mouse-flavored cat food?
George Carlin
Hauk
Hero Member
*****
Offline Offline

Posts: 849



WWW
« Reply #28 on: November 30, 2013, 11:28:56 AM »

Looking good!
How did you finish the brass parts? Is it some sort of plating?
Logged

Regards, Hauk
--
”Yet for better or for worse we do love things that bear the marks of grime, soot, and weather, and we love the colors and the sheen that call to mind the past that made them”  -Junichiro Tanizaki

Remembrance Of Trains Past
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #29 on: November 30, 2013, 12:44:01 PM »

Thanks guys, your too kind!

Norcal - the steam exhaust is closest to the main drum and goes straight down.

Max your right, i should have added the perpendicular plates or ridges.

Hauk I dipped the brass capstans into a blackening agent, they went really dark!
Must be a different type of alloy (free machining naval brass I'm told from the supplier)
I could not get the effect to work on any other brass I have.
They are the best part of the model - I think!

-Mj
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
