Author Topic: The Corliss project  (Read 72739 times)
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 4206



WWW
« Reply #150 on: January 03, 2010, 02:58:59 PM »

Holy moly!! That looks beautiful! And very complex.

Is this going to be a working model?

Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakin’s World
David King
Jr. Member
**
Offline Offline

Posts: 85


« Reply #151 on: January 03, 2010, 04:46:42 PM »

Wow!  Modelers that can work that well with brass always amaze me.  I've played with brass some but never got far with it, (and don't even want to get into my very short stint as a hobby machinist!) part of the problem is working in metal is a lot harder on the arthritis and tendonitis.  Like the others said, it almost be a shame to cover it up in paint, but you'll always have the photos.

David
Logged

"It's almost written down as a formula, that when a man begins to think that he has at last found his method, he had better begin a most searching examination of himself to see wether some part of his brain has gone to sleep." - Henry Ford

http://www.dsao.fotki.com/
TRAINS1941
Hero Member
*****
Offline Offline

Posts: 1354


« Reply #152 on: January 03, 2010, 07:21:16 PM »

-MJ

You know your really getting good at this modeling thing!!!

Just excellent!!!

Jerry
Logged

Why isn't there mouse-flavored cat food?
George Carlin
Hauk
Hero Member
*****
Offline Offline

Posts: 904



WWW
« Reply #153 on: January 05, 2010, 05:54:46 AM »




And yes the linkage is all functional. Grin Grin Grin Grin


Real nice work!
For the working links, how do you obtain nice, tight rivet connections that are not locked up?
I have been dabbling with rivet connections for functional linkages, but I find it hard to obtain consistent results.

Do yus any special tools?

Regards, Håvard H
Logged

Regards, Hauk
--
”Yet for better or for worse we do love things that bear the marks of grime, soot, and weather, and we love the colors and the sheen that call to mind the past that made them”  -Junichiro Tanizaki

Remembrance Of Trains Past
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #154 on: January 05, 2010, 07:01:36 AM »

Unc,
I'll have to paint it, it is silly to make a scale model and then leave it as a "toy"
Dont worry though, there will be plenty of brass showing  Wink

Gil / Ray,
This will be a "dynamic" model; it will operate but i will use a small electric motor hidden somewhere.
Once I get it going I will shoot a movie (then figure out how to post it Huh)

Havard,
The connections at the links are not rivets but bolts.
I can see how they look like rivets in the picture.
The originals used acorn nuts so that is what I will use, just have not ordered/installed them.
Sorry for the confusion!
I wish I could do rivets in .030"!
I would think using a .032" tube and flaring the ends with a die of sorts would work.

Thanks guys!
-Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
Hauk
Hero Member
*****
Offline Offline

Posts: 904



WWW
« Reply #155 on: January 05, 2010, 07:55:34 AM »


Havard,
The connections at the links are not rivets but bolts.

No kidding?
I could have sweared that you must have used rivets to pin the four arms to the solid wheel in the center...

I would be very interested in where you can obtain such bolts, maybe I could substitute my rivets for bolts in some situations. Are there hexnuts on the back?

Regards, Håvard H
Logged

Regards, Hauk
--
”Yet for better or for worse we do love things that bear the marks of grime, soot, and weather, and we love the colors and the sheen that call to mind the past that made them”  -Junichiro Tanizaki

Remembrance Of Trains Past
jacq01
Hero Member
*****
Offline Offline

Posts: 1110



« Reply #156 on: January 05, 2010, 12:57:58 PM »


 Havard,


Quote
I have been dabbling with rivet connections for functional linkages, but I find it hard to obtain consistent results.

 I solder rivets keeping moving parts together. I learned the trick from Pete McParlin of Backwoods Miniatures.
 Punch a hole in a piece of printing paper and put it between the 2 parts. Push the rivet through and solder the rivet to part closest to the end of the rivet. File solder joint nicely round and remove the piece of paper. Has worked for me with H0e linkages of BM's Fowler and for the On30 Mallet I am building at the moment. Works much better than the shoulder rivets from Weinert, etc.

 Jacq
Logged

put brain in gear before putting mouth in action.
never underestimate the stupidity of idiots
I am what I remember.
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #157 on: January 05, 2010, 01:40:36 PM »

Havard,

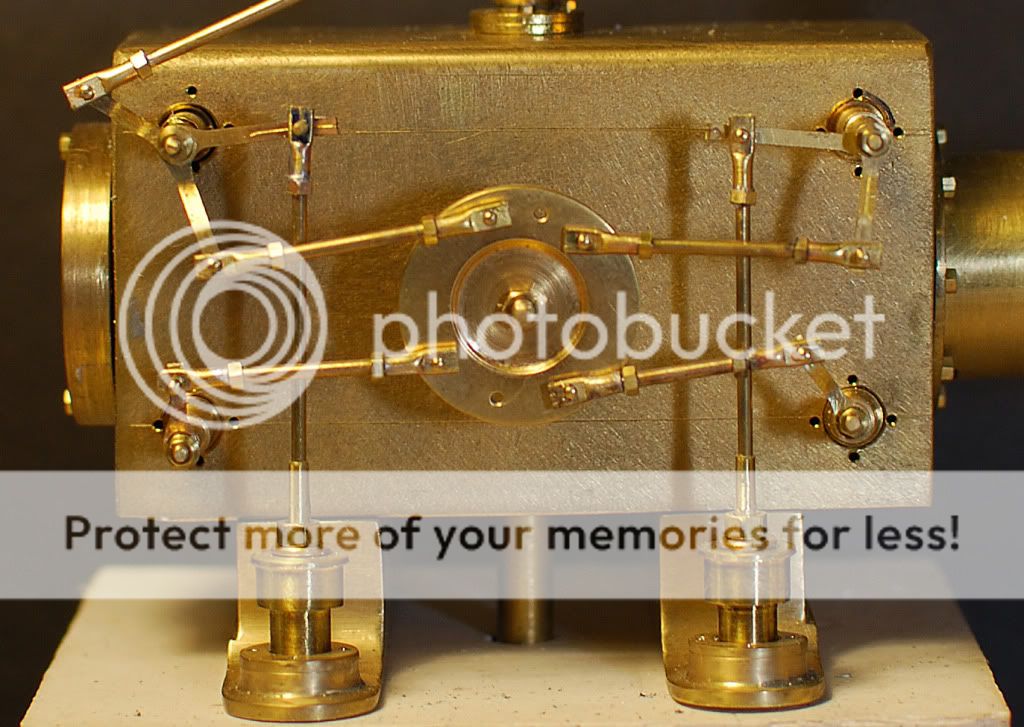

The large disc (wrist plate) is drilled and tapped, the bolts come through to the front and then I will attach the acorn nuts.
These are 1mm, scale hardware dot com has functional "bolts" down to .5mmhttp://www.scalehardware.com/
They are only 10 miles from me but I still just mail order.

Jacq,
I'll have to try that tip. Thanks!
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
marc_reusser
Curmudgeon
Administrator
Hero Member
*****
Offline Offline

Posts: 4504



WWW
« Reply #158 on: January 05, 2010, 03:07:27 PM »

I don't know what to say about this!....really incredible Shocked....but, you're completely f*ing nutters! Wink Grin


MR
Logged

I am an unreliable witness to my own existence.

In the corners of my mind there is a circus....

M-Works
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5687


« Reply #159 on: January 05, 2010, 03:30:33 PM »

Marty, maybe instead of paint you could use metal blackener or that stuff Paul Rayner mentioned or something else. -- Russ
Logged
RoughboyModelworks
Guest
« Reply #160 on: January 05, 2010, 09:23:04 PM »

Good tip Jacq. Another method is to use graphite as a barrier. You can actually do this with a soft pencil or NeoLube, just draw or brush a line at the outer perimeter of where you want the solder to flow. It won't flow past the graphite unless, you're using way too much solder.

Paul
Logged
jacq01
Hero Member
*****
Offline Offline

Posts: 1110



« Reply #161 on: January 06, 2010, 05:40:33 AM »


  Paul,

  what is important with the piece of paper methode is the small clearance ( 0,3mm) enabling free movement around the rivet of the linkage part.
  I have used barrier material preventing solder to penetrate too deep, but it resulted nearly always in a too tight fit of the parts.
  That piece of paper is just enough to take care of tolerances associated with the linkages.

  Jacq
Logged

put brain in gear before putting mouth in action.
never underestimate the stupidity of idiots
I am what I remember.
Chuck Doan
Mr. Wizard
Hero Member
*****
Offline Offline

Posts: 2516



WWW
« Reply #162 on: January 06, 2010, 09:18:33 AM »

This is really quite stunning!
Logged

“They're most important to me. Most important. All the little details.” -Joseph Cotten, Shadow of a Doubt





http://public.fotki.com/ChuckDoan/model_projects/
Brian Donovan
Guest
« Reply #163 on: January 06, 2010, 11:57:59 AM »

Very nice work! but what does a Corliss engine do?
I tried to find it in this thread but it can be hard to catch up with these long threads.

-Brian
Logged
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #164 on: January 06, 2010, 12:11:24 PM »

Thanks everyone!
Marc,
What are you trying to say?
At least I am in good company! Roll Eyes
Brian
Basically a Corliss is a stationary steam engine, the "Corliss" really refers to the valve arrangement. Back when developed it made the Corless engines way more efficient. There were several variations on the Corliss design.
Corliss engines were used in sawmills and cotton plants just to name a few.
They came in many sizes as well, mine has a (scale) 16' flywheel.
-Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
