« Reply #15 on: February 03, 2009, 11:59:26 PM »

Marc thanks for the feedback, I guess it is time for a little experiment to see just what does in fact happen, I will try some different ways of dealing both with these materials and with a variety of glues on some scraps and report back in a day or so.

Regards Michael
Logged
michael mott
Hero Member
*****
Offline Offline

Posts: 511


« Reply #16 on: February 05, 2009, 08:28:31 PM »

Well the first test was withthe Oatey glue for transition between ABS and PVC I used a toothpick to plasce a spot of glue on the PVC pipe placed the acrylic rivet after 24 hours solid as a rock



So I think i will go ahead with this method.

regards Michael
Logged
michael mott
Hero Member
*****
Offline Offline

Posts: 511


« Reply #17 on: February 07, 2009, 12:25:43 AM »

I spent the last couple of evenings setting up and turning all the rivets needed for the two ends. Next I drew a rectangle the exact length of the tank diameter, printed and cut itout then wrapped it around the tank about 5/16 inch from the end



a shot of the turned rivets.



A shot swoing the glue blob aplied with a long toothpick, The rivet needed to be placed very quickly befor the glue skinned over, which it did suprisingly fast.



The first row completed, now it was time to move the paper back a little and rotate it so that the lines were midway between the rivets of the first row.



and finally the first end is completed I am quite pleased with the results.



I will tackle the other end tomorrow. Then back to the lathe to turn the rest of the rivets for the long rows on the seam plate and the rows on the front end of the tank.

regards Michael
Logged
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5551


« Reply #18 on: February 07, 2009, 02:25:00 PM »

Individually turned rivets! You are NUTS! (But they look wonderful.) -- Russ
Logged
John McGuyer
Guest
« Reply #19 on: February 10, 2009, 06:42:07 PM »

The finish on your rivet heads is excellent. I am curious about one thing; why you didn't run your cut off tool in to a set dimension, then step it over and cut the rivet off. That would give you a small shank on the back. The shank would accomplish two things, you could drill holes to help locate the the rivets, plus it would give you a mechanical connection as well as an adhesive one.

John
Logged
michael mott
Hero Member
*****
Offline Offline

Posts: 511


« Reply #20 on: February 10, 2009, 11:52:22 PM »

Quote
why you didn't run your cut off tool in to a set dimension, then step it over and cut the rivet off

A nice idea John, As it is I found it tedious enough simply forming the head with one toolbit set parallel to the plex in the chuck. then parting off with the parting tool.

I was unable to make a new tool(my grinder is still in storage)so I had to set this up with tools already ground. My lathe is a manual one a Myford ML7 and because I do not have a capstan turret and making hundreds of rivets manually is daunting enough as it is.

I set up a backstop with the tailstock so that I could ensure that each rivet was the same length.

the following pictures show the step by step to make one rivet.

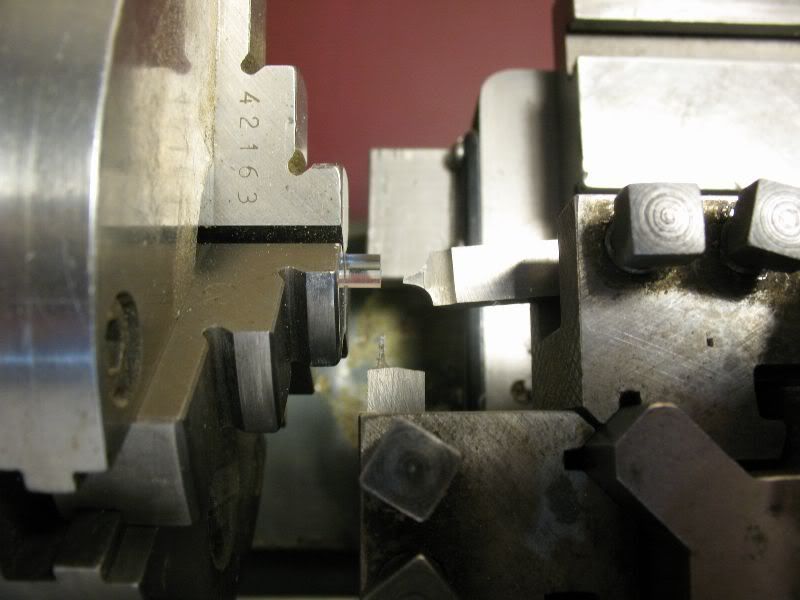

the first pic is the start of the sequence and the form tool is also positioned to act at the length stop.

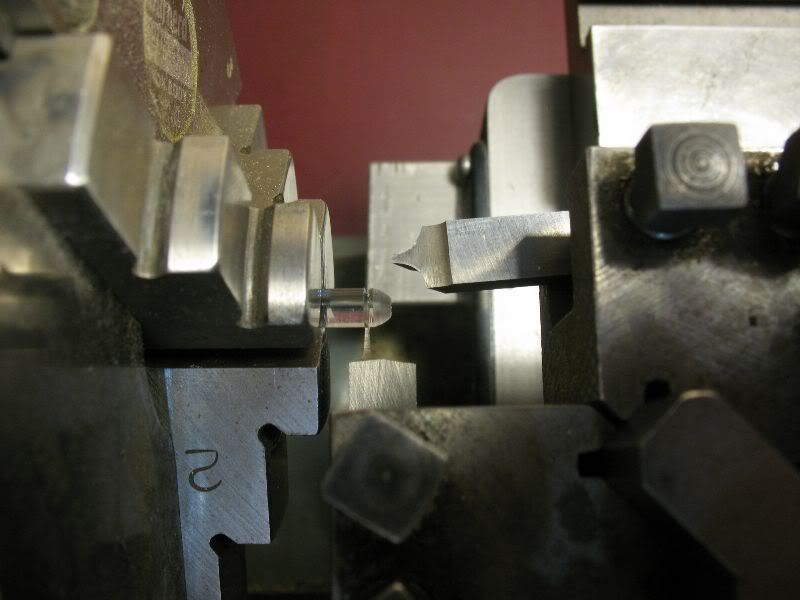

The acrylic rod is indexed forward using a pair of tweezers, it was a bit tight to get my fingers in there.

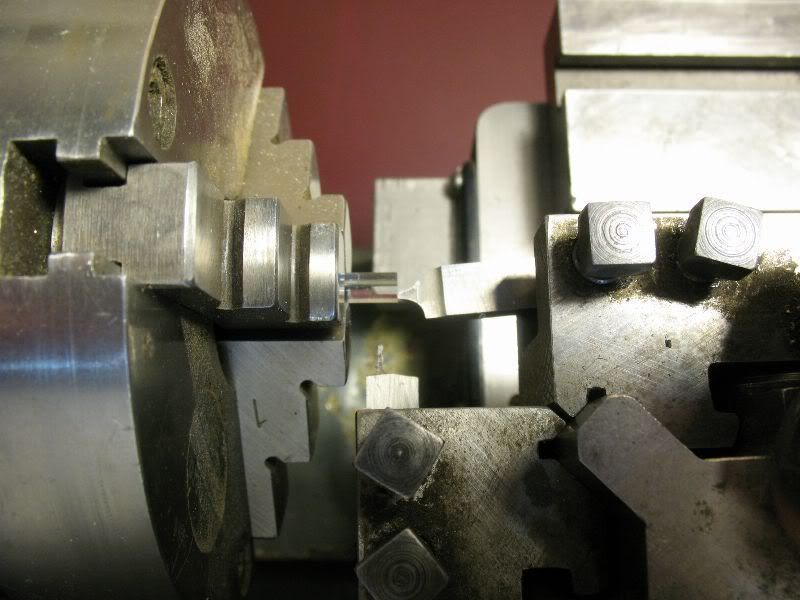

The form tool is moved forward toward the chuck to put the slight curved taper on the rivet.

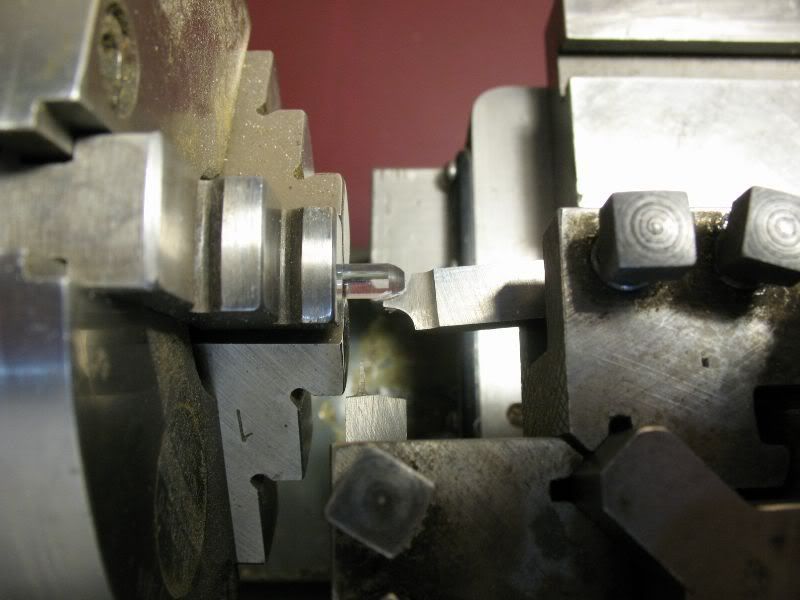

The form tool retracted and the parting tool moved into the work, as the form tool moved toward the back it also skimmed the top face of the rivet.

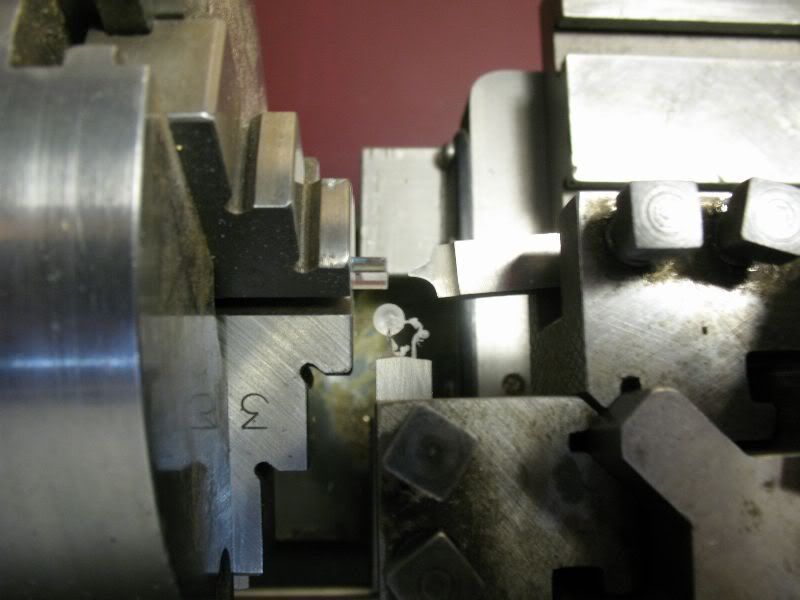

The rivet finally parts off and falls to the bed. The form tool is then brought back in line with the end of the acrylic and the whole process started over.

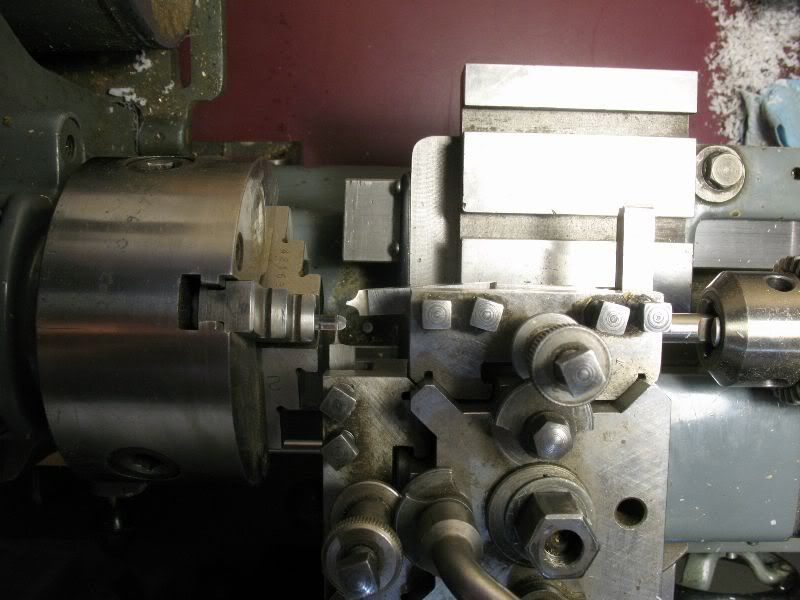

The last shot shows the overall set up.



But then perhaps it was just laziness. I also think that setting up to drill all the holes might have been even more daunting. Of course if I were to make this out of copper and was going to use real air then the rivets would need to be real and I would have to do the drilling. Fortunately on my other loco project that will only have to happen in a few places.

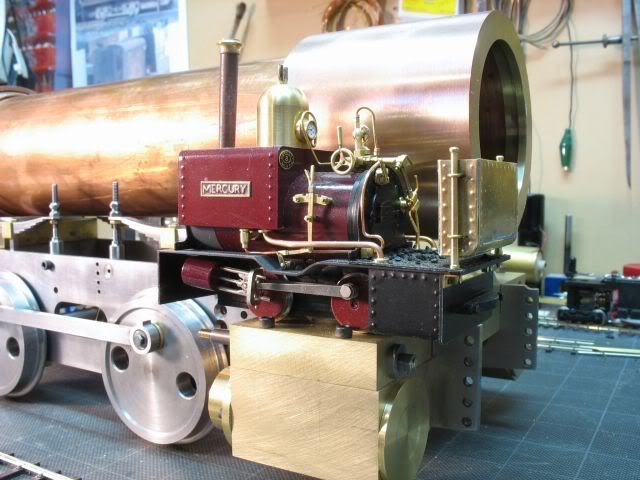

here is a couple of pics of the other loco, the first by itself and the second with an Ho Bachmann Percy modification to a Horwich loco, sitting on the cylinder.





Regards Michael
