Author Topic: HUFFKINS Mine  (Read 5779 times)
Barney
Hero Member
*****
Offline Offline

Posts: 934


« Reply #15 on: January 06, 2018, 07:09:06 AM »

small single blocks used as transmission boxes
Barney


* DSC_7739_opt.jpg (60.66 KB, 700x474 - viewed 108 times.)

* DSC_7738_opt.jpg (54.65 KB, 700x431 - viewed 105 times.)
Logged
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5167


« Reply #16 on: January 06, 2018, 01:29:27 PM »

I'm glad you've stayed with this forum. -- Russ
Logged
Hauk
Hero Member
*****
Offline Offline

Posts: 838



WWW
« Reply #17 on: January 06, 2018, 02:28:12 PM »

Very, very cool!
Do you have original drawings of the machines?
There are some very similar machines preserved by the mining company that operated the Thamshavn Railway, and I might try my hands on model myself one fine day.
Logged

Regards, Hauk
--
”Yet for better or for worse we do love things that bear the marks of grime, soot, and weather, and we love the colors and the sheen that call to mind the past that made them”  -Junichiro Tanizaki

Remembrance Of Trains Past
Barney
Hero Member
*****
Offline Offline

Posts: 934


« Reply #18 on: January 06, 2018, 04:53:38 PM »

  Hauk    Lots of info and some drawings at http://americanindustrialmining.com other info I got from the excellent Industrial Narrow Gauge Illustrated CD by J Tilston quite a few years old now but well worth it if you can still get it -its full of drawings -other drawings I found in back issues of the Narrow Gauge & Industrial Review - Eimco "mucker Shovel" there is loads of stuff on the net - The trammer in the scrap heap is a rough copy of one at a Slate mine in North Wales some years back I still have some rough measurements (done by my feet!) And few old "real photos" there were 2 of them one with twin motors and one single motor - the big one parked up for the night
is from the same source only got some measurements it was stuffed in a dark tunnel but I believe it was an odd bod version looks a bit like a American Ironstone type
so it was a bit of my modellers licence in it or as I call Freelance Prototypes
Hope this helps
Barney
Logged
Design-HSB
Hero Member
*****
Offline Offline

Posts: 608


Klosterstollen


WWW
« Reply #19 on: January 06, 2018, 05:16:02 PM »

Hello Barny,

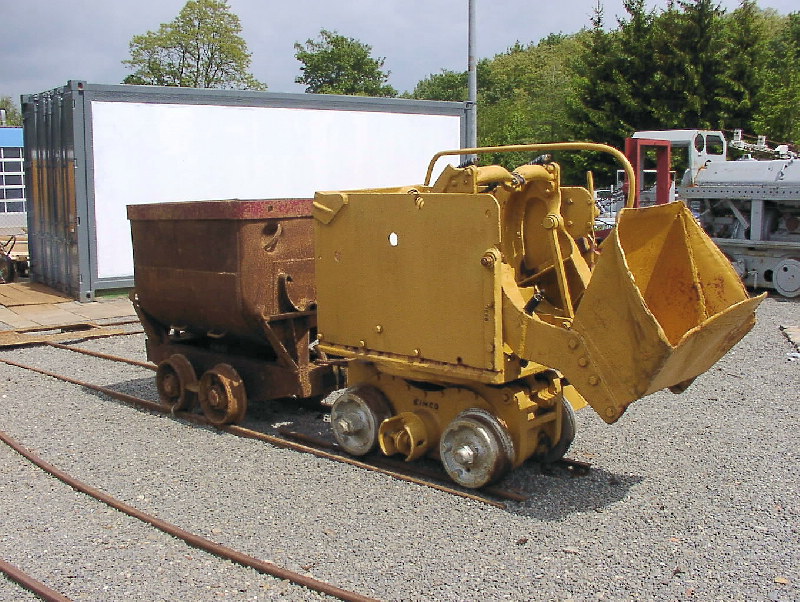

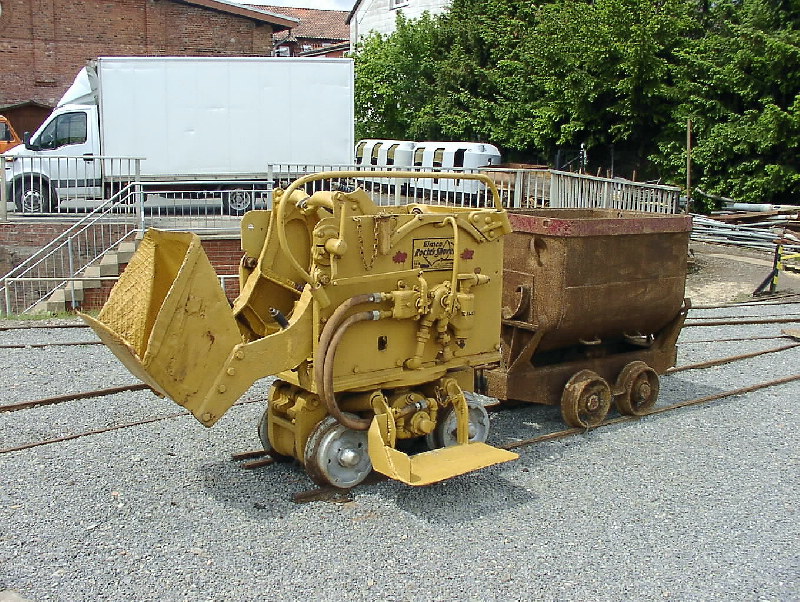

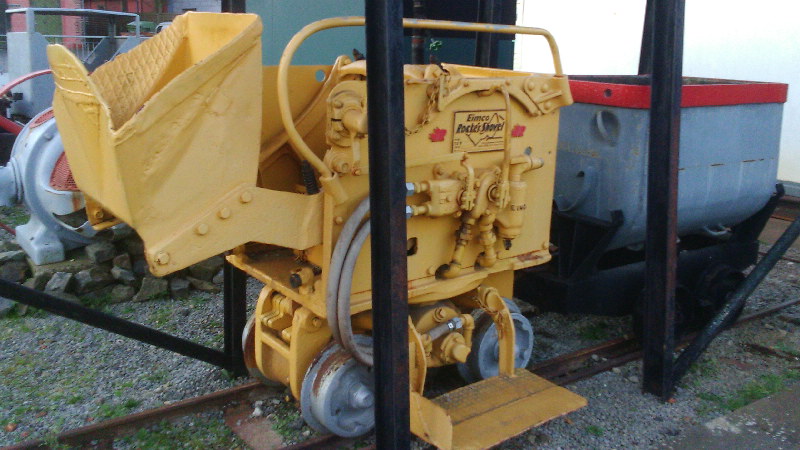

in my immediate vicinity is such an Eimco Rocker Storer in the colliery park from Klosterstollen.




Logged

Regards Helmut
the journey is the goal
Barney
Hero Member
*****
Offline Offline

Posts: 934


« Reply #20 on: January 07, 2018, 05:20:26 AM »

Heimut - thanks for the photos - Im just amazed at the amount of variations of these "little beasts" I can only presume being built all over the world not just in the USA were the first development & production began many variations would occur.
Is this machine still available - because Im still looking for some details that I just can not find the answer to - the only one I'v got close up to is one in the lake district and that had lots of bits missing.
Thanks Barney
Logged
Barney
Hero Member
*****
Offline Offline

Posts: 934


« Reply #21 on: January 07, 2018, 05:42:27 AM »

The only one I got close to - but bits are missing


* DSC_5877_opt-2.jpg (223.85 KB, 500x752 - viewed 89 times.)
Logged
Barney
Hero Member
*****
Offline Offline

Posts: 934


« Reply #22 on: January 07, 2018, 05:45:39 AM »

I think it was an early version - British built


* DSC_5969_opt.jpg (212.39 KB, 700x466 - viewed 90 times.)
Logged
Barney
Hero Member
*****
Offline Offline

Posts: 934


« Reply #23 on: January 07, 2018, 05:46:38 AM »

with a few bits missing


* DSC_5875_opt.jpg (203.93 KB, 700x466 - viewed 91 times.)
Logged
Design-HSB
Hero Member
*****
Offline Offline

Posts: 608


Klosterstollen


WWW
« Reply #24 on: January 07, 2018, 07:51:05 AM »

Barny, I'll go with the dog afterwards and see if she's still available there. If so, I can also take pictures and take measurements.
Logged

Regards Helmut
the journey is the goal
Design-HSB
Hero Member
*****
Offline Offline

Posts: 608


Klosterstollen


WWW
« Reply #25 on: January 07, 2018, 11:03:25 AM »

Barny, all ok, but not yet and is freely accessible.

Logged

Regards Helmut
the journey is the goal
Barney
Hero Member
*****
Offline Offline

Posts: 934


« Reply #26 on: January 08, 2018, 02:55:17 PM »

Thats a nice clean machine and it looks like its got all its bits
Barney
Logged
Barney
Hero Member
*****
Offline Offline

Posts: 934


« Reply #27 on: January 08, 2018, 03:11:28 PM »

Im after a few details on Gold mines in the 1920's Huffkins will be a small operation on the site of an early mine some of the equipment will be old and other bits will be refurbished and some new. The only details I can find is all late stuff. A recent TV serious showed a Caterpillar type digger down "a glory hole" digging up gravel and rocks then dumping it in a shaker /water washer type bed with different levels the bits of Gold were captured under a type of grid - has the process changed much would it have been like this in the 1920's era but just an earlier version (steam power /gas engine power)if there is any one out there who can help and point me in the right direction.
Thanks
   Barney
        looking for those nuggets
Logged
Barney
Hero Member
*****
Offline Offline

Posts: 934


« Reply #28 on: January 15, 2018, 02:24:54 PM »

The start of a bit of machinery for the Huffkins Mine Project - A Hoist driven by a  petrol engine - the engine "Lump" is a 1/35th Cat engine beefed up to 1/24TH
and an early Cement mixer
The hoist all parts in a trial fit situation balanced so no heavy breathing at this point ! no detailing at this point still trying to work the bits out (what does what)
my Thanks to Chuck for all the drawings posted on the forum


* DSC_7943_opt.jpg (45.9 KB, 700x429 - viewed 77 times.)

* DSC_7944_opt.jpg (55.19 KB, 700x547 - viewed 72 times.)
Logged
Barney
Hero Member
*****
Offline Offline

Posts: 934


« Reply #29 on: January 15, 2018, 02:25:47 PM »

The bits so far


* DSC_7946_opt.jpg (62.16 KB, 700x433 - viewed 79 times.)
Logged
