Author Topic: Fordson tugger hoist  (Read 14903 times)
nk
Full Member
***
Offline Offline

Posts: 207



WWW
« Reply #105 on: June 04, 2017, 11:14:59 AM »

Thanks for the step by step Chuck. Its really helpful in appreciating what we are seeing.
Logged

You may ask yourself: "Well, how did I get here?"

http://public.fotki.com/nkhandekar/
1-32
Hero Member
*****
Offline Offline

Posts: 513


C:\Documents and Settings\Kim\My Documents


« Reply #106 on: June 06, 2017, 05:38:56 PM »

hi Chuck how many layers are you up too now.
cheers.
Logged
Peter_T1958
Full Member
***
Offline Offline

Posts: 195



WWW
« Reply #107 on: June 07, 2017, 07:01:01 AM »

Started weathering using Prismacolor Premier pencils. Dip tip in water and rub on sandpaper to get “paint” (can mix colors, no problem)
Apart from the fact that you use Prismacolor pencils to get paint (never heard of that) I especially like your oil residues.

Quote
Oil residue is black and brown oil paints mixed with very fine powdered dirt.
That's something I will try out too. Thank you for the turorial.
Peter

Logged

"Siplicity is the ultimate sophistication" -Leonardo Da Vinci-

https://industrial-heritage-in-scale.blogspot.ch/
mspaw
Newbie
*
Offline Offline

Posts: 17


« Reply #108 on: June 14, 2017, 10:27:04 AM »

Chuck-

Amazing. For the JB Weld texturing (which looks spot on) are you just working it with a brush? Ive seen similar texturing done in 1/35 for castings for armor with Mr. Surfacer but never with epoxy. Very interesting. Also JB Weld seems to remain a bit gummy, has that been an issue at all?
Logged
Chuck Doan
Mr. Wizard
Hero Member
*****
Offline Offline

Posts: 2380



WWW
« Reply #109 on: June 14, 2017, 12:29:25 PM »

I use a cosmetic sponge to dab it on. It does remain soft for a long while and will "self heal" until it reaches a certain surface cure time (3 plus hours). So I come back and re dab for a while to re-texture. It dries plenty hard (overnite), but can be sanded. I give it a light sanding to knock down the texture a bit.  The JB Quick is too quick for large surfaces and I wish there was an in between version that surface cured faster.
Logged

“They're most important to me. Most important. All the little details.” -Joseph Cotten, Shadow of a Doubt





http://public.fotki.com/ChuckDoan/model_projects/
Chuck Doan
Mr. Wizard
Hero Member
*****
Offline Offline

Posts: 2380



WWW
« Reply #110 on: June 18, 2017, 04:11:16 PM »

Got the front truss rods installed. Truss rod tips (.025 diameter) made from styrene rod, threaded through a screw plate made from an old watch. Nuts from Scale Hardware.








Also started to weather the inside. The inside details won’t be easily seen when done, but it’s fun to do. Inside debris fastened with liquid Dullcote. Larger pieces with white glue.







« Last Edit: June 20, 2017, 09:55:44 AM by Chuck Doan » Logged

“They're most important to me. Most important. All the little details.” -Joseph Cotten, Shadow of a Doubt





http://public.fotki.com/ChuckDoan/model_projects/
Bill Gill
Hero Member
*****
Offline Offline

Posts: 571



« Reply #111 on: June 18, 2017, 05:06:05 PM »

That's looking really good, Chuck. How did you do the small numbers on the heavier rods as seen in the first two photos?
Logged
Chuck Doan
Mr. Wizard
Hero Member
*****
Offline Offline

Posts: 2380



WWW
« Reply #112 on: June 18, 2017, 05:31:17 PM »

Just raised lettering on the 3D model. The prototype had part numbers cast on most of the parts.
Logged

“They're most important to me. Most important. All the little details.” -Joseph Cotten, Shadow of a Doubt





http://public.fotki.com/ChuckDoan/model_projects/
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 3608



WWW
« Reply #113 on: June 18, 2017, 08:20:00 PM »

Fantastic paint and weathering!
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakin’s World
Chuck Doan
Mr. Wizard
Hero Member
*****
Offline Offline

Posts: 2380



WWW
« Reply #114 on: July 04, 2017, 02:56:13 PM »

Thanks Ray!

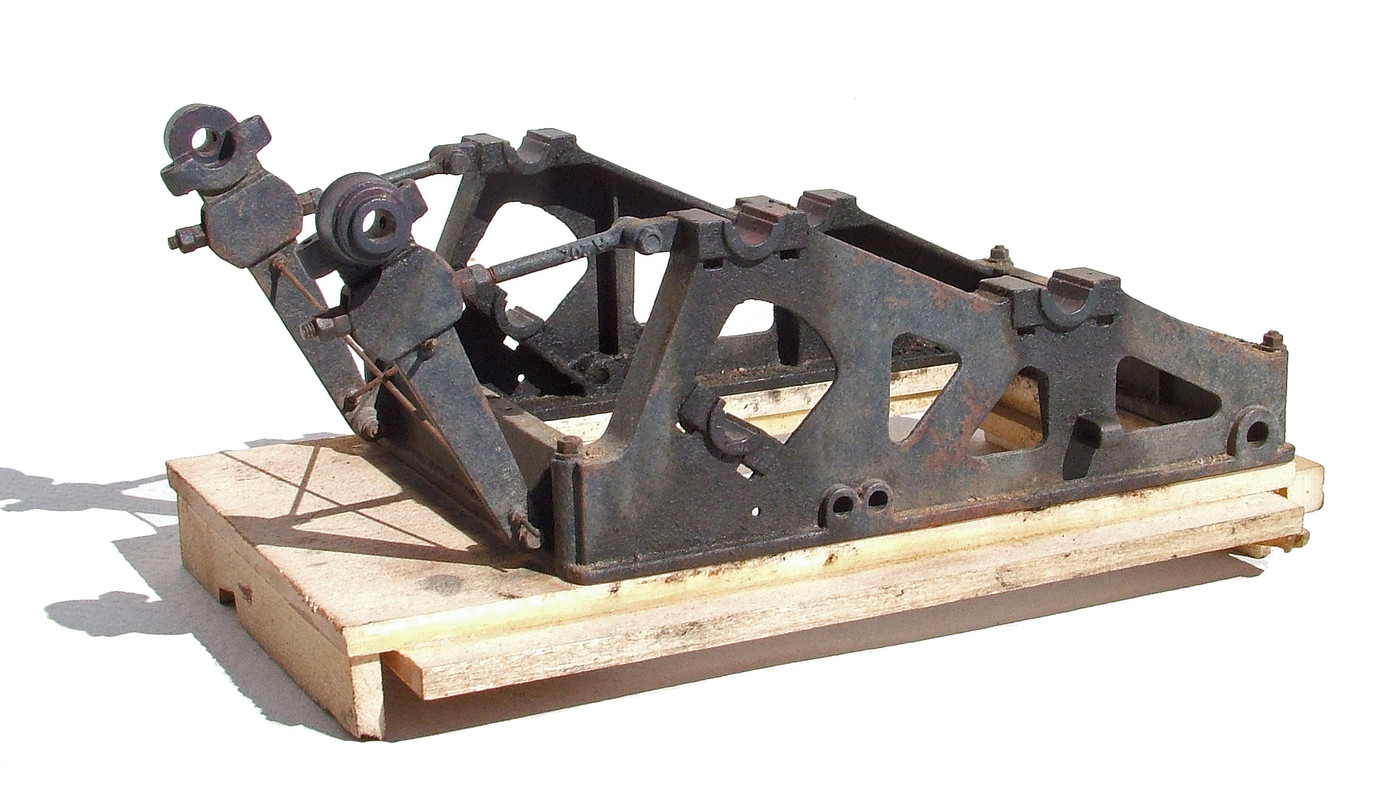

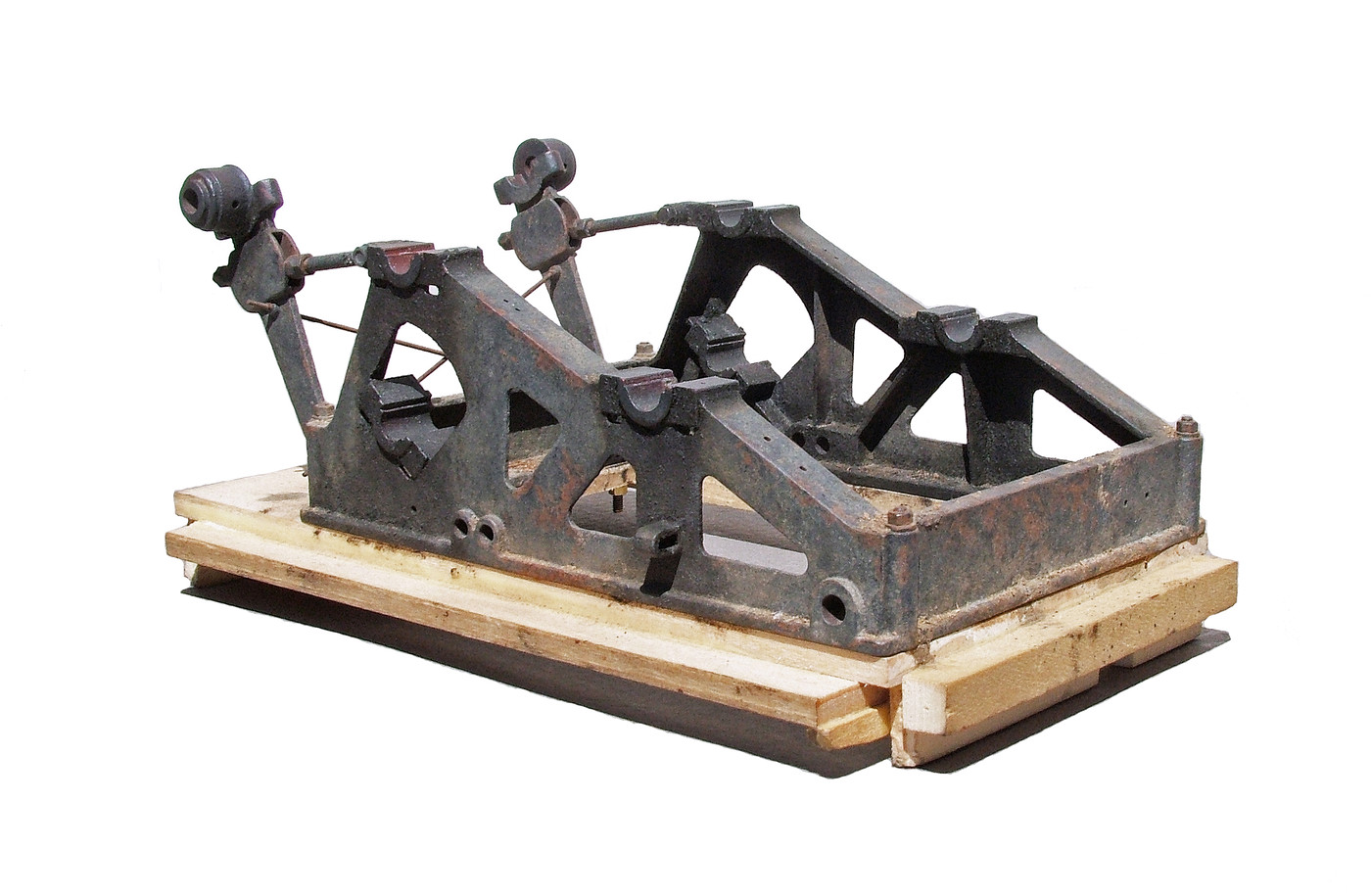

Made a bit of progress this weekend. Working my way around the other side and back (actually the front of the hoist). It is bolted down to a handling pallet with an open center for holding during assembly and weathering.






Logged

“They're most important to me. Most important. All the little details.” -Joseph Cotten, Shadow of a Doubt





http://public.fotki.com/ChuckDoan/model_projects/
Bill Gill
Hero Member
*****
Offline Offline

Posts: 571



« Reply #115 on: July 04, 2017, 06:42:48 PM »

That's terrific, Chuck!
Logged
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 3608



WWW
« Reply #116 on: July 04, 2017, 07:03:18 PM »

That could easily pass as a piece of real equipment on a shipping pallet.

Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakin’s World
EZnKY
Sr. Member
****
Offline Offline

Posts: 357



« Reply #117 on: July 04, 2017, 09:05:47 PM »

Beautiful work Chuck!

You're light years ahead of me with weathering.  I really appreciate you describing your methods and posting photos along the way!
Logged

Eric Zabilka
Wilmore, Kentucky
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 4879


« Reply #118 on: July 05, 2017, 11:43:30 AM »

Inspirational.

Satisfactory.

Russ
Logged
Dave Fischer
Newbie
*
Offline Offline

Posts: 39


« Reply #119 on: July 06, 2017, 01:10:23 AM »

Chuck-- This is looking fantastic! Very happy with the plant debris inside and that beat-up rear (front?) beam. Please stay motivated!   DF
Logged
