« on: February 20, 2016, 04:50:12 PM »

Thank goodness for talented friends!
I'm using the Al Armitage plans from the May/June 1993 gazette.
I started drawings and material lists right after Christmas.
Here is pic from the net



I started with the frame



I picked up a model T kit for some of the running gear.
The tiers were too small so I reached out for help.

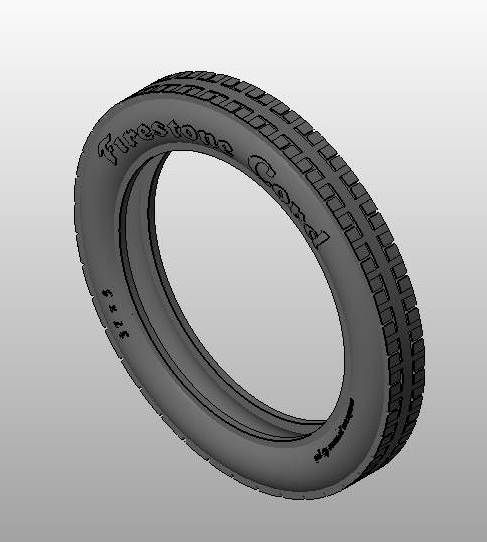

Volker came to my rescue and drew this;

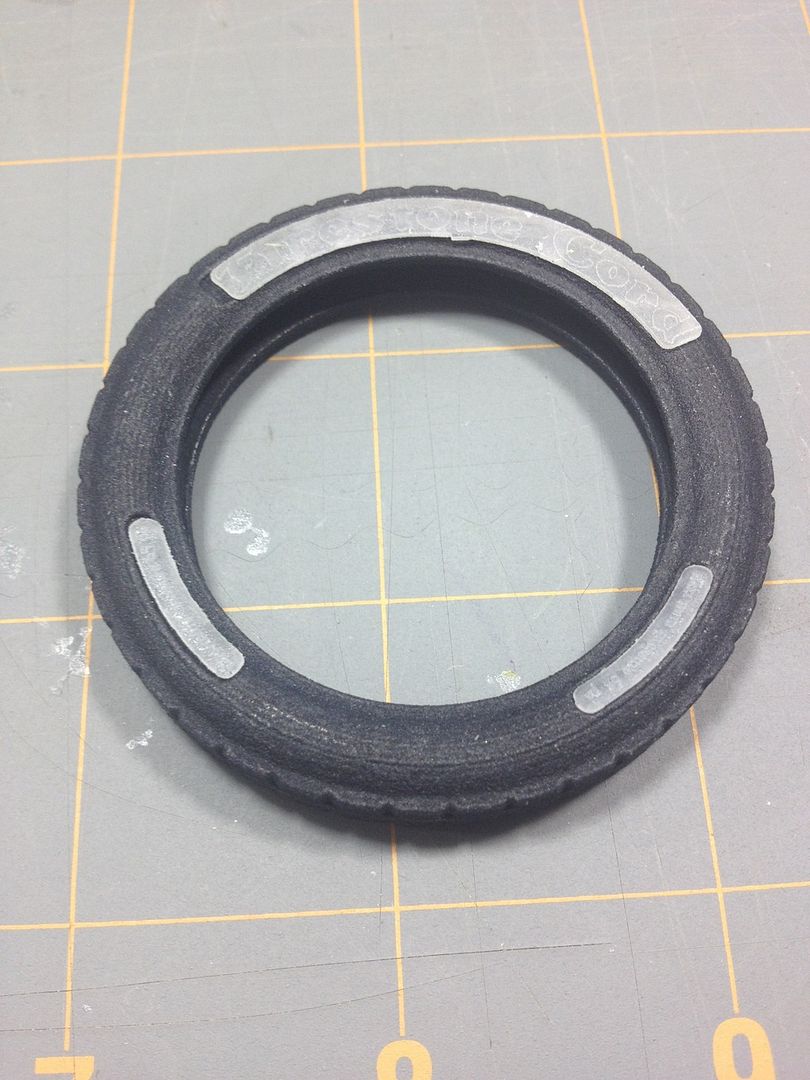

I had it printed in SBF but it was rough



So Volker came up with a different version.



Unfortunately for me I think inserting the FED letters in the cut outs will not work out for me.

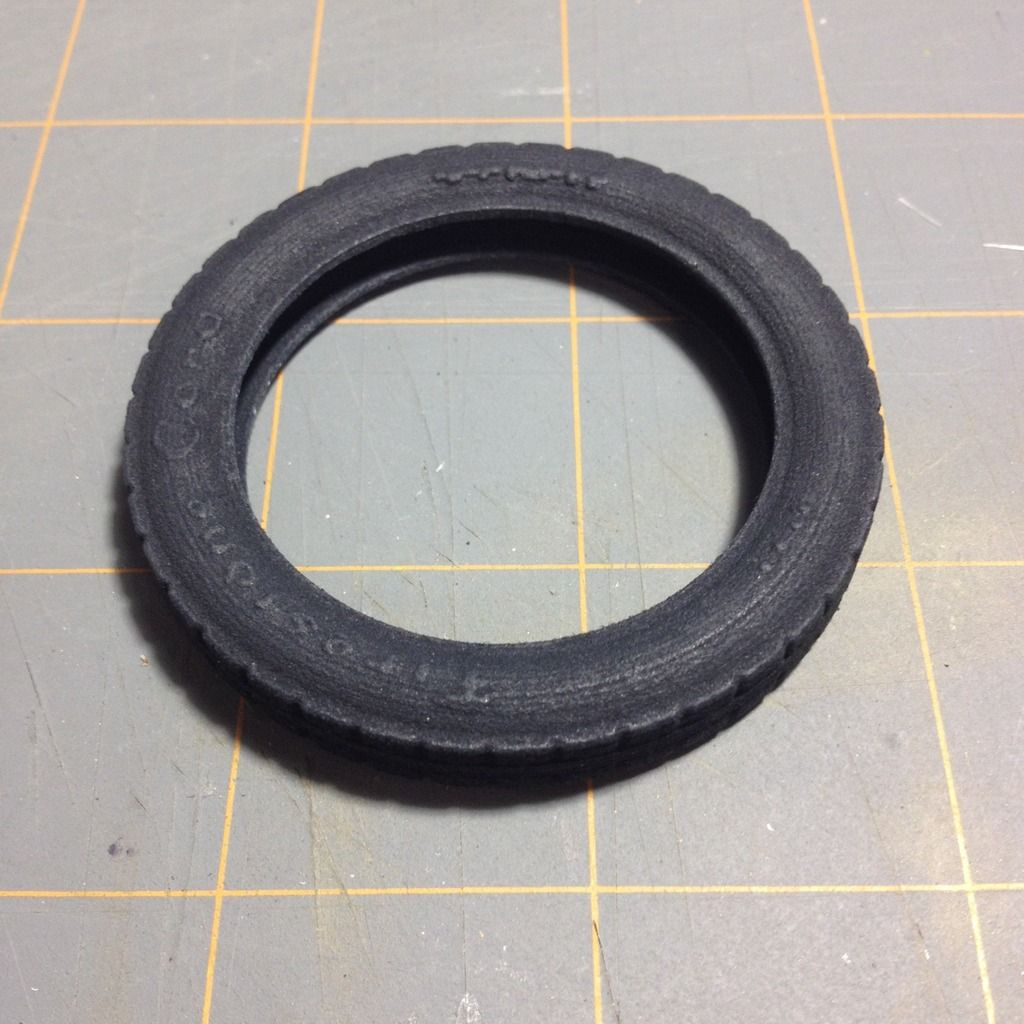

I'm hoping with some weathering I can improve the first versions look. After all they are 17 years old as modeled.

That's enough for now.
Wait till you see Chucks axle he drew for me!

Marty
« Last Edit: February 23, 2016, 04:20:09 PM by lab-dad » Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 4824


« Reply #1 on: February 20, 2016, 10:25:10 PM »

I predict another masterpiece. -- Russ
Logged
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 3588



WWW
« Reply #2 on: February 20, 2016, 10:34:25 PM »

Cool, that's a great looking truck.

Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakin’s World
TRAINS1941
Hero Member
*****
Offline Offline

Posts: 1176


« Reply #3 on: February 21, 2016, 11:25:12 AM »

Not bad for a beginner!! Wink

Jerry
Logged

Why isn't there mouse-flavored cat food?
George Carlin
lab-dad
Hero Member
*****
Offline Offline

Posts: 2079



« Reply #4 on: February 21, 2016, 03:37:54 PM »

Unc don't jinx me
Thanks Ray
Jerry, I'm trying.....

After I saw Chuck's I beam axle I asked if he would send me the file.
Well he went above and beyond!
He not only copied the one from the plans but added the spring mounts!
It turned out perfect!
I had it printed in bronze.



Once I get the steering knuckles built (I should have drew and printed them) I will take a better view.

Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 4824


« Reply #5 on: February 21, 2016, 10:40:27 PM »

Okay, I take it back. This model probably will be garbage. But it sure has started out well! -- Russ
Logged
Scratchman
Hero Member
*****
Offline Offline

Posts: 728


« Reply #6 on: February 22, 2016, 10:56:53 PM »


Marty, looks like you've got a good start. Are you going to do a full motor detail? And are you doing the cab and grain bed as the Gazette plan shows?

Gordon Birrell

 BTW, I would love to have a set of those tires.

https://www.flickr.com/photos/gordonbirrell/
Logged
lab-dad
Hero Member
*****
Offline Offline

Posts: 2079



« Reply #7 on: February 23, 2016, 06:58:29 AM »

Thanks Gordon,

I'm going to use the engine casting from the kit - it's close enough for a start.
I have some pretty decent pictures and it's not all that complicated.
I will detail it as much as reasonable, going to have to now that the hood is operable.
pictures soon

Yes, the plan is for the wood cab (not the C cab that looks like a ford).
Not 100% sure on the bed but some sort of box bed.
I've seen variations on the sideboards.
Once I get the chassis done and the cab i will play with bed ideas.

Mj
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
Bill Gill
Hero Member
*****
Offline Offline

Posts: 557



« Reply #8 on: February 23, 2016, 08:50:13 AM »

A good start, Marty! That first tire does look like it's been sitting out in the sun & weather for 17 years, and you didn't even have to pay/work extra for the effect. Chuck's axle is excellent, looks great in bronze.
Logged
Allan G
Full Member
***
Offline Offline

Posts: 170


« Reply #9 on: February 23, 2016, 09:24:00 AM »

This should/will be a great build.....Allan
Logged
lab-dad
Hero Member
*****
Offline Offline

Posts: 2079



« Reply #10 on: February 23, 2016, 04:28:14 PM »

The hood





Tops are .005 brass.
Bottoms are .005.
Louvers were cut by hand and shaped with a toothpick.

Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 3588



WWW
« Reply #11 on: February 23, 2016, 07:53:41 PM »

That is way cool!
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakin’s World
Chuck Doan
Mr. Wizard
Hero Member
*****
Offline Offline

Posts: 2376



WWW
« Reply #12 on: February 23, 2016, 09:05:21 PM »

Yes it is!
Logged

“They're most important to me. Most important. All the little details.” -Joseph Cotten, Shadow of a Doubt





http://public.fotki.com/ChuckDoan/model_projects/
TRAINS1941
Hero Member
*****
Offline Offline

Posts: 1176


« Reply #13 on: February 23, 2016, 11:08:39 PM »

Awesome work Mr. Jones.

Jerry
Logged

Why isn't there mouse-flavored cat food?
George Carlin
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 4824


« Reply #14 on: February 24, 2016, 02:00:15 AM »

Adequate. A longtime friend and top narrow gauge modeler phoned Sunday and said you've become one of his favorite modelers. I tried to change his mind but he was stubborn. No accounting for taste. -- Russ
