Author Topic: Carter Bros. Combo boxcar  (Read 51831 times)
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« on: July 26, 2015, 02:47:51 PM »

When I decided to construct a boxcar for my 1/16th scale Railroad I wanted something unique but common (yea, I know). My research led me to the Carter Brothers Combination car. Many articles, plans and images have been published pertaining to these cars. I liked the versatility of the car since I would likely only have one on my pike.

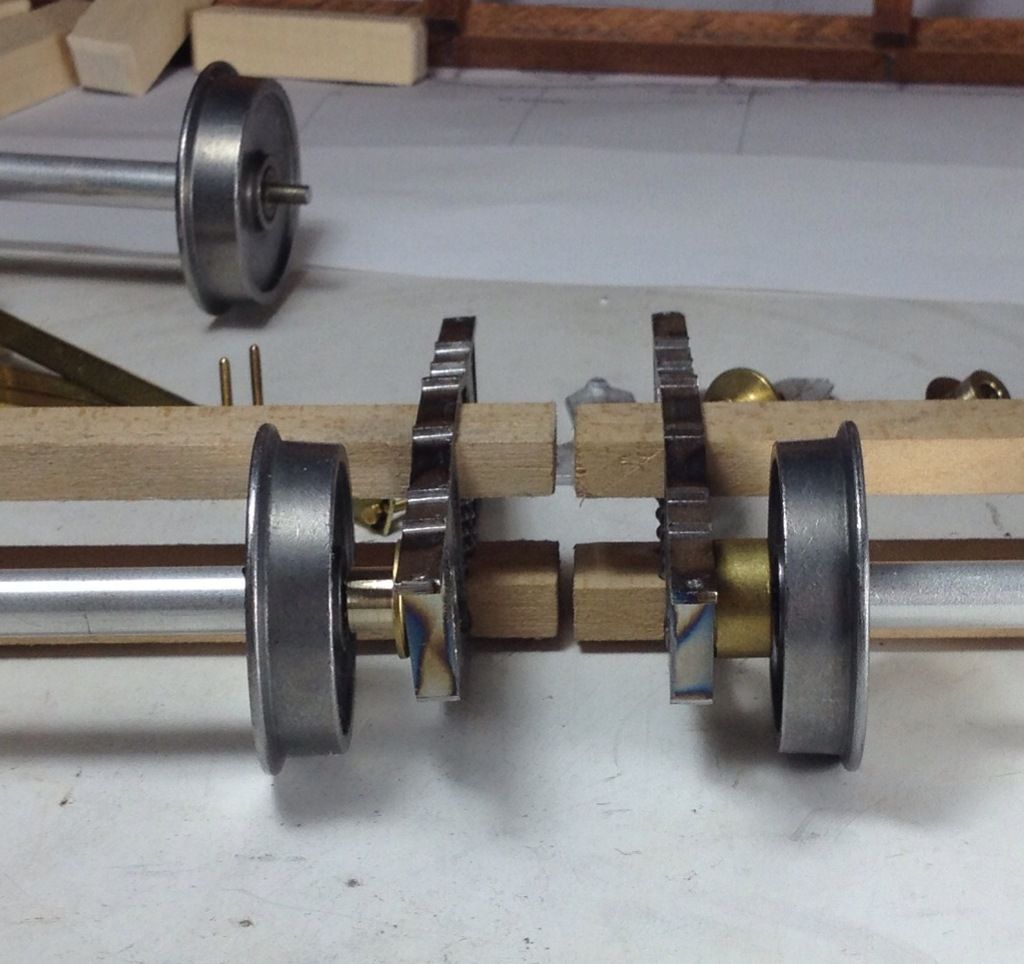

Like any project I started from the ground up. Since there are no 1/16th scale 3 foot gauge trucks are available I had to get creative. I ended up with trucks designed for 7/8th n2. I widened the axles, made new bolsters/spring planks and replaced the single springs with dual. I ended up with a truck that has 24” wheels and a 3’4” wheelbase. I also did not like the large diameter wheel bearings so I turned them down to match the axle dimension.

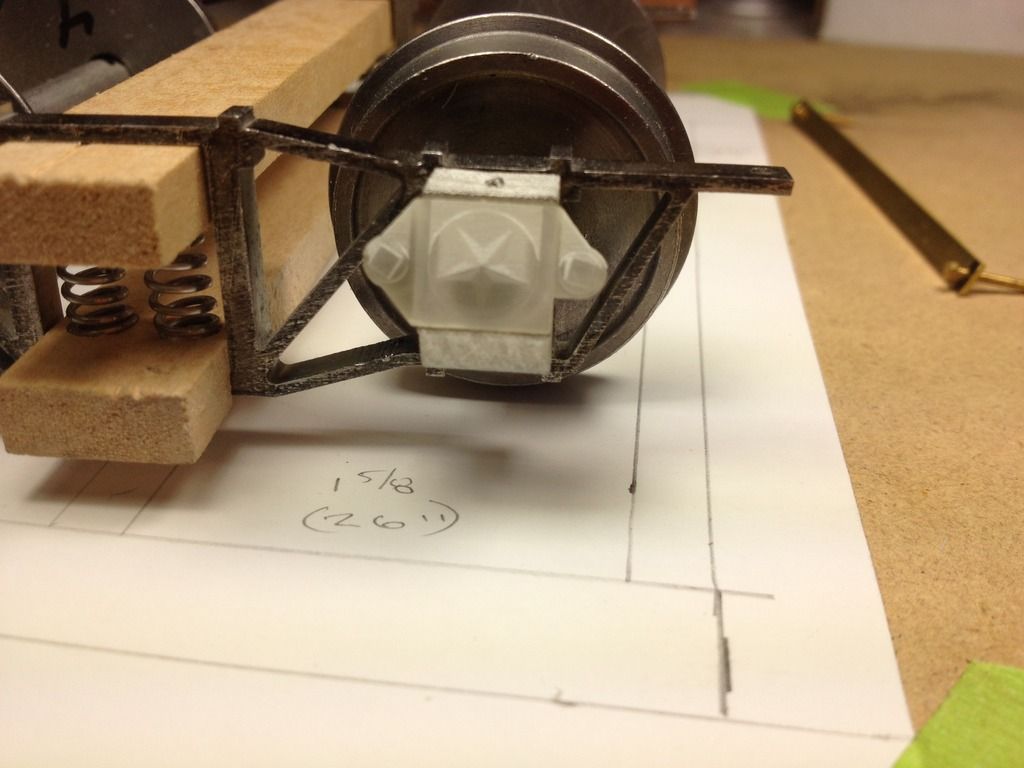

One of the key characteristics I love of a “Carter Car” is the star on the journal box lid. I knew there was no way I could machine even one master of this, so Sketch up to the rescue! Many of you saw this on the SU thread.

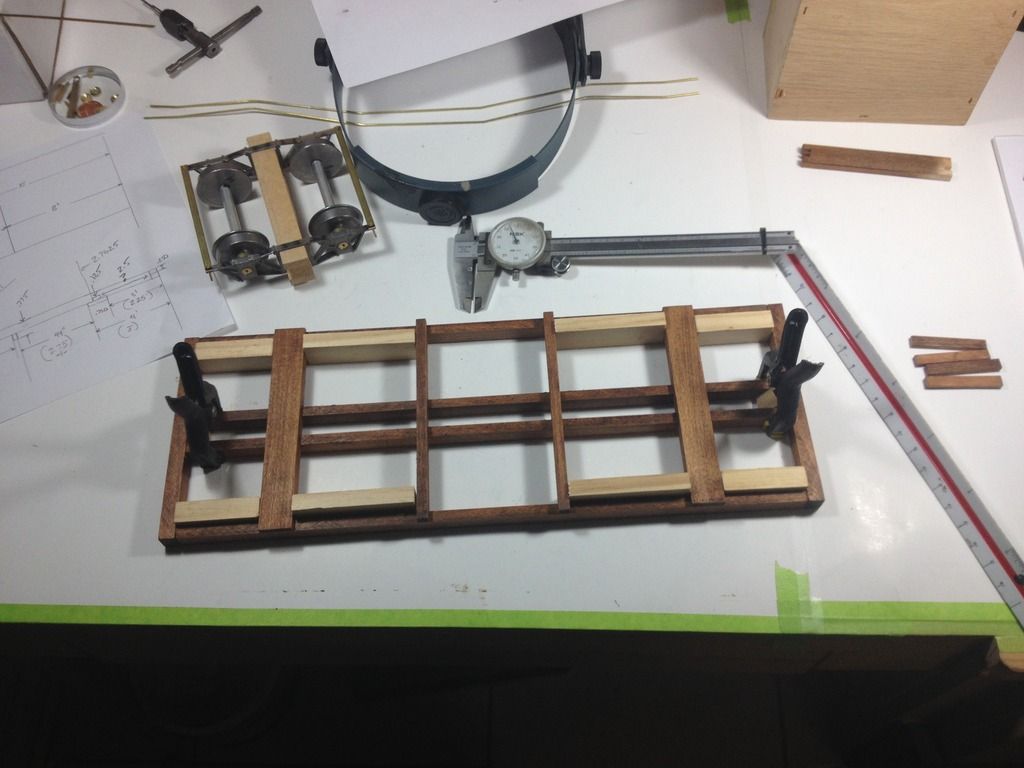

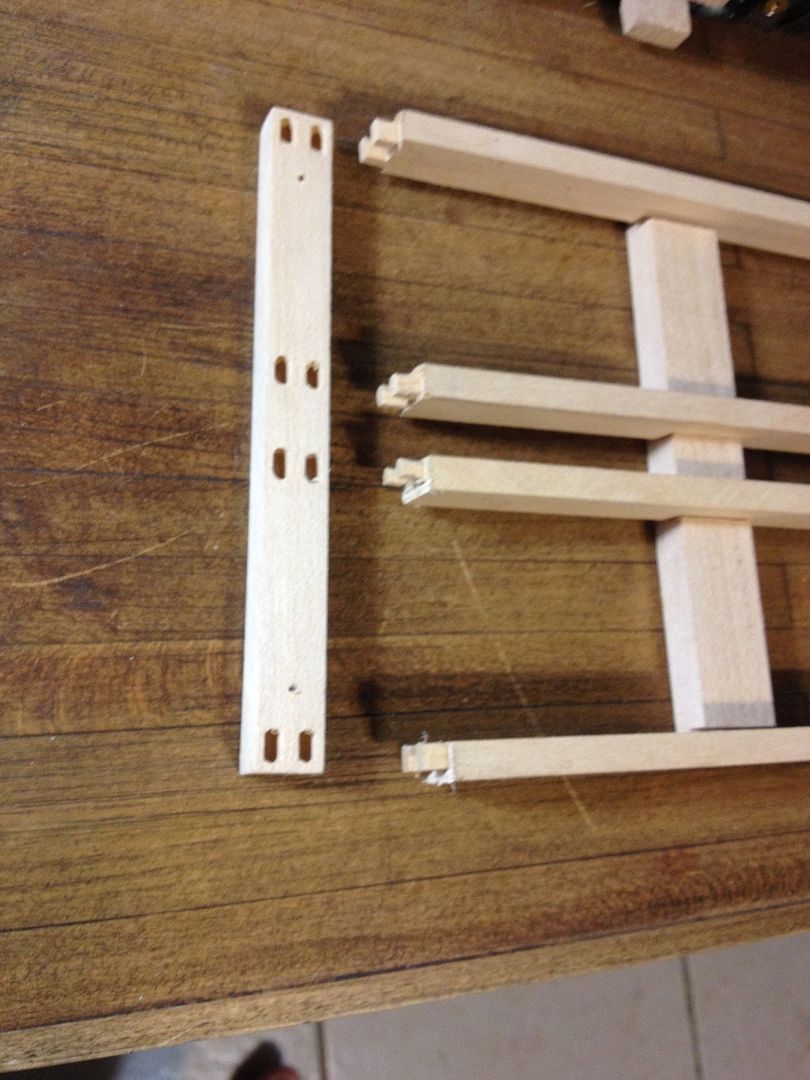

While waiting for the strip-wood, metal and castings for the project I started on the frame. I had some basswood stock so I ripped it down on my table saw. I wanted as faithful as possible reproduction as I could get. I made mortice & tennon joints for the side and center sills using my Sherline mill and table saw.

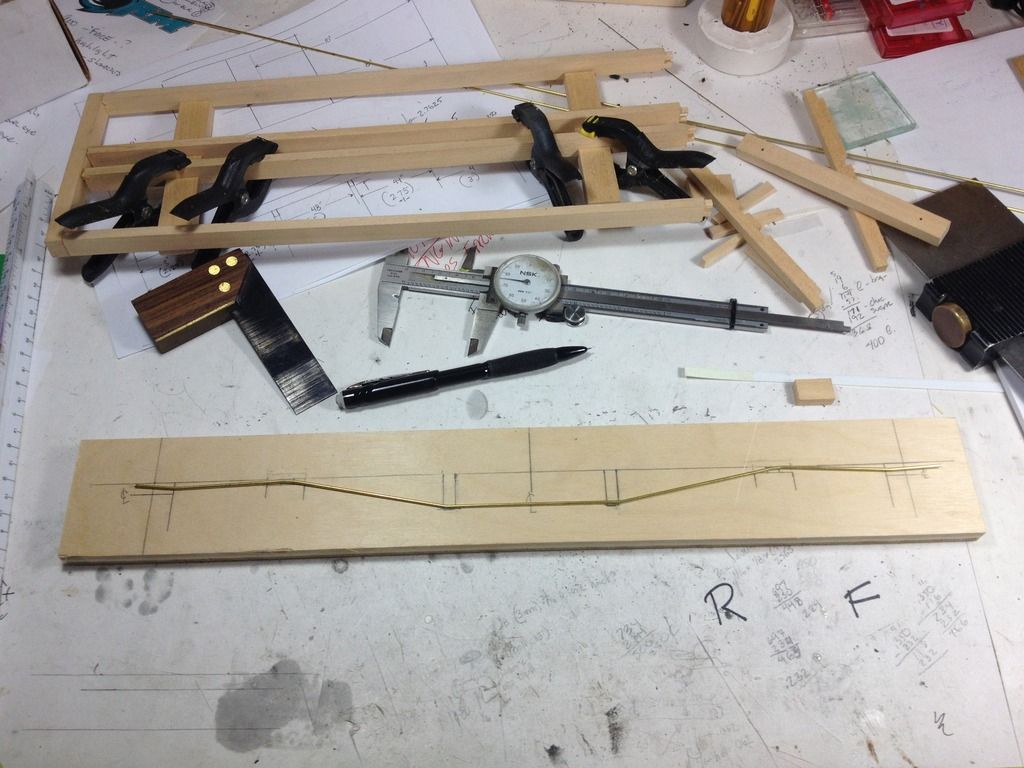

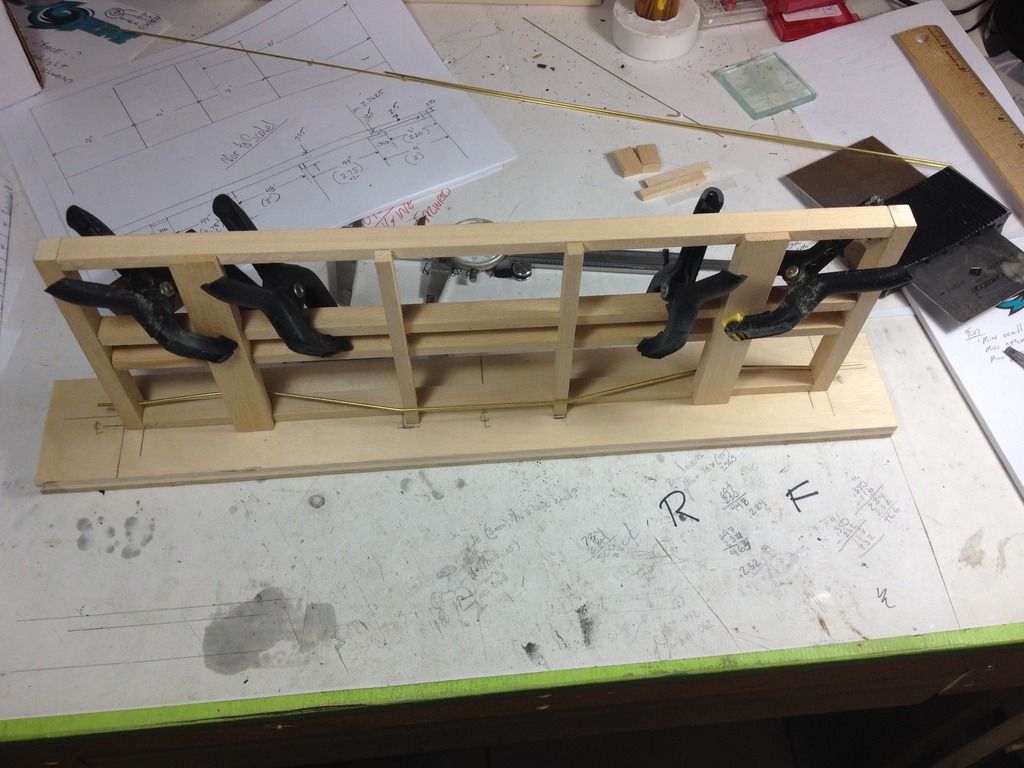

Trussrods were bent up using a jig and checked in the frame.
I will eventually add threaded ends (1-72) to them and the correct looking hardware so they will be "functional".

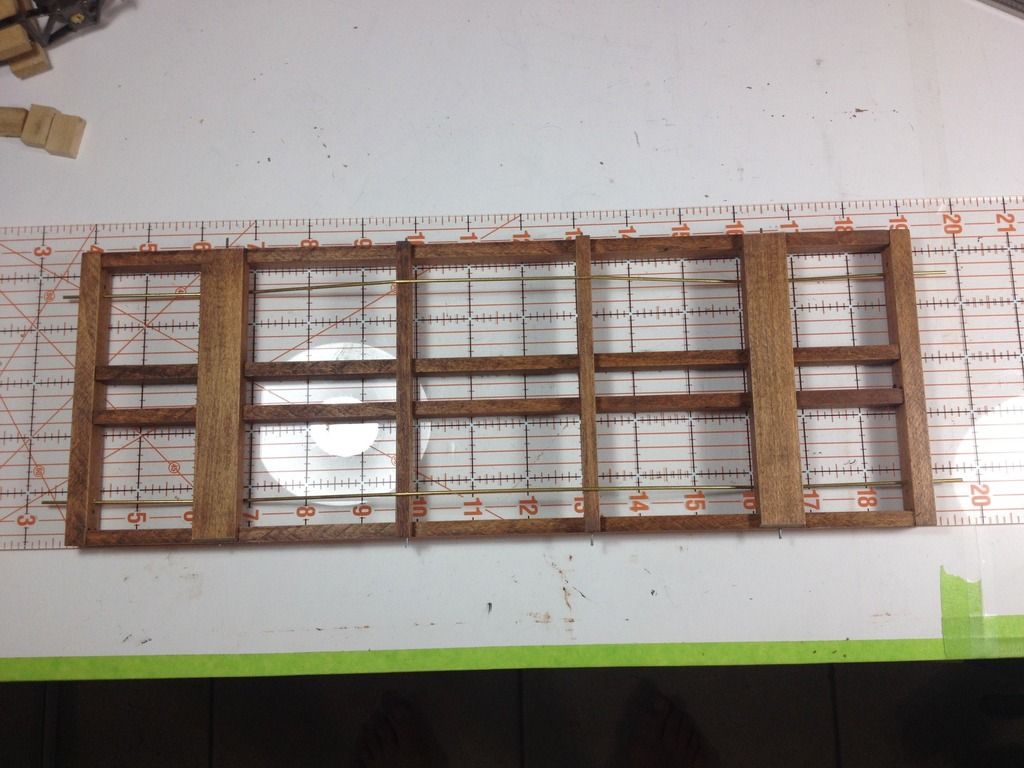

Spacers are used to keep the crossmembers where they should be.





More soon. There's a long way to go............

-Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
Chuck Doan
Mr. Wizard
Hero Member
*****
Offline Offline

Posts: 2517



WWW
« Reply #1 on: July 26, 2015, 07:23:41 PM »

Looking great! Too bad all that joinery gets hidden, but at least it does actually function.
Logged

“They're most important to me. Most important. All the little details.” -Joseph Cotten, Shadow of a Doubt





http://public.fotki.com/ChuckDoan/model_projects/
TRAINS1941
Hero Member
*****
Offline Offline

Posts: 1355


« Reply #2 on: July 26, 2015, 07:25:53 PM »

Wow not one comment out of 30 people looking what a bunch of duds.

As usual your scratch building amazes me with ever new project.

Excuse me Chuck just posted also.

Jerry
Logged

Why isn't there mouse-flavored cat food?
George Carlin
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5689


« Reply #3 on: July 27, 2015, 01:28:32 AM »

Probably my favorite boxcar and your model will be outstanding. You may recall I built a 1:48 Carter Brothers inspired boxcar from from styrene and paper and used the same underframe jig to build a flat and gon. I will be really interested in your progress. -- Russ
Logged
Bill Gill
Hero Member
*****
Offline Offline

Posts: 978



« Reply #4 on: July 27, 2015, 04:32:54 AM »

Marty, Very creative making the trucks, and the frame joinery and construction is top notch!
Logged
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 4213



WWW
« Reply #5 on: August 02, 2015, 12:00:18 AM »

Great work as usual, Marty!
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakin’s World
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #6 on: August 02, 2015, 11:19:44 AM »

Thanks guys!

A couple more progress shots;

I drew my plans based on all the info I collected and had them laminated. Then I built a jig around the plans and cut spacers for the vertical posts.



Once I got all the structure in the right place I installed the interior sheathing. I left a couple long across the doorway for strength while building. Exterior sheathing will come later, much later…..

Cutting the diagonal braces;



The diagonal braces must also be notched so the truss rods can pass through them at one end. Kinda hard to see but this is a .0465" bit making a grove in the center of a 1/8 x 1/4 piece.





I also drilled and installed the 1 mm (scale 5/8”) truss rods. The rods go into the frame and the end cross rods keep the ends on. Roof rafters were cut and sit in the header notches. I’m trying to make the construction and joints as close to the real one as I can.



It’s pretty amazing – and cool how strong the framework is now!
More soon – I hope
-Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
Mr Potato Head
Hero Member
*****
Offline Offline

Posts: 545



« Reply #7 on: August 02, 2015, 11:41:13 AM »

Now your just show'in off
MPH
Logged

Gil Flores
In exile in Boise Idaho
Sami
Full Member
***
Offline Offline

Posts: 124


« Reply #8 on: August 02, 2015, 02:00:43 PM »

It's à gold work !
Logged
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5689


« Reply #9 on: August 02, 2015, 02:08:02 PM »

Do I sense inspiration from Volker and Helmut here? -- Russ
Logged
1-32
Hero Member
*****
Offline Offline

Posts: 848


Hi, I'm Kim.


« Reply #10 on: August 02, 2015, 02:21:38 PM »

great miniture wood work
cheers kim
Logged
Barney
Guest
« Reply #11 on: August 02, 2015, 03:27:20 PM »

Speechless - super stuff !
Barney
Logged
NORCALLOGGER
Sr. Member
****
Offline Offline

Posts: 445


« Reply #12 on: August 02, 2015, 10:37:39 PM »

Beautiful work Marty,
Seems like Carter cars are relatively unknown in the general modeling
community so it is always a pleasure  to see a project like
yours coming to fruition.

In case you haven't seen it here is a great film on the history
of the Carter Brothers and their car building.

https://www.youtube.com/watch?v=Xpxjg34gJV0

Looking forward to seeing the progress of your project.
Rick
Logged
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 4213



WWW
« Reply #13 on: August 03, 2015, 12:17:57 AM »

Speechless - super stuff !

Ditto that!
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakin’s World
Design-HSB
Hero Member
*****
Offline Offline

Posts: 778


Klosterstollen


WWW
« Reply #14 on: August 03, 2015, 01:04:43 AM »

Very good carpenter working in the model.
Logged

Regards Helmut
the journey is the goal
