Author Topic: In-ko-pah RR: Dos Manos depot  (Read 88493 times)
Lawton Maner
Hero Member
*****
Offline Offline

Posts: 626


« Reply #210 on: November 05, 2016, 04:09:37 PM »

Why not just use a metal rod along the side of the door, which has to be a bi-fold one, to act as the attachment and hinge?
Logged
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 4251



WWW
« Reply #211 on: November 06, 2016, 02:31:45 AM »

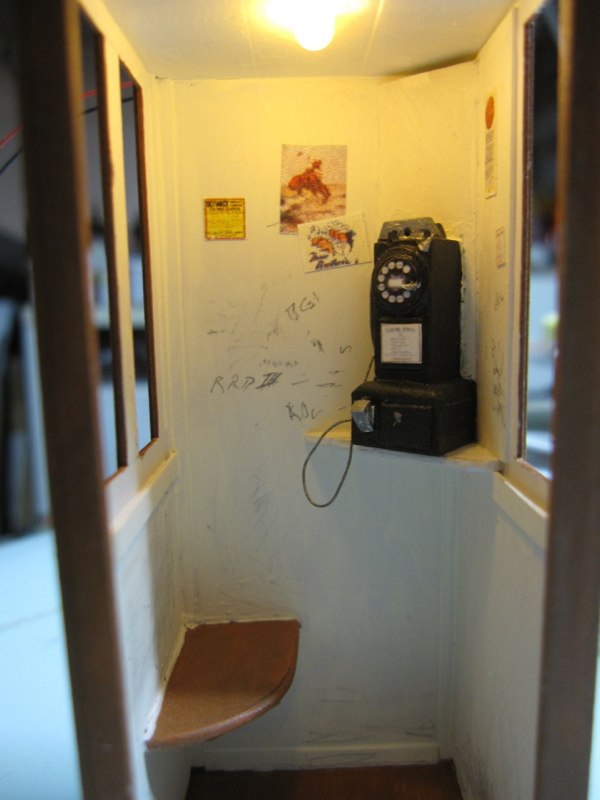

I had made such a mess of the dial, that I decided to try to fix it even though the phone is already glued into the booth. I carefully reached in with a tiny piece of emery board, and sanded off the existing dial. The I scaled down a photo of a real dial, printed it onto self-adhesive vinyl, cut it out, and mounted it on the phone. I touched up the edges with bit of black paint. I also added some small ads and posters to the interior of the booth:

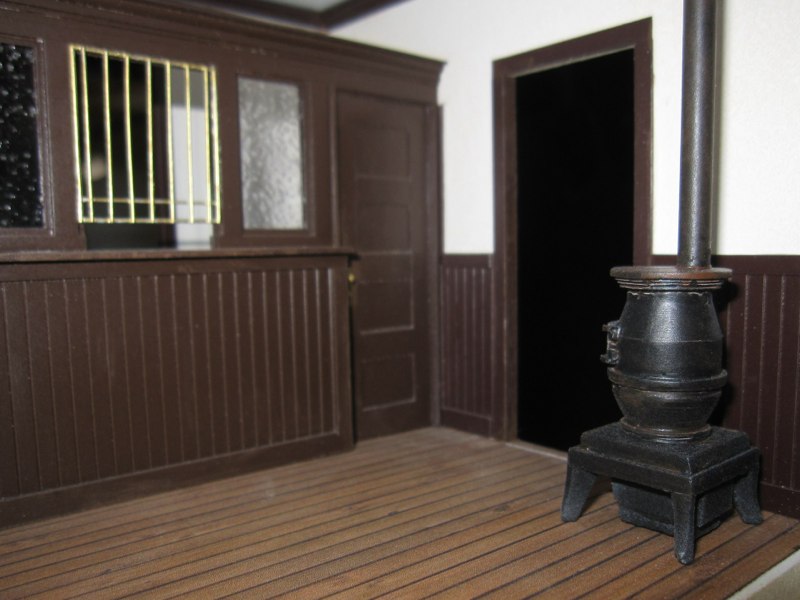

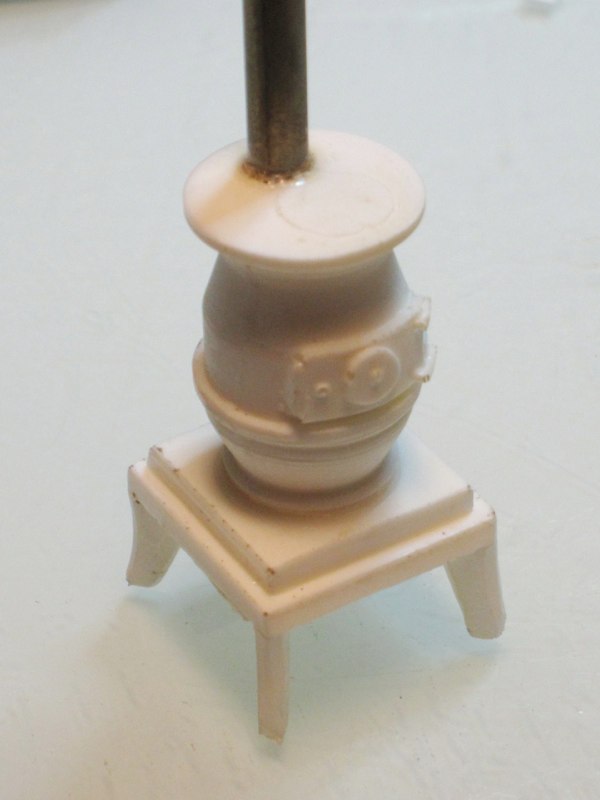

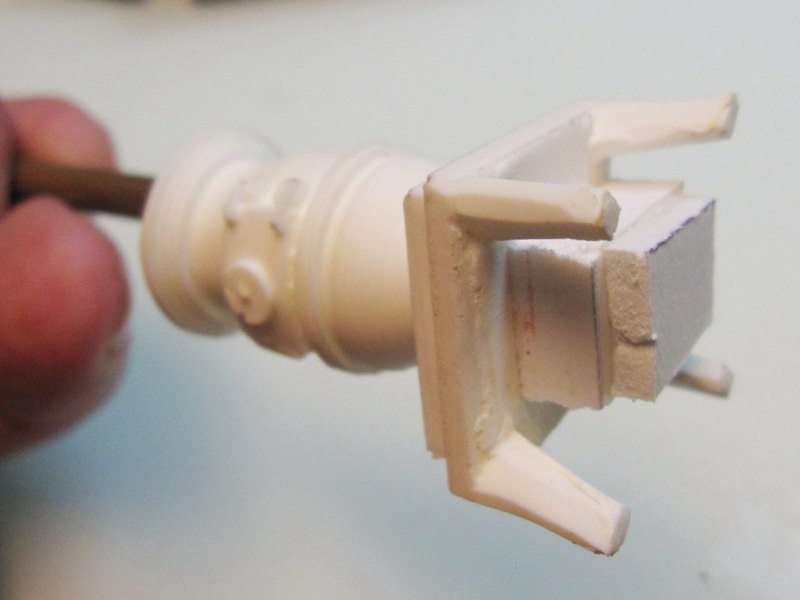

Another casting I got from Bob Santos was a pot-bellied stove -- just what I needed for the interior of the depot. I used a piece of brass tubing for the smokestack, and also glued a block of Sintra PVC to the bottom. This allows me to secure it with a screw from under the floor. That part of the stove won't be visible through the windows of the depot:










Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakinís World
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5722


« Reply #212 on: November 06, 2016, 12:53:49 PM »

You vastly have improved the phone. -- Russ
Logged
NORCALLOGGER
Sr. Member
****
Offline Offline

Posts: 447


« Reply #213 on: November 06, 2016, 06:01:13 PM »

Ray,
That phone booth is perfect except for one little thing.
Where is the chain and binder that holds the always missing phone book? Wink Grin
Rick
Logged
Barney
Guest
« Reply #214 on: November 08, 2016, 09:59:44 AM »

Lovely stuff -excellent detail and thought has gone into it
Barney
Logged
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 4251



WWW
« Reply #215 on: November 16, 2016, 08:59:33 PM »

Lately I've been busy installing and wiring the depot's lights, both interior and exterior, as well as making some more interior details, installing doors and windows, etc.

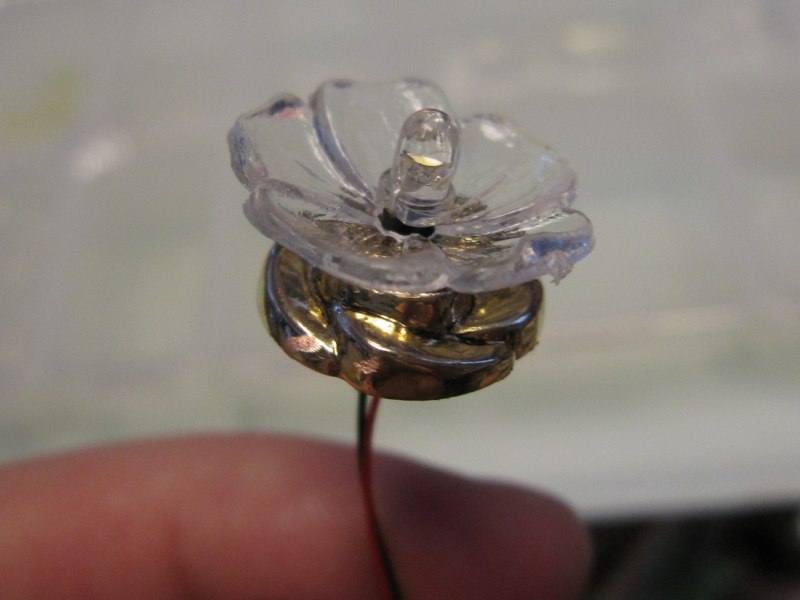

I made ceiling lamps out of clear plastic beads and brass-plated plastic buttons, with 3mm LEDs:

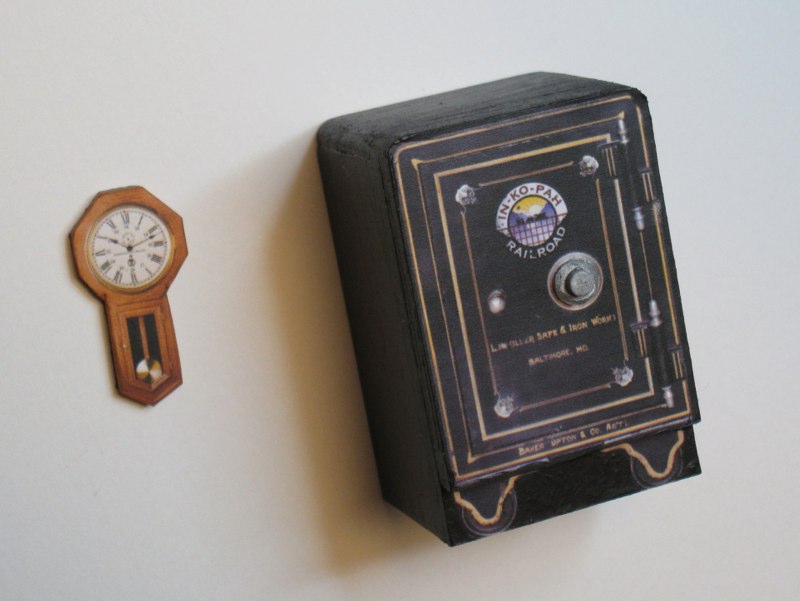

Here are a couple of the simple background details for the interior -- a wall clock and a safe:

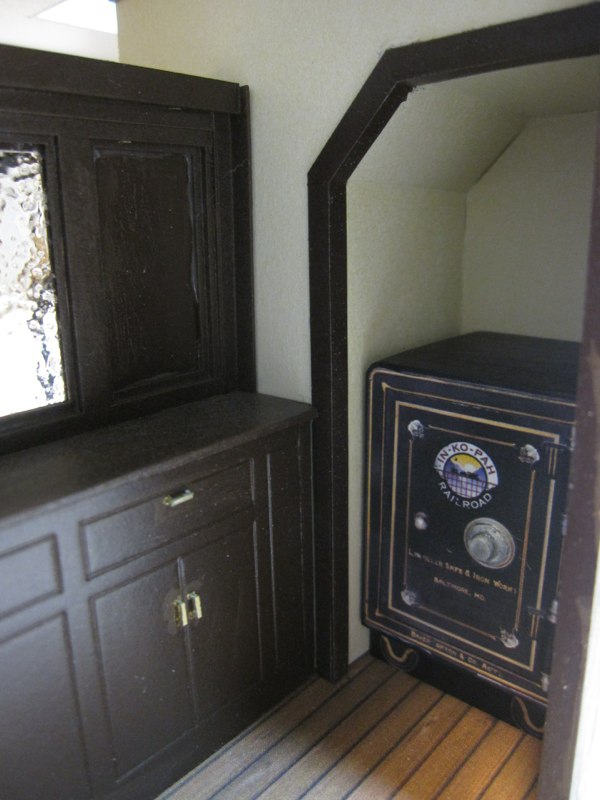

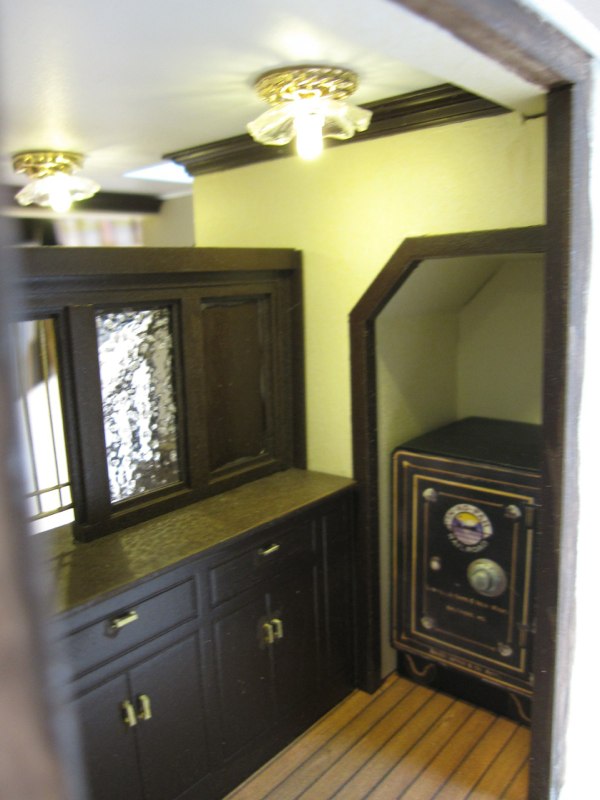

The safe is tucked into a corner and will only be partially visible through the bay window, which is why I didn't put too much effort into it:




This next photo is a bit out of focus, but it does show some of the ceiling lamps:

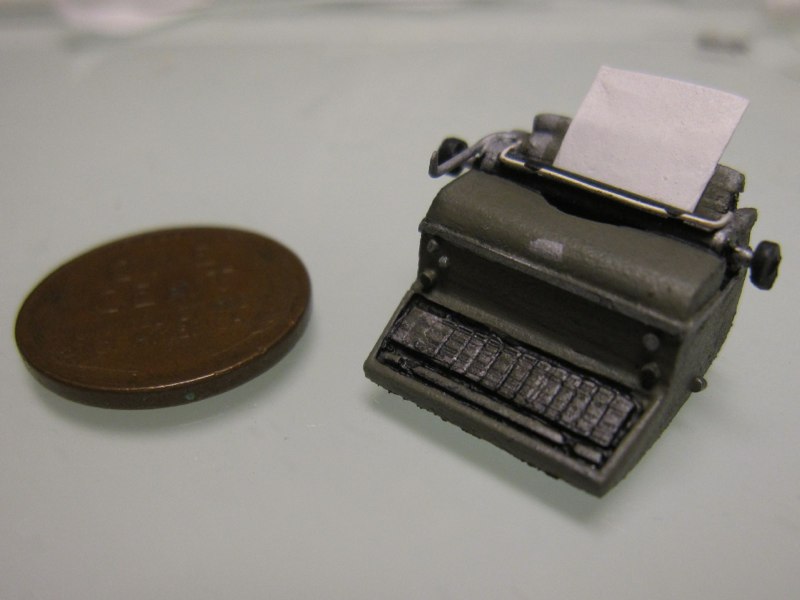

I also made a vintage typewriter for the station master's desk, just inside the bay window. I'm not very happy with the keys but it'll have to do. I couldn't think of any better way to represent them:




That's all for now, more later.

Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakinís World
Dave Fischer
Jr. Member
**
Offline Offline

Posts: 70


« Reply #216 on: November 17, 2016, 12:55:27 AM »

Hey, Ray-- Why not try using the same method on the typewriter keys that you used fixing the phone dial? A friend of mine discovered that when you can only see some interior detail with one eye at a time, your 3-D vision no longer works and a simple photo looks as good as the real thing. He was doing the cockpit interior of a large scale airliner and found that correctly-sized photos of the instrument panel and side consoles looked fully dimensional (and perfectly scaled) when viewed through the cockpit windows. There must be an old typewriter SOMEWHERE that you can shoot down on...   DF
Logged
fspg2
Sr. Member
****
Offline Offline

Posts: 286



« Reply #217 on: November 17, 2016, 02:29:20 AM »

I love such interior :-)

For pictures of typewriter keys have s look here
Logged

Frithjof
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 4251



WWW
« Reply #218 on: November 17, 2016, 07:31:41 PM »

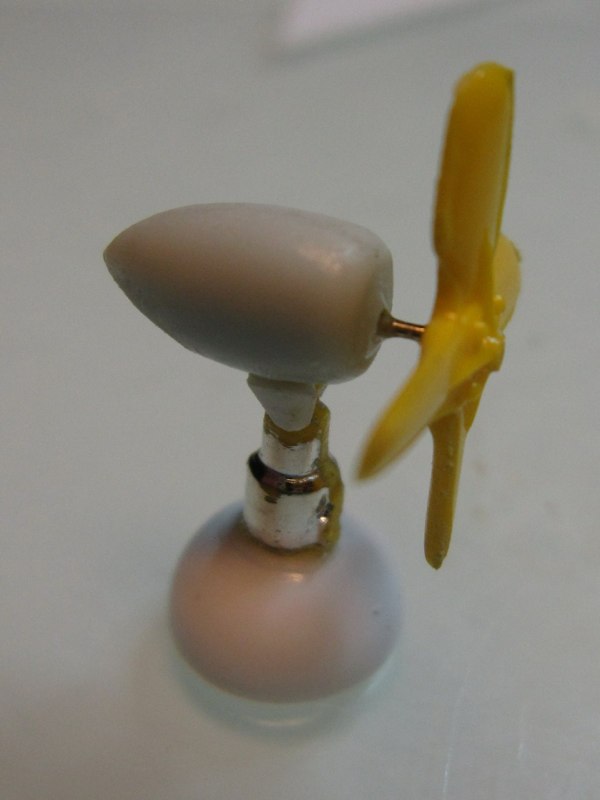

Thanks for the kind comments! Here are a couple more detailsÖ First is a desk fan, which I made from the engine fan and jack stand out of a model car kit, plus part of an old Gundam kit and a few other bits:

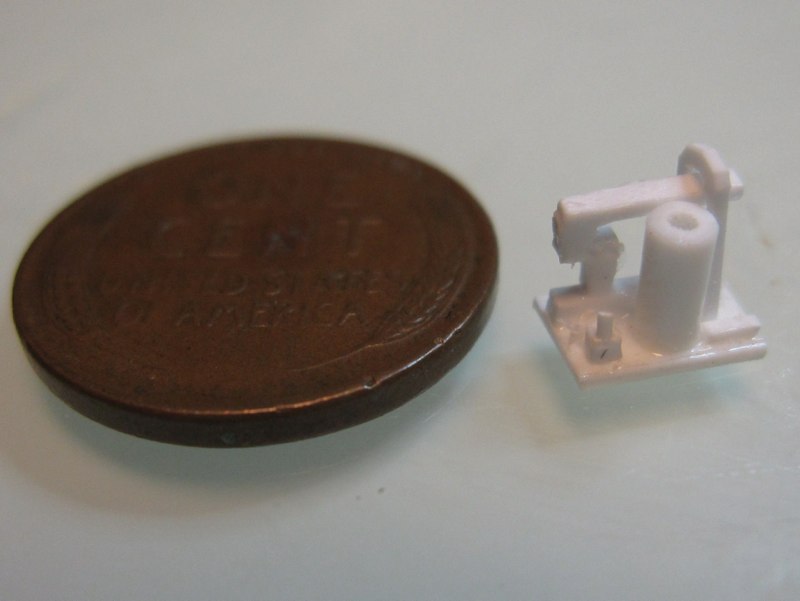

Next is a telegraph receiver. Kind of crude in closeup but actually turned out much better than I expected for something so tiny:

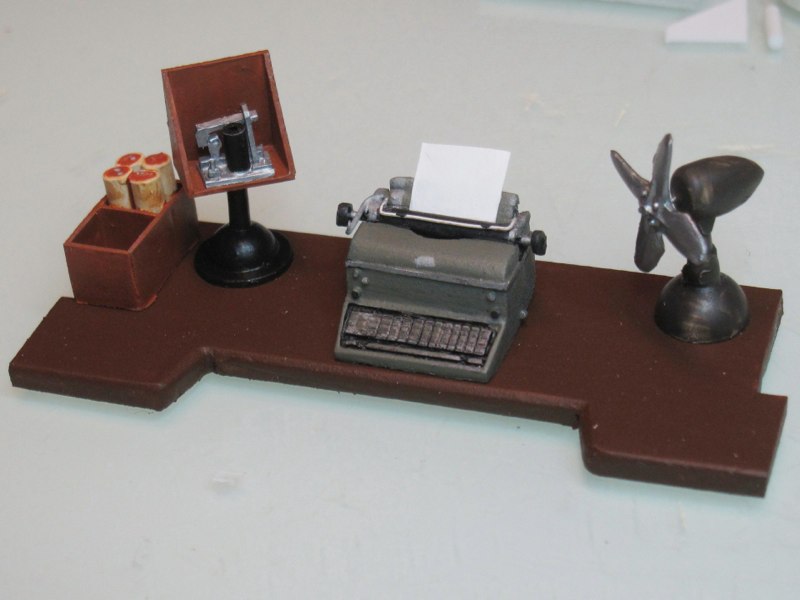

And then here's a shot of the desk top, with the items temporarily in position to see how it all fits. I may end up moving the fan to the ticket counter, and replace it with a lamp. This desk will fit into the bay window:



.
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakinís World
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5722


« Reply #219 on: November 18, 2016, 01:50:23 PM »

... And all this will be outdoors. You are a very talented lunatic. -- Russ
Logged
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 4251



WWW
« Reply #220 on: December 02, 2016, 03:11:43 PM »

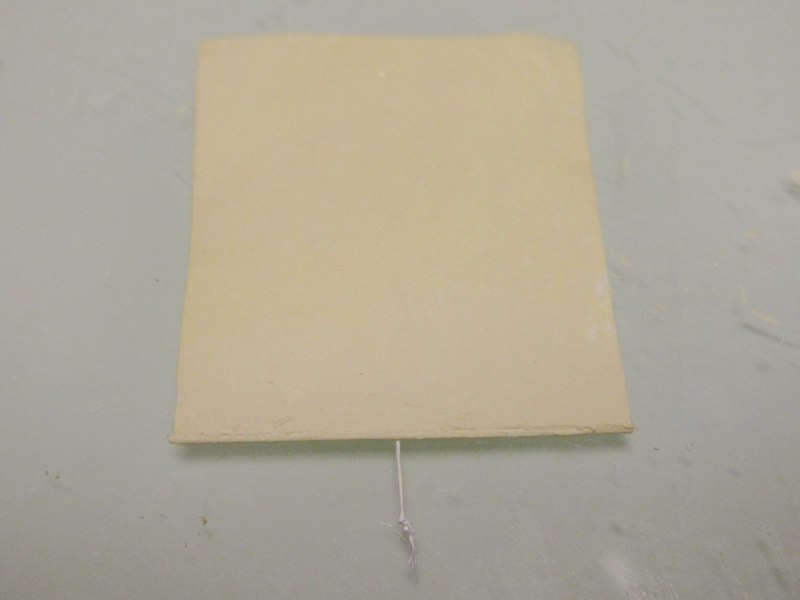

The window shades were made from strips cut from a Tyvek envelope, painted "antique white", and sprayed with Krylon UV resistant matte clear:

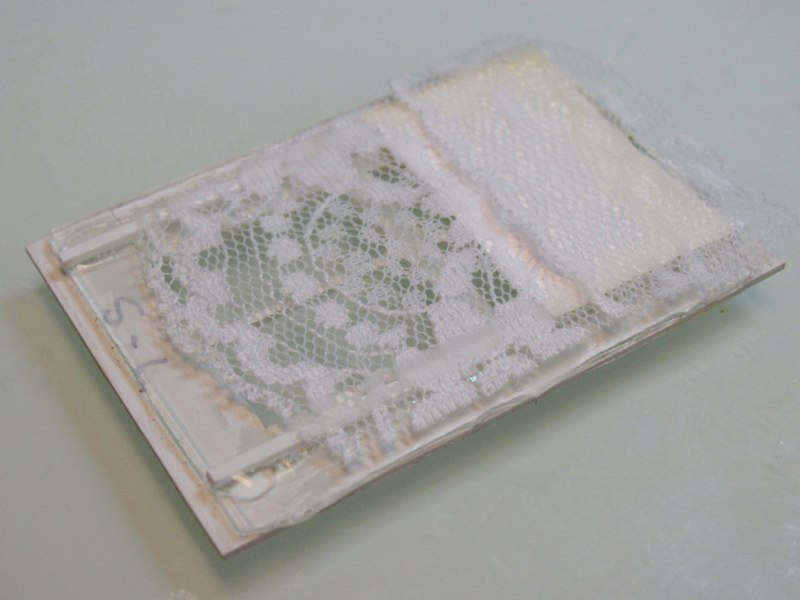

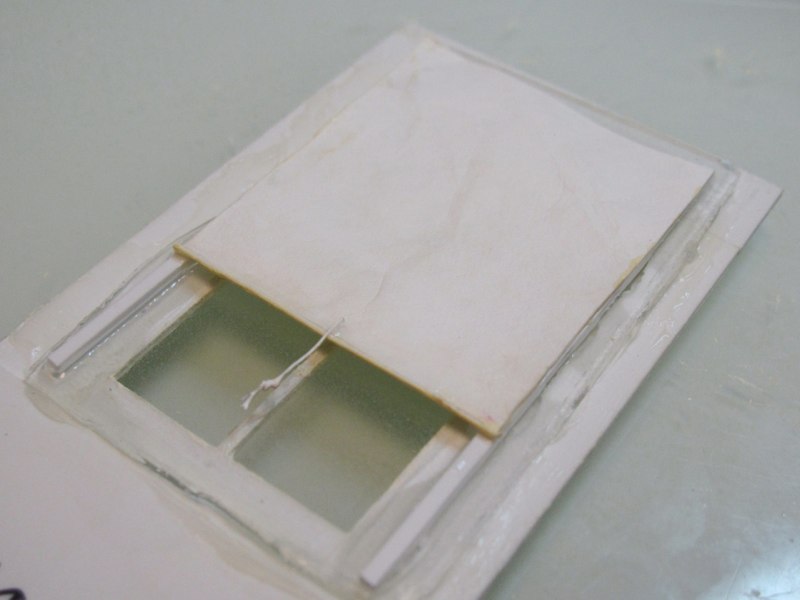

These were glued to thin styrene strips mounted on both sides of each window. Lace was then added where needed, to represent curtains:

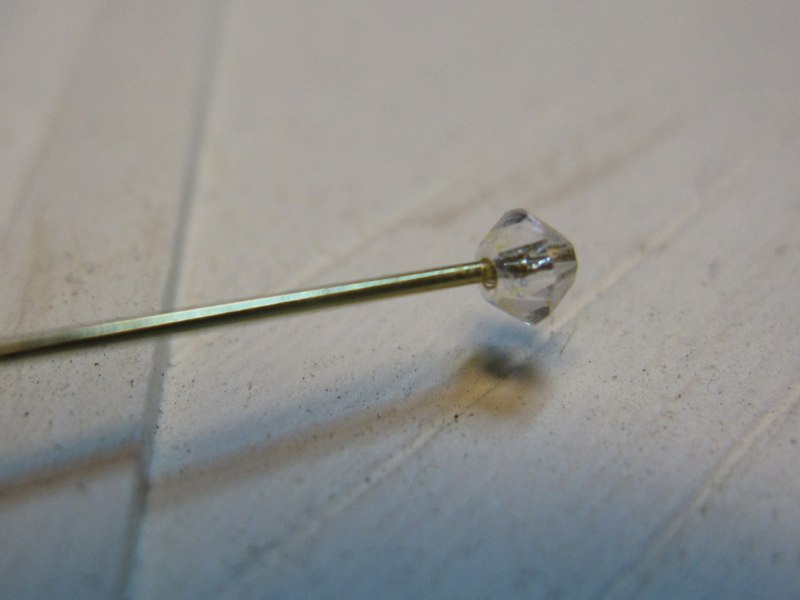

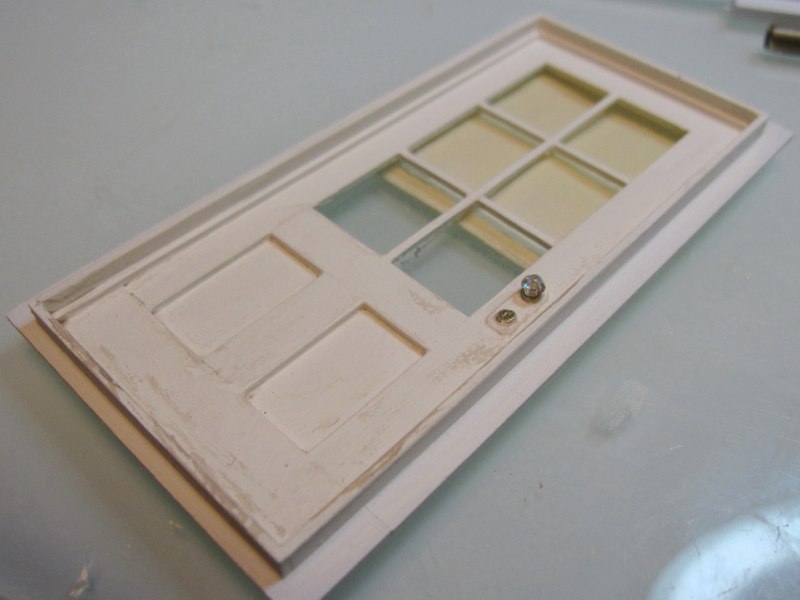

Here's a door with the window shade and doorknob installed. The doorknob was made from a tiny, genuine crystal bead:

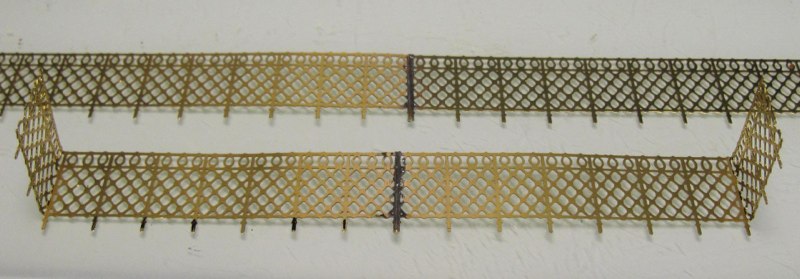

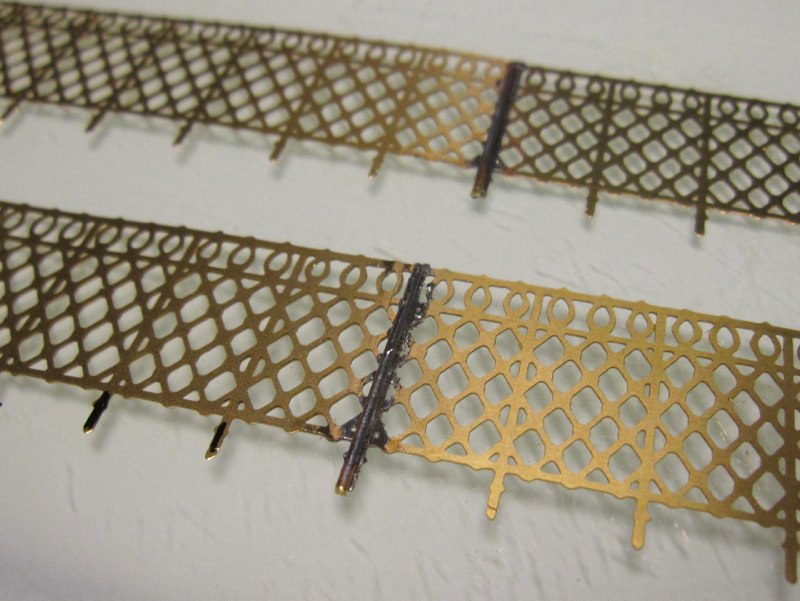

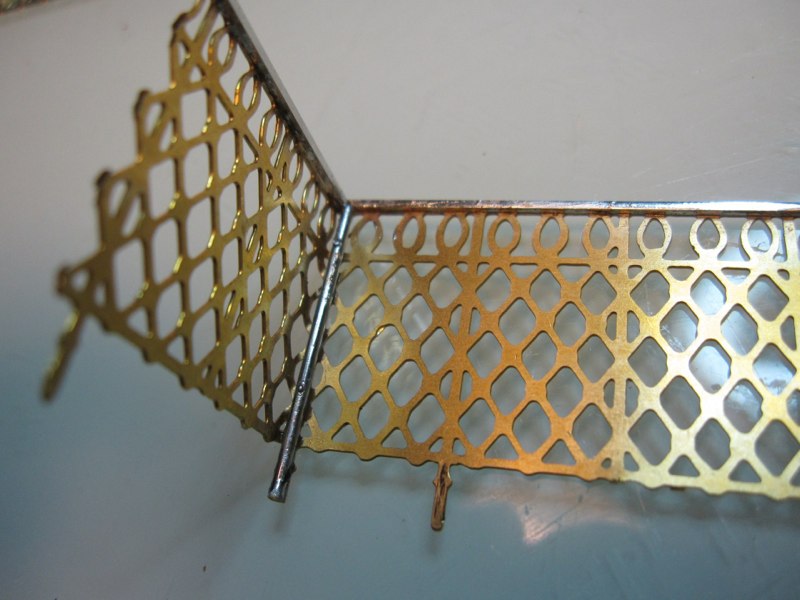

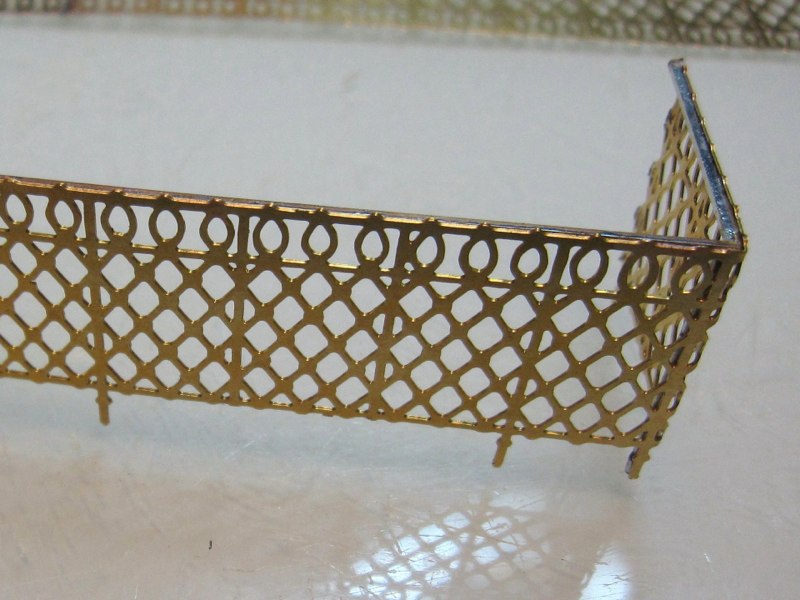

The balcony railings were made from brass etching, sold by Scale Link in the UK. To make them long enough, I had to butt two pieces together and solder them. Then I added a thin brass rod over the joint, both to reinforce the joint and to strengthen the post. I also add rods to the corner posts:

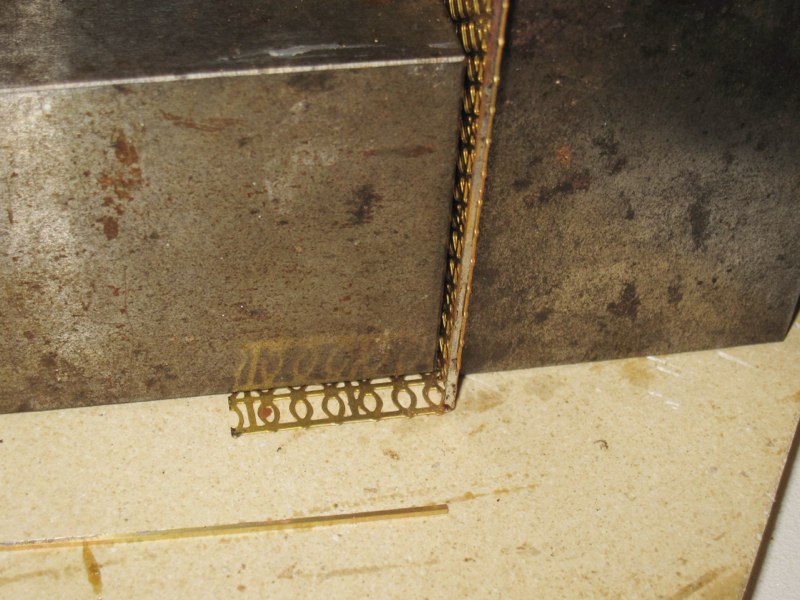

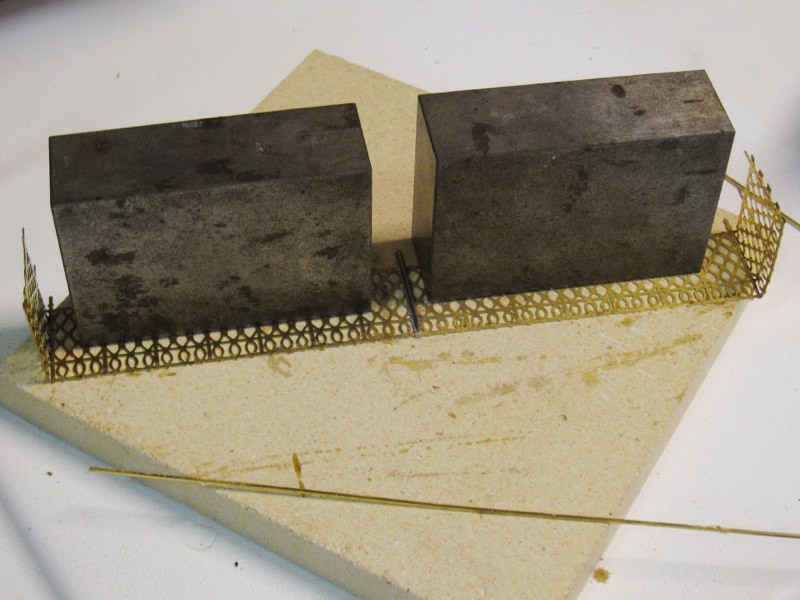

Strips of 1/32" square brass rod was soldered along the top edge, on the inside, to stiffen the railings. A pair of machinist's "1-2-3" blocks were handy for keeping the etchings flat and holding everything in place during soldering. Excess posts were cut off:










The railings were sprayed with self-etching primer, followed by gloss black, and then UV resistant matte clear. Then I used Sophisticated Finishes' "iron" and "rust" solutions to weather it:



.
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakinís World
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 4251



WWW
« Reply #221 on: December 02, 2016, 03:38:34 PM »

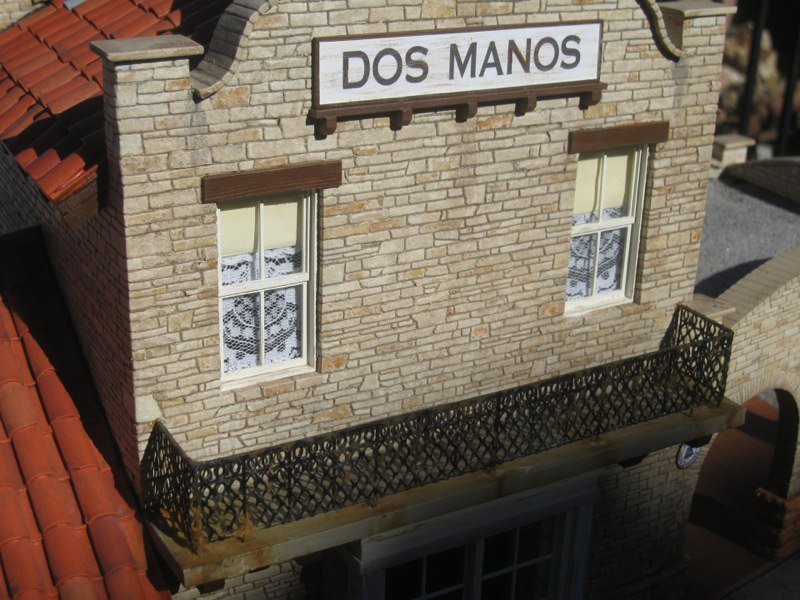

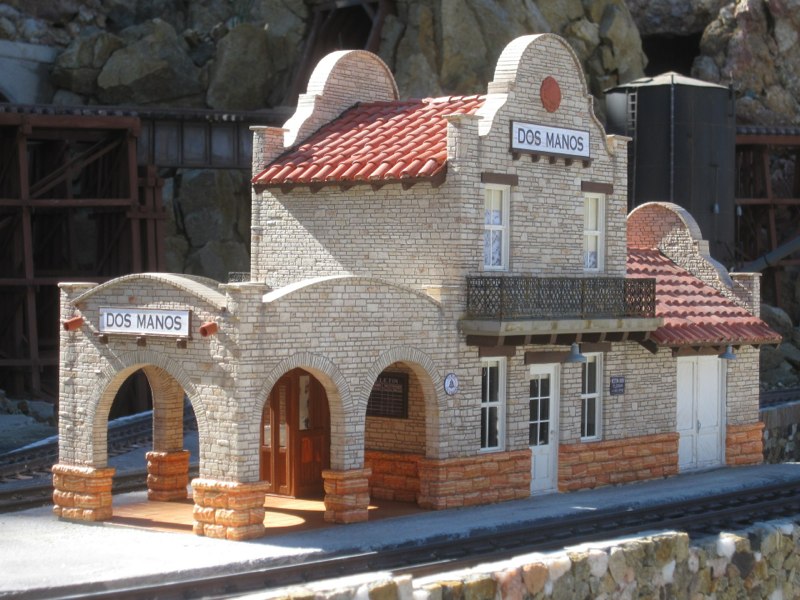

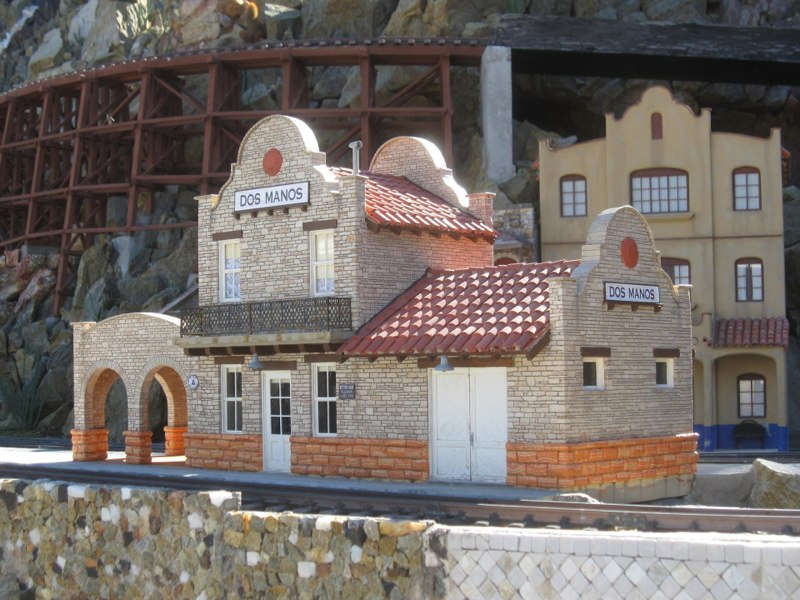

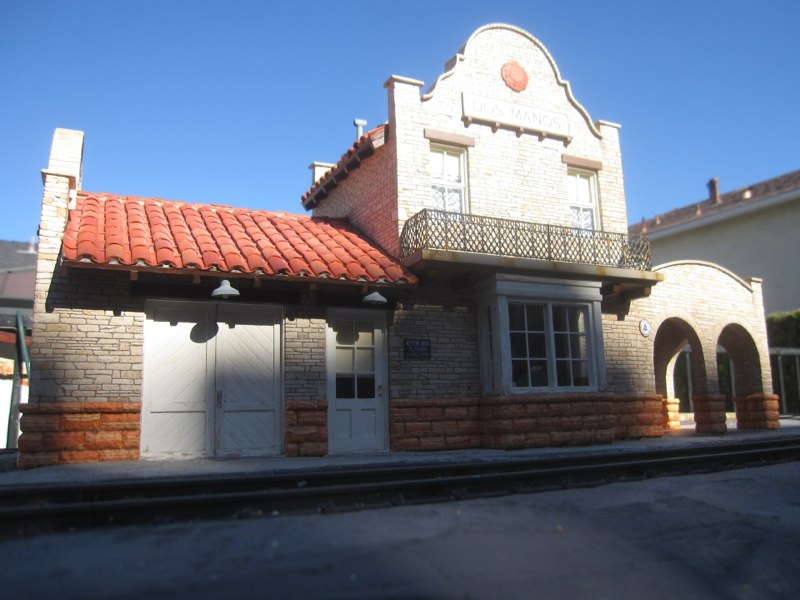

At long last, the Dos Manos depot is finished!

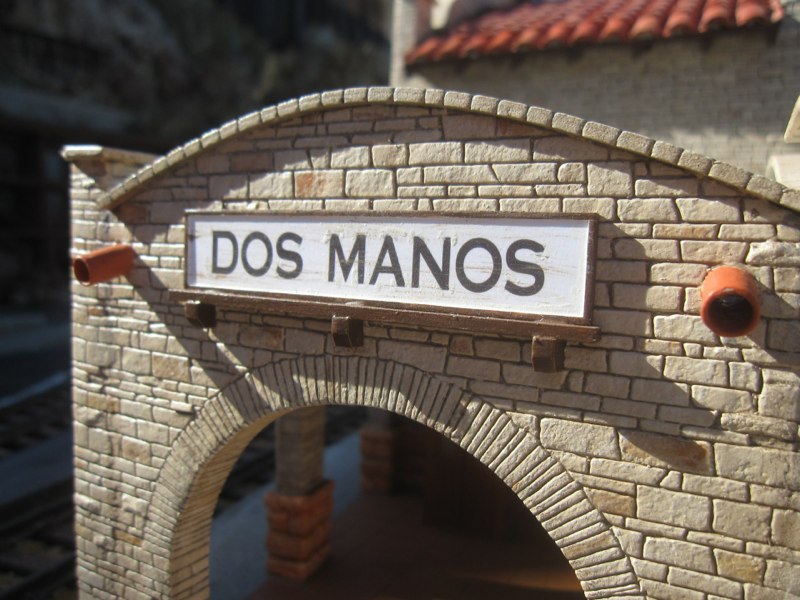

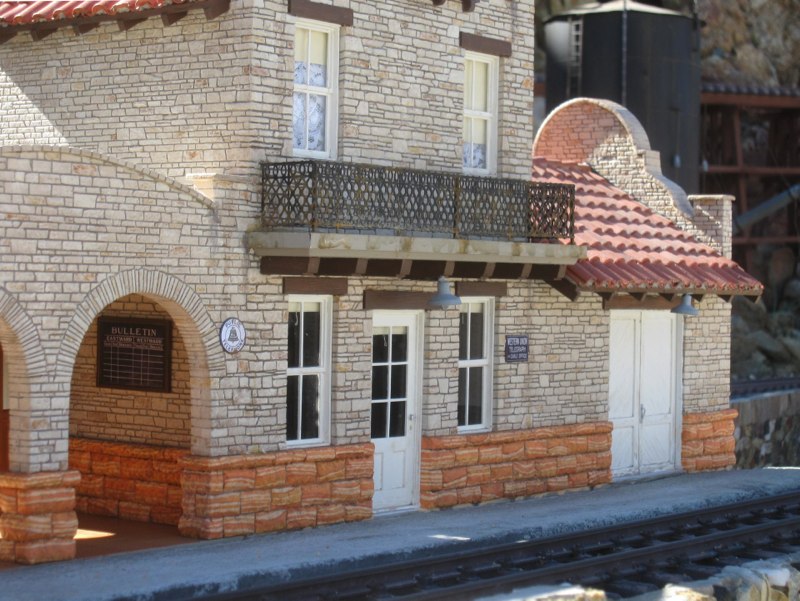

The signs were printed on self-adhesive vinyl, then touched up and weathered using craft acrylics:

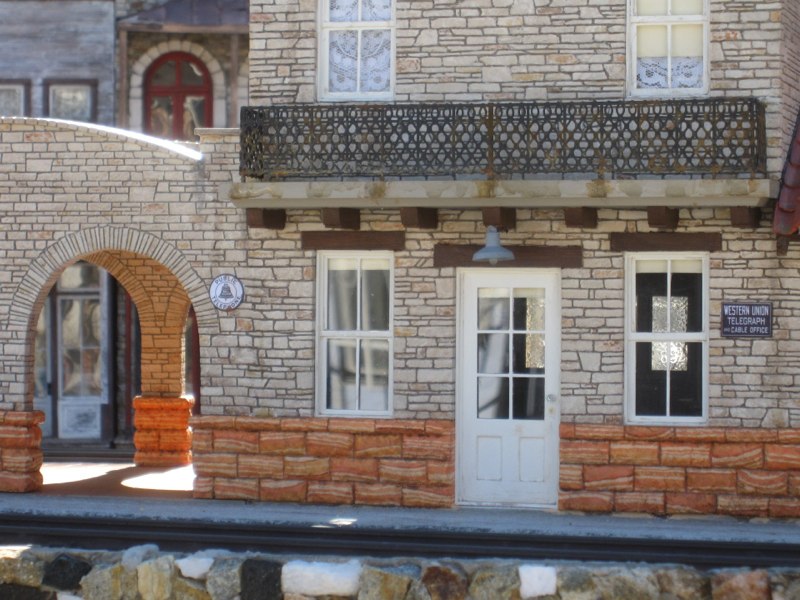

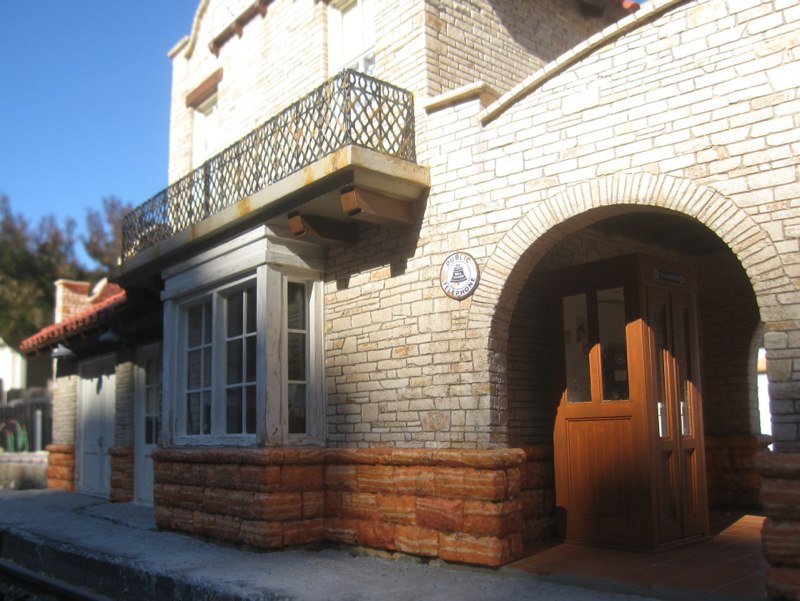

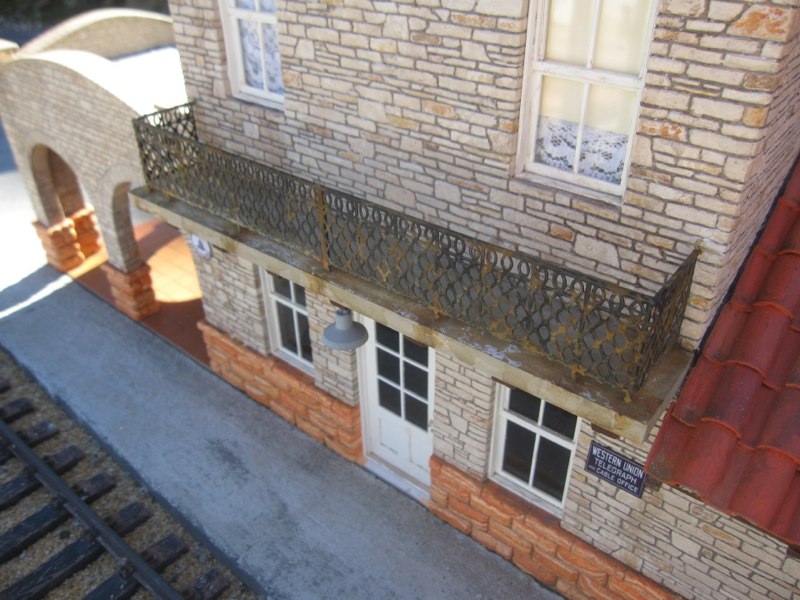

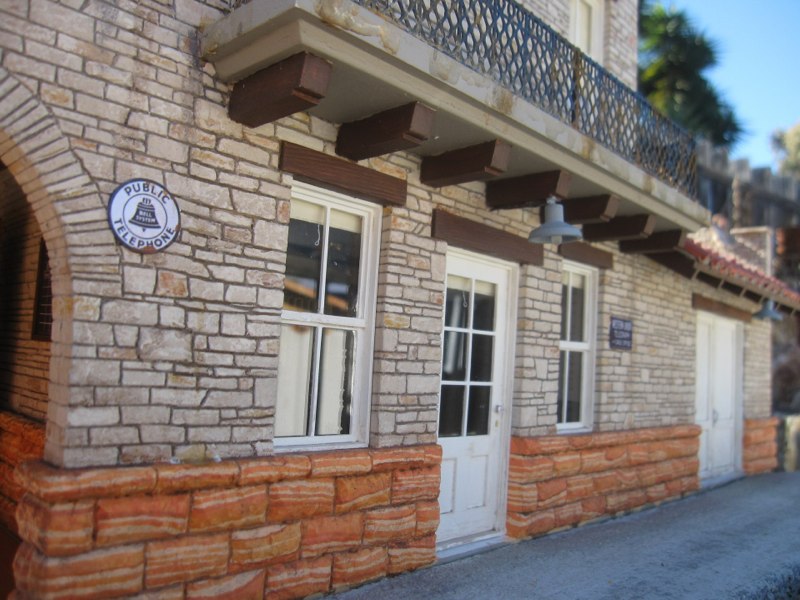

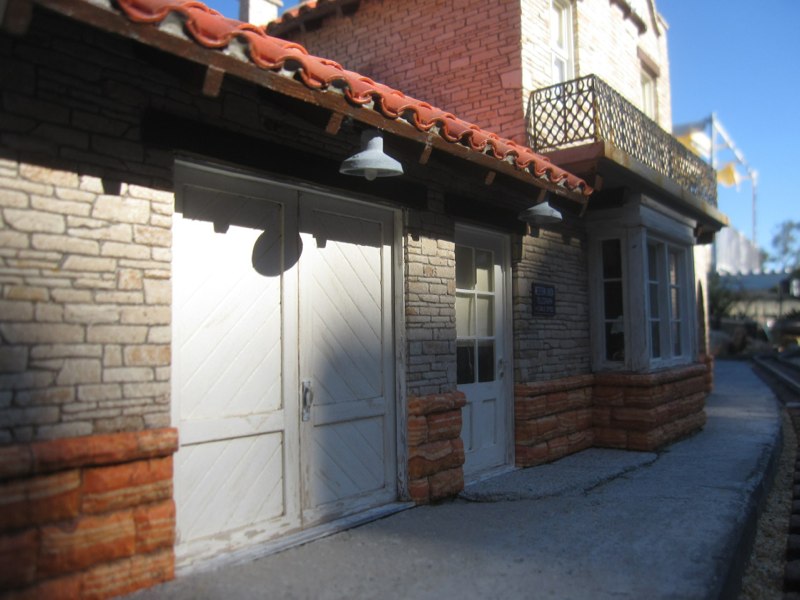

Details of the north side:

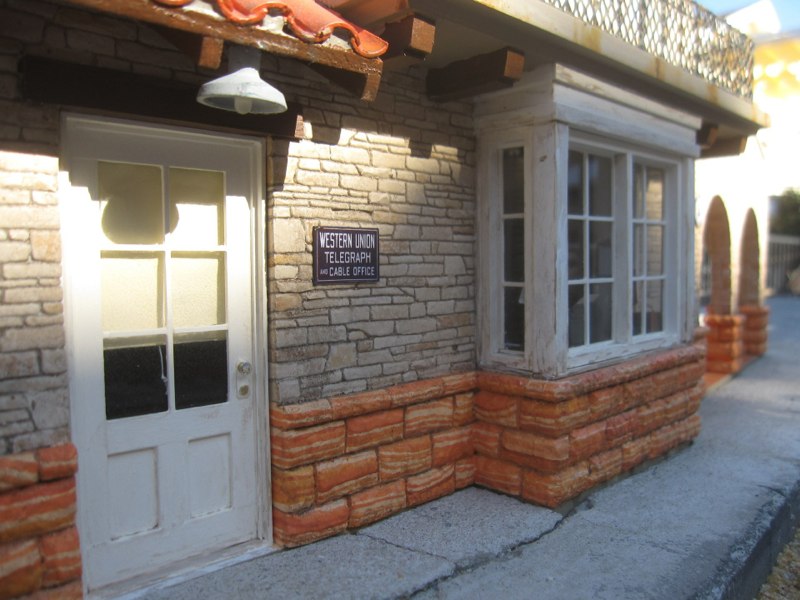

The south side:

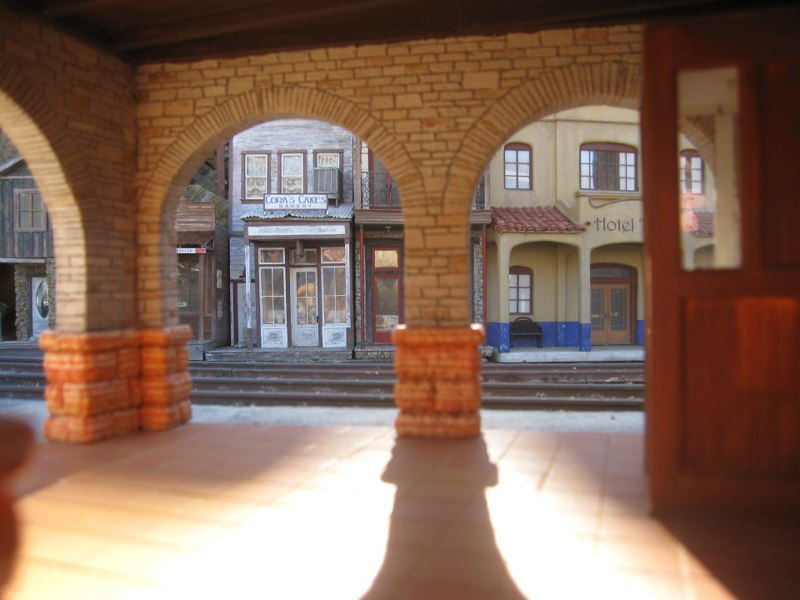

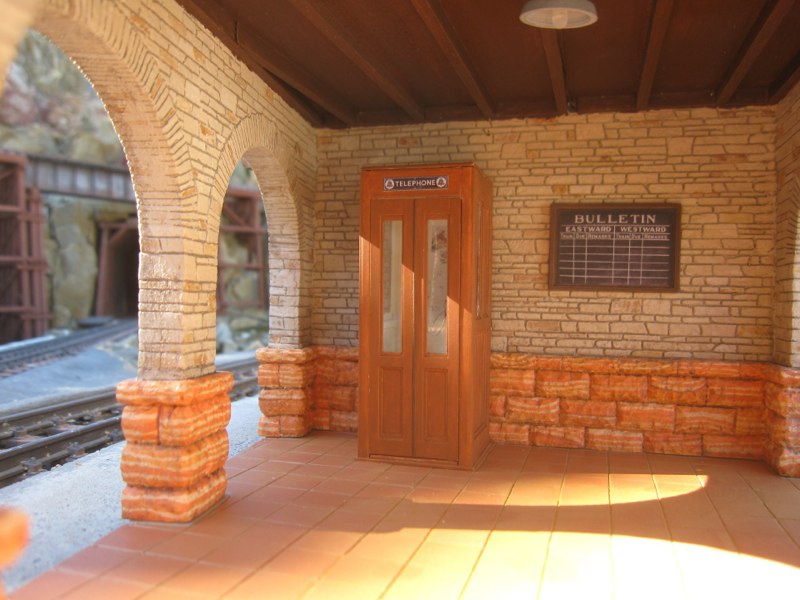

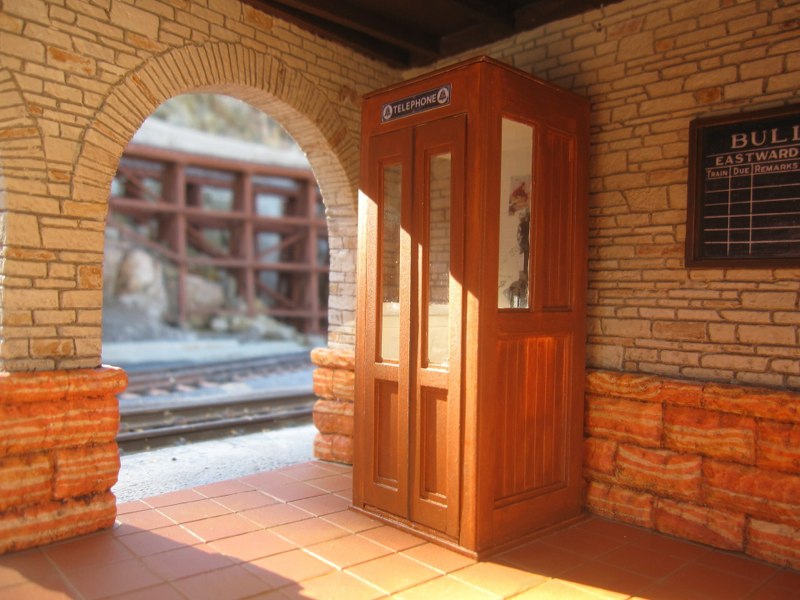

I ended up making the door closed on the phone booth. Doing so solved several potential issues. I may add a bench or two inside this waiting area:








I'll shoot some night shots this evening.

Although the depot structure is finished, I still need to a bit of work on the foundation and sidewalk. I also have to connect wiring to the depot site.

.
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakinís World
5thwheel
Sr. Member
****
Online Online

Posts: 357


« Reply #222 on: December 02, 2016, 05:38:57 PM »

Outstanding Ray,
I feel like I might have been at that station one time when I was a kid.

Bill
« Last Edit: December 02, 2016, 08:47:48 PM by 5thwheel » Logged

Bill Hudson
Fall down nine times,
get up ten.
Bill Gill
Hero Member
*****
Offline Offline

Posts: 997



« Reply #223 on: December 02, 2016, 06:13:10 PM »

Really terrific, Ray, inside & out, top to bottom, construction and colors, details and photos (and anything inadvertently left out.
Logged
Allan G
Full Member
***
Offline Offline

Posts: 191


« Reply #224 on: December 02, 2016, 06:48:53 PM »

Beyond awesome. Love the shades.....great!!!  Allan
Logged
