Author Topic: In-ko-pah RR: Dos Manos depot  (Read 88435 times)
Bexley
Sr. Member
****
Offline Offline

Posts: 364



WWW
« Reply #15 on: June 09, 2015, 10:06:17 PM »

You should probably paint it, though.
Logged

CounterClockwise

Bexley Andrajack
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 4248



WWW
« Reply #16 on: June 10, 2015, 12:15:03 AM »

Thanks!

I've started painting it. Got the "wood" color done on the porch yesterday, now I'm doing the shack. When finished, the shack will have a worn and faded coat of red with white trim. I also plan to do some signs on it.


Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakinís World
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5722


« Reply #17 on: June 10, 2015, 01:13:01 AM »

That's a good sign .... -- ssuR
Logged
Stoker
Jr. Member
**
Offline Offline

Posts: 53


« Reply #18 on: June 10, 2015, 06:26:57 PM »

You should probably paint it, though.

Or make the sign read "Tortas de Casa Blanca"  Cheesy
Logged

Regards, James                        Modeling in 1:48 after a lengthy bout of Scalatosis Indecisivis
Seattle Dave
Jr. Member
**
Offline Offline

Posts: 93


I LOVE Retirement....


« Reply #19 on: June 13, 2015, 10:05:12 AM »

Or you could build another and then name them "Dos Banos"......
Logged

Dave VanderWal
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 4248



WWW
« Reply #20 on: June 16, 2015, 08:17:02 PM »

Well, I was going to try to hold off posting more pics of this until it was finished, but I'm so tickled with the way it's turning out, I couldn't resist. This has been a really fun build!

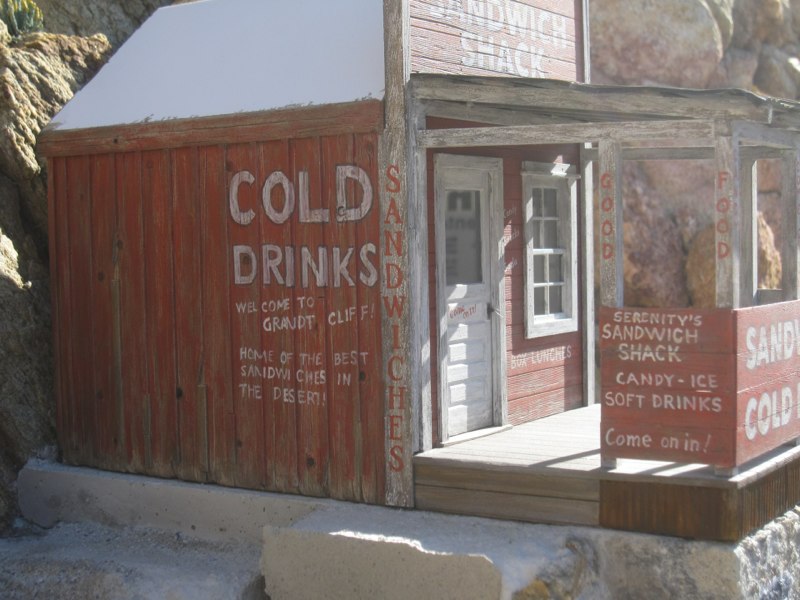

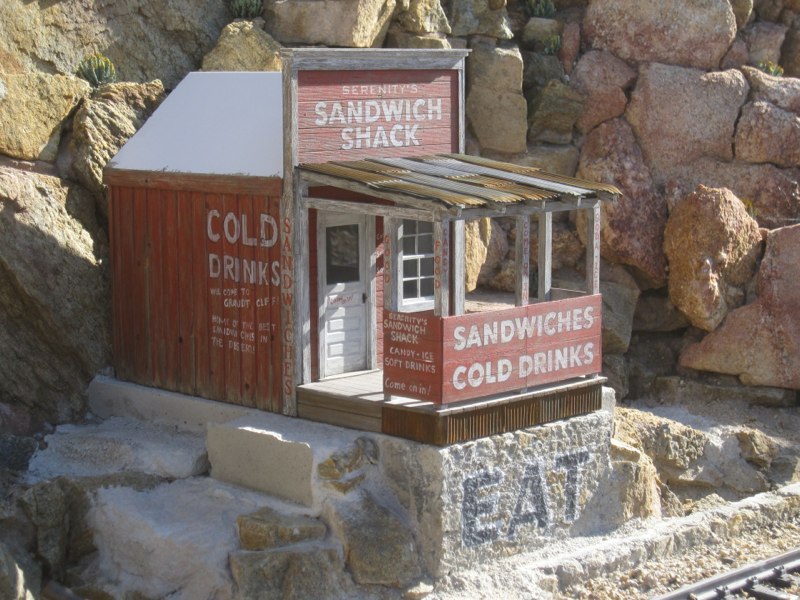

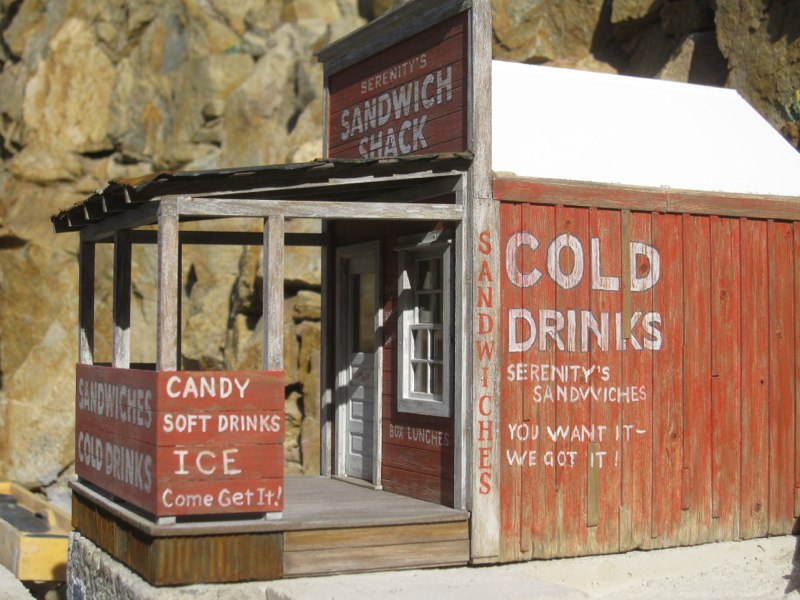

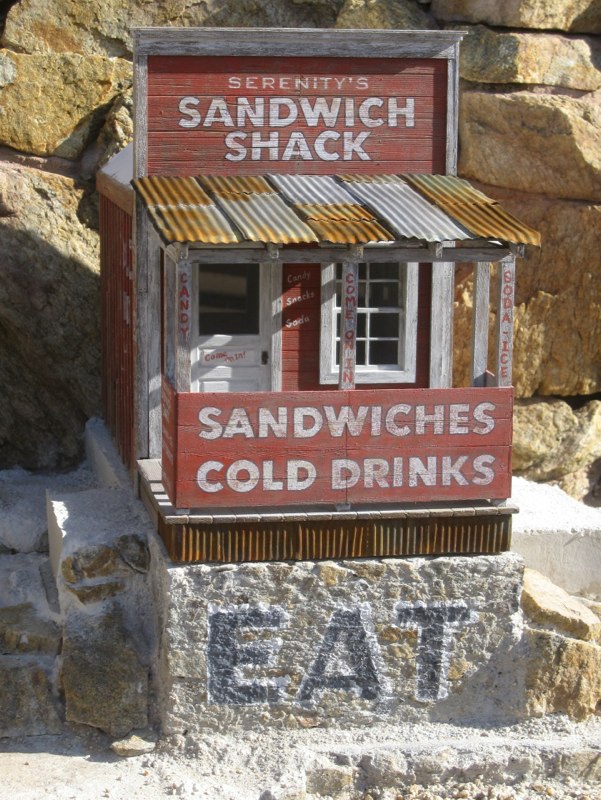

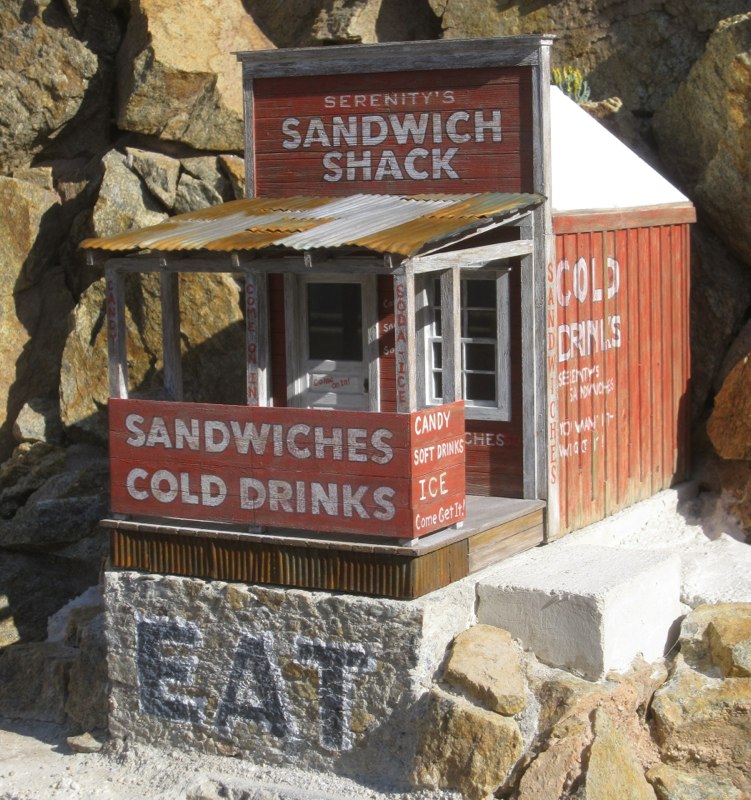

I've finished painting it, including many hand-painted signs. Still have to add the corrugated metal to the main roof. Also need to add some light fixtures and other exterior details, and glue the porch to the building. Also need to finish the surrounding landscape, and the stairs/path leading up to the building on either side. Eventually I'll build and detail the interior too. Here's how it looks so far:













Enjoy!


Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakinís World
Chuck Doan
Mr. Wizard
Hero Member
*****
Offline Offline

Posts: 2522



WWW
« Reply #21 on: June 16, 2015, 08:39:27 PM »

That turned out great! Love the signs and the coloring.
Logged

ďThey're most important to me. Most important. All the little details.Ē -Joseph Cotten, Shadow of a Doubt





http://public.fotki.com/ChuckDoan/model_projects/
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 4248



WWW
« Reply #22 on: June 16, 2015, 09:22:00 PM »

Thanks Chuck! I forgot to mention the door and window are Grandt Line parts.

Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakinís World
Hydrostat
Hero Member
*****
Offline Offline

Posts: 724



WWW
« Reply #23 on: June 17, 2015, 06:19:03 AM »

You put me in a dilemma. How can I signalize speechlessness without speaking/posting something?

Aside of this rather philosophical approach to my condition: this is very convincing. The last picture with the blurred background rocks would pass for 1:1 scale, if the building was finished. I like the "clean" hand painted signs as well as the somewhat crooked "freehand" additions and the threatening "EAT" on the wall.

Volker
Logged

I'll make it. If I have to fly the five feet like a birdie.

I'll fly it. I'll make it.
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #24 on: June 17, 2015, 06:20:45 AM »

excellent!

I would be curious to see/hear how you did all those awesome signs!

-Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
JohnTolcher
Full Member
***
Offline Offline

Posts: 188



« Reply #25 on: June 17, 2015, 08:53:58 AM »

Very nice!! I love the sign writing too, the aged appearance of the wood and roofing, great stuff!
Logged

Cheers
John in Australia
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 4248



WWW
« Reply #26 on: June 17, 2015, 11:11:35 AM »

Volker, Marty, John, thanks for the kind words! Much appreciated!

The sign on the top of the front of the building (Serenity's Sandwich Shack) and the sign on the front of the porch (Sandwiches/Cold Drinks) was done with stencils. I laid out the lettering in Pages on my iMac, and printed it onto self-adhesive vinyl. Then I cut out the letters, peeled off the vinyl and placed it in position. I applied the paint using a combination of light, dry-brushing, and stippling. After removing the stencil, I touched it up as needed with a fine brush. Then I painted the dark outline by hand using a good, #0 artist's brush.

The large signs on the sides that say, "Cold Drinks" were tricky. Because of the battens, I couldn't use a stencil. So I used a pink colored pencil to very lightly lay out the shapes of the letters. This was not done to any detail, just very rough forms, like stick-figure letters, mainly to make sure I the size and spacing would fit the area. Then I hand-painted it with a #1 brush, using very thinned down paint and mostly kind of dry-brushing it. The outlines were done as before, with a #0 brush. The saving grace is that I was going for a not-very-professional look for the signs on the sides.

The smaller signs were were supposed to be very amateurish and crude, so I just winged it, painting them freehand with the #0 brush.

One thing that really helps when painting freehand, whether lettering or any other small detail, is that the hand holding the brush should have at least one finger resting against the model. This makes a big difference in steadying your hand.



Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakinís World
Hydrostat
Hero Member
*****
Offline Offline

Posts: 724



WWW
« Reply #27 on: June 17, 2015, 12:15:10 PM »

Especially the mixture of those different kinds of executions makes a difference and tells a story beneath the actual sandwich shack. Idon't exactly remember where it was posted, but there was a picture of an depression time street with wooden buildings and one barbershop after one other. Your model reminds me a lot to this scene.

Volker
Logged

I'll make it. If I have to fly the five feet like a birdie.

I'll fly it. I'll make it.
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5722


« Reply #28 on: June 17, 2015, 12:35:55 PM »

Most satisfactory. -- Russ
Logged
TRAINS1941
Hero Member
*****
Offline Offline

Posts: 1359


« Reply #29 on: June 17, 2015, 03:59:49 PM »

Wow Ray!  Makes me want to wander around there and have a nice cold one.

Beautiful work.

Jerry
Logged

Why isn't there mouse-flavored cat food?
George Carlin
