« Reply #15 on: May 23, 2013, 08:19:35 PM »

So, the cat is finally out of the bag, cool.
Beautiful work Marty!

Rick
Logged
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 3930



WWW
« Reply #16 on: May 23, 2013, 10:05:30 PM »

Where did you get the wheels and gears?

Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakinís World
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5345


« Reply #17 on: May 24, 2013, 01:05:12 AM »

Before you answer Ray let me utter a simple, "Good heavens!" -- Russ
Logged
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #18 on: May 24, 2013, 06:32:19 AM »

Quote
Where did you get the wheels and gears?

Wheels came from Gary at http://www.sierravalleyenterprises.com/
Wonderful service and a really nice guy!

Gears (and so far the most expensive part) are from http://www.sdp-si.com/
As far as i know, the only place in the USA to get neat stuff like that.

Thanks Russ!
-Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
Carlo
Full Member
***
Offline Offline

Posts: 183


« Reply #19 on: May 24, 2013, 07:22:51 AM »

Marty -
Have you seen the Shay thread by another "mad machinist", Dan Rowe, on the SE Forum (www.7-8ths.info)?
He has done a lot of CAD work from original Lima plans, and even some 3D Printing for a
model he's building. Not sure what size, but he calls it a "Mapleton Shay"Australian prototype
maybe? Here's the thread...  http://www.7-8ths.info/index.php?topic=1357.0

Great job so far, BTW...
Carlo
Logged
michael mott
Hero Member
*****
Offline Offline

Posts: 511


« Reply #20 on: May 24, 2013, 09:43:03 AM »

Marty, absolutely wonderful, I liked your opening comments about your methods of drawing and machining as well, We need to keep those skills alive.
Brass does have such a crisp Victorian quality to it, especially when mixed with mahogany.

Michael
Logged
Barney
Hero Member
*****
Offline Offline

Posts: 991


« Reply #21 on: May 27, 2013, 12:04:12 PM »

This mans "an engineer" and it takes your breath away !
Barney
Logged
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #22 on: May 27, 2013, 01:53:23 PM »

Carlo,
Yes, Thanks!
I had seen the "other" thread.
Unfortunately the author was not very helpful, I did find he had "plans" published in some magazine whic I have ordered back copies of.

Michael,
I was thinking walnut!.......

Barney,
Thanks! But I am just a whacker!

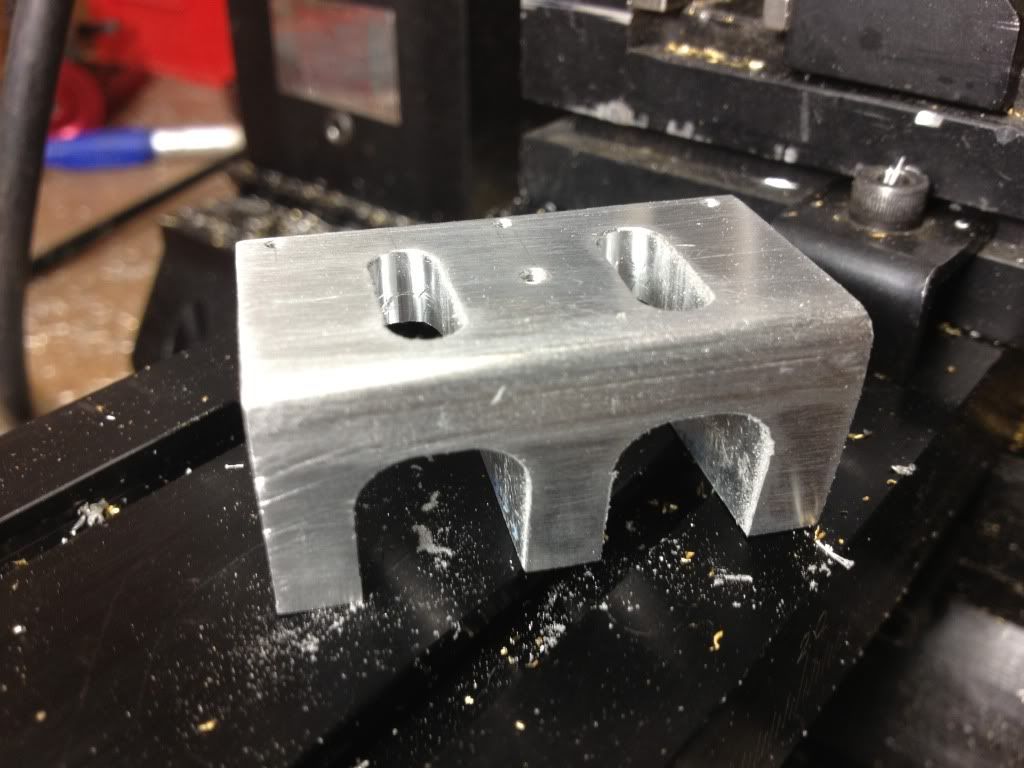

Working on what is known as the bottom bracket, basically the crankcase.
This was one of the few items i had no blueprint for, and did not fin any good drawings anywhere.
May be the articles mentioned in my reply to Carlo?

Anyway using the crankshaft drawing and pictures i drew up my bottom bracket.
I need some 1-72 threaded rod to bolt down the mains and then I can mill the bore for the crank!
The block of aluminum is 1"wide x 1.75" long x .883" tall.
Back holes are 0-80 the center is 2-56.



-Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #23 on: May 30, 2013, 04:07:26 PM »

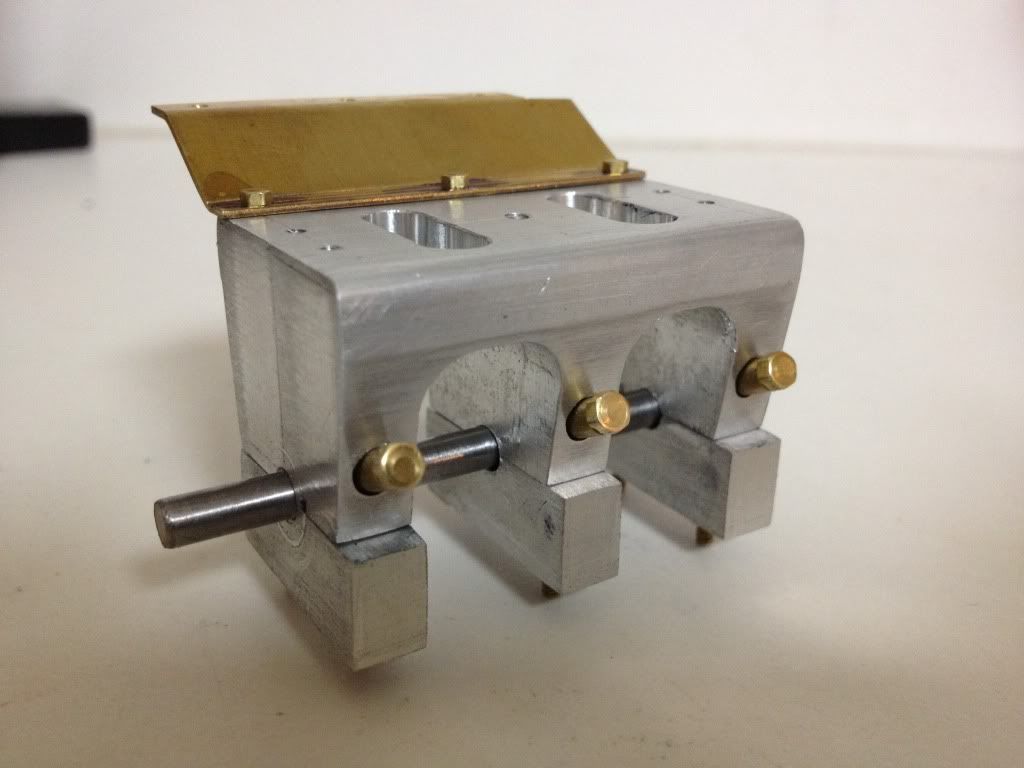

Work continues on the "bottom baracket"
The three large hex (2-56) bolts are caps to allow oiling of the main bearings.
Couple more steps before this is done.
Marty


Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
Alexandre
Full Member
***
Offline Offline

Posts: 132


« Reply #24 on: May 31, 2013, 01:00:54 AM »

I can not understand how people have the skills to work with metal like that.
It's a modelling area I can only look at with WOW.
 Shocked

Nothing to add, it's way beyond my skills and abilities.
Just wow. Fantastic.

Logged
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5345


« Reply #25 on: May 31, 2013, 01:45:38 AM »

Despite Alexandre's and others' positive comments, I think your work is horrible, Marty. Dreadful. Disgusting. Wretched. But, compared to most of what I see, it's really not so bad .... -- Russ
Logged
Malachi Constant
Hero Member
*****
Offline Offline

Posts: 1544



« Reply #26 on: May 31, 2013, 06:21:17 AM »

Yeah, way too much thought and craftsmanship in this stuff ... shame you couldn't just slap some crap together and call it done ... guess it will have to do.  -- Dallas
Logged

-- Dallas Mallerich  (Just a freakin' newbie who stumbled into the place)
Email me on the "Contact Us" page at www.BoulderValleyModels.com
TRAINS1941
Hero Member
*****
Offline Offline

Posts: 1278


« Reply #27 on: May 31, 2013, 08:36:29 AM »

IMPRESSIVE AS ALWAYS!!!!

Jerry
Logged

Why isn't there mouse-flavored cat food?
George Carlin
michael mott
Hero Member
*****
Offline Offline

Posts: 511


« Reply #28 on: May 31, 2013, 10:40:34 AM »

Quote
Despite Alexandre's and others' positive comments, I think your work is horrible, Marty. Dreadful. Disgusting. Wretched. But, compared to most of what I see, it's really not so bad .... -- Russ

Quote
Yeah, way too much thought and craftsmanship in this stuff ... shame you couldn't just slap some crap together and call it done ... guess it will have to do.  -- Dallas

C'mon Guys your being way too easy on him, How is the lad going to improve with wishy washy comments like that. Tongue

Marty don't listen to any of us were all just jealous, because you are walking the walk.

Michael
Logged
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #29 on: May 31, 2013, 06:09:50 PM »

Thanks guys.
Working my way up to the cylinders.
The valve train is giving me a headache.
May have to pause and do something easy......
Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
