Author Topic: "The Wizard"  (Read 81194 times)
lab-dad
Hero Member
*****
Offline Offline

Posts: 2091



« on: May 22, 2013, 05:51:58 PM »

Well for what it is worth here is my current distraction (last 3 months).
Scale is 1:16 (of coarse)
It is 16 3/4" long and 2 1/4" from the rail to the top of the frame.
36" gauge. I hope to have it electric and R/C (another steep hurdle!)
I did not make the wheels or the gears, everything else is from my hands & machines.
I did not use CNC; I count, subtract and add hand-wheel numbers and rotations.
I draw with a pencil on paper.

Frame, still under construction;

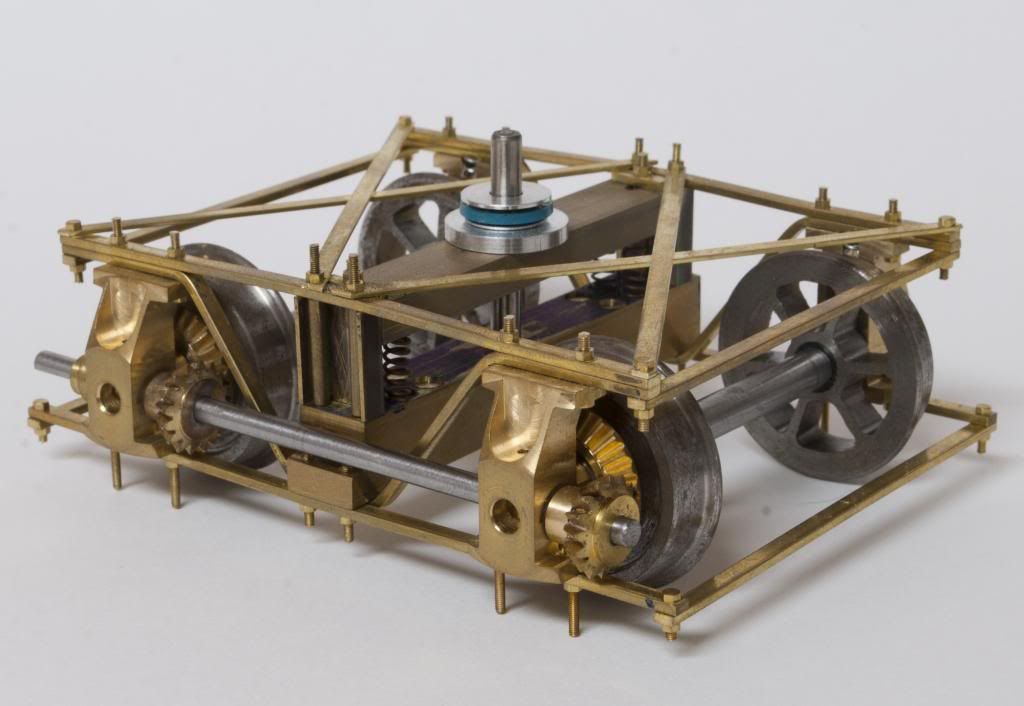

Front truck


I am still working things out.
The screws are long as i am not done with the assembly & disassemble and reassembly......
The truck has three dozen 0-80 fasteners and weighs a pound and a half..

The name "Wizard" is because of a good friend who offered assistance and Lima blueprints when I spoke of "trying" this project out. Without "The Wizard of Willits" help, i would not have been able to even get started.

More to follow.
Thanks for looking,
marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
Mobilgas
Hero Member
*****
Offline Offline

Posts: 534



« Reply #1 on: May 22, 2013, 06:18:48 PM »

Marty,    What size shay will this be....13 Ton or??
Logged

Craig
compressor man
Newbie
*
Offline Offline

Posts: 31


« Reply #2 on: May 22, 2013, 06:36:51 PM »

Marty, this is great and I look forward to seeing more progress! I too enjoy machining on a small scale and happen to be working on an "Elmers engine" now.

Chris
Logged
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 3783



WWW
« Reply #3 on: May 22, 2013, 10:14:26 PM »

Sweeeet!! What you've done so far is already awesome!
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakin’s World
Malachi Constant
Hero Member
*****
Offline Offline

Posts: 1550



« Reply #4 on: May 22, 2013, 10:41:45 PM »

Well for what it is worth here is my current distraction (last 3 months).
Ooh, tantalizing view of secret project ... this should be good!   Wink  -- Dallas
Logged

-- Dallas Mallerich  (Just a freakin' newbie who stumbled into the place)
Email me on the "Contact Us" page at www.BoulderValleyModels.com
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5122


« Reply #5 on: May 23, 2013, 01:40:55 AM »

That thing is really coming along well. Do the gears mesh smoothly? They look perfect. -- Russ
Logged
1-32
Hero Member
*****
Offline Offline

Posts: 593


Hi, I'm Kim.


« Reply #6 on: May 23, 2013, 02:13:52 AM »

hey marty
you are a craftsman
regards kim
Logged
danpickard
Sr. Member
****
Offline Offline

Posts: 487



WWW
« Reply #7 on: May 23, 2013, 03:39:17 AM »

This is gonna be one of those ones you don't really wanna paint, and then hide a lot of the craftsmanship behind it.  Great start Marty, and I'm sure this will be a pleasurable one to watch come together.  All the best with the rest of the project.

Cheers,
Dan
Logged

marc_reusser
Curmudgeon
Administrator
Hero Member
*****
Offline Offline

Posts: 4519



WWW
« Reply #8 on: May 23, 2013, 05:34:16 AM »

Simply lovely craftsmanship, and one hell of an undertaking. Kudos. Unfortunately it like the other brass work on this forum is so far out of my realm of skill and ability, I dont know what else to say. But I am very happy to finally get a glimpse of your progress on this, and look forward to more.
« Last Edit: May 23, 2013, 06:10:01 AM by marc_reusser » Logged

I am an unreliable witness to my own existence.

In the corners of my mind there is a circus....

M-Works
lab-dad
Hero Member
*****
Offline Offline

Posts: 2091



« Reply #9 on: May 23, 2013, 06:03:44 AM »

Thanks guys!
It has been a real challenge and a wonderful learning experience.
To answer Craig's question it is based on a 13 ton Class A with 6x10 cylinders.
Any questions, please feel free to ask!

-Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
TRAINS1941
Hero Member
*****
Offline Offline

Posts: 1230


« Reply #10 on: May 23, 2013, 07:18:17 AM »

Your work is just beautiful.  If I had half your talent I'd be happy.

But the real question is are you going to make these in On30 Wink

Jerry
Logged

Why isn't there mouse-flavored cat food?
George Carlin
Chuck Doan
Mr. Wizard
Hero Member
*****
Offline Offline

Posts: 2423



WWW
« Reply #11 on: May 23, 2013, 07:59:16 AM »

Iv'e been watching this one. Your fab and machining skills are quite wonderful. Way beyond me too, but fun to watch.
Logged

“They're most important to me. Most important. All the little details.” -Joseph Cotten, Shadow of a Doubt





http://public.fotki.com/ChuckDoan/model_projects/
Franck Tavernier
Sr. Member
****
Offline Offline

Posts: 287


WWW
« Reply #12 on: May 23, 2013, 01:21:30 PM »

Marty, awesome, not only in scale, but also by the quality of the craftmanship!

Franck
Logged

Design-HSB
Hero Member
*****
Offline Offline

Posts: 579


Klosterstollen


WWW
« Reply #13 on: May 23, 2013, 02:06:18 PM »

Hi Marty,

that looks great.

I would however like to see the other side without the bevel gear.
Logged

Regards Helmut
the journey is the goal
lab-dad
Hero Member
*****
Offline Offline

Posts: 2091



« Reply #14 on: May 23, 2013, 03:32:35 PM »

Quote
Do the gears mesh smoothly? They look perfect. -- Russ

Why yes, of course! Would i settle for anything less?  Grin
I spent a lot of time fine tuning the backlash down to .002" - .003"



Here is the "plain" side of the truck.



I did not use the normal spoked wheels on the "drive"side as they are hard to see, also this made securing the bevel gear easier (for me) any way. The wheels did require some modifications for my use though.

And here is what I did to spring the axle bearings on this side.



The bushings are aluminum so I can replace them if I wear them out and not the axles (steel).
Also there are lube holes (not shown in this pic) down through the bushings to lube the axle.

It's no wonder they always show the guy with the oil can walking around the locomotive, there are numerous places for oil/lubrication. I have tried to plan for a way to do this as well.

Marty
Logged
