Author Topic: As mad as an Englishman - The Locomotive Works Diorama  (Read 38466 times)
artizen
Sr. Member
****
Offline Offline

Posts: 306



WWW
« Reply #15 on: May 16, 2013, 04:33:04 PM »

My method varies slightly. After 26,000 bricks I now know to mix very large batches of pre-coloured dry plaster to get consistent colour through 40 or 50 batches. The trick with powders sprinkled across the moulds is good though - I'll be pinching that idea! I use casting plaster and about eight jars of cement oxides to get the variations I like - from green and brown to sandstone and reds. I have always added the water to the plaster but your comment of doing it the other way round might help. I find most bubbles occur when mixing vigorously - I get a froth which needs to be skimmed before pouring. I mix stiff and work really quickly. The bricks are ready for popping out after two hours and I get at least four batches a day (480 bricks total). Most bubbles inside the mould are caused by not allowing the mix to pour and settle naturally at its own speed into the bottom. As you only really see one face of the brick when building, a bubble on the back side is not an issue. Black is the most intense colour to use - literally count the grains to a batch of white plaster to get the grey mortar colour you need at the end!

Have fun - I nearly went mad but the end result is well worth it. Cheap therapy!!!!!
Logged

Ian Hodgkiss
The Steamy Pudding - an English Gentleman's Whimsy in 1:24 scale Gn15 (in progress)
On the Slate and Narrow - in 1:12 scale (coming soon)
Brisbane, Australia
shropshire lad
Hero Member
*****
Offline Offline

Posts: 1461


« Reply #16 on: May 16, 2013, 04:40:02 PM »

Where the Brits lead  the Aussies follow !

  I'm looking forward to seeing you lay 1/48th scale bricks . That'll make you an utter nutter . Welcome to the club .

   Nick
Logged
artizen
Sr. Member
****
Offline Offline

Posts: 306



WWW
« Reply #17 on: May 16, 2013, 09:40:15 PM »

I'm not accurate or patient enough to try 1:48 scale individual bricks. I can manage what I am doing in 1:24 because I can see what I am doing!
Logged

Ian Hodgkiss
The Steamy Pudding - an English Gentleman's Whimsy in 1:24 scale Gn15 (in progress)
On the Slate and Narrow - in 1:12 scale (coming soon)
Brisbane, Australia
Hydrostat
Hero Member
*****
Offline Offline

Posts: 660



WWW
« Reply #18 on: May 17, 2013, 12:49:43 AM »

What about H0 scale: http://www.stummiforum.de/viewtopic.php?f=51&t=65597&hilit=ziegelei ?

A prototype building has the same number of bricks, no matter which scale it is modeled ... so what?  Shocked

Cheers,
Volker
Logged

I'll make it. If I have to fly the five feet like a birdie.

I'll fly it. I'll make it.
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5418


« Reply #19 on: May 17, 2013, 01:52:09 AM »

Marc's thread on chip board bricks keeps coming to mind. As I recall the appearance was comparable .... -- Russ
Logged
artizen
Sr. Member
****
Offline Offline

Posts: 306



WWW
« Reply #20 on: May 17, 2013, 03:20:59 AM »

As Nick discovered, creating a wall using a moulded brick of several courses is simply easier, faster and more accurate. If I were ever to get down to the smaller scales, I would be looking seriously at something like this - http://www.redutex.com/murosfp1.php
Logged

Ian Hodgkiss
The Steamy Pudding - an English Gentleman's Whimsy in 1:24 scale Gn15 (in progress)
On the Slate and Narrow - in 1:12 scale (coming soon)
Brisbane, Australia
Mr Potato Head
Hero Member
*****
Offline Offline

Posts: 540



« Reply #21 on: May 17, 2013, 05:42:54 AM »

I just got a bunch of Diorama molds and I plan to make up walls from individual and course molds to make masters that way it will be faster to make big sections of walls. I have a module that is 2' x 5' that will be a down town city scene, that's a lot of bricks, so there's no way I am going brick on brick!
MPH
Logged

Gil Flores
In exile in Boise Idaho
michael mott
Hero Member
*****
Offline Offline

Posts: 511


« Reply #22 on: May 18, 2013, 11:02:58 PM »

A great SBS but I couldn't help but think of my own gate
http://users.xplornet.com/~macton/works%20Gate.html

Michael
Logged
danpickard
Sr. Member
****
Offline Offline

Posts: 487



WWW
« Reply #23 on: May 19, 2013, 01:11:57 AM »

Of course Michael...idea borrowed.  I had looked at your gate many times (was actually one of the photos I sent to Laurie when working on the gate design).  Kept thinking there had to be an easier way to do the gate.  The hand built brass version is a much better finish, but the laser cut version was the option I took, knowing there was still all the brickwork to follow.

Cheers,
Dan
Logged

finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5418


« Reply #24 on: May 19, 2013, 01:52:22 AM »

Michael, anybody who uses metal and can solder is cheating. Go stand in the corner. -- Russ
Logged
michael mott
Hero Member
*****
Offline Offline

Posts: 511


« Reply #25 on: May 19, 2013, 09:58:33 PM »

Which corner this time! Grin Grin Grin

Michael
Logged
danpickard
Sr. Member
****
Offline Offline

Posts: 487



WWW
« Reply #26 on: May 21, 2013, 06:44:32 AM »

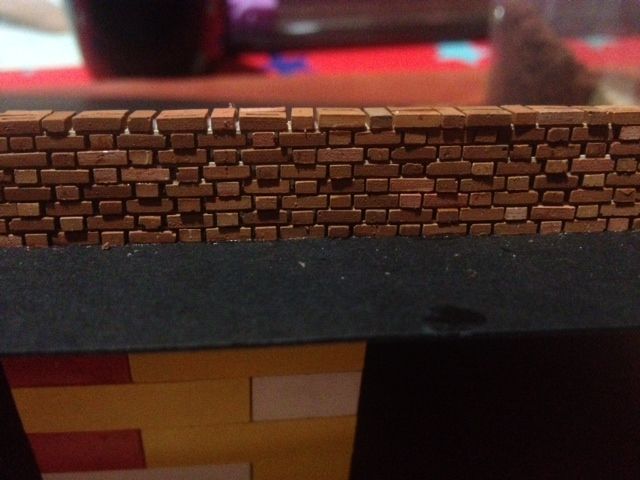

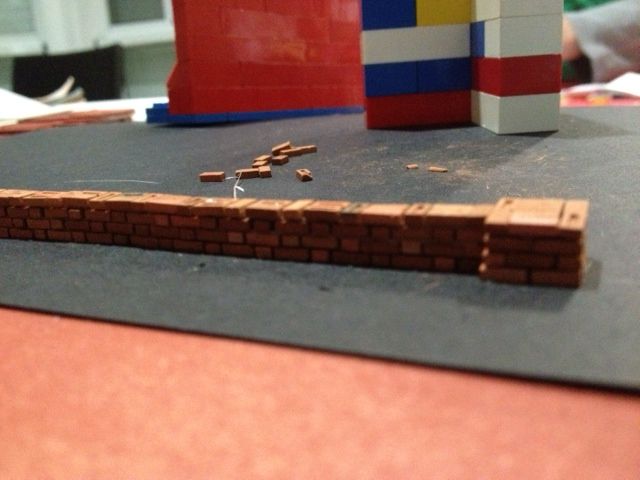

Got a couple of thousand bricks cast up now, so thought it was time to put them to use, and made a start on the main wall for the diorama.  Flemish bond since this is an English diorama  Wink , with each course of bricks separated by some 0.6mm card to space for the mortar filling.  Surprised this isn't as mind numbing as I thought it would be and got the first 2' of a about a 10' fence laid up in a couple of hours.  A whole day of bricklaying might be a different thing though!  So far, it's felt quite therapeutic...





Cheers,
Dan
Logged

michael mott
Hero Member
*****
Offline Offline

Posts: 511


« Reply #27 on: May 21, 2013, 09:09:13 AM »

Dan the brick wall looks great so far, and remember that Winston Churchill made a hobby out of building a brick wall, it was probably a great stress reliever, apart from being an odd subject as a hobby.

Michael.
Logged
Bill76
Full Member
***
Offline Offline

Posts: 248


« Reply #28 on: May 21, 2013, 09:57:38 AM »

Wow ! Keep patience ...

Georges
Logged
shropshire lad
Hero Member
*****
Offline Offline

Posts: 1461


« Reply #29 on: May 21, 2013, 10:45:36 AM »

Dan the brick wall looks great so far, and remember that Winston Churchill made a hobby out of building a brick wall, it was probably a great stress reliever, apart from being an odd subject as a hobby.

Michael.

  What they didn't tell you is that they had to knock it down and rebuild it properly when he had gone !

  Nick
Logged
