Author Topic: Next 1/16th machine; Universal Miller  (Read 43246 times)
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #15 on: January 10, 2013, 04:26:11 PM »

Good idea Chuck but I will know!

FWIW;


Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
SandiaPaul
Sr. Member
****
Offline Offline

Posts: 345


« Reply #16 on: January 10, 2013, 04:43:24 PM »

Coming along nice Marty.  If I missed it I'm sorry but do you have in mind what kind of shop this is?  I mean is it attached to a RR shop, or just general machine shop?  Only reason I ask is if it were a general shop you should make all the cool dividing accessories and other stuff!  A RR shop would likely not have had such stuff.

Paul
Logged

Paul
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5687


« Reply #17 on: January 11, 2013, 02:30:14 AM »

Young Martin, are you turning the aluminum pieces yourself? -- Russ
Logged
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #18 on: January 11, 2013, 11:09:02 AM »

Paul
I was planning a RR shop and now that you mention the tooling
Definitely! But I would like to do some of it.
Still need a steady rest on the lathe.

Russ
Yes, making everything so far.
That was kind of the focus doing these machines and in 1/16
Trying to stay challenged.

Thanks!
Mj
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5687


« Reply #19 on: January 11, 2013, 02:20:06 PM »

As you know, I really like the way you work with metal. Those turnings are gorgeous and the whole model looks good so far. -- Russ
Logged
TRAINS1941
Hero Member
*****
Offline Offline

Posts: 1354


« Reply #20 on: January 11, 2013, 08:13:24 PM »

Trying to stay challenged I'll say.

You are just so dam good at this.  Maybe you should be a teacher or something!!!! Grin

Jerry
Logged

Why isn't there mouse-flavored cat food?
George Carlin
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #21 on: January 11, 2013, 08:40:10 PM »

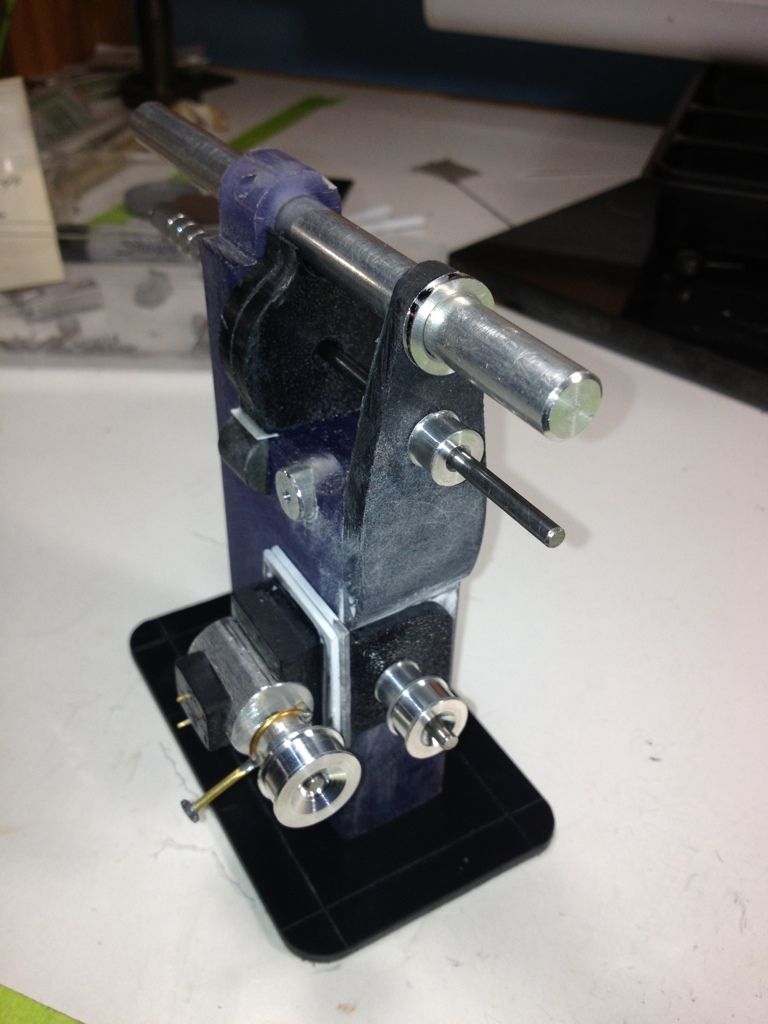

Thanks guys.
I have always enjoyed using a lathe, wood or metal.

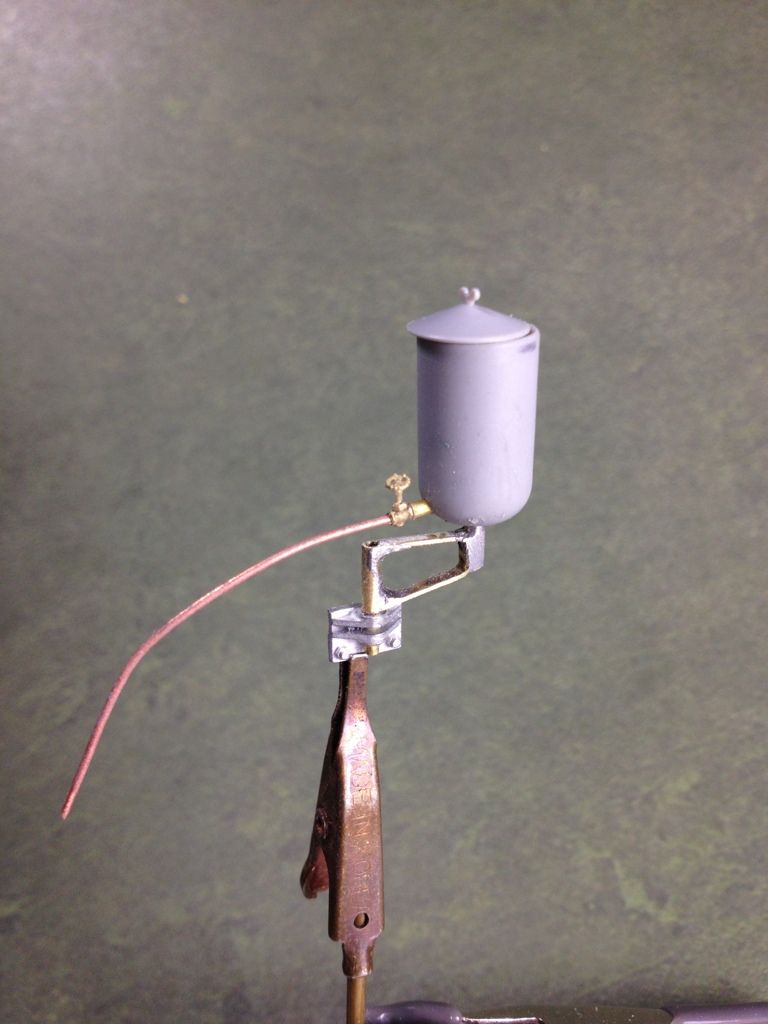

In the link Paul posted I found a neat
"drip pot" I thought it would be a cool detail.
So far;

Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
SandiaPaul
Sr. Member
****
Offline Offline

Posts: 345


« Reply #22 on: January 12, 2013, 07:28:16 AM »

Marty,

That thing looks great, I recognized it right away! Where did you get that little valve? Or did you make it!

Paul
Logged

Paul
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #23 on: January 12, 2013, 07:35:37 AM »

Thanks Paul!
Parts list;
Pot
Grandt line wing nut
Grandt line O scale stove pipe cap
End of uniball vision ink pen
Precision scale O scale 1 1/2" valve
.025" wire
Bracket
1/16 tube & 1/16 x .014" brass
CHB donkey sled plate
The arm pivots like it should too.
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
TRAINS1941
Hero Member
*****
Offline Offline

Posts: 1354


« Reply #24 on: January 12, 2013, 10:46:47 AM »

Now that is awesome!!!!!!

Jerry
Logged

Why isn't there mouse-flavored cat food?
George Carlin
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #25 on: January 20, 2013, 06:46:32 PM »

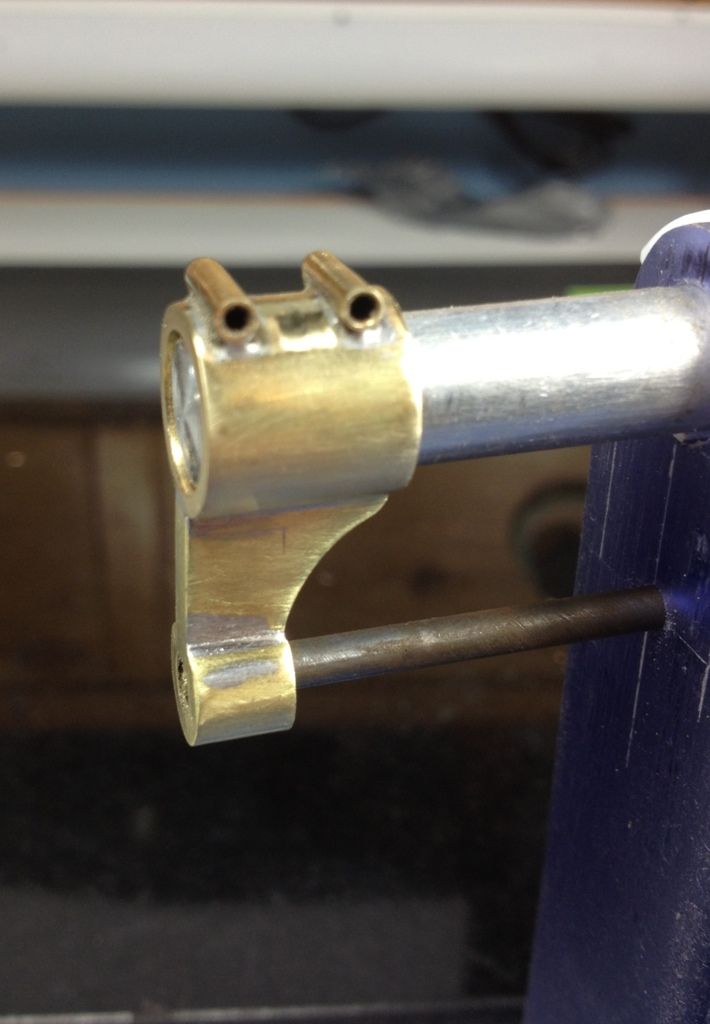

Overarm to spindle support;



Had to do it in brass, just could not find suitable material in styrene.
-Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
michael mott
Hero Member
*****
Offline Offline

Posts: 511


« Reply #26 on: January 20, 2013, 08:55:24 PM »

Quote
just could not find suitable material in styrene.

I'm Shocked!!  Ya mean you couldn't find some evergreen flat stock that you could laminate and then bore out.  Your slipping Sir.....

Very nice Marty.

Michael

Logged
Malachi Constant
Hero Member
*****
Offline Offline

Posts: 1544



« Reply #27 on: January 21, 2013, 06:32:25 AM »

Never thought I'd say this, but ... WOW!  That drip pot is a beauty!  Wink  -- Dallas
Logged

-- Dallas Mallerich  (Just a freakin' newbie who stumbled into the place)
Email me on the "Contact Us" page at www.BoulderValleyModels.com
Design-HSB
Hero Member
*****
Online Online

Posts: 776


Klosterstollen


WWW
« Reply #28 on: January 21, 2013, 07:24:14 AM »

Had to do it in brass, just could not find suitable material in styrene.
Hello Marty,

where is the problem, I love brass as you also can see in my work.

In the metal parts like me even better.
Logged

Regards Helmut
the journey is the goal
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #29 on: January 23, 2013, 06:35:50 PM »

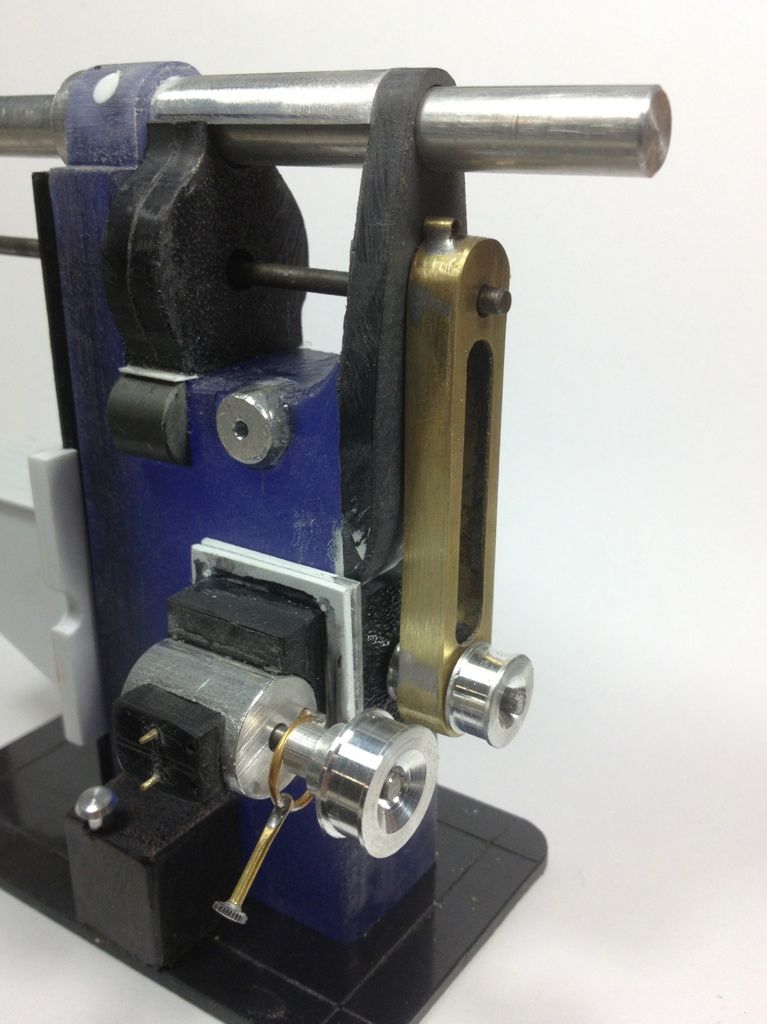

Some progress





Just cant seem to get styrene to take a curve and not break
when i use MEK to "glue" it.
Hence the brass belt guard.
-Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
