Author Topic: 1/16 scratched drill press  (Read 35077 times)
pwranta193
Full Member
***
Offline Offline

Posts: 149


WWW
« Reply #15 on: March 23, 2012, 07:43:36 PM »

Thanks Marty!

True story: When I started on my Belgian shop project, I had never seen a camelback drill press... much less know the name  Roll Eyes  I've learned more about tools, shops and heavy industrial operations from this site than I ever knew before.  I've worked with modern mills and manufacturing for years (lumber, plywood, footwear and apparel) - but never in the actual machining or super heavy side.  Of course after I made my drill press I find a couple gross of images on the web  Grin

But enough about me - show us the next progress steps!
Logged

Paul

"Did I mention this is a bad idea?"
marc_reusser
Curmudgeon
Administrator
Hero Member
*****
Offline Offline

Posts: 4504



WWW
« Reply #16 on: March 24, 2012, 12:11:44 AM »

Marty,
Great work so far. Keep it coming.


Paul,
Not that I was asked, but I would recommend buying  a mill before a lathe....but then I am biased as I suck on a lathe.  Grin
Logged

I am an unreliable witness to my own existence.

In the corners of my mind there is a circus....

M-Works
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #17 on: March 26, 2012, 10:37:54 AM »

Quote
I used to own a DP like that, except it had gearing for the power feed and a back gear just like a lathe.  A beast for sure.

You mean like these Russ?;

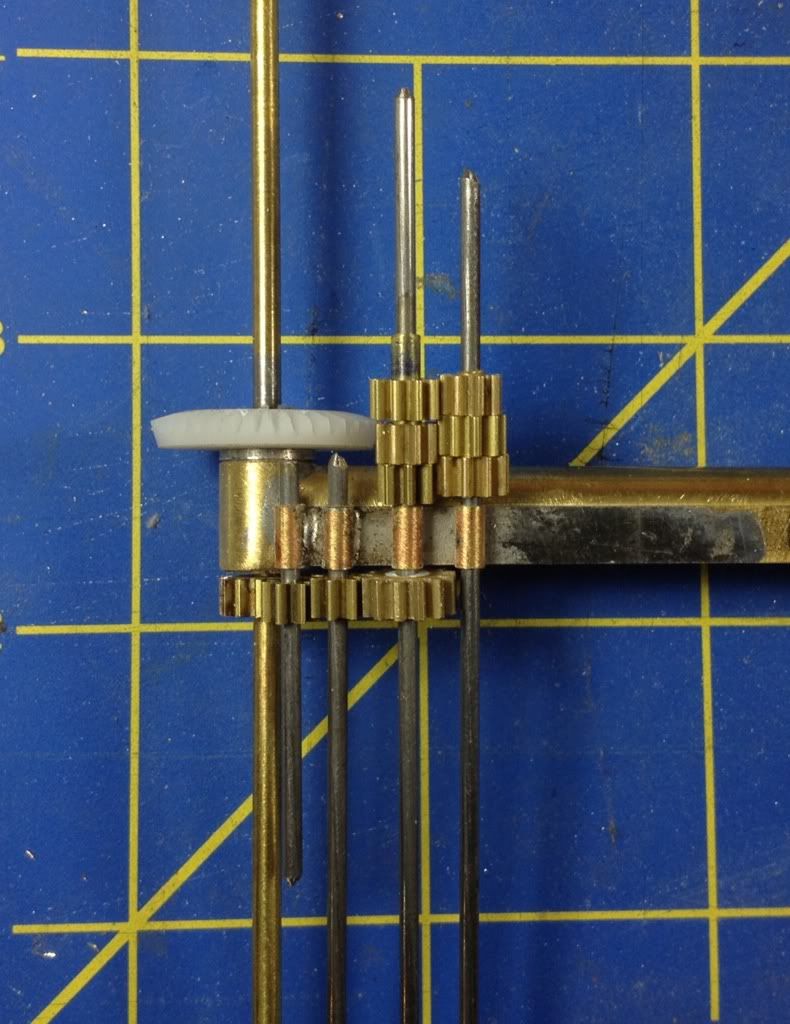

There are 11 gears in the picture, the squares are one inch.......

Was real "fun" to figure out the math for the shaft spacing, then drill a jig for placement.

-Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
pwranta193
Full Member
***
Offline Offline

Posts: 149


WWW
« Reply #18 on: March 26, 2012, 11:33:26 AM »

For one brief horrifying minute, I thought I was looking at the next phase of the Camelback, and thought I had entered an alternate universe...

I take it you made these gears by yourself???
Logged

Paul

"Did I mention this is a bad idea?"
Chuck Doan
Mr. Wizard
Hero Member
*****
Offline Offline

Posts: 2443



WWW
« Reply #19 on: March 26, 2012, 12:21:33 PM »

Oh dear, that one gear should have eight teeth, not six. Justa kidding, yes please share the tale of the gears.
Logged

“They're most important to me. Most important. All the little details.” -Joseph Cotten, Shadow of a Doubt





http://public.fotki.com/ChuckDoan/model_projects/
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #20 on: March 27, 2012, 06:19:12 AM »

Actually the gears are too coarse but I wanted them to work so i had to compromise.
I figure only you guys would notice....
I contemplated making my own but in the long run I thought better of it.
The brass ones you see are about $5 each, you do the math. There are several more to go too!
The bevel gears were the hardest to find, I found some lovely brass ones at on $45 a piece! Shocked
-Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
TRAINS1941
Hero Member
*****
Offline Offline

Posts: 1278


« Reply #21 on: March 27, 2012, 10:34:55 AM »

Hell its only money!!!!! Shocked

But so far a fine job, young Martin.

Jerry
Logged

Why isn't there mouse-flavored cat food?
George Carlin
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #22 on: March 30, 2012, 08:11:02 AM »

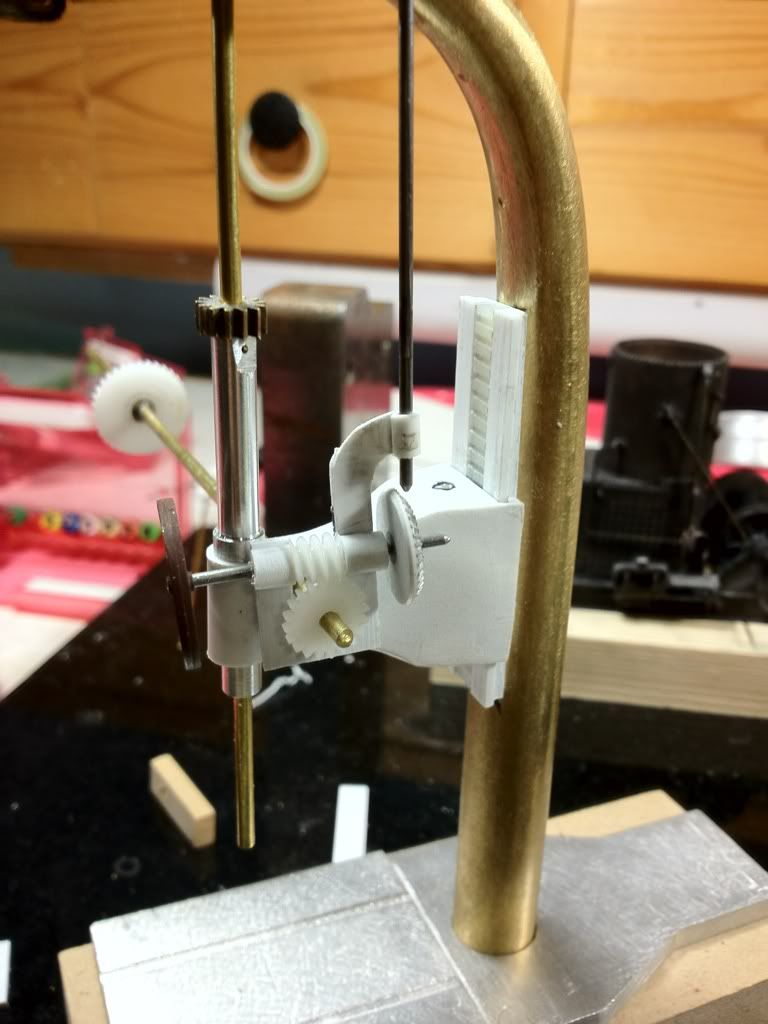

Working my way through the gears.......
The auto feed is some fiddly stuff.

I keep thinking to myself "how the hell did Charlie (Brohmmer) do this in "O" scale!!!!

I have since moved the parts a little and decided on a smaller driven gear.
Turning down the cast one in this picture was sure a challenge......Oh well.



More soon.
-Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5341


« Reply #23 on: March 30, 2012, 12:56:35 PM »

Ho-hum. Why not attempt something difficult? -- ssuR
Logged
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #24 on: April 01, 2012, 04:48:58 PM »

Quote
Ho-hum. Why not attempt something difficult? -- ssuR

That's coming with the framework on the back!

Needed to get some color, pigment, finishes on some of these parts.
Boy I love the AK Interactive dark steel!

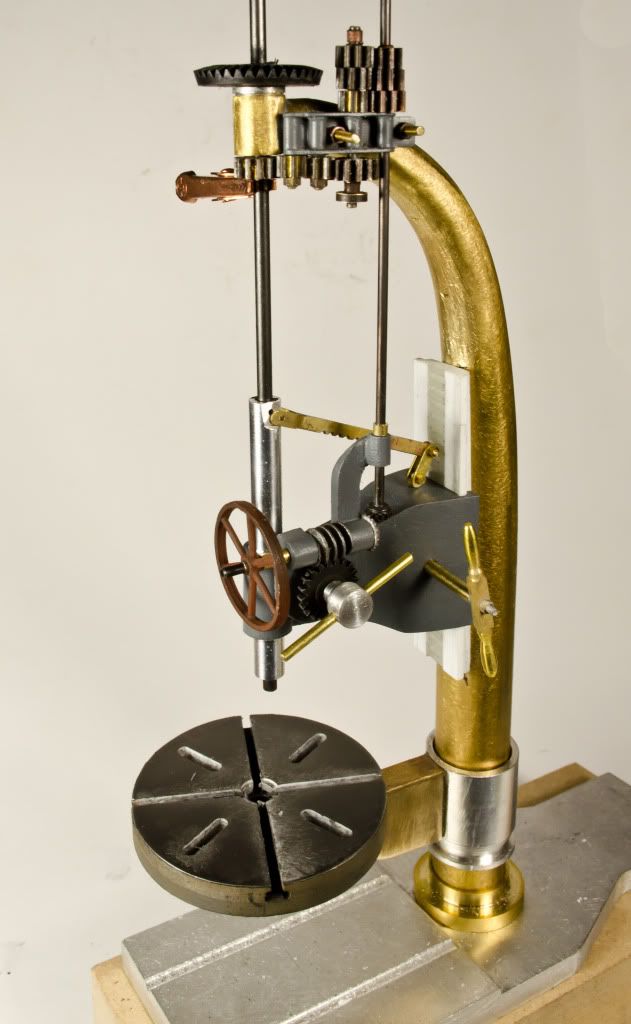

Anyway here is what I have as of today.



Thanks for looking!
More soon.
-Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
TRAINS1941
Hero Member
*****
Offline Offline

Posts: 1278


« Reply #25 on: April 01, 2012, 06:11:17 PM »

God with a little coloring.  We have just high lighted the whole thing.  Beautiful work!!!

Jerry
Logged

Why isn't there mouse-flavored cat food?
George Carlin
Malachi Constant
Hero Member
*****
Offline Offline

Posts: 1544



« Reply #26 on: April 01, 2012, 09:00:48 PM »

Sweet!
Logged

-- Dallas Mallerich  (Just a freakin' newbie who stumbled into the place)
Email me on the "Contact Us" page at www.BoulderValleyModels.com
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5341


« Reply #27 on: April 02, 2012, 02:01:22 AM »

Satisfactory. -- Russ
Logged
TRAINS1941
Hero Member
*****
Offline Offline

Posts: 1278


« Reply #28 on: April 02, 2012, 06:40:39 AM »

Satisfactory. -- Russ

Stop it Unc your giving him a big head!!!!! Grin

Jerry
Logged

Why isn't there mouse-flavored cat food?
George Carlin
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #29 on: April 05, 2012, 08:12:48 AM »

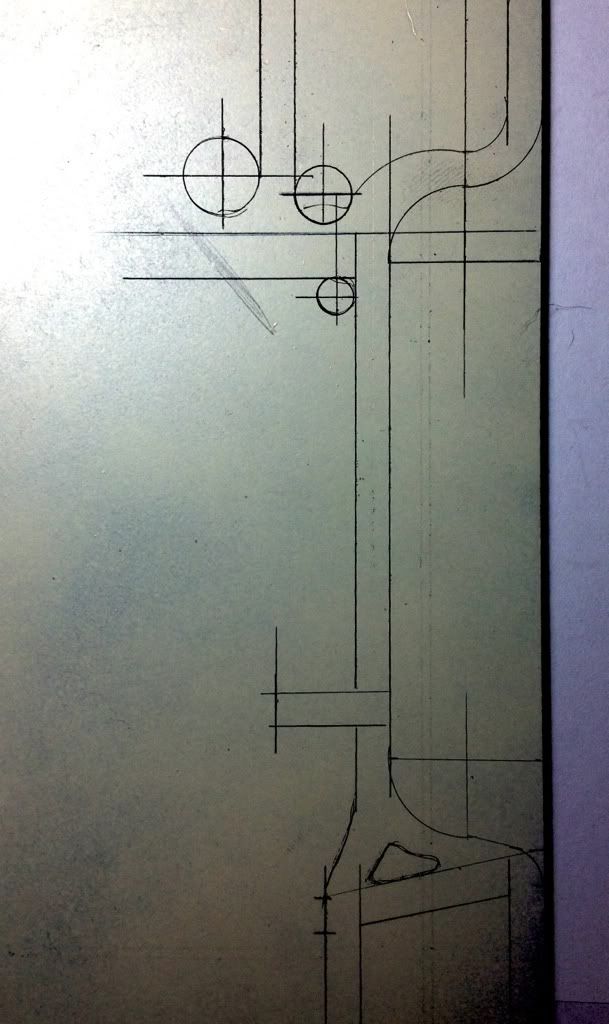

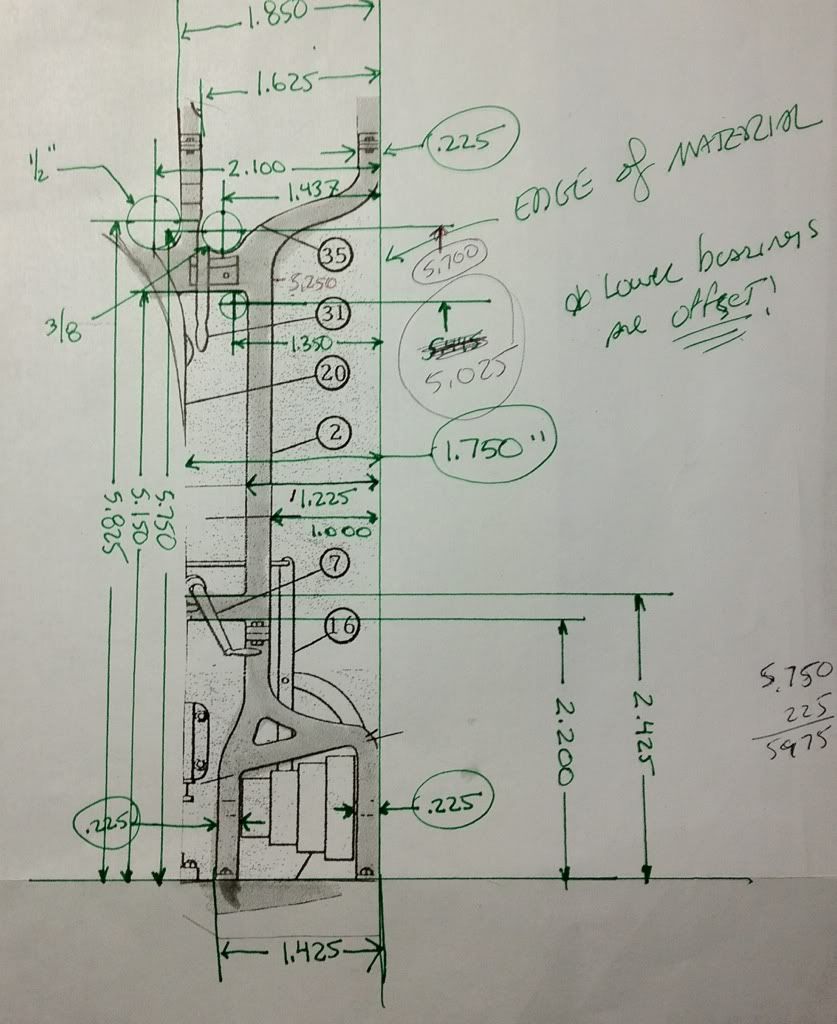

I laid out as many of the dimensions for the framework as I could calculate/figure out.



Then I sprayed a piece of .120" black styrene white.
That way using my dial calipers set to the dimensions, black lines would show.



I also used a couple circle templates and a french curve.
Now to cut it out...... Huh

-Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
