Author Topic: (finally) getting inspired!  (Read 42691 times)
marc_reusser
Curmudgeon
Administrator
Hero Member
*****
Offline Offline

Posts: 4504



WWW
« Reply #15 on: December 08, 2011, 07:25:57 PM »

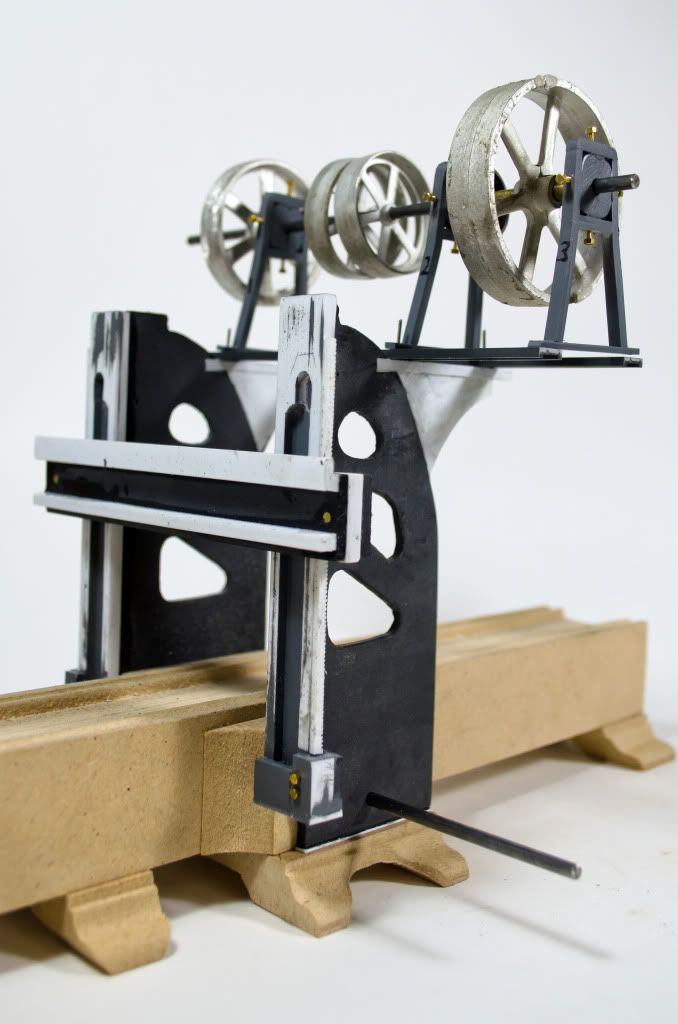

Very nice clean milling and assembly work. Like the shape and detailing....look forward to more.

M
Logged

I am an unreliable witness to my own existence.

In the corners of my mind there is a circus....

M-Works
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #16 on: December 11, 2011, 03:52:23 PM »

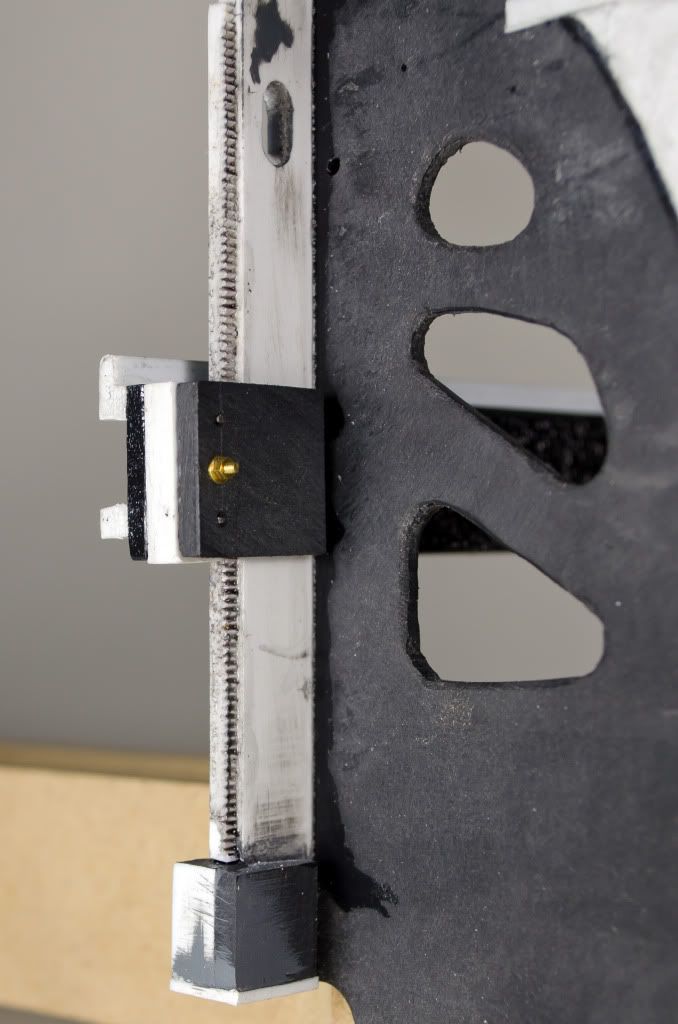

Here is a shot of the gear.



It was made from .060" x .100" styrene, gear "teeth" are .035" on center.
I gave it a quick wash of silverwood to help show them.

-Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5182


« Reply #17 on: December 12, 2011, 02:39:51 AM »

Did you make that from a billion individual "teeth"? -- Russ
Logged
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #18 on: December 13, 2011, 01:14:55 PM »

No, used the mill and a pointed cutter to cut the billion teeth!
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
TRAINS1941
Hero Member
*****
Offline Offline

Posts: 1251


« Reply #19 on: December 13, 2011, 08:55:13 PM »

No, used the mill and a pointed cutter to cut the billion teeth!

All the better to bite you with!!!!

Nice job MJ.

Jerry
Logged

Why isn't there mouse-flavored cat food?
George Carlin
Wesleybeks
Full Member
***
Offline Offline

Posts: 156



« Reply #20 on: December 14, 2011, 01:00:40 AM »

Sweet work Marty.
Logged

Kind Regards
Wesley

Modelling in sunny South Africa
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #21 on: December 18, 2011, 05:58:36 PM »



I have been working on the tool holders.

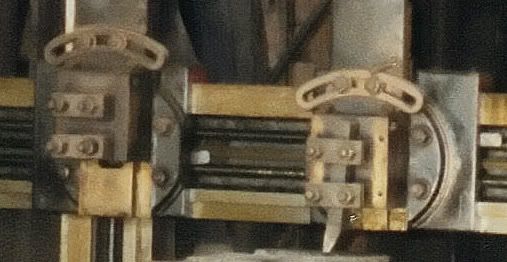

here is the reference picture;

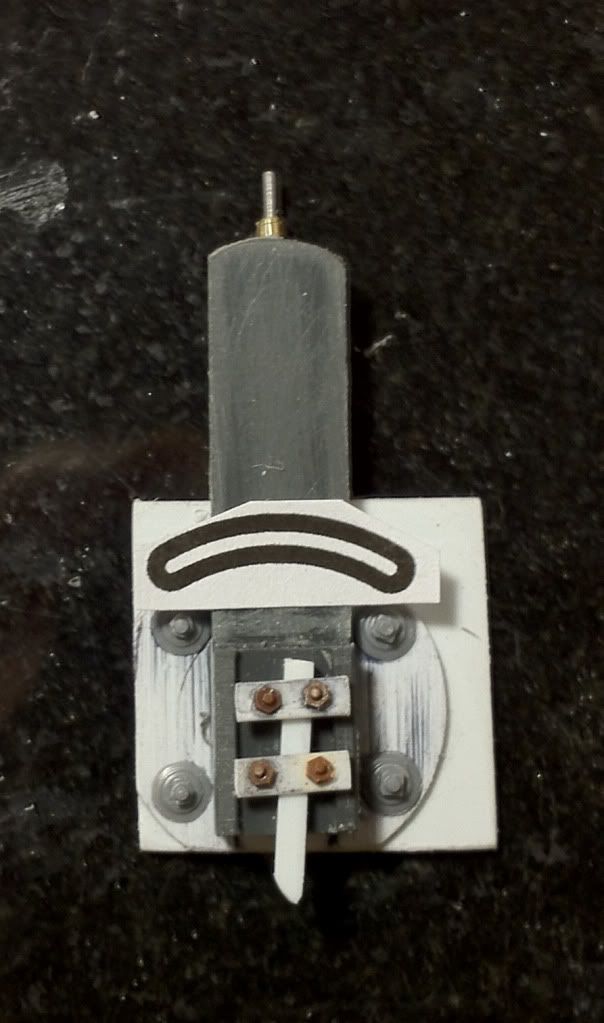

And here is where i am as of today;


The curved tool adjuster is a paper proof from Dave at http://www.vectorcut.com/
I tried to do them myself but with the styrene being only .060" wide it deformed a little...
For size reference the square "backing" above is .800" square.

More soon!
-Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
Scratchman
Hero Member
*****
Offline Offline

Posts: 741


« Reply #22 on: December 18, 2011, 08:20:46 PM »

Looking good Marty. You need to build a full machine shop in this scale all you need is a small building in your back yard.

Gordon Birrell

http://www.flickr.com/photos/77318580@N00/
Logged
nk
Full Member
***
Offline Offline

Posts: 223



WWW
« Reply #23 on: December 18, 2011, 10:38:45 PM »

This is really looking good, really great mill work. More teeth there than a Great White.
Logged

You may ask yourself: "Well, how did I get here?"

http://public.fotki.com/nkhandekar/
TRAINS1941
Hero Member
*****
Offline Offline

Posts: 1251


« Reply #24 on: December 21, 2011, 08:26:39 PM »

Looking good Marty. You need to build a full machine shop in this scale all you need is a small building in your back yard.

Gordon Birrell

http://www.flickr.com/photos/77318580@N00/

Excellent idea Gordon.  At least it will keep him off the streets.  Wait until he gets ot the drill Press!!!!!

Good show Martin.

Jerry
Logged

Why isn't there mouse-flavored cat food?
George Carlin
michael mott
Hero Member
*****
Offline Offline

Posts: 511


« Reply #25 on: December 27, 2011, 07:29:52 PM »

Marty the machine looks great, I'm curious why you used hex bolts on one side of the tool mount and square ones on the other side?

Michael
Logged
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #26 on: December 28, 2011, 07:59:23 AM »

Michael,
I'm working from prototype pictures.
The square are like my epics, the brass hex on the back are not prototypical.
the brass hex also allow me to remove the holder for painting.
thanks.

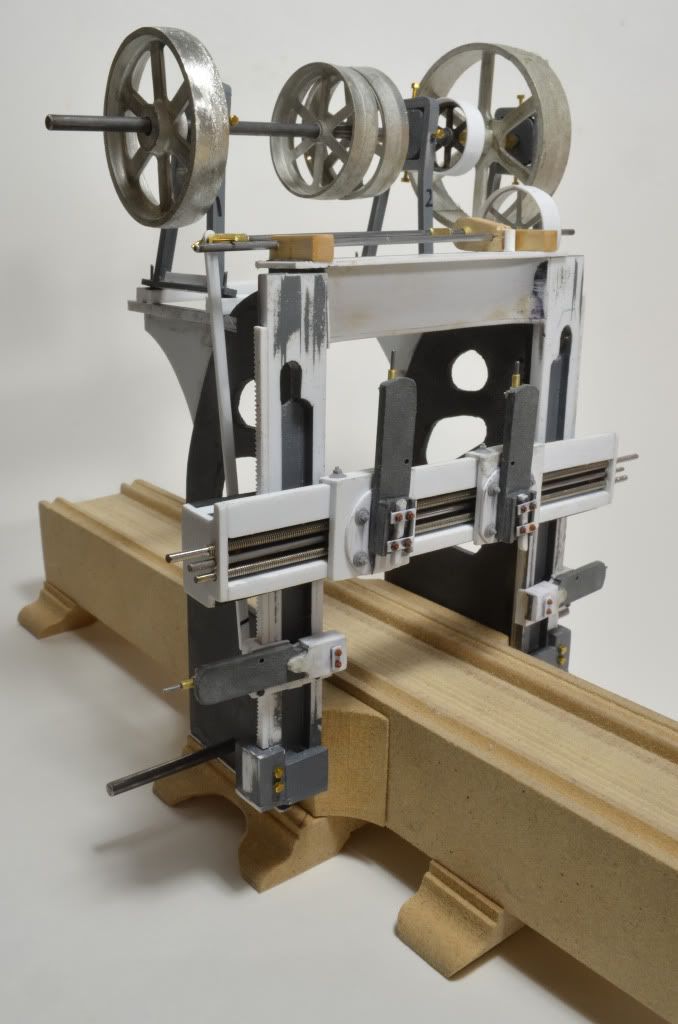

Update, as of right now;


I've added some items and improved some......
Still just laying together so I can paint all the components separately.


Mj
« Last Edit: December 28, 2011, 11:31:02 AM by lab-dad » Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5182


« Reply #27 on: December 28, 2011, 01:41:43 PM »

My stars! -- Russ
Logged
jacq01
Hero Member
*****
Offline Offline

Posts: 1110



« Reply #28 on: December 28, 2011, 01:48:11 PM »


 Will you make it working in this scale ?  Wink Cheesy
  Than you can mill real O scale parts  Grin Grin Grin

 looks very very good. I hope we are not loosing a small scale modeler.

  Jacq
Logged

put brain in gear before putting mouth in action.
never underestimate the stupidity of idiots
I am what I remember.
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #29 on: January 01, 2012, 12:19:49 PM »

It is almost as big as my Sherline I am using to make the parts!
In between eating and drinking I did manage to work on the model.

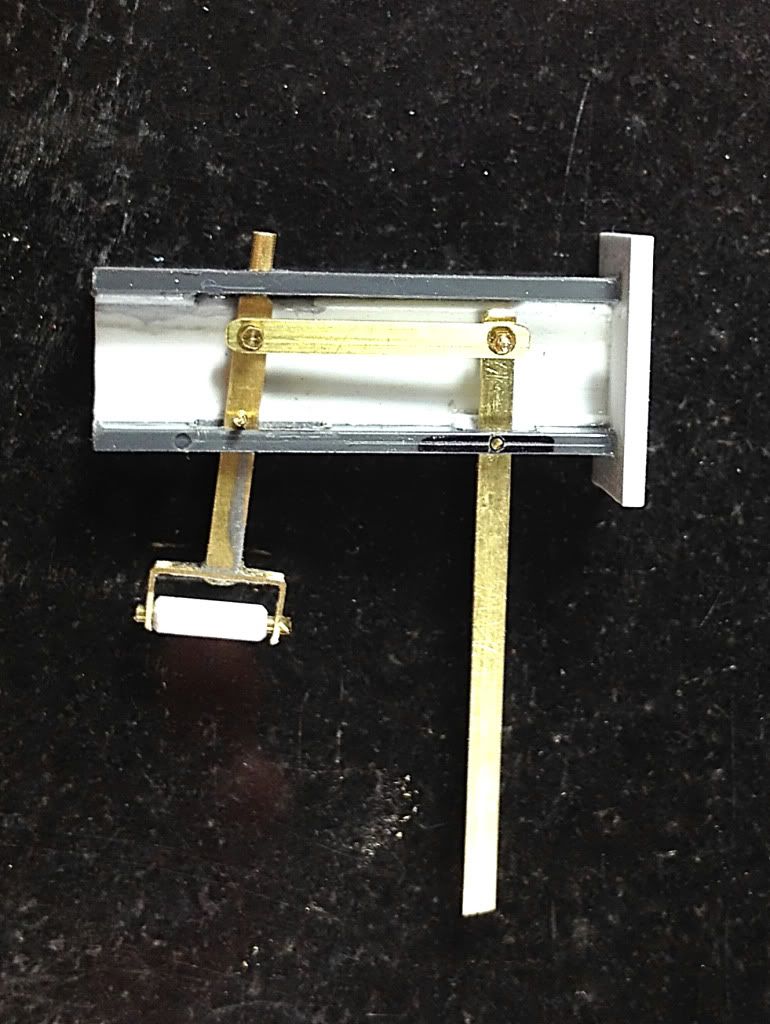

Below is the left belt shifter.
FWIW the width of the styrene channel is .500, the levers and such are 9/32" and the hardware is 1 mm.
And yes it does function.
The trick will be getting the one on the other side to work in tandem with this one!
And the associated linkage.......... Shocked


Happy New Year!
-Marty
« Last Edit: January 01, 2012, 12:23:15 PM by lab-dad » Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
