Author Topic: My coal mine scale 1:22.5  (Read 69211 times)
Design-HSB
Hero Member
*****
Offline Offline

Posts: 562


Klosterstollen


WWW
« Reply #150 on: June 27, 2017, 02:48:57 PM »

Hello everyone,

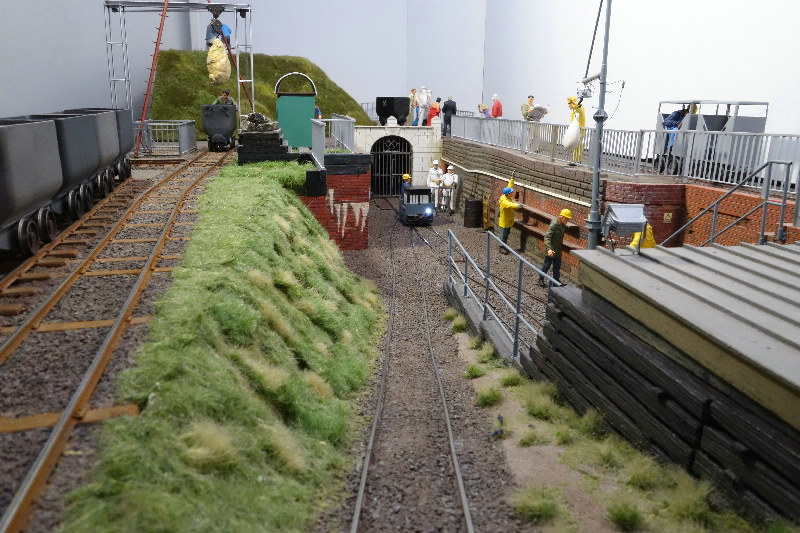

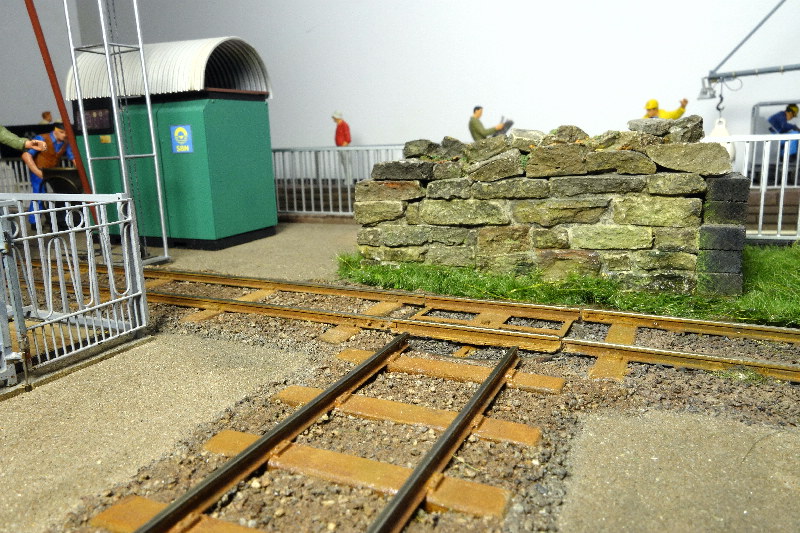

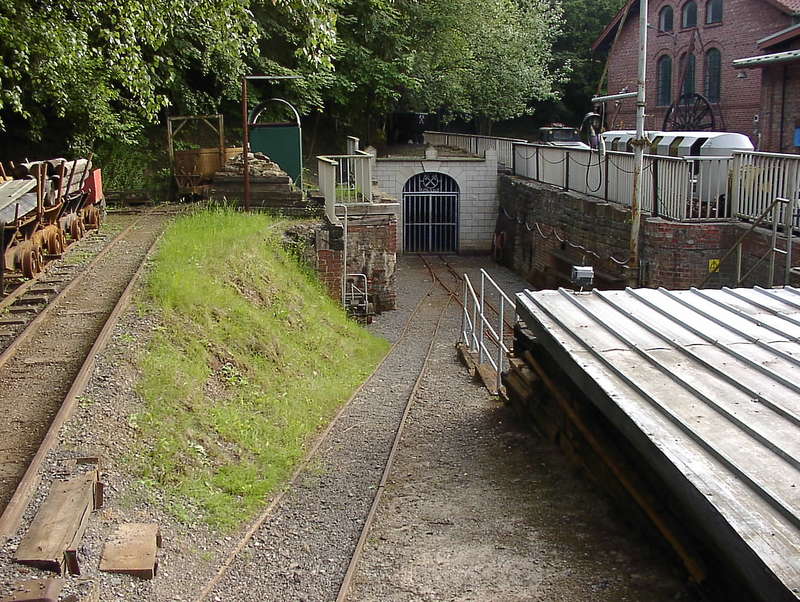

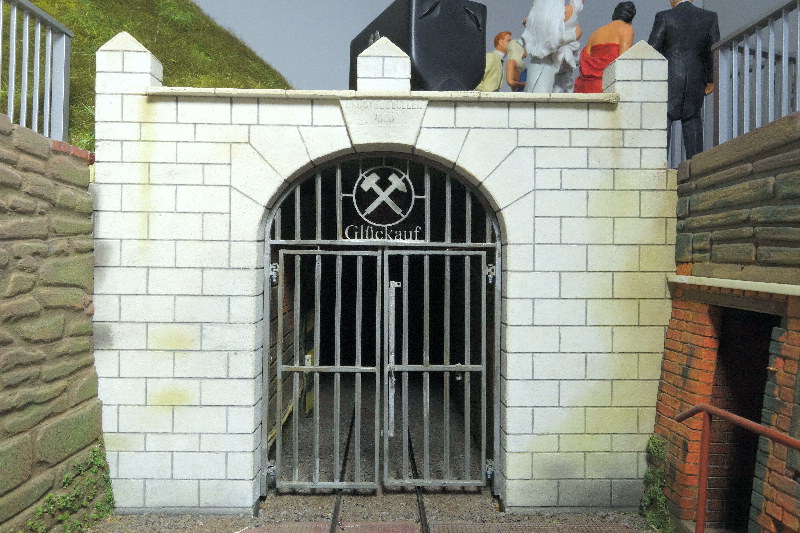

I build my model scale faithfully in scale 1: 22.5, according to a real model. Furthermore, I have not reported anything for a long time because of many other projects. Now I bought a SONY Cyber-shot DSC-QX100 and tested this on my model. I have times tried to take picture shots, which served me as a model as a model in the model as a similar persistence.

Here are some examples:













Certainly everything has not been finished yet and much more can be improved.
Only my biggest problem building site the electronics, I could finally solve, because I can everything everything like doors, turntable and cranes put into function and now reliable over my mobile phone.



« Last Edit: March 08, 2018, 04:52:24 PM by Design-HSB » Logged

Regards Helmut
the journey is the goal
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 3757



WWW
« Reply #151 on: June 27, 2017, 09:05:25 PM »

Nice! I like seeing the comparison of prototype scenes with the model.
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakin’s World
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5082


« Reply #152 on: June 28, 2017, 12:39:17 PM »

Me, too. Your model a very accurate miniature of the full size tram. -- Russ
Logged
Bill Gill
Hero Member
*****
Offline Offline

Posts: 658



« Reply #153 on: June 28, 2017, 07:24:32 PM »

Nice work, Helmut. Thanks for posting the prototype photos to see how closely you constructed your model.
Logged
Design-HSB
Hero Member
*****
Offline Offline

Posts: 562


Klosterstollen


WWW
« Reply #154 on: February 10, 2018, 03:01:06 PM »

I have long been building on my model of the Visitor mine “Klosterstollen”. The model represents the entrance with the mine railway into the “Klosterstollen”. I not only attach importance to model-like models, but to me, things have to work even more smoothly. That's why not only trains, but also all gates and cranes can still be moved. Meanwhile, it all works even via ITrain with Dinamo and Z21 controlled by the PC. This is because not some plan is executed, but the visitors start by means of key press functions and the operation itself.

At exhibitions I was asked again and again how does this actually look underground, in other words in the mine. As a supplement I plan a fiddle yard that is supposed to get on a sete then the terminus station in the mountain. However, there will also be concealed storage possibilities. I thought about presenting small scenes from the mine.

Just how I had thought for a long time until I got the right inspiration on Facebook. The Cakebox challenge of the British model Railway newspaper BRM was reported there. I read the conditions and thought class that fits exactly. The maximum size of the scene must fit into an 8 x 8 x 6inch cakebox.

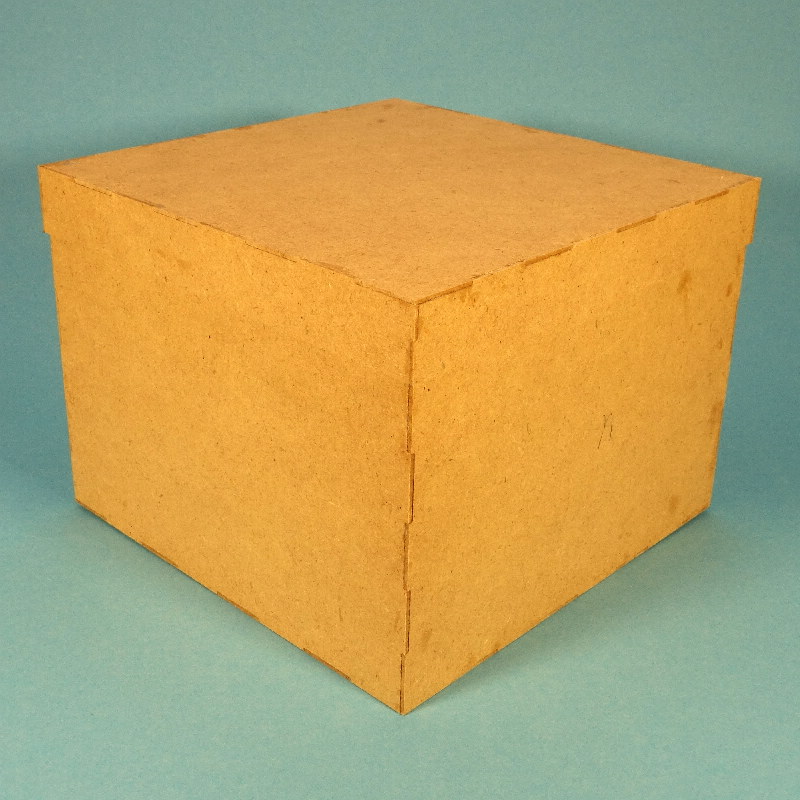

The first difficulty began with the fact that there is no such cakebox to buy in Germany. I solved this problem by simply creating such a box of MDF myself.

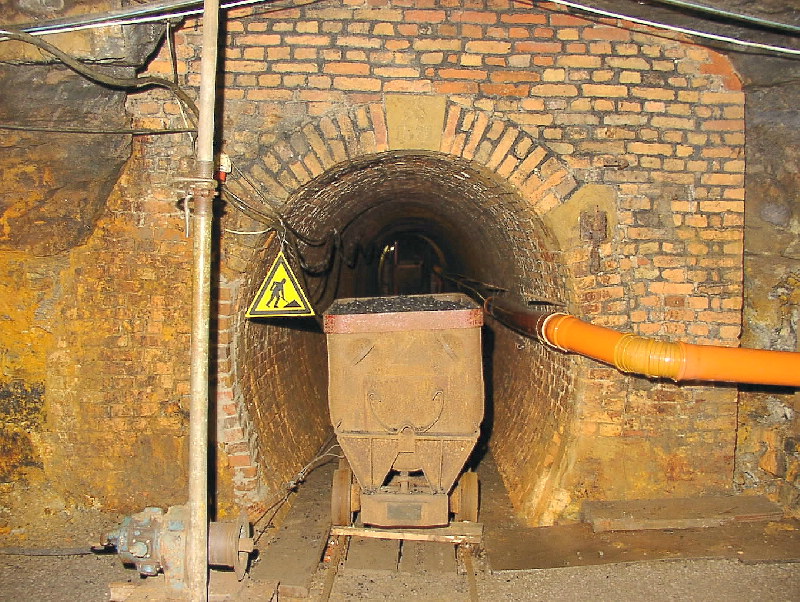

Then the planning and the reflection began with which scene I start. I also decided again for a special company presentation. On approx. 1500 m studs, the studs go through an already 1871 fully walled zone. In the visitor mine, a pit wagon with a compressed air reel is pulled out of the tunnel at this point. As a pit guide I have demonstrated and explained this in the original many times myself. So, I can also use the 3d printed figure very well for it.

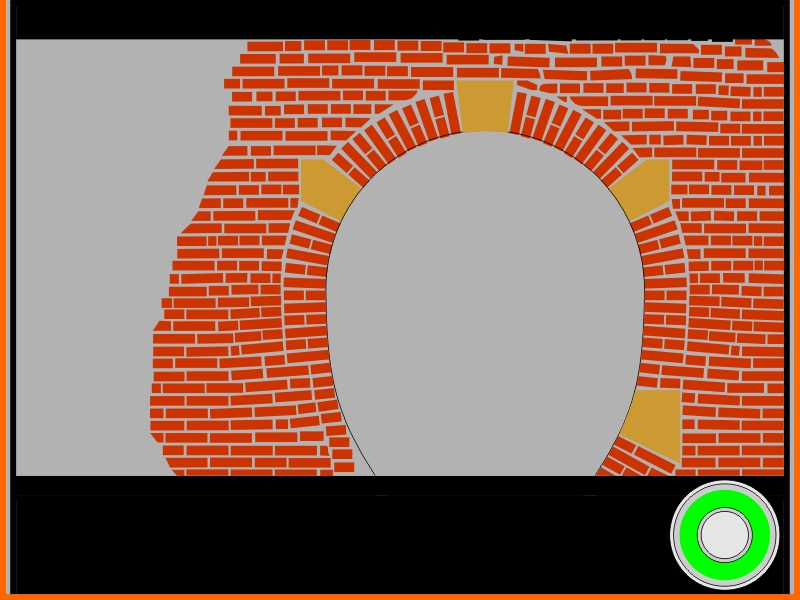

My design shows the bricked start of the tunnel of 1871. I drew the masonry after a photo of the original.



The masonry I will engrave in again in MDF. Everything should, of course, fit completely into a cakebox, but still consist of a box open to the front. Of course, this will hopefully enhance the impression of a mine.



The button with the green ring is a button that will start a small show. To do this, I will supply a microcontroller with a battery. The few SMD LEDs will hardly consume electricity. I believe that the issue will definitely be solved by a power supply. A servo will then pull the pit wagon out of the tunnel.



In the meantime, I have made the first walls of MDF and ground them. As I write this here, on my milling, further stone strips are created for the stud lining. I would like to build the tunnel on the other hand like a hull on frames.

This is how I build a fully functional model-based micro layout in scale 1:22.5 with a 26, 7mm gauge to only 8 x 8 x 6 inches to complement my monastery studs.
Logged

Regards Helmut
the journey is the goal
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5082


« Reply #155 on: February 11, 2018, 02:14:54 PM »

I love how accurately you plan your models, create the parts, and assemble them. Your work is satisfactory. -- Russ
Logged
Barney
Hero Member
*****
Offline Offline

Posts: 889


« Reply #156 on: February 11, 2018, 02:18:30 PM »

Well its different with atmosphere - nice workmanship
Barney
Logged
Design-HSB
Hero Member
*****
Offline Offline

Posts: 562


Klosterstollen


WWW
« Reply #157 on: February 11, 2018, 04:14:08 PM »

Many Thanks, Russ and Barny.

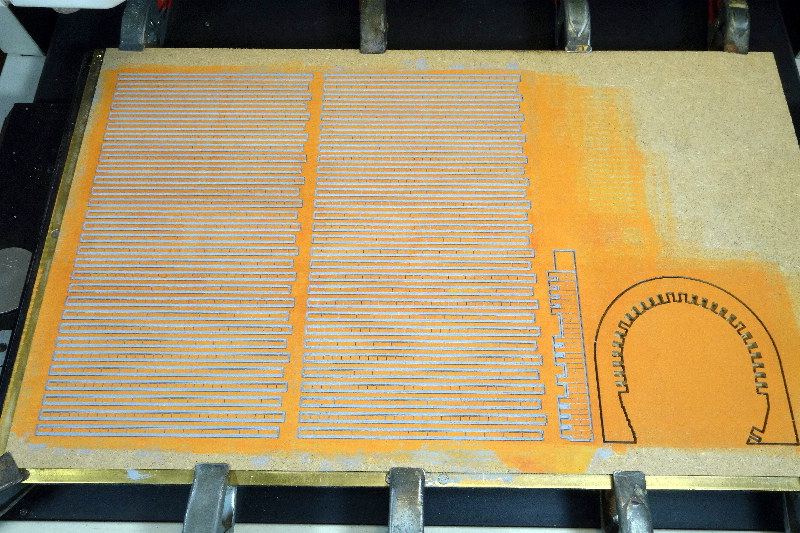

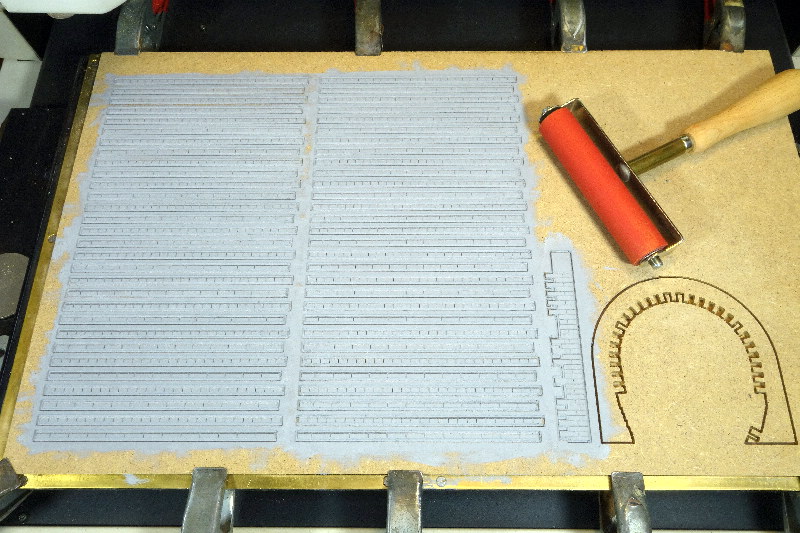

in the meantime, I have constructed further parts and milled them on the CNC machine. Of course, first of all, only the bricks with their joints and the outer contour of the components. Directly on the CNC machine I have painted all joints with acrylic paint gray. This is like a primer and first improves the MDF. With the roller shown in the picture then follows another primer in the stone color.

For this I give a few drops of ocher and brick red on a glass plate. With the roller, the color is only roughly mixed by rolling and then rolled onto the MDF.
As desired, the color only reaches the raised areas, giving the stones a very beautiful, irregular base tone in the brick color.

The many stone strips are intended for the reproduction of the lining of the tunnel.

Next up is the pedestal on which the track is coming, which, of course, will get a cavity by placing the OC32NG, which will then be responsible for the animation.
Logged

Regards Helmut
the journey is the goal
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 3757



WWW
« Reply #158 on: February 12, 2018, 01:11:55 AM »

Fascinating! I'm always happy to see more of your work on this mine.
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakin’s World
Design-HSB
Hero Member
*****
Offline Offline

Posts: 562


Klosterstollen


WWW
« Reply #159 on: February 13, 2018, 03:21:30 PM »

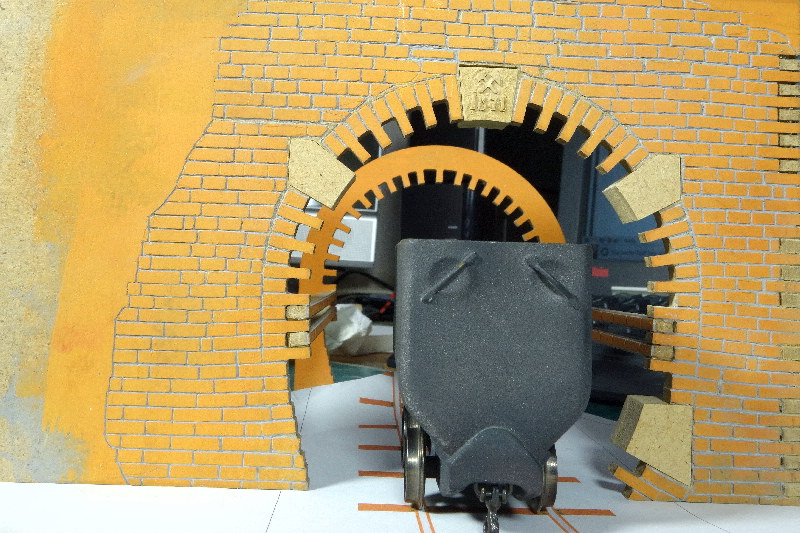

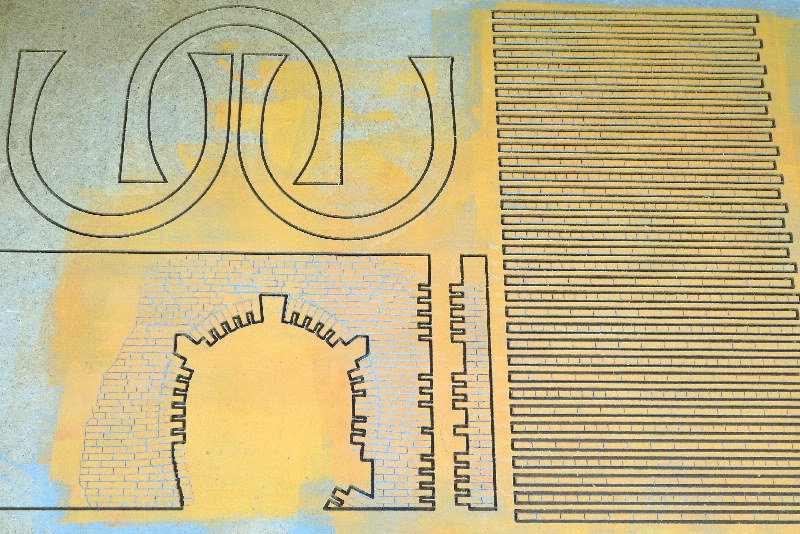

In the meantime, I have made the wall parts and the stone strips for the tunnel and put them together for the test. Of course also the cobblestone with "Schlegel and Eisen" and the year 1871.
I would like to use the diagonal to get as much track length as possible. In addition, by the slope of the insight in the actually much too short studs are not so accurate that are in the original finally 25m.

What do you think?
Logged

Regards Helmut
the journey is the goal
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 3757



WWW
« Reply #160 on: February 13, 2018, 08:13:08 PM »

Looks great so far!
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakin’s World
Design-HSB
Hero Member
*****
Offline Offline

Posts: 562


Klosterstollen


WWW
« Reply #161 on: February 19, 2018, 11:18:07 AM »

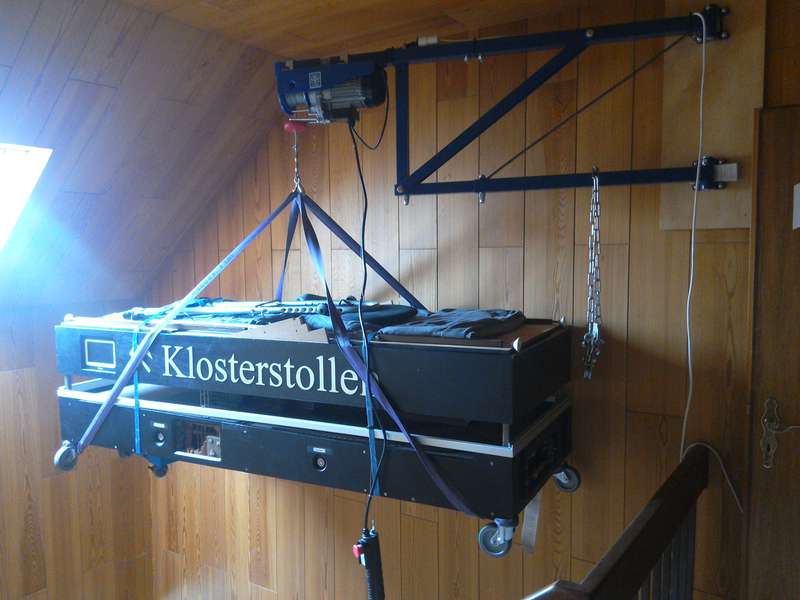

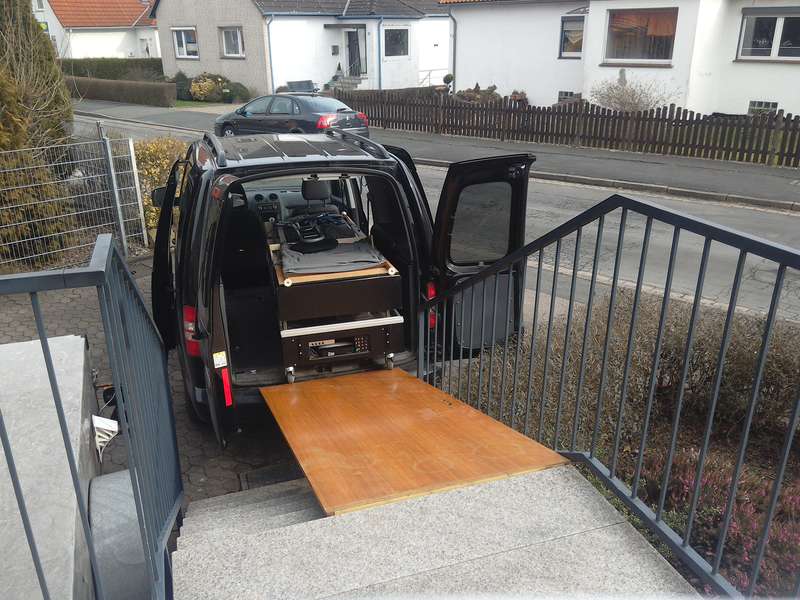

Since I go to exhibitions more often with my “Klosterstollen” model, here are 2 pictures, how I simplified the transport.


Transport my “Klosterstollen” model from the upper floor down and back.


From the EC via a ramp to the car and back.

Thus, the transport is possible without outside help.
Logged

Regards Helmut
the journey is the goal
Bill Gill
Hero Member
*****
Offline Offline

Posts: 658



« Reply #162 on: February 19, 2018, 12:14:06 PM »

Helmut, Your work is always inspirational to see and read about. The cake box mine view is no exception. I really like how you replicated the mine entry and how it will all fit diagonally in the box.Your storage and transportation method for the diorama is also impressive.
Logged
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5082


« Reply #163 on: February 19, 2018, 01:48:03 PM »

Ditto. -- Russ
Logged
Greg Hile
Full Member
***
Offline Offline

Posts: 146



« Reply #164 on: February 20, 2018, 01:40:51 PM »

Ditto Russ' ditto. Very creative, both in design and logistics!
Logged
