« Reply #15 on: May 09, 2011, 11:20:29 PM »

Yes there's definitely a market for good looking grids!

Amazing attention to detail.
Logged

Ian Hodgkiss
The Steamy Pudding - an English Gentleman's Whimsy in 1:24 scale Gn15 (in progress)
On the Slate and Narrow - in 1:12 scale (coming soon)
Brisbane, Australia
marc_reusser
Curmudgeon
Administrator
Hero Member
*****
Offline Offline

Posts: 4518



WWW
« Reply #16 on: May 10, 2011, 12:40:04 AM »

The grates are great! Grin So much better than just the typical flat PE often used for such items.

Marc
Logged

I am an unreliable witness to my own existence.

In the corners of my mind there is a circus....

M-Works
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 4829


« Reply #17 on: May 10, 2011, 02:03:27 AM »

Correction to your post: You already ARE at the level of others on this forum. -- Russ
Logged
fspg2
Full Member
***
Offline Offline

Posts: 199



« Reply #18 on: May 10, 2011, 03:00:01 AM »

´As you can see, for me there is still a lot of work, until I reached the standard of you.

Helmut, ... that´s the first time I can´t understand you Wink

.... or, is is a little bit of fishing for compliments?

You are quite right here!

Frithjof
Logged

Frithjof
Design-HSB
Sr. Member
****
Offline Offline

Posts: 489


Klosterstollen


WWW
« Reply #19 on: May 10, 2011, 06:25:06 AM »

Oh no, Frithjof;

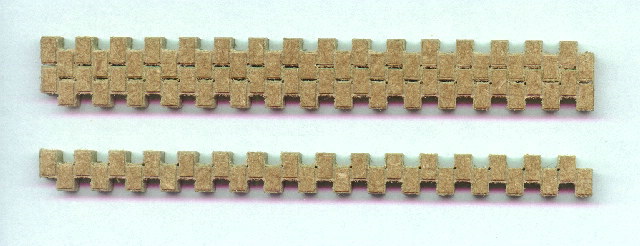

I made this picture and wanted to show how I make the base plates for the railing.



Then I saw my bungling, I had not seen with the naked eye despite glasses.
Yes such a camera image is just merciless.
Russ so I came to my thoughtful award.

But back to the grids.

I draw the individual blades simply reduced to scale with CorelDraw.
Then I send the data to a company for a friend of the etching technique has and get back the finished parts.


Ray you asked me but even after the stones.


The course I own on my CNC engraving machine.

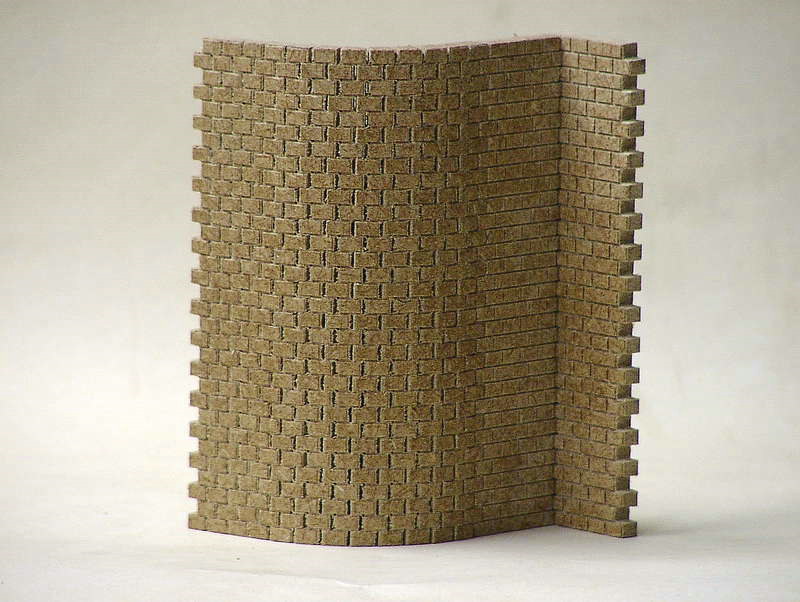

Either I engrave all the walls are so interlinked that I can connect them.


Stiffeners or individual from which I can even create curved walls.


The coloring is done with acrylic paints with a brush.
Where is the red color of the brick can well afford with a rubber roller.
The intricacies and the aging but is in any case with a brush.
Logged

Regards Helmut
the journey is the goal
eTraxx
Hero Member
*****
Offline Offline

Posts: 1011



WWW
« Reply #20 on: May 10, 2011, 06:54:46 AM »

Excellent work. I was curious and tracked down your Engraving Plotter ..

http://www.mimaki.co.jp/english/ip/3d/me/me.pdf

Found it online for $690

http://prima-jaya.com/products/Mimaki-Modeling-Machine-ME%252d500.html

Love this stuff!! Smiley
Logged

Ed Traxler

Lugoff, Camden & Northern RR

Socrates: "I drank WHAT?"
Design-HSB
Sr. Member
****
Offline Offline

Posts: 489


Klosterstollen


WWW
« Reply #21 on: May 10, 2011, 07:24:01 AM »

Hi Ed,
only the plotter alone is unfortunately not yet you need a good software.

I cannot free or cheap software known a driver for ME has MIMAKI.

Such engraving machine but gets very encouraging, as signs are now laser cut.

I use Eurocut Professional

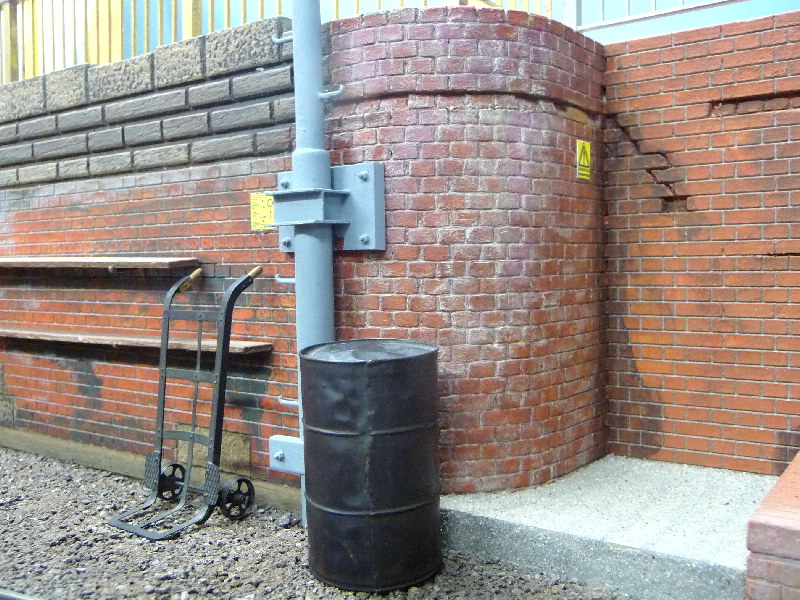

Here are 2 pictures with examples of parts that I created on the machine.
Even if it is OT at this point something.




« Last Edit: May 10, 2011, 09:15:30 AM by Design-HSB » Logged

Regards Helmut
the journey is the goal
lab-dad
Hero Member
*****
Offline Offline

Posts: 2079



« Reply #22 on: May 10, 2011, 09:25:44 AM »

Quote

(expletive) deleted!  Shocked Shocked Shocked Shocked Shocked

AMAZING! Shocked Shocked Shocked
That is BEAUTIFUL!!!!!!!!!!!!!!!!!!!!!!!!!!!!
more information please!!!!!!!!
-Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
Chuck Doan
Mr. Wizard
Hero Member
*****
Offline Offline

Posts: 2378



WWW
« Reply #23 on: May 10, 2011, 10:50:00 AM »

Great work Helmut! Technology is changing so much in modelling.
Logged

“They're most important to me. Most important. All the little details.” -Joseph Cotten, Shadow of a Doubt





http://public.fotki.com/ChuckDoan/model_projects/
Mr Potato Head
Hero Member
*****
Offline Offline

Posts: 534



« Reply #24 on: May 10, 2011, 04:19:05 PM »

who said life was fair? becasue it's not! Nice
Gil
your new BFF
Logged

Gil Flores
In exile in Boise Idaho
Design-HSB
Sr. Member
****
Offline Offline

Posts: 489


Klosterstollen


WWW
« Reply #25 on: May 11, 2011, 12:08:54 AM »

Hi every body,


I promise I will write from my CNC brass mine early next month when I'm back from vacation.

Image added
« Last Edit: May 11, 2011, 01:48:21 AM by Design-HSB » Logged

Regards Helmut
the journey is the goal
JohnP
Sr. Member
****
Offline Offline

Posts: 440



WWW
« Reply #26 on: May 11, 2011, 11:07:46 AM »

I am so happy there are people who still work like craftsmen. One would think the manual, creative hobbies are dying out.  But this work by Helmut proves otherwise. The quality has never been higher.

Technology does help- the engraving machine is used in a very effective way. I can understand how the bricks and walls are made.

Helmut, how did you make those beautiful locomotive parts?

John
Logged

John Palecki
Design-HSB
Sr. Member
****
Offline Offline

Posts: 489


Klosterstollen


WWW
« Reply #27 on: May 11, 2011, 12:08:44 PM »

Hi John,
Thanks for the recognition, but also I would like to learn more about the artificial aging of you.

The locomotive is the result of a change in PE set before me.
I received 2 sets at that time and also built two locomotives from it.

A locomotive I have given to Marcel here from the forum.


All that can be seen with me, is it yourself or at least from a kit that I change emerged.

The engine driver was out of a car mechanic kit.


The figure actually knelt in front of the car and changed the wheel

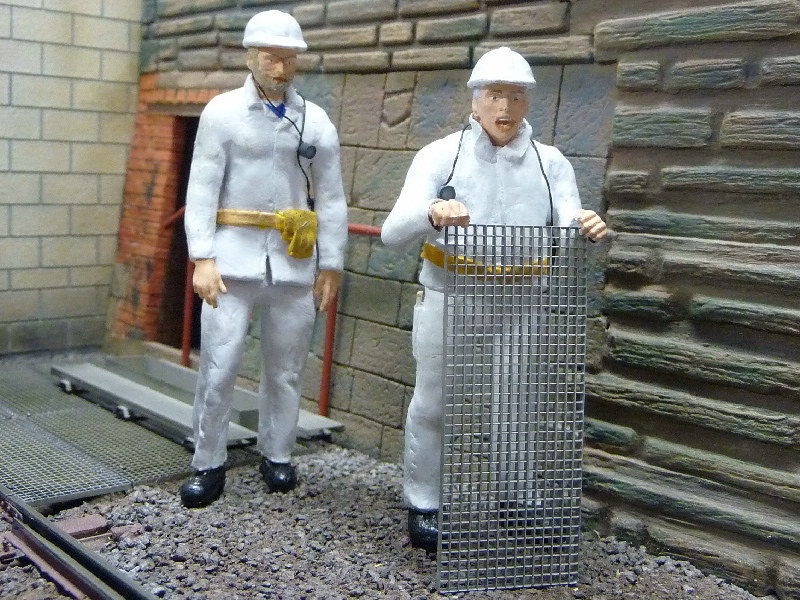

The change took place with these tools and the 2 components plastic.

All figures are also still real examples from the real bill.

That's myself

The locomotive dcc receiver and so hard, not only the lights but also the pit light of the miner can be switched.
« Last Edit: May 11, 2011, 12:10:39 PM by Design-HSB » Logged

Regards Helmut
the journey is the goal
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 4829


« Reply #28 on: May 11, 2011, 02:17:54 PM »

Helmut, you look very realistic. Your parents did an excellent job of modeling you. -- ssuR
Logged
Design-HSB
Sr. Member
****
Offline Offline

Posts: 489


Klosterstollen


WWW
« Reply #29 on: June 20, 2011, 01:26:48 AM »

I'm working on another detail in a wheelbarrow.



It was formed from a nickel silver set.
Now I have to make handles and natural aging.
« Last Edit: June 20, 2011, 03:04:03 AM by Design-HSB » Logged

Regards Helmut
the journey is the goal
