« Reply #390 on: July 30, 2018, 12:35:38 PM »

Very cool!
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakin’s World
Bill Gill
Hero Member
*****
Offline Offline

Posts: 874



« Reply #391 on: July 30, 2018, 12:59:19 PM »

Very good progress, excellent work. You didn't lose any skills even though you had to stop modeling for awhile.
All the metal work impresses me a lot!
Logged
fspg2
Sr. Member
****
Offline Offline

Posts: 276



« Reply #392 on: December 16, 2018, 03:46:29 PM »


It's been a while since I wrote (28.11.2016):

Quote
The upper metal end of the sluice walls will arise from 10.0mm x 8.0mm brass profile.


Since then, the brass profiles slumbered half finished milled in a small box deep in a drawer and came only at cleaning up again to light.

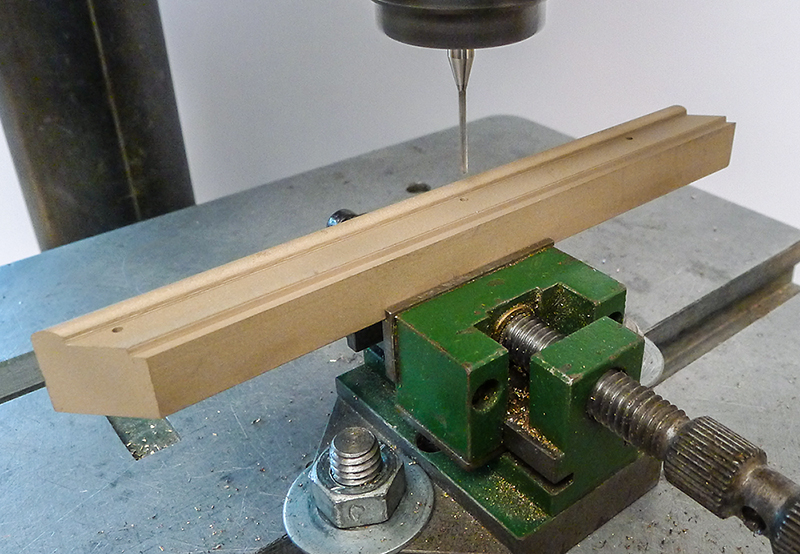

Recently, the last upper curves were milled at the edges with a 1.25mm quarter-end mill.
Then the small Böhler-saw was used and brought 45° miter to  the first profiles.

Thereafter, three 1.0mm holes were drilled vertically at the ends and in the center to precisely align everything with small pins on the MDF masonry and also to secure everything in gluing later.

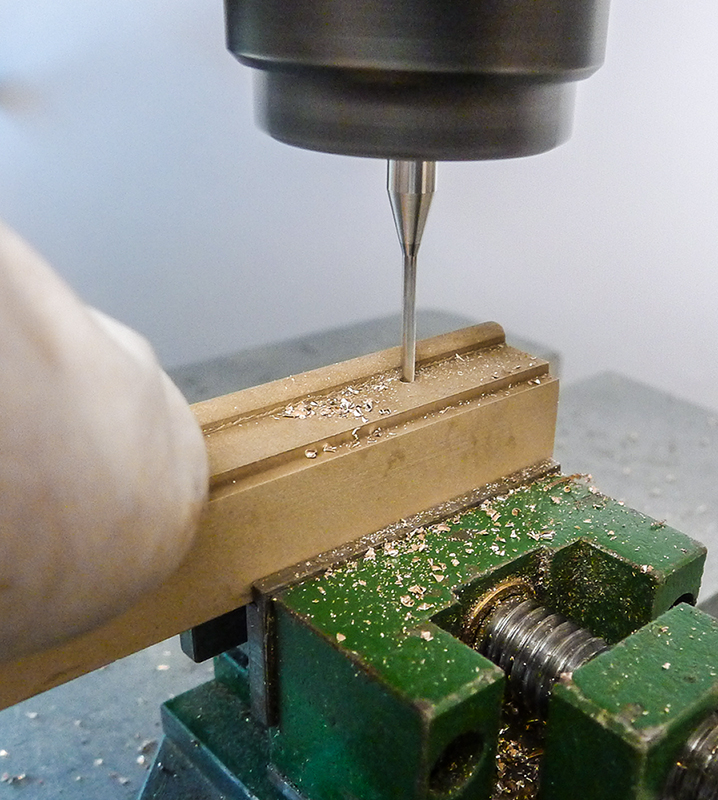

Metallkante_1_25mm_04 (fspg2)



Metallkante_1_25mm_05 (fspg2)

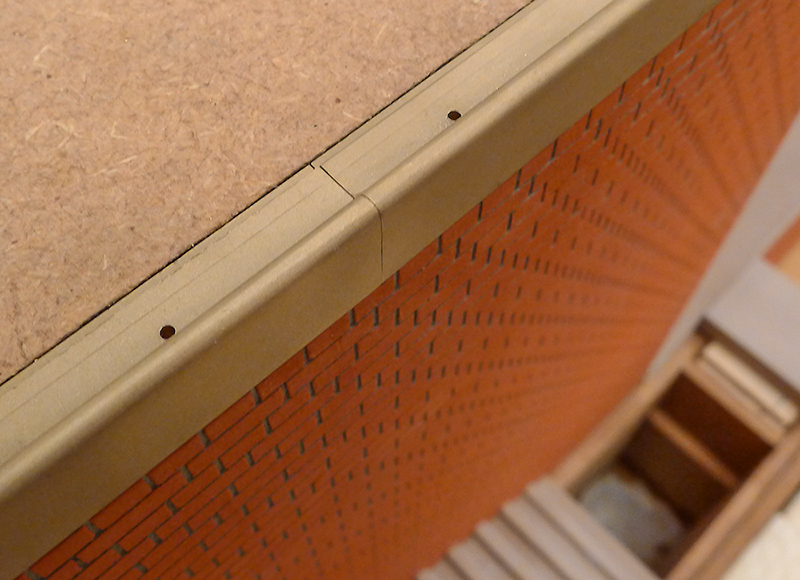

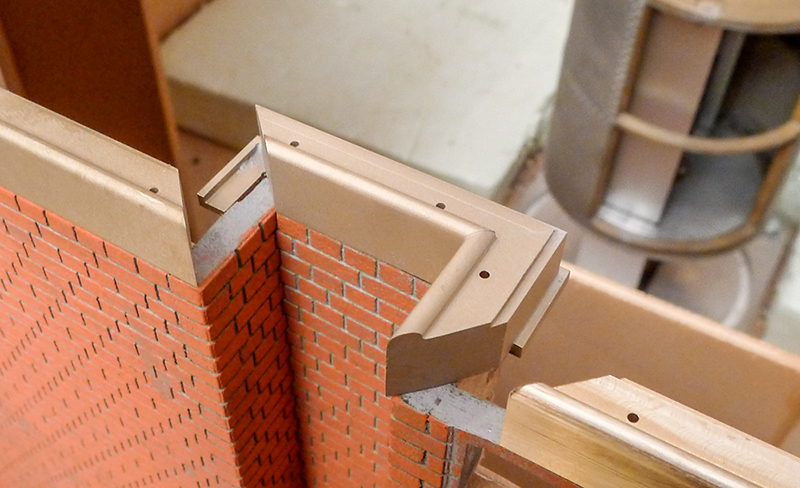

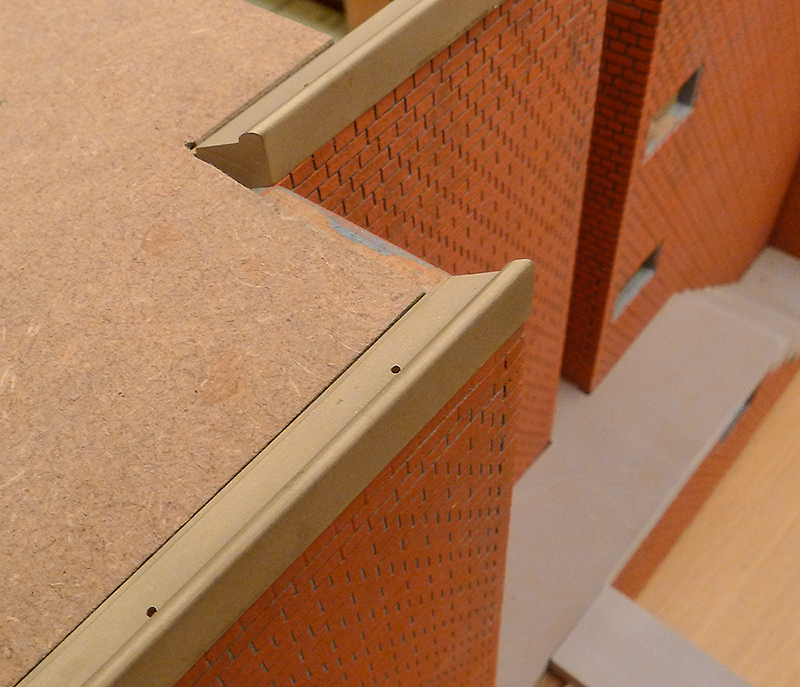

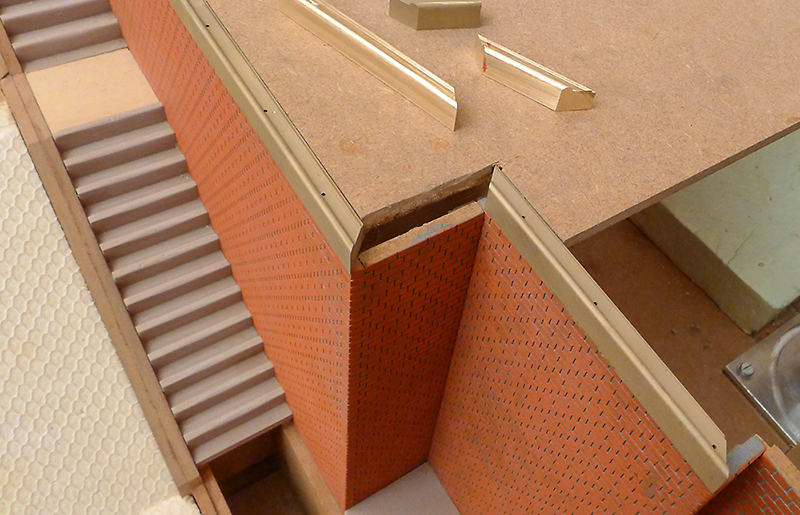

Gradually, the parts are positioned on the upper edges of the lock walls on a trial basis.


Metallkante_1_25mm_06 (fspg2)



Metallkante_1_25mm_07 (fspg2)



Metallkante_1_25mm_08 (fspg2)

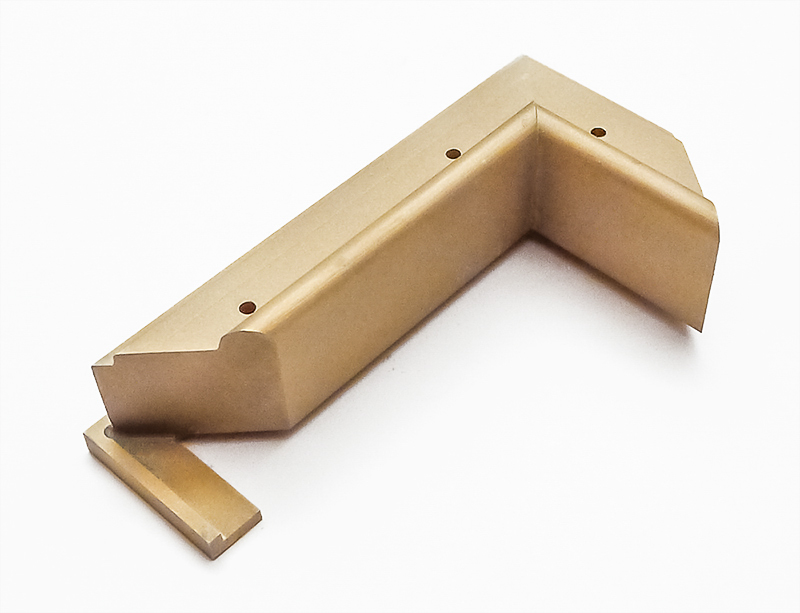

Meanwhile, all brass profiles for the upper left edge are mitred ...


Metallkante_1_25mm_09 (fspg2)



Metallkante_1_25mm_10 (fspg2)



Metallkante_1_25mm_11 (fspg2)



... and tentatively placed.

A small milled subframe helped to solder the small brass profiles around the ladder.


Metallkante_1_25mm_12 (fspg2)



Metallkante_1_25mm_13 (fspg2)



Metallkante_1_25mm_14 (fspg2)



Metallkante_1_25mm_15 (fspg2)

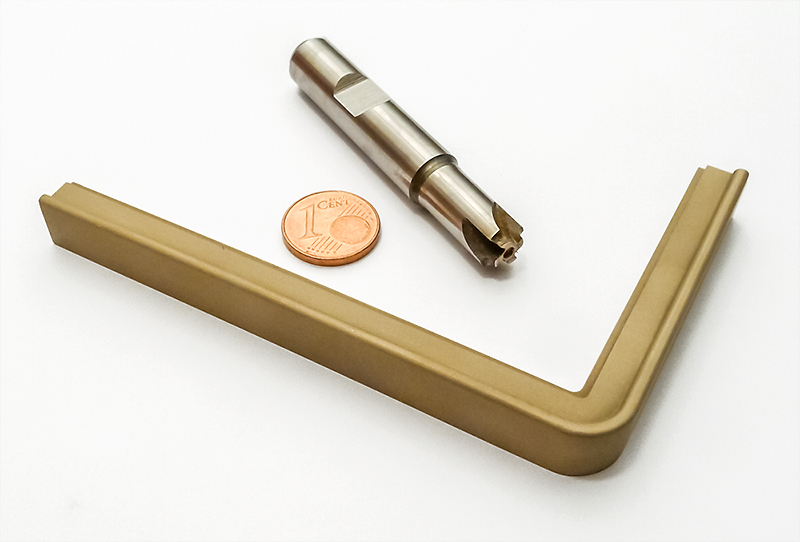

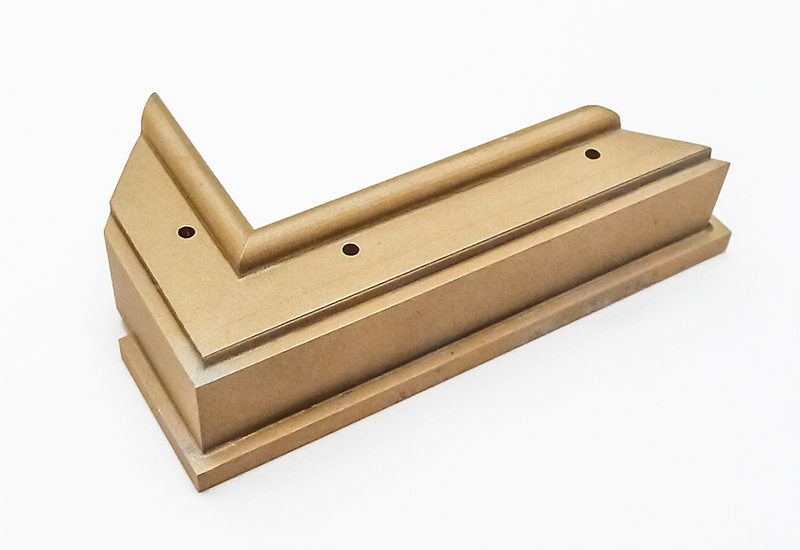

Next, the round edge will be profiled from a 10mm brass plate.

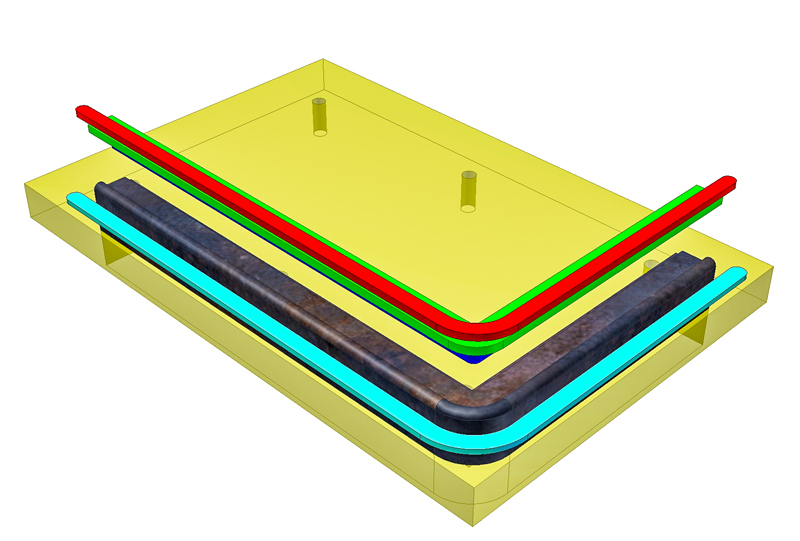

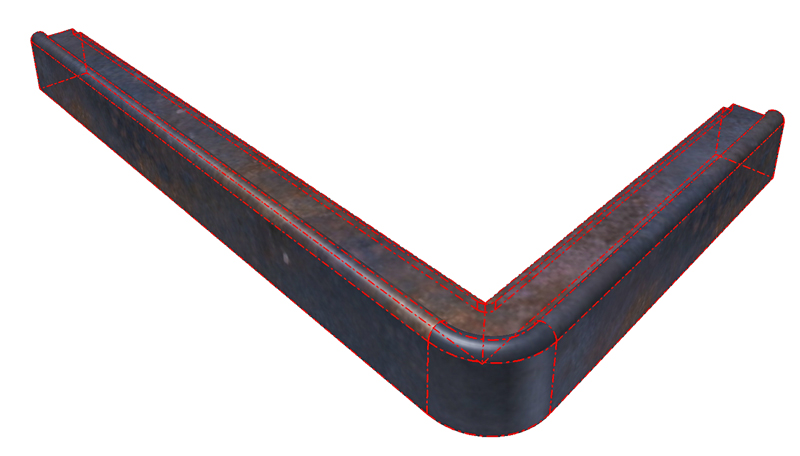

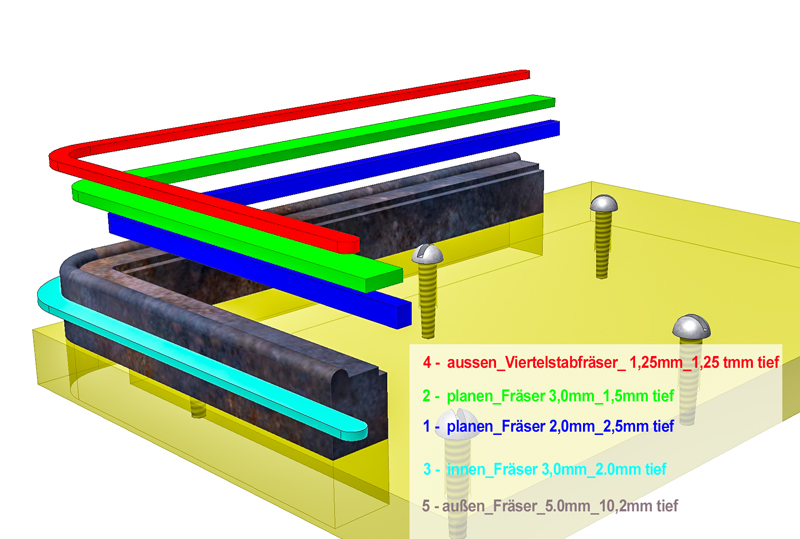

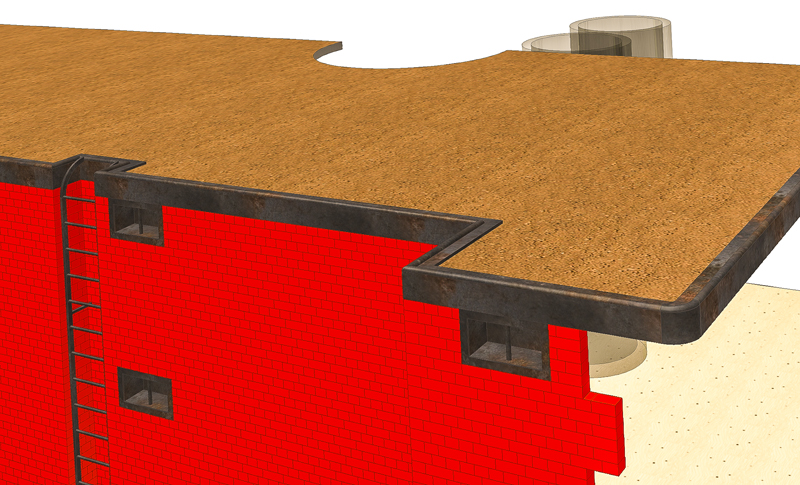

For this, the order for each surface milling passes was set in the CAD program.

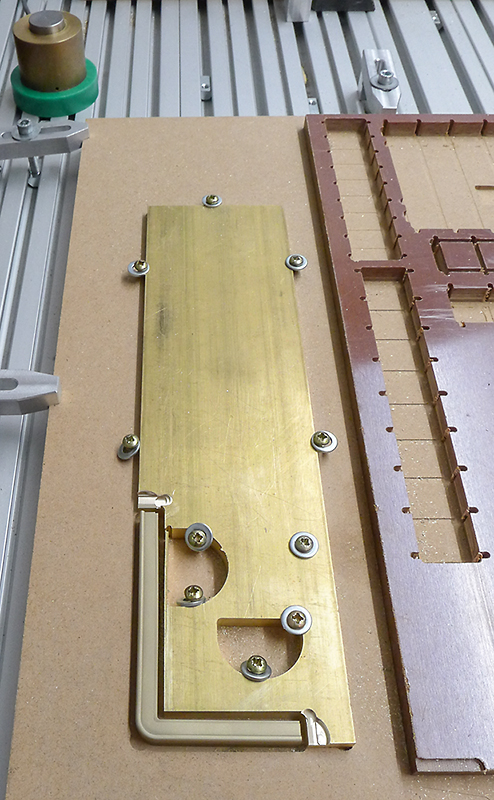

Metallkante_1_25mm_16 (fspg2)



Metallkante_1_25mm_17 (fspg2)



Metallkante_1_25mm_18 (fspg2)



Metallkante_1_25mm_19 (fspg2)


Now the mill machine has to come into action.

Frithjof
Logged

Frithjof
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 4025



WWW
« Reply #393 on: December 16, 2018, 08:59:13 PM »

As always, it is a pleasure to follow along with your progress on this project!
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakin’s World
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5462


« Reply #394 on: December 17, 2018, 01:17:14 PM »

The precision and execution are beyond comprehension. -- Russ
Logged
fspg2
Sr. Member
****
Offline Offline

Posts: 276



« Reply #395 on: December 17, 2018, 03:44:06 PM »

Thanks for your consent.

It took less than an hour for the milling machine to mill the round metal edge.

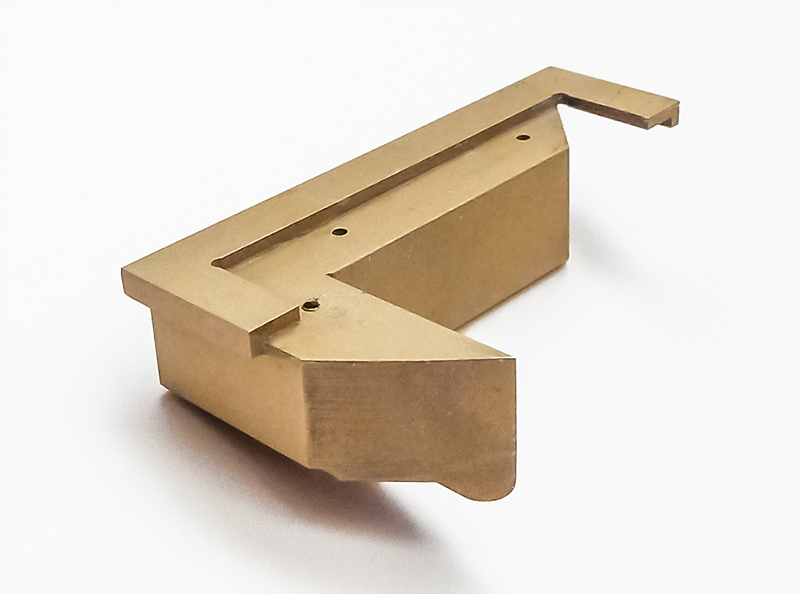

Metallkante_1_25mm_20 (fspg2)



Metallkante_1_25mm_21 (fspg2)
Logged

Frithjof
nalmeida
Jr. Member
**
Offline Offline

Posts: 90



WWW
« Reply #396 on: December 18, 2018, 05:47:28 AM »

Wonderful work, I also do a lot of machining and I really appreciate all your posts. I do not post much but I find all your work amazing.
Logged
Hydrostat
Hero Member
*****
Offline Offline

Posts: 675



WWW
« Reply #397 on: December 18, 2018, 06:10:22 AM »

How are you going to achieve the butt joints?
Logged

I'll make it. If I have to fly the five feet like a birdie.

I'll fly it. I'll make it.
Bill Gill
Hero Member
*****
Offline Offline

Posts: 874



« Reply #398 on: December 18, 2018, 06:46:07 AM »

Always enjoy seeing your work.
Logged
Barney
Hero Member
*****
Offline Offline

Posts: 1018


« Reply #399 on: December 18, 2018, 04:05:06 PM »

Amazing just amazing - such precision
Barney
Logged
fspg2
Sr. Member
****
Offline Offline

Posts: 276



« Reply #400 on: December 30, 2018, 05:13:16 AM »

@Volker
I can´t give a clear answer to that. On all the pictures I know, I´m not been able to see any clear joints.... except here:

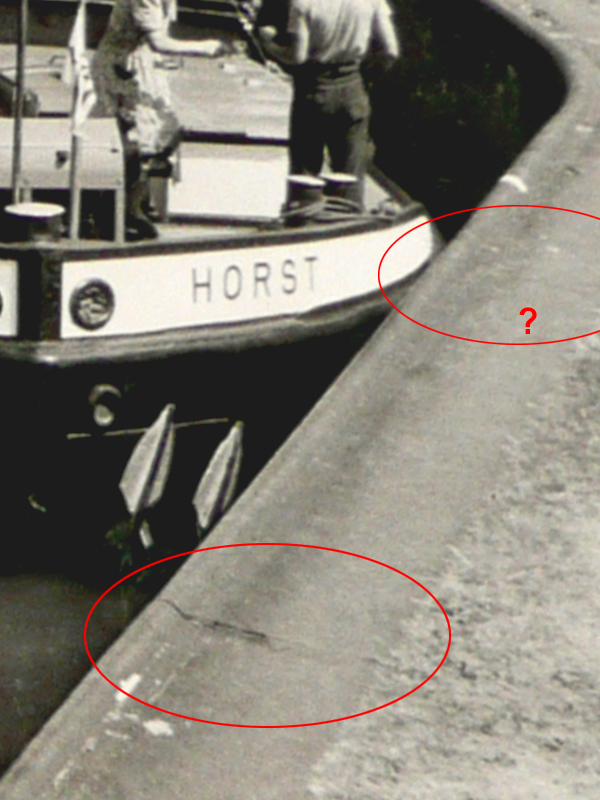

Crop_Schleuse_Lbg_22_07_1959 (fspg2)

Slg:Hellmich

The photo is from 1959 and shows another area of the lock.


I will not solder all the brass profiles to each other so that the wood and brass parts can "move" when the temperature changes.

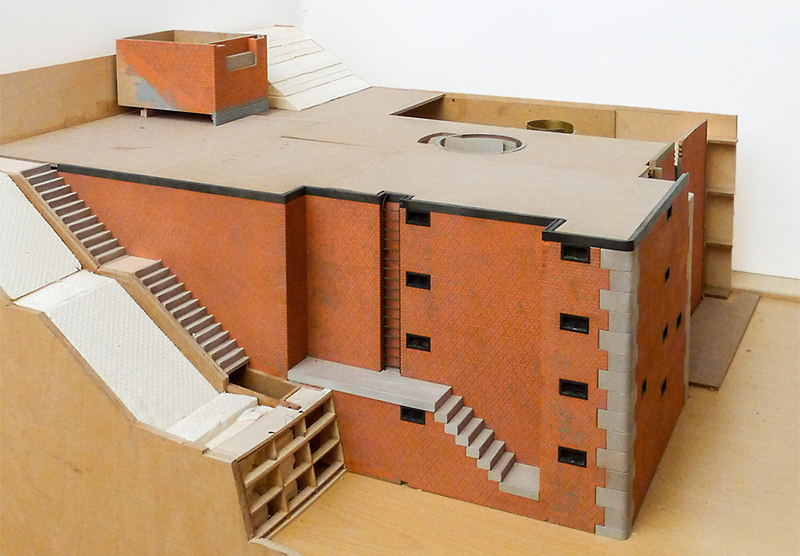

Now the first metal edges were placed on the wall.

Previously I have glued into the holes 1.0mm brass wire with shaft-hub joint-adhesive and sanded the tops smooth.
On the bottom the wire stopped about 5 mm long for precise assembly.
The parts were blasted and blackened.


Metallkante_1,25mm_23 (fspg2)



Metallkante_1,25mm_24 (fspg2)




Something to the ladders:

In July 2011, I had milled a gauge from Pertinax to build the two ladders for the locks walls.

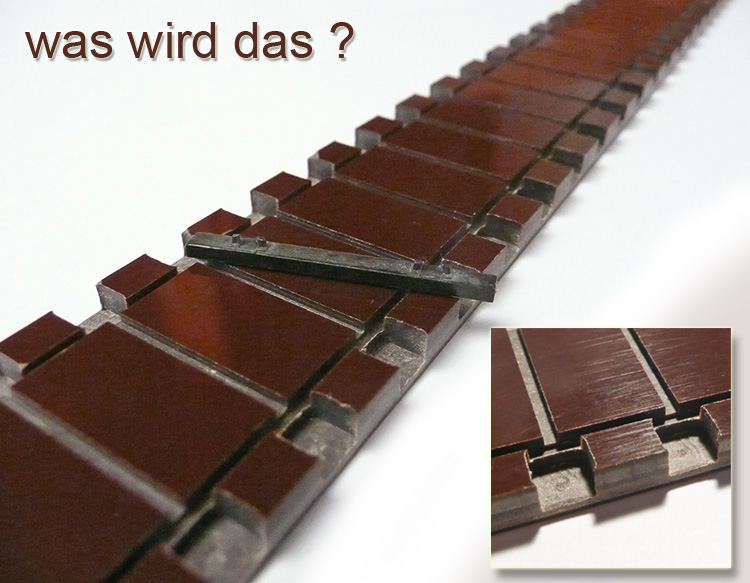

what´s that? (fspg2)



The 1.0 x 2.0 mm thick model spars are 20.0 cm (17 steps) and 28.0 cm (24 steps) long and 20.28 mm wide. The soldering gauge heIps for clean aligned stairs.

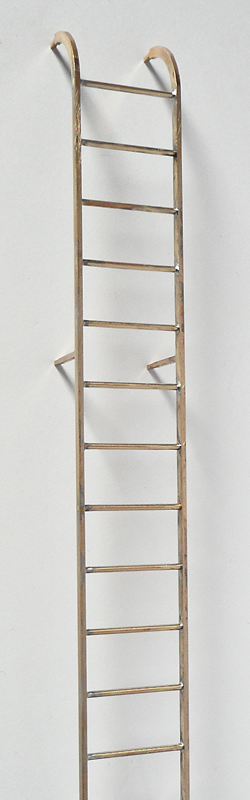

Leiter_01 (fspg2)




After the protruding rungs outwards on both sides were cutted with an 0.3mm saw blade on my Böhler-saw
(similar to how here), I had smoothed the outside with a sandpaper file.

Leiter_03 (fspg2)


Afterthen the two ladders were sandblasted.

Leiter_04 (fspg2)

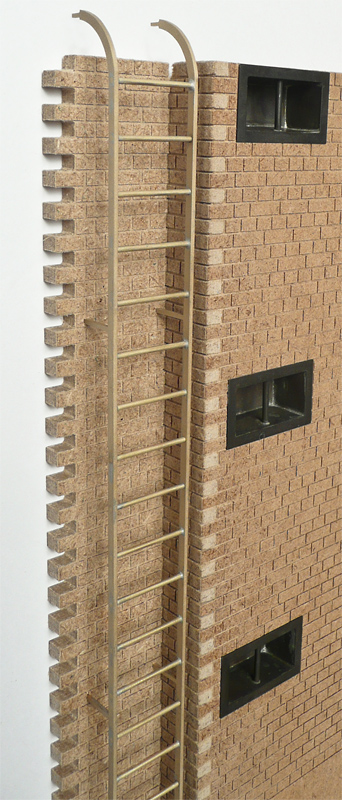

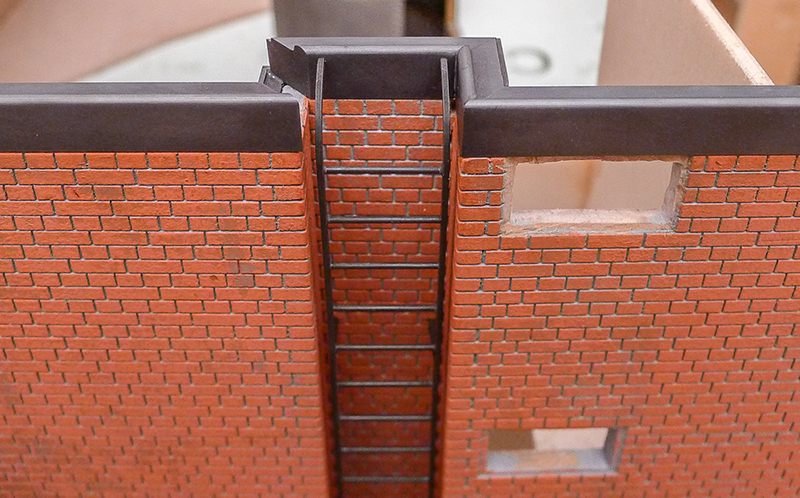

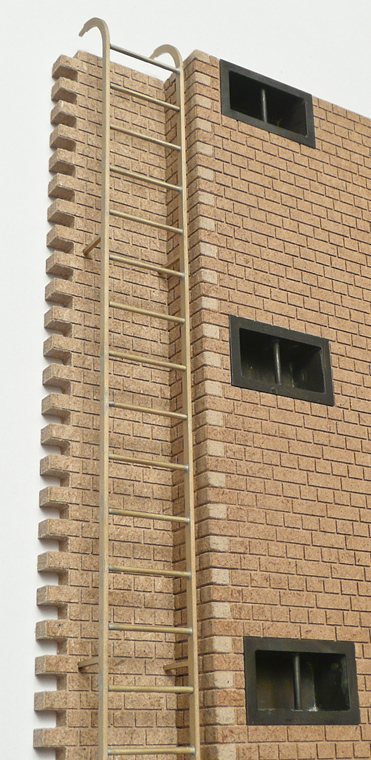

Four 1.0 mm holes in the wall pick up the pins at the ends of the brackets.

Leiter_05 (fspg2)



Now I would like to thank all of you for your participation - but especially at Russ for the opportunity to write here in this great forum!

Have a good start for 2019!
Logged

Frithjof
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5462


« Reply #401 on: December 30, 2018, 02:26:19 PM »

Everything looks perfect. I find no room for improvement. Satisfactory. -- Russ
Logged
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 4025



WWW
« Reply #402 on: December 31, 2018, 12:04:17 AM »

Once again a well-made jig proves its worth!
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakin’s World
fspg2
Sr. Member
****
Offline Offline

Posts: 276



« Reply #403 on: January 03, 2019, 03:25:37 PM »

I could do only a little "earthworks" the last days.

So I installed the mooring first and glued the top metal edges.

A few plywood boards were installed for reinforcement.

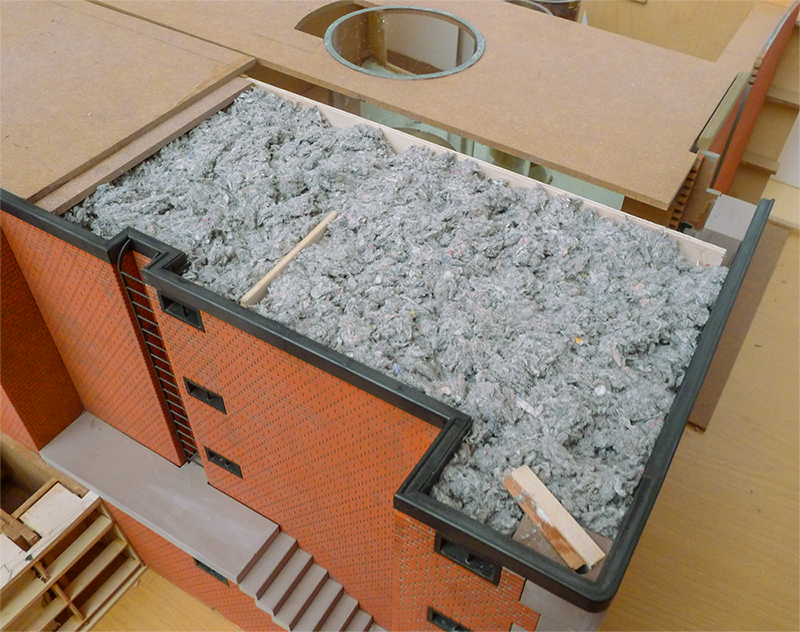

For soundproofing, I had filled up all voids with cellulose insulation still present.

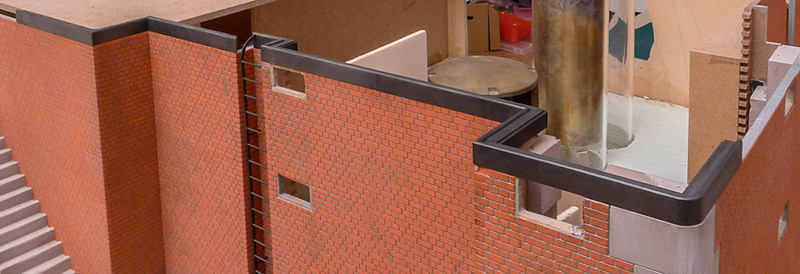

Metallkante_1_25mm_028 (fspg2)



Metallkante_1_25mm_025 (fspg2)



Metallkante_1_25mm_026 (fspg2)

« Last Edit: January 04, 2019, 03:50:34 AM by fspg2 » Logged

Frithjof
1-32
Hero Member
*****
Offline Offline

Posts: 738


Hi, I'm Kim.


« Reply #404 on: January 04, 2019, 02:29:00 PM »

great, what is the sound insulation for?
