« Reply #360 on: May 24, 2017, 12:41:32 AM »

as always a great series of photos of lovely work.
cheers kim
Logged
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 4829


« Reply #361 on: May 24, 2017, 01:22:09 AM »

It is easy for us to see the perfection of your work but we usually forget to mention the intelligence and talent that goes into the planning, design, and jigs. I think all of us would agree your work is adequate. -- Russ
Logged
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 3591



WWW
« Reply #362 on: May 25, 2017, 12:26:57 AM »

Marvelous work!
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakin’s World
fspg2
Full Member
***
Offline Offline

Posts: 199



« Reply #363 on: May 25, 2017, 12:04:30 PM »

@ Bill, Kim, Russ, Ray
You make me quite confuse, with so much praise - all this is no witching :-)

It goes on, but only a little für time reasons.

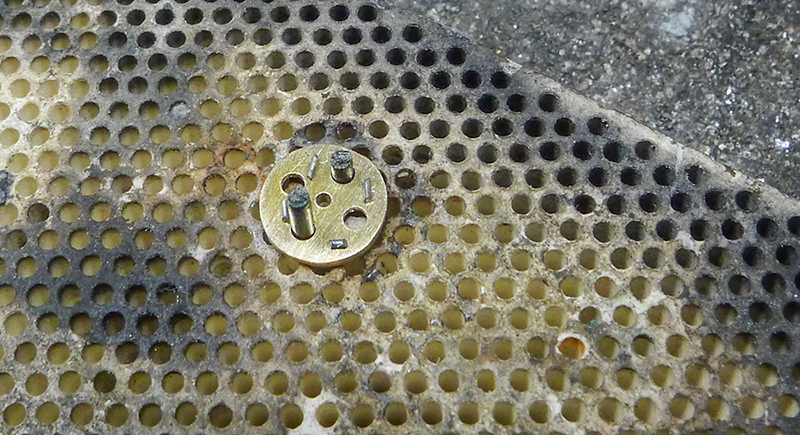

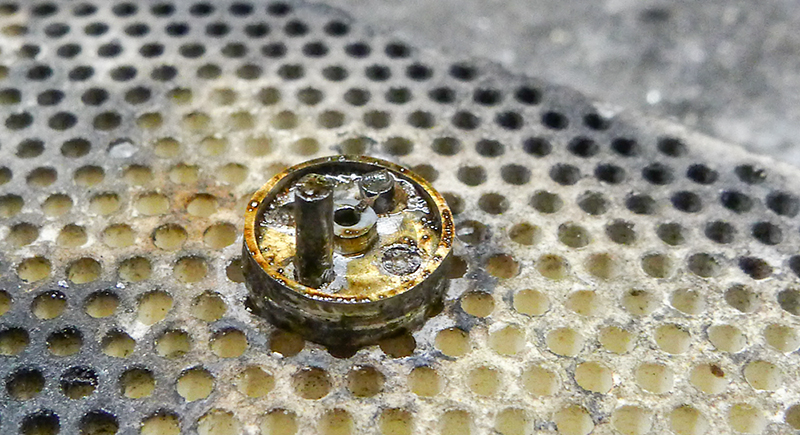

I milled the wheel discs for the little trolleys and soldered it together.

Alter_Transportwagen_klein_13 (fspg2)



Alter_Transportwagen_klein_14 (fspg2)



Alter_Transportwagen_klein_15 (fspg2)

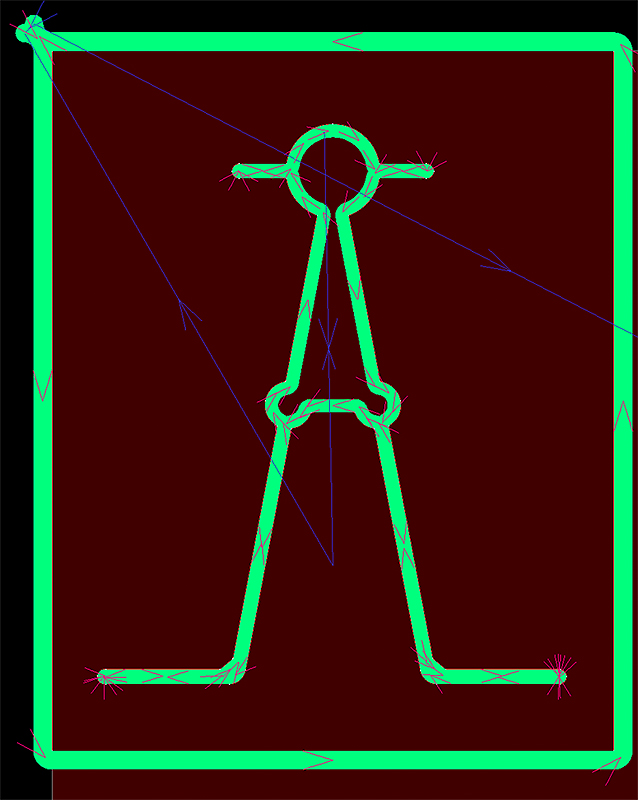

To smooth the running surface, I will build a small gauge from an 8.0mm aluminum or brass rod. Here it´s already drawn:

Alter_Transportwagen_klein_16 (fspg2)

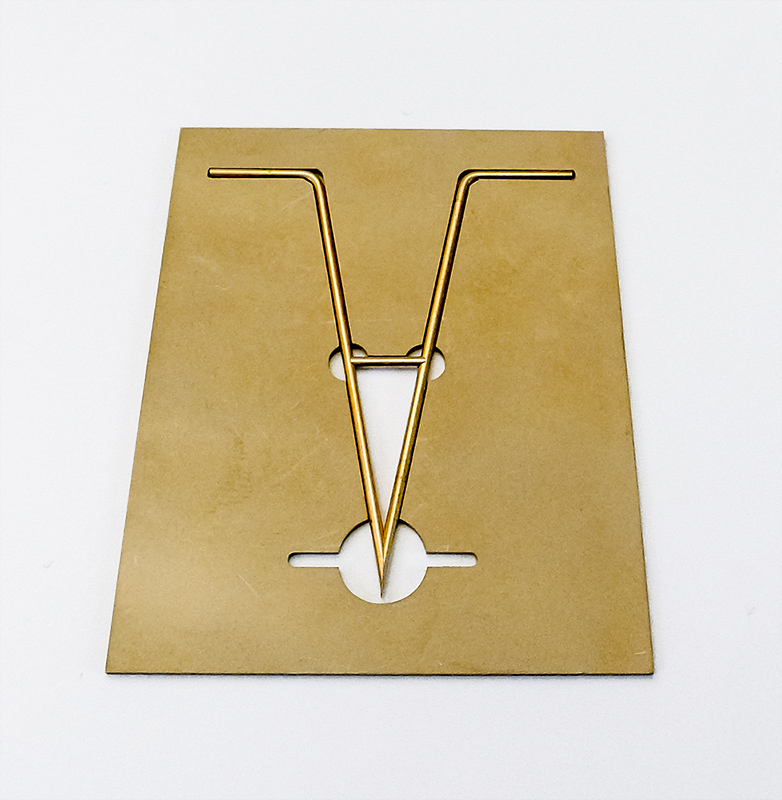

To get equal shafts for the large trolley, I also milled a small gauge from 1.0mm brass sheet.
Deichsel_quer_bohren_07 (fspg2)



Deichsel_quer_bohren_08 (fspg2)



Deichsel_quer_bohren_09 (fspg2)



Deichsel_quer_bohren_10 (fspg2)

Logged

Frithjof
Gordon Ferguson
Hero Member
*****
Offline Offline

Posts: 1038


« Reply #364 on: May 28, 2017, 11:35:00 AM »

I always love seeing new posts on this thread , the ideas and execution of them is a wonder to behold .

In many ways I wish I had my time again to be able learn the skills and techniques demonstrated on every page so I hope you will forgive for posting this picture ........ It's only posted due my sense of humour and to demonstrate a completly opposite approach

It's plastic , it's made using only hand tools ......... Scalpel, dividers , sanding sticks, the only power tool used was an electric drill at the end just to do a final truing up ......... Overall dia 19mm / about 3/4 inch

Used this master to cast up copies in resin

Logged

Gordon
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 4829


« Reply #365 on: May 28, 2017, 12:20:22 PM »

Satisfactory nonetheless. -- Russ
Logged
Bill Gill
Hero Member
*****
Offline Offline

Posts: 558



« Reply #366 on: May 28, 2017, 03:05:36 PM »

Gordon, your skills and models are excellent. The choice of materials and tools take nothing from that.
Logged
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 3591



WWW
« Reply #367 on: May 29, 2017, 12:18:12 AM »

Excellent work, Gordon!
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakin’s World
Allan G
Full Member
***
Offline Offline

Posts: 170


« Reply #368 on: May 29, 2017, 08:58:44 AM »

"INCREDIBLE".....Allan
Logged
fspg2
Full Member
***
Offline Offline

Posts: 199



« Reply #369 on: June 01, 2017, 02:11:30 PM »

Gordon, I´m enthused about your skills - it looks great Smiley


The shafts of the larger trolleys should be hard-soldered.

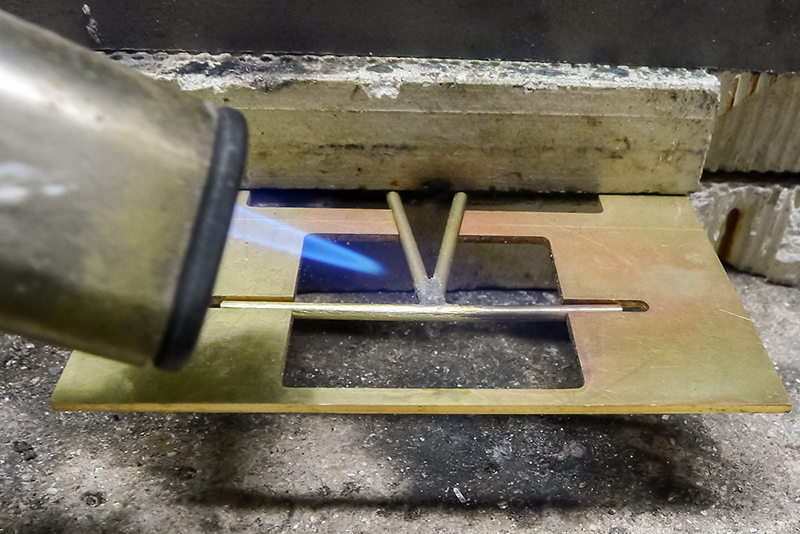

For this I had  put the prepared 1.5mm wires into the milled gauge and coated it with brazing paste from Bengs and placed everything on my ceramic soldering plate.
Micro flame on it ....the paste swelled a little, turned gray and gray ... but didn´t want to be silvery and connect themselves to the brass rods.

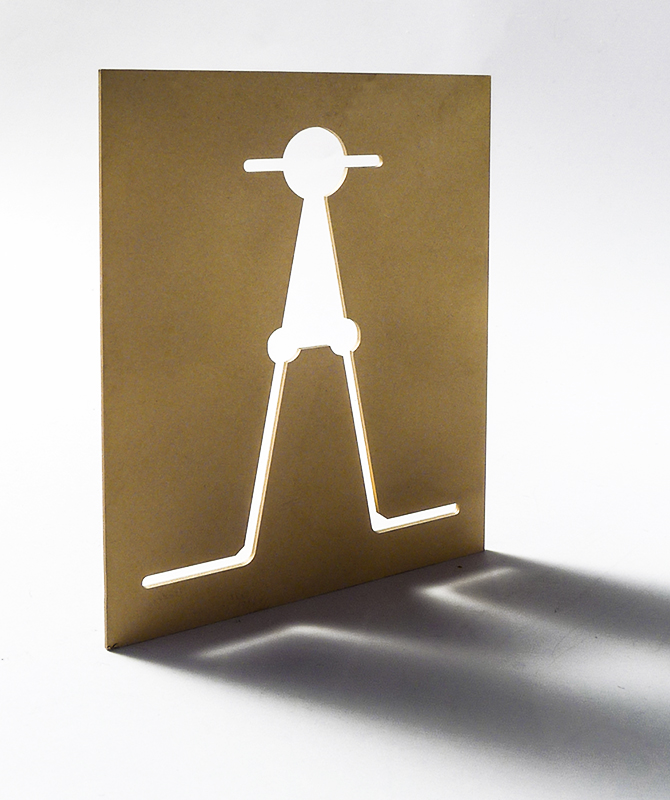

I suspected that my brass gauge took away too much heat - so a new jig was milled (with larger cutouts around the solder joints) ... with the same result.

Then the gauge was raised slightly .... lo and behold, now it worked as usual. So the solder plate had played a trick on me.


Alter_Transportwagen_26 (fspg2)

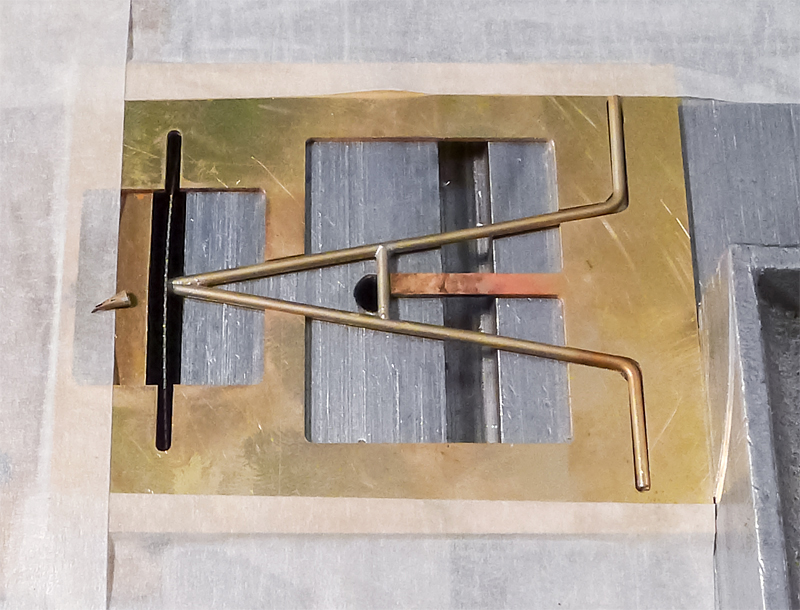

Also the same soldering jig served as a fence for the saw - here the tip was separated ....


Alter_Transportwagen_24 (fspg2)

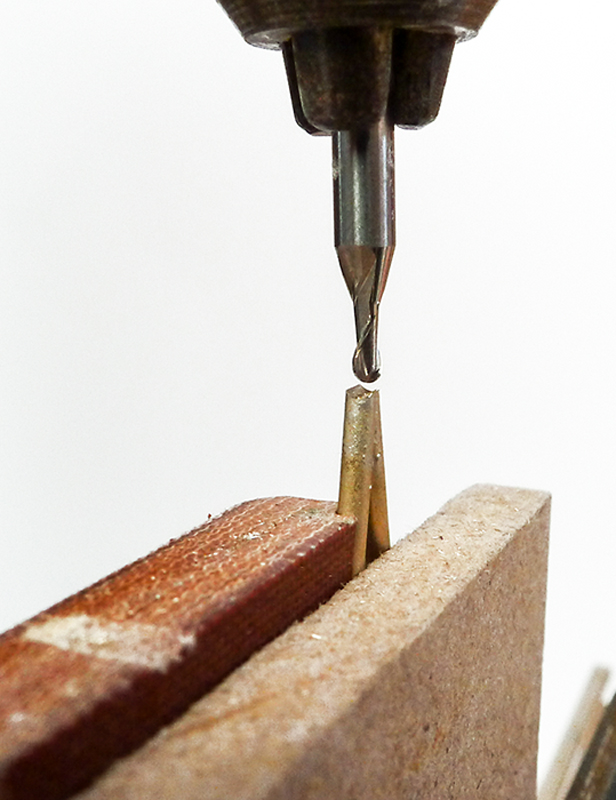

... and the edge was rounded with an 1.5mm ball cutter.

Alter_Transportwagen_25 (fspg2)



The first old trolley is almost ready .... he must be grown old a little.

Alter_Transportwagen_27 (fspg2)



For the small trolley I had milled the steering roller holder -  made of 0.5 mm nickel silver.

Alter_Transportwagen_klein_17 (fspg2)

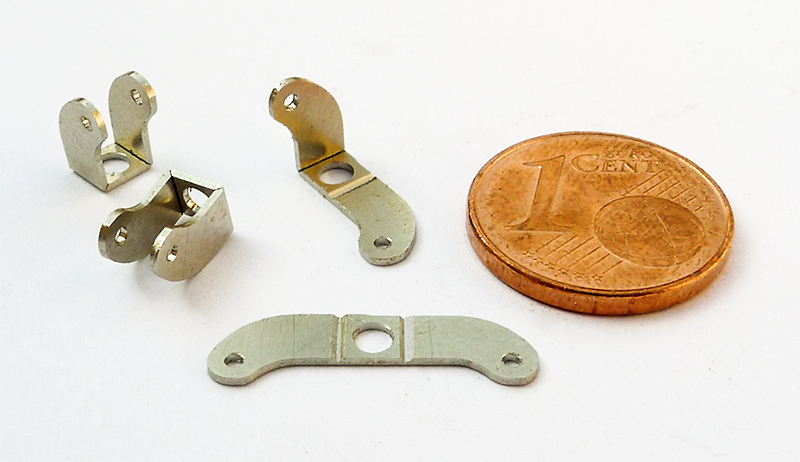

The other small bearings were milled – they are waiting for the assembly.

Alter_Transportwagen_klein_18 (fspg2)

Logged

Frithjof
eTraxx
Hero Member
*****
Offline Offline

Posts: 1011



WWW
« Reply #370 on: June 01, 2017, 05:10:14 PM »

Geeze. Watching the world class work in the thread is both wonderful and depressing ... ha.
Logged

Ed Traxler

Lugoff, Camden & Northern RR

Socrates: "I drank WHAT?"
Bill Gill
Hero Member
*****
Offline Offline

Posts: 558



« Reply #371 on: June 01, 2017, 06:21:14 PM »

Frithjof, following along your construction by looking through your lens rather than over your shoulder is a very enjoyable and educational experience.
Logged
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 3591



WWW
« Reply #372 on: June 01, 2017, 10:13:42 PM »

I'm loving it!
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakin’s World
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 4829


« Reply #373 on: June 02, 2017, 01:11:39 AM »

"World class" is no exaggeration. (The same applies to a few others here.) -- Russ
Logged
nk
Full Member
***
Offline Offline

Posts: 207



WWW
« Reply #374 on: June 04, 2017, 11:10:57 AM »

This is incredible stuff. WOW
