Author Topic: Feldbahnmodule with ship  (Read 160924 times)
1-32
Hero Member
*****
Offline Offline

Posts: 693


Hi, I'm Kim.


« Reply #345 on: April 29, 2017, 03:45:38 AM »

love the trolley cheers
Logged
lab-dad
Hero Member
*****
Offline Offline

Posts: 2083



« Reply #346 on: May 01, 2017, 11:48:05 AM »

Nice!
CNC makes it (look) easy!
Marty
Logged

     Martin G. Jones Photography
    Go not where the path leads
Go instead, where there is no path,
           And leave a trail
fspg2
Sr. Member
****
Offline Offline

Posts: 267



« Reply #347 on: May 05, 2017, 01:12:03 PM »


Today only a small update.

Thus, the last parts for the old transport trolley were milled and the first frame soldered.


Alter_Transportwagen_15 (fspg2)




Alter_Transportwagen_17 (fspg2)



Alter_Transportwagen_18 (fspg2)

Logged

Frithjof
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5379


« Reply #348 on: May 06, 2017, 01:15:14 AM »

That is just beautiful. -- Russ
Logged
Bill Gill
Hero Member
*****
Offline Offline

Posts: 837



« Reply #349 on: May 06, 2017, 04:08:01 PM »

I agree with Russ: Beautiful!
Logged
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 3954



WWW
« Reply #350 on: May 06, 2017, 10:22:45 PM »

Yep, definitely beautiful!
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakin’s World
fspg2
Sr. Member
****
Offline Offline

Posts: 267



« Reply #351 on: May 08, 2017, 12:26:12 AM »

Russ, Bill, Ray: Thanks for your commendation.

Currently there are only small steps that I can tell about.


The front axle has been soldered together. Small rectangular Pertinax blocks helped for this.
Both laterals received two 0.8 mm holes and were pinned with small rivets.
(A 0.8mm wire was no longer in my junk box, so the rivets.)


Alter_Transportwagen_19 (fspg2)

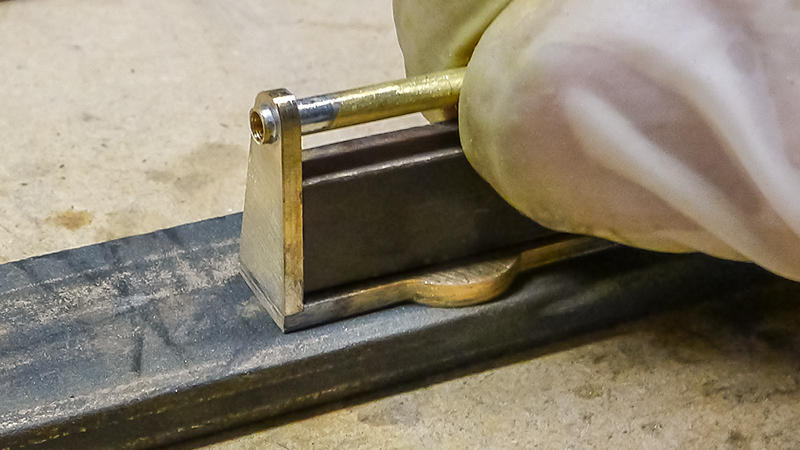

The rivet heads I grinded on a sandpaper file.


Alter_Transportwagen_20 (fspg2)




The remaining wheel halves were soldered together.
To smooth the outer surfaces of the tires, I've screwed it into a gauge ....

Alter_Transportwagen_21 (fspg2)



... and the lathe did the rest.

Alter_Transportwagen_22 (fspg2)



Now a first rehearsal on four wheels.

Alter_Transportwagen_23 (fspg2)

Logged

Frithjof
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 3954



WWW
« Reply #352 on: May 08, 2017, 12:47:12 AM »

Wow!
Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakin’s World
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5379


« Reply #353 on: May 08, 2017, 12:04:58 PM »

Now I know your secret for doing such perfect work: You talk the lathe into doing everything for you but you take all the credit! -- ssuR
Logged
fspg2
Sr. Member
****
Offline Offline

Posts: 267



« Reply #354 on: May 16, 2017, 01:05:49 AM »

@Russ  Please don´t tell anyone  Wink


I must confess, on the website of Paul I discoverd a  smaler transport trolley. I liked it so much that I had to build it in scale 1:22.5.

First it was drawn a little bit:

Alter_Transportwagen_klein_01 (fspg2)



Alter_Transportwagen_klein_03 (fspg2)



Alter_Transportwagen_klein_04 (fspg2)



The workshop wagons will be build as welded version. Made of 2.0mm and 1.5mm brass sheets, the side bolsters and the axle bearings were milled.

Alter_Transportwagen_klein_05 (fspg2)



Alter_Transportwagen_klein_07 (fspg2)



Synthetic resin bonded paper gauges facilitate the installation of the crossbars.

Alter_Transportwagen_klein_08 (fspg2)



Alter_Transportwagen_klein_10 (fspg2)



The foreman must always complain about - of course he immediately noticed that the wheel is slightly oversized.

Alter_Transportwagen_klein_09 (fspg2)

Logged

Frithjof
finescalerr
Administrator
Hero Member
*****
Offline Offline

Posts: 5379


« Reply #355 on: May 16, 2017, 01:18:03 AM »

Either you never sleep or you have learned how to create beautiful parts very efficiently. It would take me a month to make just one part ... and it would look a lot worse than yours. -- Russ
Logged
Bill Gill
Hero Member
*****
Offline Offline

Posts: 837



« Reply #356 on: May 16, 2017, 05:28:32 AM »

Another terrific start! Maybe a little filing can resize the wheel Smiley
Logged
Ray Dunakin
Hero Member
*****
Offline Offline

Posts: 3954



WWW
« Reply #357 on: May 16, 2017, 09:58:23 PM »

You're a wizard of miniature fabrication!

Logged

Visit my website to see pics of the rugged and rocky In-ko-pah Railroad!

Ray Dunakin’s World
fspg2
Sr. Member
****
Offline Offline

Posts: 267



« Reply #358 on: May 23, 2017, 01:35:43 PM »

Russ, Bill, Ray - Thanks!  Smiley


See how the Pertinax gauges looks after four trolleys were soldered.


Alter_Transportwagen_klein_11 (fspg2)



On the next image you can see in front left one unit before sandblasting, the other three frames are blasted.


Alter_Transportwagen_klein_12 (fspg2)



At the old trolley the shaft is still missing.


Deichsel_01 (fspg2)

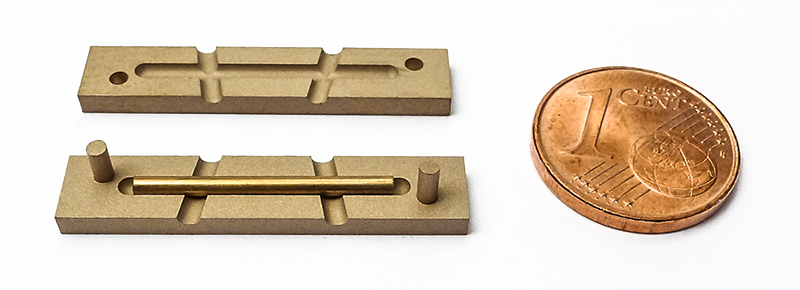

For the cross-connection I have milled a little gauge with an 1.5mm ball cutter.


Deichsel_quer_bohren_01 (fspg2)



Deichsel_quer_bohren_02 (fspg2)

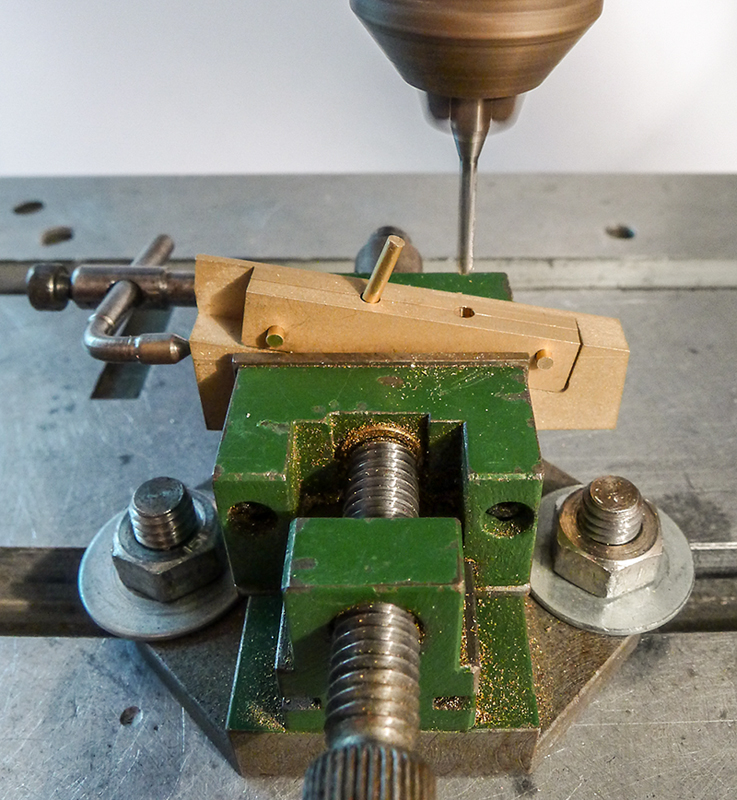

In the vice both oblique holes were placed vertically by the help of a second gauge.


Deichsel_quer_bohren_03 (fspg2)



In order that the rod doesn´t rotate during drilling the second hole, the rod was fixed inside with adhesive tape and additionally secured with an 1.5 mm round bar.


Deichsel_quer_bohren_04 (fspg2)



The two long shaft halves were "sharpened" in a hard paper gauge.


Deichsel_quer_bohren_05 (fspg2)



Deichsel_quer_bohren_06 (fspg2)
« Last Edit: May 23, 2017, 02:43:14 PM by fspg2 » Logged

Frithjof
Bill Gill
Hero Member
*****
Offline Offline

Posts: 837



« Reply #359 on: May 23, 2017, 04:10:54 PM »

It's pleasing and inspiring to see the consistently high quality of your work.
